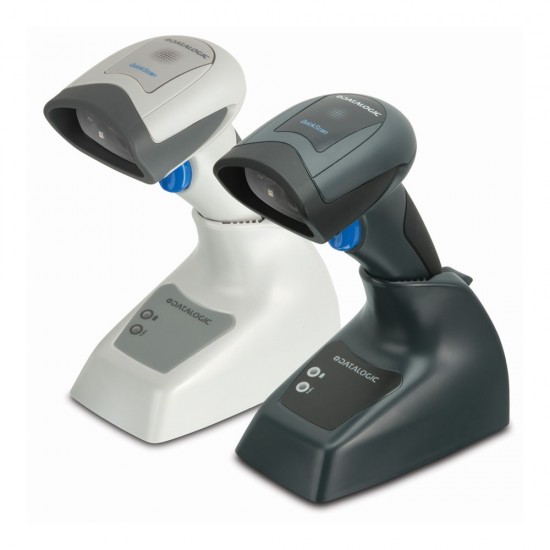

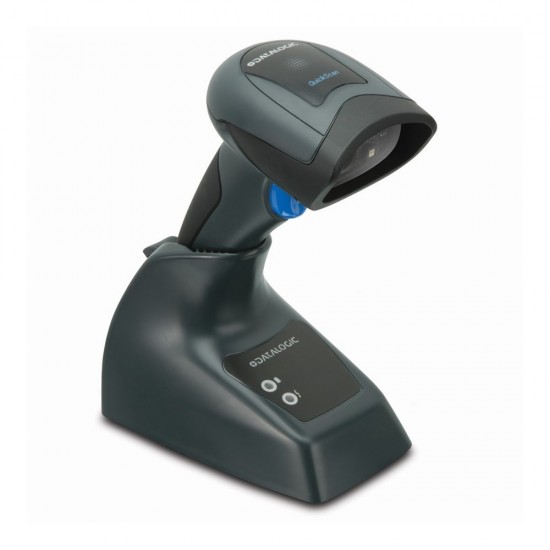

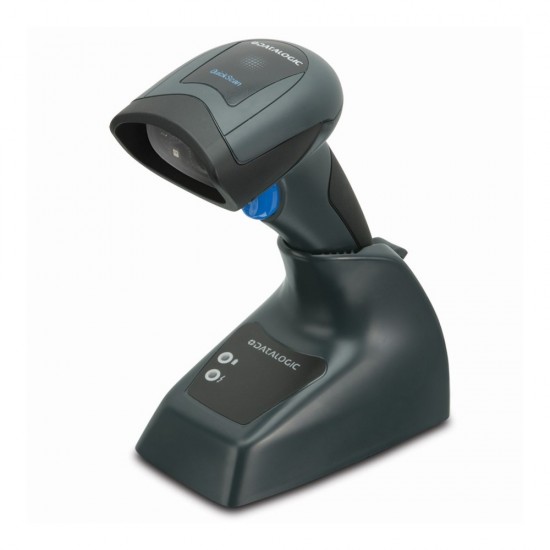

QuickScan QM2430 1D, 2D Scanner Bluetooth

QuickScan QM2430 1D, 2D Scanner Bluetooth
QuickScan QM2430 1D, 2D Scanner Bluetooth
QuickScan QM2430 1D, 2D Scanner Bluetooth
QuickScan QM2430 1D, 2D Scanner Bluetooth
QuickScan QM2430 1D, 2D Scanner Bluetooth
QuickScan QM2430 1D, 2D Scanner Bluetooth
QuickScan QM2430 1D, 2D Scanner Bluetooth
QuickScan QM2430 1D, 2D Scanner Bluetooth
QuickScan QM2430 1D, 2D Scanner Bluetooth
QuickScan QM2430 1D, 2D Scanner Bluetooth
QuickScan QM2430 1D, 2D Scanner Bluetooth

Downloads

File Size Download
DS-QUICKSCANIQM2400-EN.pdf 284.21KB Download

Scanner Datalogic QuickScan QM2430 Bluetooth with 500 barcode memory

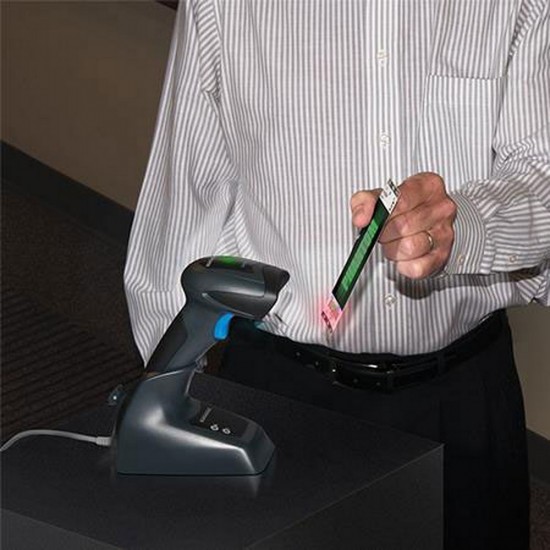

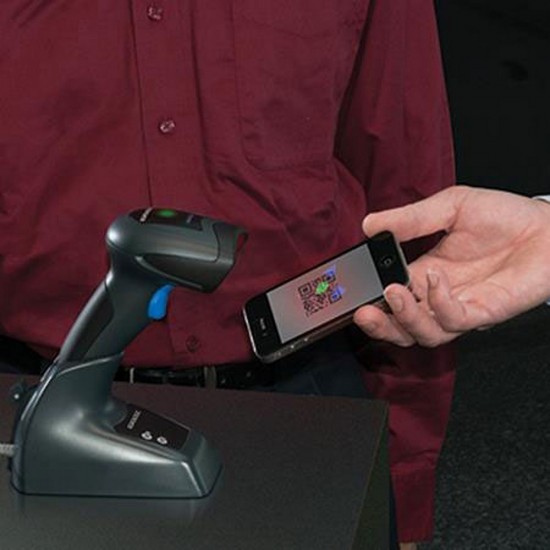

The QuickScan™ QM2400 2D imager is the ideal cordless solution for multiple general purpose data collection applications such as POS Checkout, Inventory, Price Checking and Shelf Replenishment. It is also excellent for Access Control applications in exhibitions, trades shows and other similar indoor events. Featuring Datalogic’s STAR Cordless System™ 2.0, the QuickScan QM2400 2D provides a simple point-to-point connection with secure radio communications with no risk of interference with Wi-Fi infrastructures and very low sensitivity to obstacles. The QuickScan QM2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during daily scanning activities. It consists of a soft, dark red illumination combined with two blue LED triangles pointing at the targeted bar code.  QuickScan QM2400 2D imager is capable of reading mobile phone displays and loyalty cards at the POS.

Specifications

Scanners
Reading mode 2D
Scanning range/ Βάθος πεδίου Code 39 5 mils: 0.5 to 15.0 cm / 0.2 to 5.9 in EAN/UPCA 13 mils: 0.5 to 35.0 cm / 0.2 to 13.8 in PDF417 6.6 mils: 2.0 to 15.0 cm / 0.8 to 5.9 in Data Matrix 10 mils: 2.0 to 16.0 cm / 0.8 to 6.3 in
Scanning range/ Width of Field Pitch: +/- 65°; Roll (Tilt): 360°; Skew (Yaw): +/- 60°
Resolution 0.102 mm / 4 mils (Linear Codes)
Interfaces Keyboard Wedge / OEM (IBM) USB / RS-232 / USB
Dimensions Height 6.4"/163 mm - Length 3.6"/91 mm - Width 1.6"/41 mm
Weight Reader: 200 g / 7.1 oz. Base/Charger: 230 g / 8.1 oz
Ambient light 0 - 100,000lux
Sealing IP42
Symbologies 1D / LINEAR CODES Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes. 2D CODES Aztec Code; Aztec Mesas; Data Matrix; Maxi Code; QR Code, Micro QR Code; China Han Xin Code POSTAL CODES Australian Post; British Post; Canadian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC) STACKED CODES EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites.
Additional features Operating Temperature 0° to 50° C (32° to 122° F) Storage Temperature -40° to 70 °C (-40° to 158° F) Humidity Operating: 5% to 95% relative humidity, non-condensing. Drop Specifications Scanner withstands repeated drops from 1.5 meters (5.0 feet) to concrete.
