QuickScan QM2131 1D Scanner Bluetooth

Name: QuickScan QM2131 1D Scanner Bluetooth
Brand: DATALOGIC
Price: 1.00 EUR
Availability: InStock

QuickScan QM2131 1D Scanner Bluetooth

Downloads

File	Size	Download
DS-QUICKSCANIQBT_QM2131-EN-HR.pdf	745.08KB	Download

Description
Video

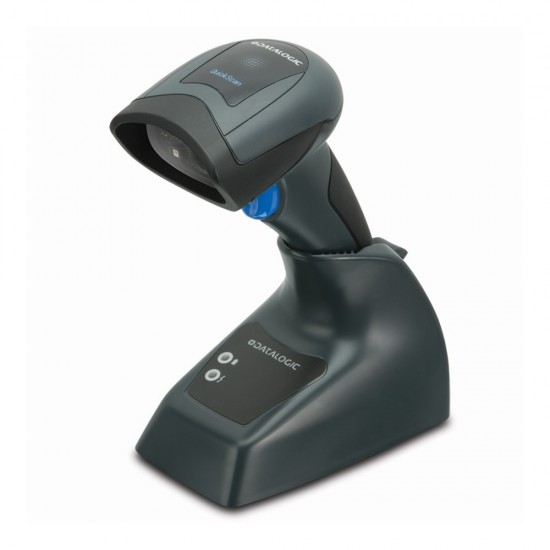

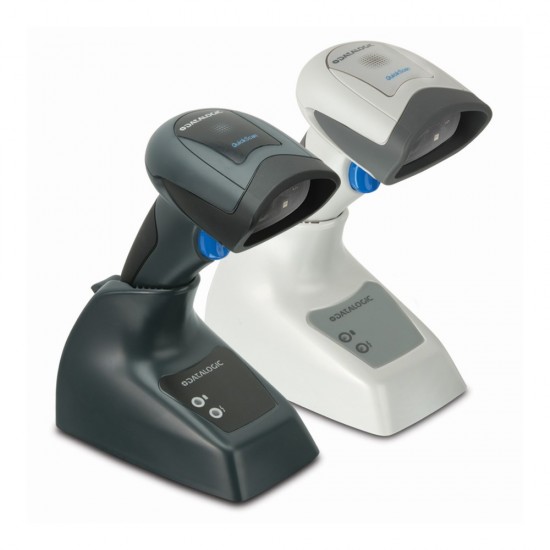

Scanner Datalogic QuickScan QM2131 Bluetooth

The QuickScan 2131 imager’s extra-wide field of view and extra-long scan line makes reading long bar codes in closer distances much easier. The sharp and highly visible scan line makes the scanner more user-friendly to use, while the enhanced depth of field enables bar codes to be read at an intuitive distance. The stylish design is the signature of the QuickScan series, completing a consistent family appearance. Narrow band radio communications with Datalogic’s STAR Cordless System™ (QM2131) or Bluetooth® wireless technology (QBT2131) are the keys to increased productivity and flexibility in the workplace. An innovative, long lasting and user replaceable Li-Ion battery package allows the simultaneous replacement of battery and scanner contacts for a refresh of the most significant parts related to a mobile product’s functionality. A microUSB port on the scanner foot allows an auxiliary method for battery recharging and host download configuration, and also allows the product to be used without the cradle.

DATALOGIC

Specifications

Scanners
Reading mode	1D
Scanning range/ Βάθος πεδίου	Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent. 4 mils: 3.0 to 11.0 cm / 1.2 to 4.3 in 5 mils: 2.0 to 15.0 cm / 0.8 to 5.9 in 7.5 mils: 2.0 to 25.0 cm / 0.8 to 9.8 in 10 mils: 2.0 to 36.0 cm / 0.8 to 14.2 in 13 mils: 1.0 to 45.0 cm / 0.4 to 17.7 in 20 mils: 4.0 to 70.0 cm / 1.5 to 27.5 in

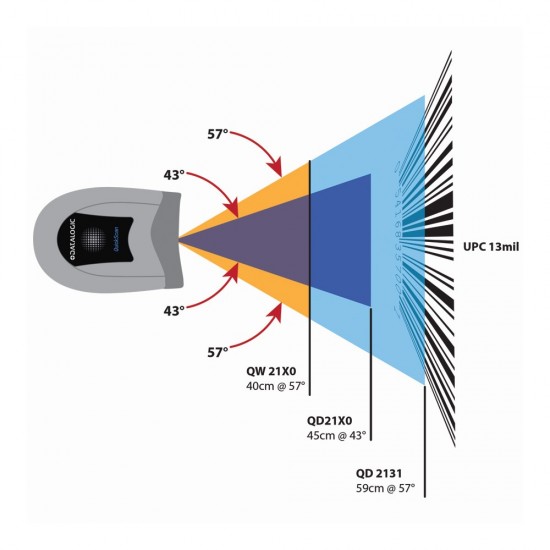

Scanning range/ Width of Field	Pitch: +/- 65°; Roll (Tilt): 45°; Skew (Yaw): +/-70°
Resolution	0.102 mm / 4 mils (Linear Codes)
Interfaces	High Speed USB 2.0 Host and Client with USB Type C connector
Dimensions	16.3 x 9.1 x 4.1 cm / 6.4 x 3.6 x 1.6 in
Weight	Reader: 190 g / 7.8oz. Base/Charger: 215g / 7.6oz
Ambient light	0 - 120,000lux
Sealing	IP42
Symbologies	1D / Linear Codes Auto discriminates all standard 1D codes including GS1. DataBar™ linear codes.
Additional features	Operating Temperature 0° to 50° C (32° to 122° F) Storage Temperature -40° to 70 °C (-40° to 158° F) Humidity Operating: 5% to 95% relative humidity, non-condensing. Drop Specifications Scanner withstands repeated drops from 1.5 meters (5.0 feet) to concrete. Battery Type: Lithium-Ion 1400 mAh; Charge Time: External Power: 4 hrs @ 12 VDC; Reads per Charge: 30,000 +. Input Voltage 4.75 - 14 VDC. Environmental Compliance Complies to China RoHS; Complies to EU RoHS. 3-Year Factory Warranty.
