Magellan 1100i 2D Scanner

Magellan 1100i 2D Scanner

Downloads

File	Size	Download
magellan_1100i_english_ltr.pdf	278.86KB	Download

Description

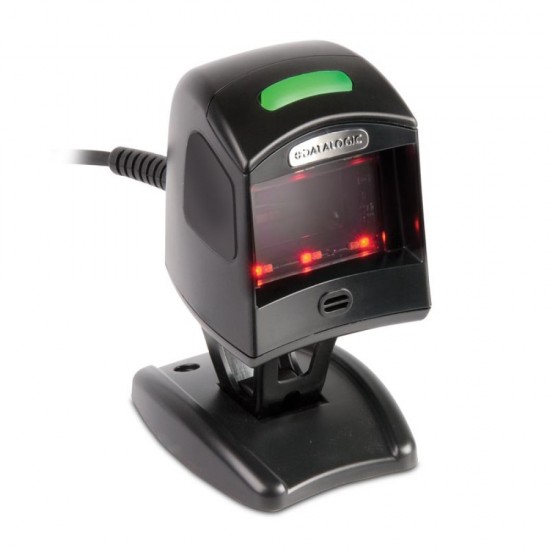

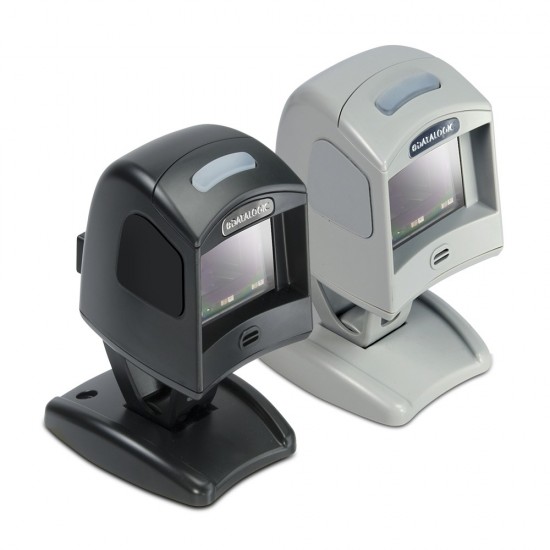

Scanner Datalogic Magellan 1100i 2D

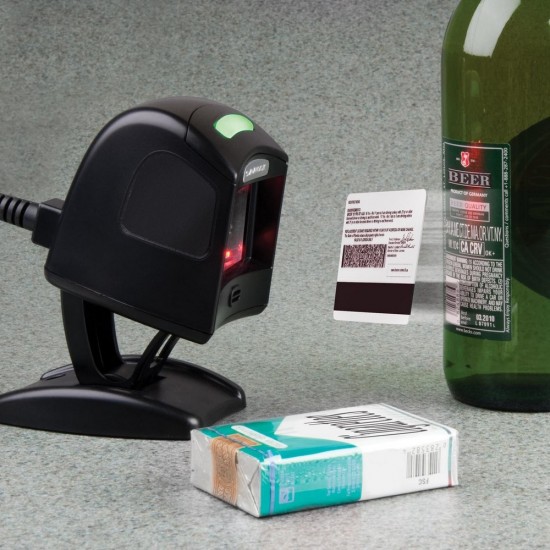

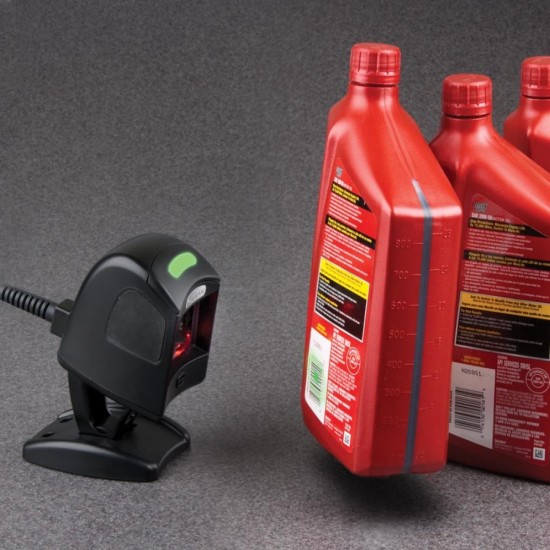

The Magellan™ 1100i omnidirectional presentation scanner. Is a high performing and versatile data collection tool for a variety of applications. Datalogic’s Illumix™ intelligent illumination technology in the Magellan 1100i reader optimizes light levels to automatically capture images and read codes from mobile phones, PDAs, or computer display screens. The Magellan™ 1100i omnidirectional presentation scanner is a high performing and versatile data collection tool for a variety of applications. It uses Datalogic’s latest digital imaging technology to provide intuitive and fast reading performance on 1D and 2D bar codes as well as supporting advanced features like image capture and EAS tag deactivation. A revolutionary External Read Indicator (ERI) allows the Magellan 1100i reader to integrate with other third party RFID or EAS systems for a truly “future-proof” solution.

DATALOGIC

Specifications

Scanners
Reading mode	1D / LINEAR CODES and 2D CODES
Scanning range/ Βάθος πεδίου	1D / Linear Codes: 5 mils: 1.3 to 4.6 cm / 0.5 to 1.8 in 7.5 mils: 0.63 to 5.71 cm / 0.25 to 2.25 in 10 mils: 0 to 12.7 cm / 0 to 5.0 in 13 mils UPC: 0 to 17.7 cm / 0 to 7.0 in 20 mils: 0 to 17.7 cm / 0 to 7.0 in Optional Codes: 6.6 mils PDF: 3.8 to 7.6 cm / 1.5 to 3.0 in 10 mils Data Matrix: 0 to 4.5 cm / 0 to 1.8 in 10 mils PDF: 3.1 to 15.2 cm / 1.2 to 6.0 in 15 mils PDF: 2.5 to 15.2 cm / 1.0 to 6.0 in 24 mils Data Matrix: 0 to 12.7 cm / 0 to 5.0 in
Scanning range/ Width of Field	Pitch: +/- 65°; Roll (Tilt): 0 - 360°; Skew (Yaw): +/- 75°
Scan Rate Ρυθμός σάρωσης	1,768 digital scan lines/sec
Resolution	0.130 mm / 5 mils
Interfaces	IBM 46xx; Keyboard Wedge; OEM (IBM) USB; RS-232; USB
Dimensions	Riser Stand: 5.9 x 7.6 x 9.7 cm / 2.3 x 3.0 x 3.8 in Scanner: 8.4 x 7.1 x 9.4 cm / 3.3 x 2.8 x 3.7 in
Weight	Riser Stand: 187.1 g / 6.6 oz Scanner: 198.5 g / 7.0 oz
Ambient light	Indoor: 0 to 6,000 lux Outdoor: 0 to 86,100 lux
Sealing	IP52
Symbologies	Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes. 2D CODES: Aztec Code, Data Matrix, MaxiCode, QR Code. STACKED CODES: GS1 DataBar Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; Micro PDF417, PDF417
Additional features	Withstands repeated drops from 1.2 m / 4.0 ft onto a concrete surface. ESD PROTECTION (AIR DISCHARGE) 25 kV. HUMIDITY (NON-CONDENSING) 5 - 95%. TEMPERATURE Operating: 0 to 40 °C / 32 to 104 °F. Storage/Transport: -40 to 70 °C / -40 to 158 °F
