Heron HD3130 Scanner

Name: Heron HD3130 Scanner
Brand: DATALOGIC
Price: 1.00 EUR
Availability: InStock

Heron HD3130 Scanner

Downloads

File	Size	Download
DS-HERONHD3100-ENA4-HR.pdf	598.28KB	Download

Description

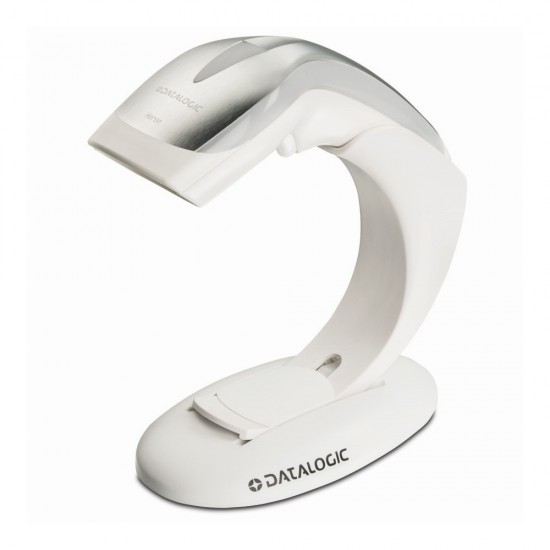

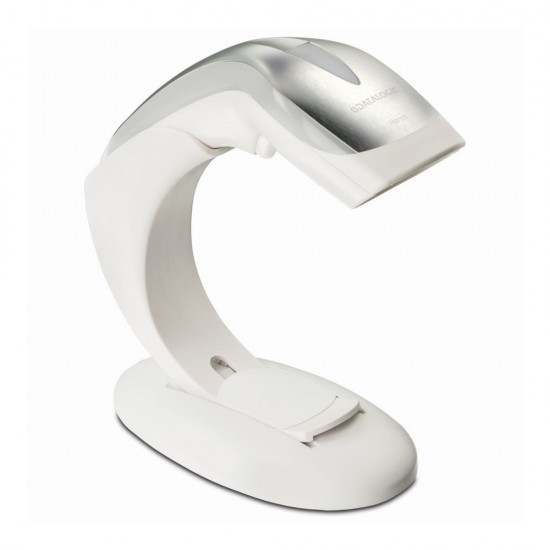

Scanner Datalogic Heron HD3130 1D linear imager

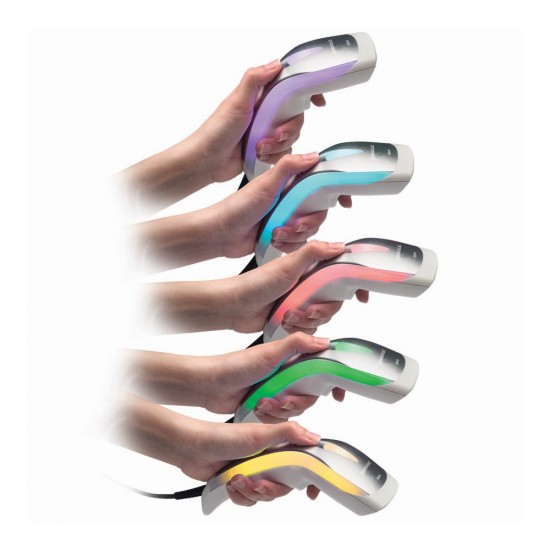

The elegant silhouette of the Heron linear imager extends your brand experience to the final interaction at the point of sale with customers, reflecting artful considerations. Reads 1D barcodes codes at high performance speed. The Heron™ HD3130 linear imager brings unmatched elegance along with the latest advanced technology to the modern point-of-sale. Automatic switching between handheld and hands-free operation. Multiple changing color LEDs on sides and top. Polyphonic speaker for a wide variety of choices for audio feedback. Easily customized with logo, top cover, and visual/audio feedback. Datalogic patented 'Green Spot' technology for aiming and good-read feedback. Innovative and unique design raises the bar for cutting-edge POS checkout experience.

DATALOGIC

Specifications

Scanners
Reading mode	1D Linear Imager CCD
Scanning range/ Βάθος πεδίου	5 mils: 5.0 to 15.0 cm / 2.0 to 6.0 in 10 mils: 2.0 to 35.0 cm / 0.8 to 13.8 in 13 mils: 2.0 to 40.0 cm / 0.8 to 15.7 in 20 mils: 2.0 to 60.0 cm / 0.8 to 23.6 in
Scan Rate Ρυθμός σάρωσης	270 reads/sec
Resolution	0.100 mm / 4 mils
Interfaces	RS-232 / USB / Keyboard Wedge Multi-Interface
Dimensions	15.2 x 15.3 x 6.8 cm / 6.0 x 6.0 x 2.7 in
Weight	150.0 g / 5.3 oz
Ambient light	0 - 100,000 lux
Sealing	IP40
Symbologies	Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes. Postal Codes China Post Stacked Codes GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional
Additional features	DROP RESISTANCE Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface. ESD PROTECTION (AIR DISCHARGE) 16 kV. HUMIDITY (NON-CONDENSING) 5 - 90%. TEMPERATURE Operating: 0 to 50 °C / 32 to 122 °F. Storage/Transport: -20 to 70 °C / -4 to 158 °F. Environmental Compliance Complies to China RoHS; Complies to EU RoHS directive
