Heron HD3430 Scanner

Name: Heron HD3430 Scanner
Brand: DATALOGIC
Price: 1.00 EUR
Availability: InStock

Heron HD3430 Scanner

Downloads

File	Size	Download
DS-HERONHD3430-ENA4.pdf	310.73KB	Download

Description

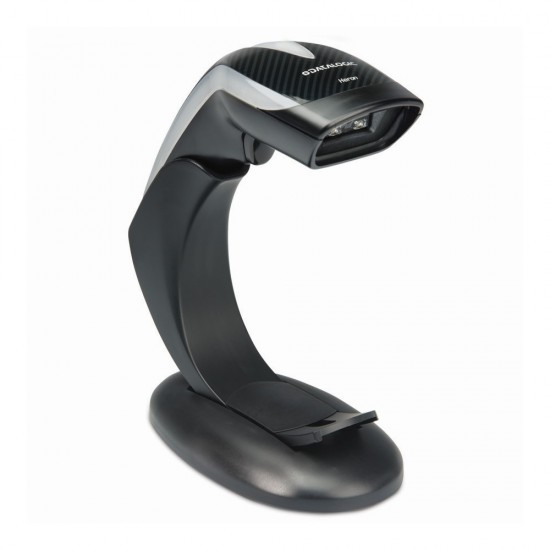

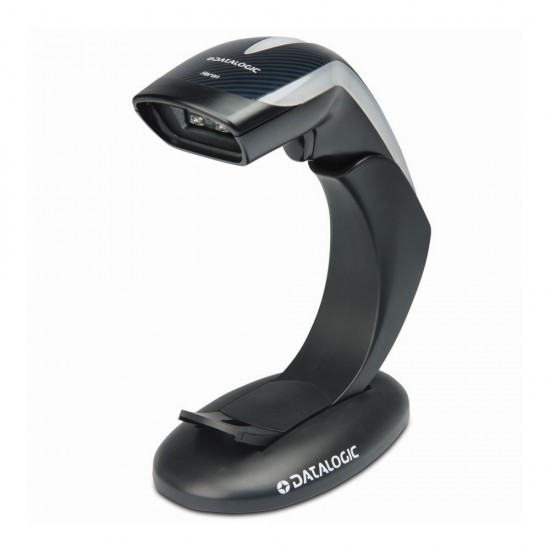

Scanner Datalogic Heron HD3430

The Heron HD3430 2D area imager brings unmatched elegance along with the latest advanced 2D reading technology to the modern point-of-sale. The stylish silhouette of the new 2D area imager enriched with multiple color changing lights, innovative and modern design material, together with the audio speaker, amplifies the customer’s brand experience at the point-of-sale. Outstanding reading performance on 1D, 2D, postal codes, stacked and composite codes. Innovative and unique design raises the bar for a cutting-edge POS checkout experience. In-mold decorated top cover with ‘carbon-fiber’ or ‘silver’ look. Multiple changing color LEDs on sides and top. Polyphonic speaker for a wide variety of choices regarding audio feedback. Easily customized with logo, top cover, visual and audio feedback. Datalogic’s patented ‘Green Spot’ technology for good-read feedback. Automatic switching between handheld and hands-free operations. Efficient illumination and aiming system.

DATALOGIC

Specifications

Scanners
Reading mode	1D / 2D
Scanning range/ Βάθος πεδίου	Code 39: 5 mils: 3.5 to 20.0 cm / 1.3 to 7.8 in. EAN-13: 13 mils: 3.0 to 40.0 cm / 1.2 to 15.7 in. Data Matrix: 15 mils: 2.0 to 25.0 cm / 0.8 to 9.8 in.
Scanning range/ Width of Field	Reading Angle Pitch: +/- 65°; Roll (Tilt): Up to +/- 360°; Skew (Yaw): +/- 60°
Resolution	4 mils
Interfaces	Keyboard Wedge / OEM (IBM) USB / RS-232 / USB
Dimensions	15.2 x 15.3 x 6.8 cm / 6.0 x 6.0 x 2.7 in
Weight	150.0 g / 5.3 oz
Ambient light	0 - 100,000 lux
Sealing	IP40
Symbologies	1D / Linear Codes Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes. 2D Codes Aztec Code, Aztec Mesas, Data Matrix, MaxiCode, QR Code, Micro QR Code, China Han Xin Code. Postal Codes Australian Post, British Post, Canadian Post, China Post, Japanese Post, KIX Post, Korea Post, Planet Code, Postnet, Royal Mail Code (RM4SCC) Stacked Codes EAN/JAN Composites, GS1 DataBar Composites, GS1DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites
Additional features	DROP RESISTANCE Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface. ESD PROTECTION (AIR DISCHARGE) 16 kV. HUMIDITY (NON-CONDENSING) 5 - 90%. TEMPERATURE Operating: 0 to 50 °C / 32 to 122 °F. Storage/Transport: -20 to 70 °C / -4 to 158 °F
