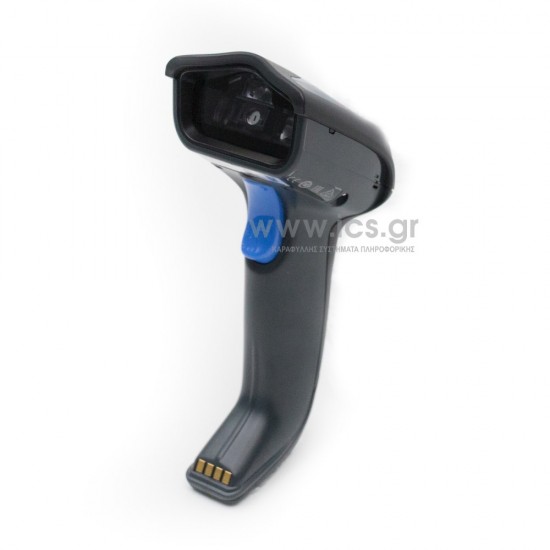

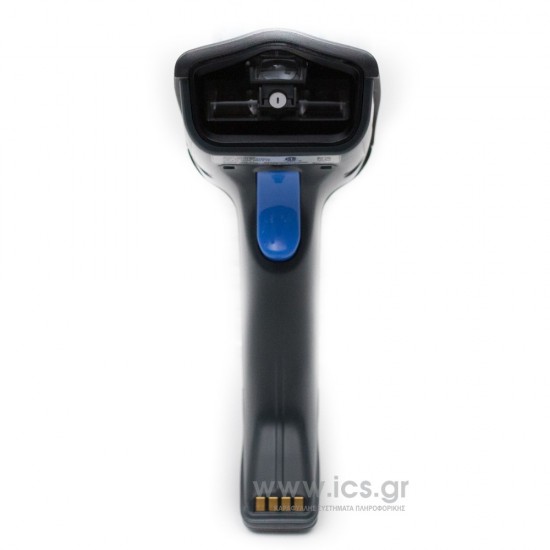

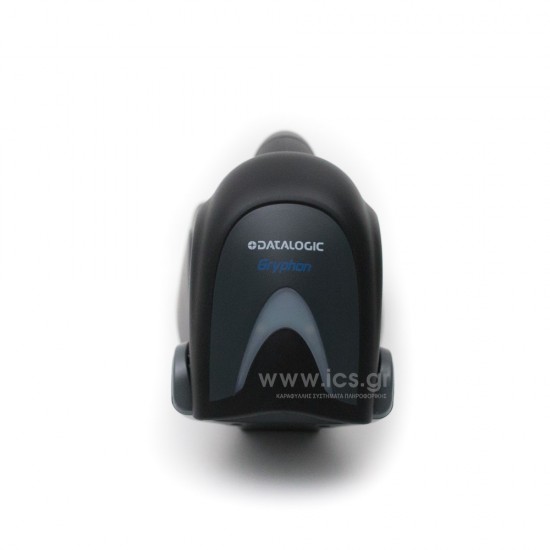

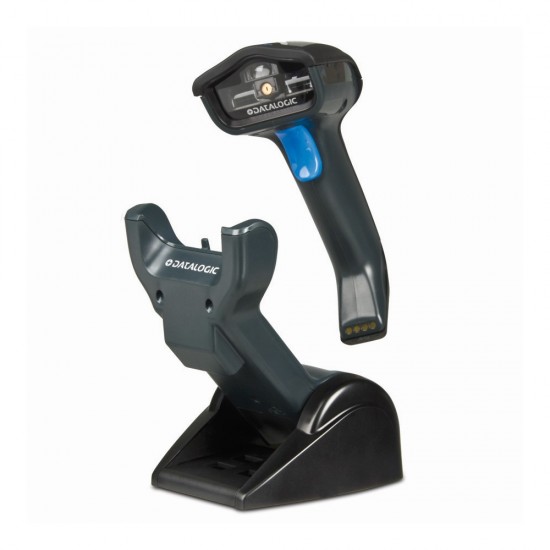

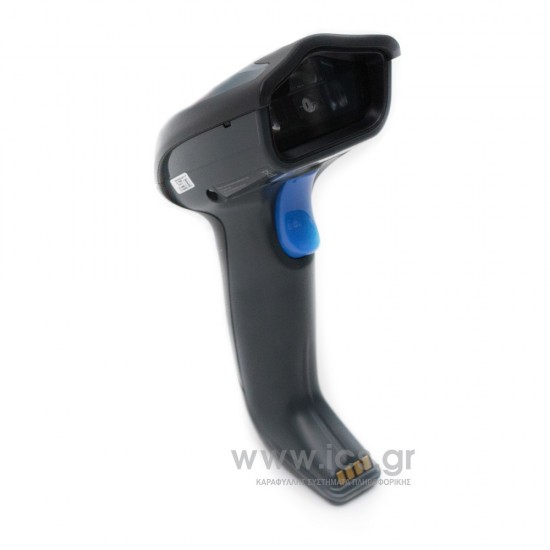

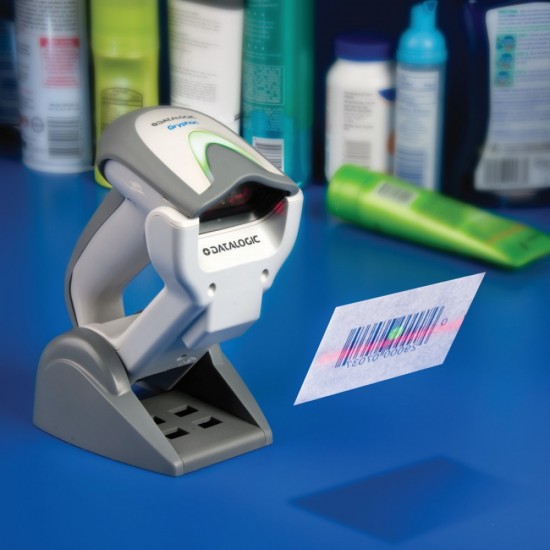

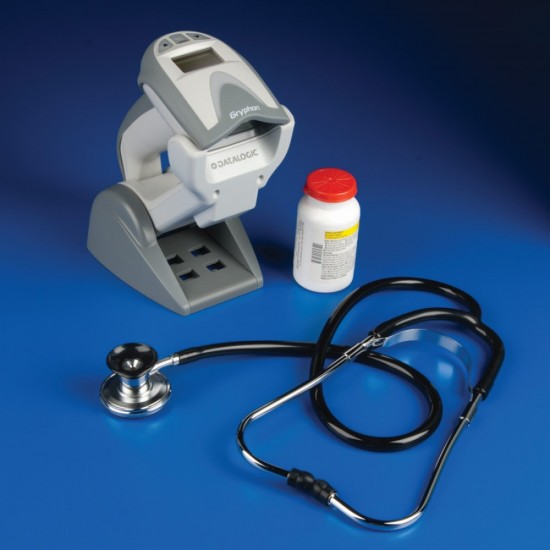

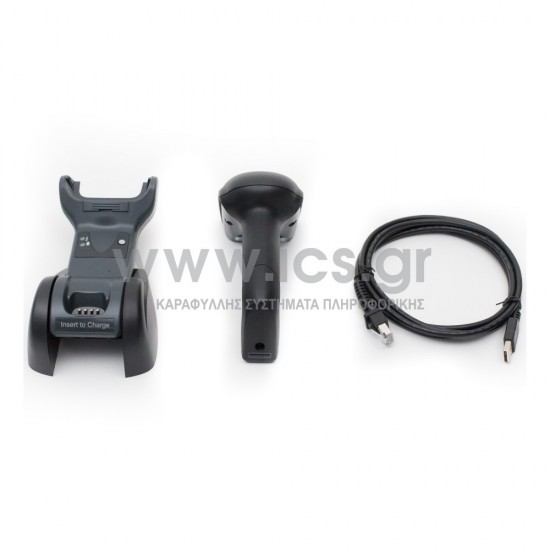

Gryphon GM 4132 Wireless 1D Scanner

Downloads

File	Size	Download
gryphon_gbt-gm4100_en.pdf	252.62KB	Download

Description

GM 4132 Linear Imager 1D Wireless at 433 MHz

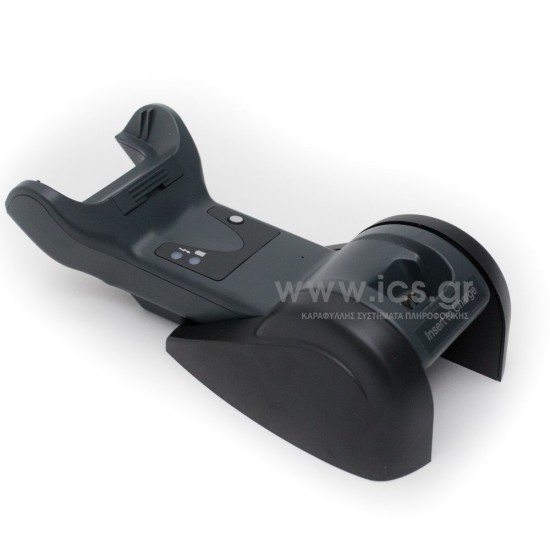

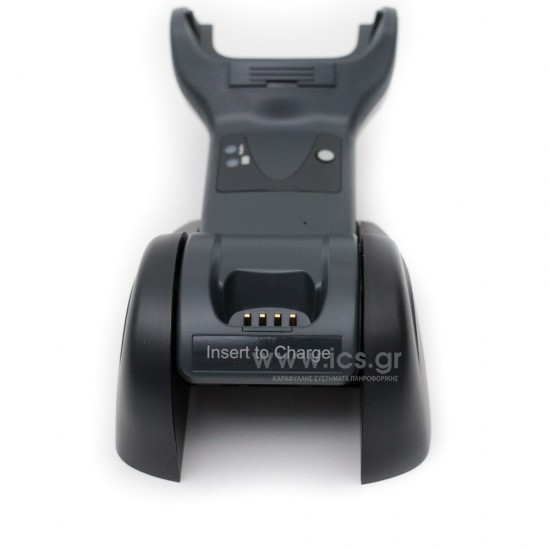

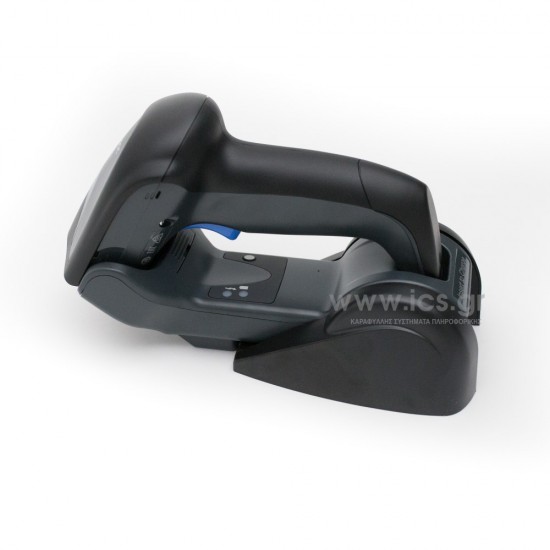

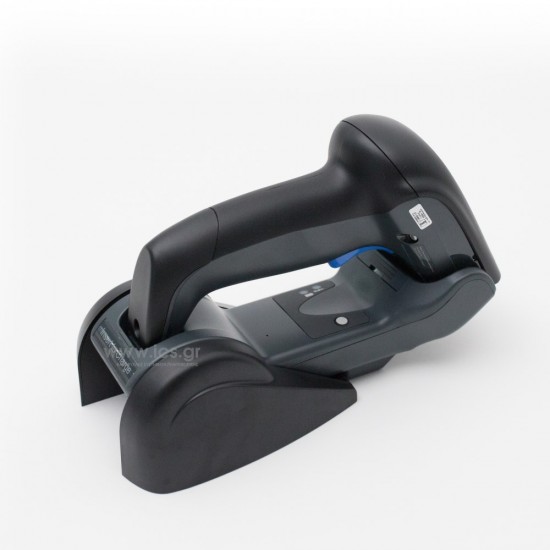

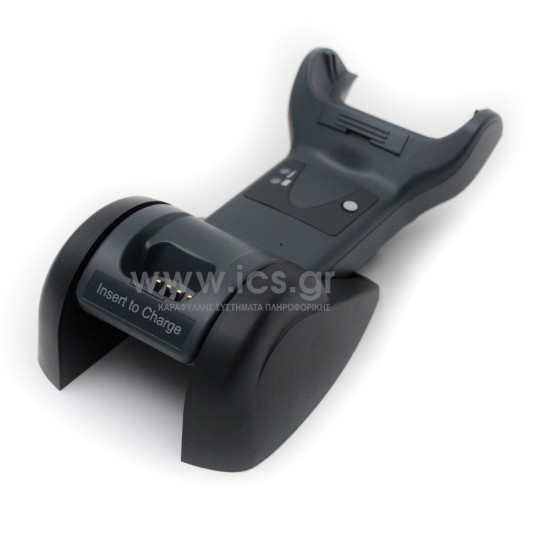

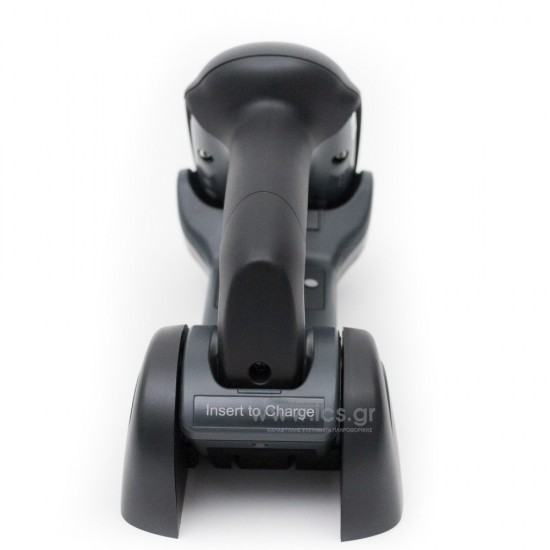

Extremely versatile and durable, the Gryphon GM4100 cordless linear imaging readers are the ultimate solution for applications in retail and light industrial environments where mobility is necessary for improved productivity. Mobile communications also eliminate the restraints caused by cabled devices, providing a safer and more efficient environment for employees. Fastest speed-to-read: 325 reads/second. Radio frequencies available in 433 MHz or 910 MHz. Radio Range (open air) up to 30.0 m / 98.4 ft for 433 MHz, up to 15.0 m / 49.2 ft for 910 MHz. Optional display with 3-Key keypad. Point-to-point and multi-point transmission. Datalogic’s patented 2-position cradle with. Scan-While-Charging capability. Batch Mode capability (>1200 codes stored in memory). Drop resistance to 1.8 m / 5.9 ft. Datalogic’s patented ‘Green Spot’ technology for good-read feedback. Long lasting user-replaceable Lithium-Ion battery. USB Certified Kits Available.

DATALOGIC

Specifications

Scanners
Reading mode	1D linear imaging
Scanning range/ Βάθος πεδίου	5 mils: 6.0 to 18.0cm / 2.3 to 7.0in. 7.5 mils: 3.5 to 30.0cm / 1.4 to 11.7in. 10 mils: 2.0 to 45.0cm / 0.8 to 17.7in. 13 mils: 3.0 to 60.0cm / 1.2 to 23.4in. 20 mils: 3.0 to 80.0cm / 1.2 to 31.2in.
Scanning range/ Width of Field	Pitch: 65°; Roll (Tilt): 35°; Skew (Yaw): 65°
Scan Rate Ρυθμός σάρωσης	325 reads/sec
Resolution	0.076 mm / 3 mils
Interfaces	RS-232 / IBM 46XX / USB Multi-Interface; RS-232 / USB / Keyboard Wedge / Wand MultiInterface
Dimensions	18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
Weight	246.0 g / 8.7 oz.
Ambient light	0 - 100,000 lux
Sealing	IP52
Symbologies	LINEAR CODES Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes. POSTAL CODES China Post. STACKED CODES GS1 DataBar Expanded Stacked; GS1 DataBar. Stacked, GS1 DataBar Stacked Omnidirectional.
Additional features	Radio Frequency 433.92 MHz/ 910 MHz. Battery Type: Lithium-Ion, 2100 mAh. Charge Time: External Power: 4 Hours @ 12 VDC. Reads per Charge: 50,000. Temperature: Operating: 0 to 50 °C / 32 to 122 °F/ Storage/Transport: -20 to 70 °C / -4 to 158 °F.
