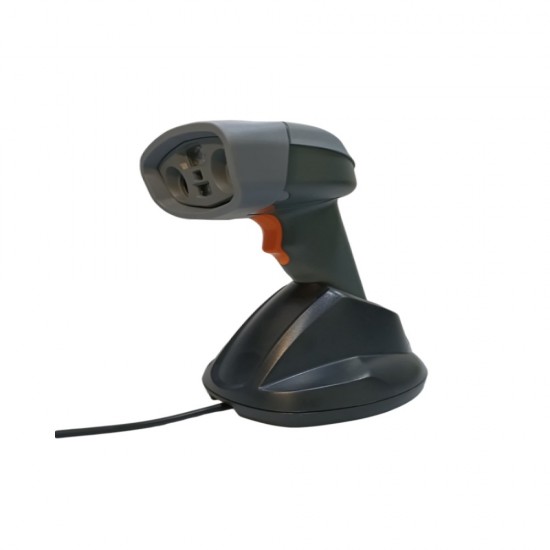

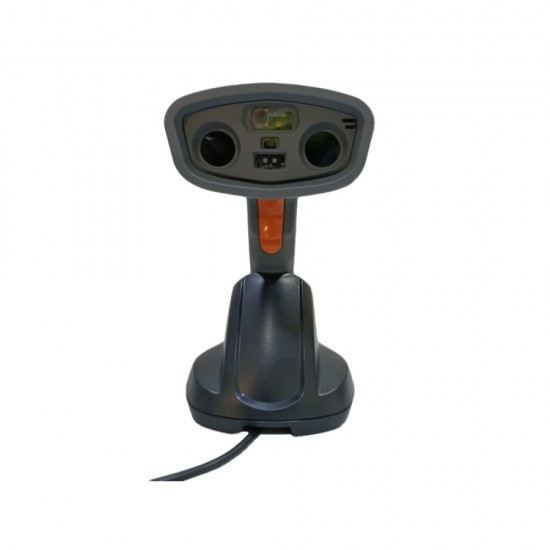

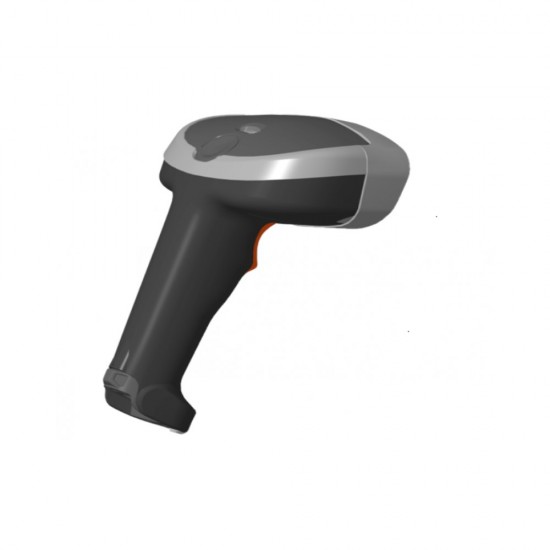

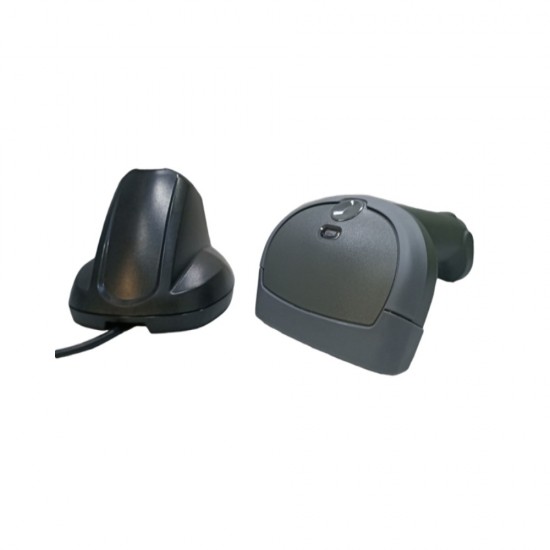

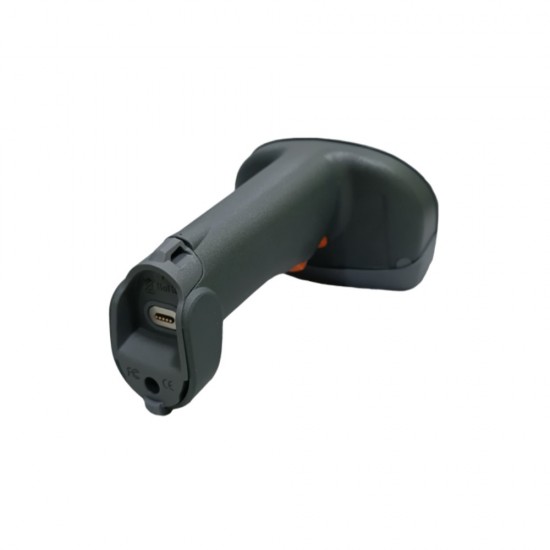

VM200BT 2D and measurement reader

VM200BT 2D and measurement reader
VM200BT 2D and measurement reader
VM200BT 2D and measurement reader
VM200BT 2D and measurement reader
VM200BT 2D and measurement reader
VM200BT 2D and measurement reader
VM200BT 2D and measurement reader
VM200BT 2D and measurement reader
VM200BT 2D and measurement reader
VM200BT 2D and measurement reader
VM200BT 2D and measurement reader

Downloads

File Size Download
VM200BT Datasheet.pdf 371.03KB Download

VM200BT Bluetooth 2D barcode and 3D measurement reader

VM200BT is a compact and robust handheld multi-dimensional measuring device, smart reading and unmatched fast performance and optimal price make it the best choice in the market. Easy to carry device with intelligent reading zone detection and smart guiding aimer. It will also alarm continuous beeps with flashing red LED when no object is detected inside the good reading zone which leads customers to perform measurement very intuitively and quickly. Furthermore, with its configurable buttons allow the operation flow to best fit your various multi-dimensional measurement applications effectively. Whether it is a courier and express delivery company, a post office, a shipping station, a retail ship-from-store location, an airport check-in counter, an inbound station of a warehouse, the VM200BT system provides an efficient way to achieve quick measuring and space optimization. This optimally priced dimensioning device provides quick return on investment for applications where the previous alternative was a tape or a ruler measure. Manual tape measurements resulted in lower accuracy, inconsistency and reduced productivity. VM200BT built in both 2D barcode and 3D measurement readers, makes it a compact device to support multiple functions application and save customer’s deployment space. VM200BT is a must-have and best choice for companies looking to measure packages, cartons, and objects to optimize its workload, workflow and space- it increases accuracy, consistency and user productivity in various applications.


Specifications

Scanners
Reading mode 2D barcode and 3D measurement
Scanning range/ Βάθος πεδίου Horizontal 52°, Vertical 30°. Measurement angle: Pitch: 35° ~ 65°, Skew : ± 15°.
Scanning range/ Width of Field Shape: Cuboidal and irregular shapes. Accuracy: d=2, less than ±2cm deviation. Object size: 10 cm / 3.94 inches cube (OIML 20cm cube),80 cm / 31.5 inches cube (OIML 60cm cube).
Scan Rate Ρυθμός σάρωσης Measurement time less than 1 second
Interfaces USB or RS-232 wired cable/Bluetooth V2.1 EDR 2.402GHz~2.480GHz
Dimensions 120 x 83 x 196,7mm Device/ 119.9 x 136.9 x 92.1mm Cradle
Weight 340g Device/ 210g Cradle
Ambient light 3.000 Lux
Sealing IP54
Additional features Operating temperature 0°C to 40°C (32°F to 104°F). Storage temperature -20°C to 60°C (-4°F to 140°F). Battery Li-Ion 3.7V/2600mA. Recharge time Approx. 5 hours. Certification CE, FCC, LVD, apply OIML/MID and NTEP.
