Voyager 1452g Barcode Scanner

Voyager 1452g Barcode Scanner

Downloads

File	Size	Download
voyager-1452g-general-duty-scanner-data-sheet-en.pdf	483.65KB	Download

Description

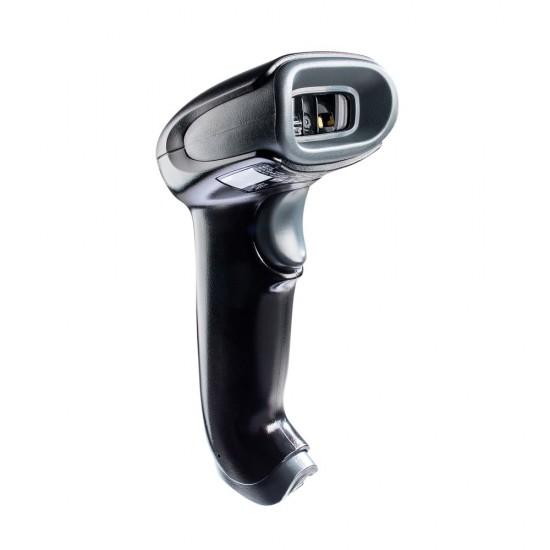

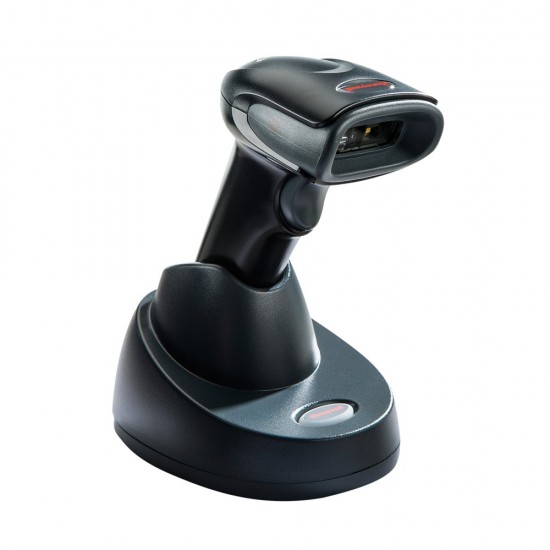

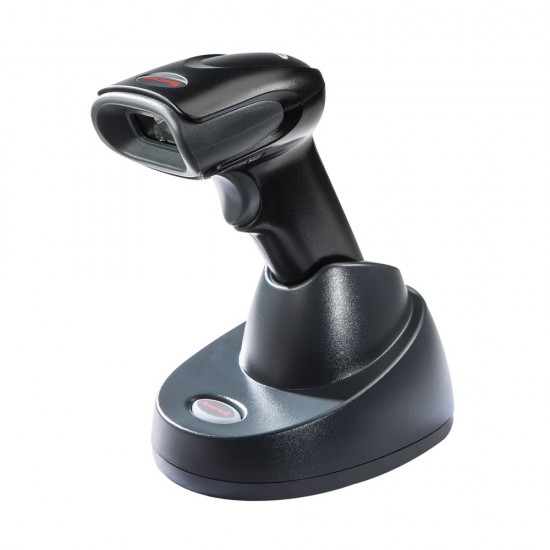

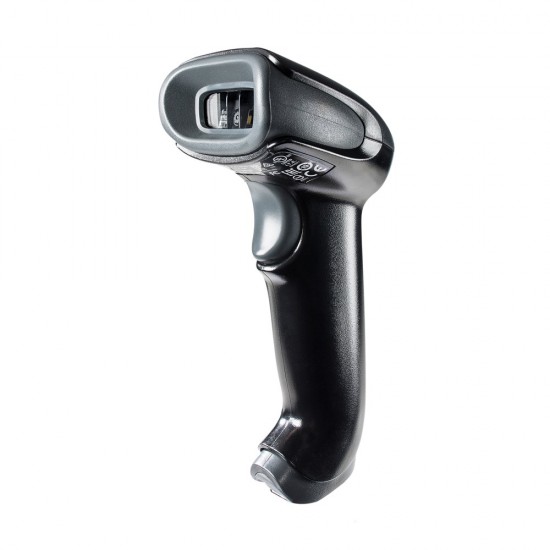

Scanner Honeywell Voyager 1452g 2D USB

The Voyager 1452g allows enterprises to embrace area-imaging at their own pace, and in the most cost-effective manner. Built on the platform of Honeywell’s world-renowned Voyager series of handheld scanners, the Voyager 1452g delivers omnidirectional reading of linear bar codes, plus the ability to affordably upgrade the device to enable PDF and 2D bar code scanning either at the time of purchase, or as data capture needs evolve. Incorporating a Bluetooth® Class 2 radio, the Voyager 1452g has a wireless range of up to 10 meters (33 feet) from the base.

HONEYWELL

Specifications

Scanners
Reading mode	2D
Scanning range/ Βάθος πεδίου	Scan Angle: Horizontal 37.8°; Vertical 28.9°
Scanning range/ Width of Field	Pitch, Skew: ±60°, ±70°. Motion Tolerance: Up to 10 cm/s (4 in/s) for 13 mil UPC at optimal focus.
Scan Rate Ρυθμός σάρωσης	50,000 scans at 1 scan/ second
Resolution	Area Image (640 x 480 pixel array
Interfaces	USB, Bluetooth® Class 2 radio, USB, Keyboard Wedge, RS-232 TTL, IBM 46xx (RS485)
Dimensions	62 x 173 x 82mm
Weight	210 g
Ambient light	100,000 Lux
Sealing	IP42
Symbologies	1452g2D: All standard 1D, PDF417, and 2D symbologies
Additional features	Operating Temperature 0°C to 450°C . Storage Temperature -20°C to 20°C. Humidity 0% to 95% non-condensing. Drop Designed to withstand 30 drops to concrete from 1.5 m. Warranty: 3 year
