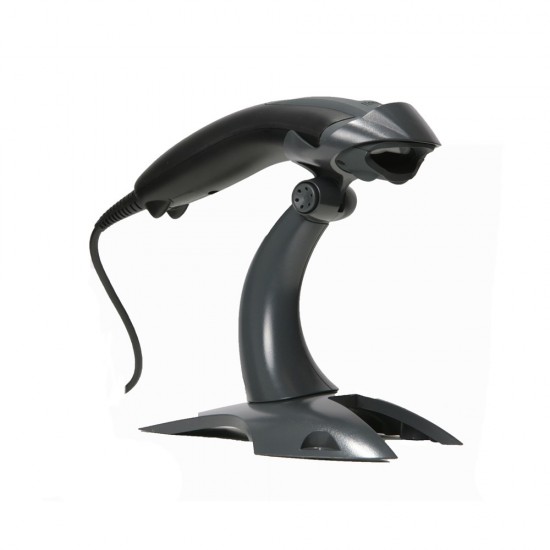

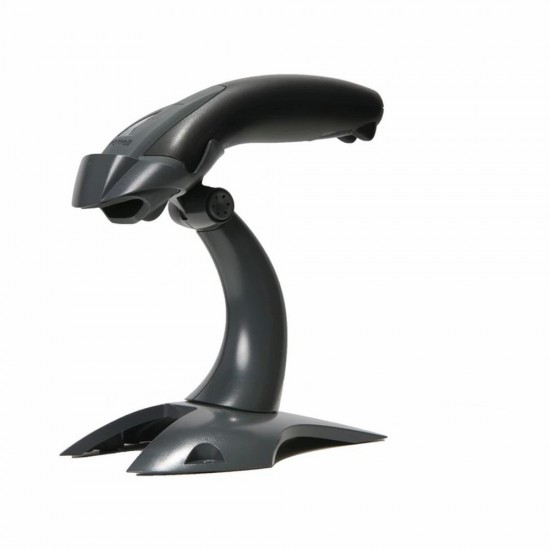

Voyager 1400 Barcode Scanner

Voyager 1400 Barcode Scanner

Downloads

File	Size	Download
sps-ppr-voyager-1400g-general-duty-scanner-data-sheet-en.pdf	130.24KB	Download

Description

Scanner Honeywell Voyager 1400 2D

Voyager 1400g delivers omnidirectional reading of linear barcodes, plus the ability to affordably upgrade the device to enable PDF and 2D barcode scanning at the time of purchase or as scanning needs evolve. Performing at speeds that are comparable to laser-based scanners, the versatile and reliable Voyager 1400g can be customized to meet current and future scanning needs, lowering the total cost of ownership. With no need for additional functionality beyond linear and 2D barcode scanning, many enterprises are unwilling to pay for full featured area-imaging scanners. The Voyager 1400g enables PDF and 2D barcode scanning without extra value-added features, such as advanced image capture and processing applications, allowing Honeywell to offer 2D scanning at an attractive price. The Voyager 1400g offers an exceptional value for enterprises that require the versatility of area-imaging technology today or may need it in the future.

HONEYWELL

Specifications

Scanners
Reading mode	2D
Scanning range/ Βάθος πεδίου	36 mm – 105 mm (1.4 in – 4.1 in)/25 mm – 205 mm (1.0 in – 8.1 in)
Scanning range/ Width of Field	5 mil Code 39/ 13 mil UPC/ 20 mil Code 39/ 6.7 mil PDF417/ 10 mil Data Matrix (DM)/ 20 mil QR.
Resolution	Area Image (640 x 480 pixel array
Interfaces	USB, Keyboard Wedge, RS-232, IBM 46xx (RS485)
Dimensions	180 mm x 66 mm x 43 mm
Weight	119 g
Ambient light	100,000 Lux
Sealing	IP42
Symbologies	1400g2D: all standard 1D, PDF417 and 2D symbologies
Additional features	Input Voltage: 4.0V DC to 5.5V DC. Operating Power: 2 W (400 mA @ 5V DC). Standby Power: 0.45 W (90 mA @ 5V DC). Operating Temperature 0°C to 40°C (32°F to 122°F). Storage Temperature -40°C to 60°C (-4°F to 140°F). Humidity 0% to 95% non-condensing. Drop Designed to withstand 30 drops to concrete from 1.5 m. Warranty: 5 year
