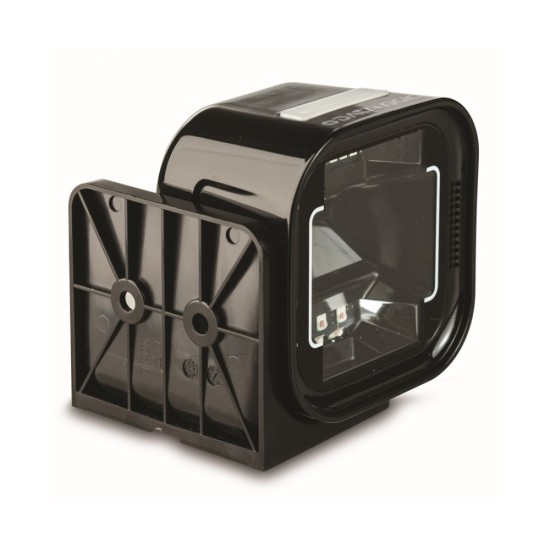

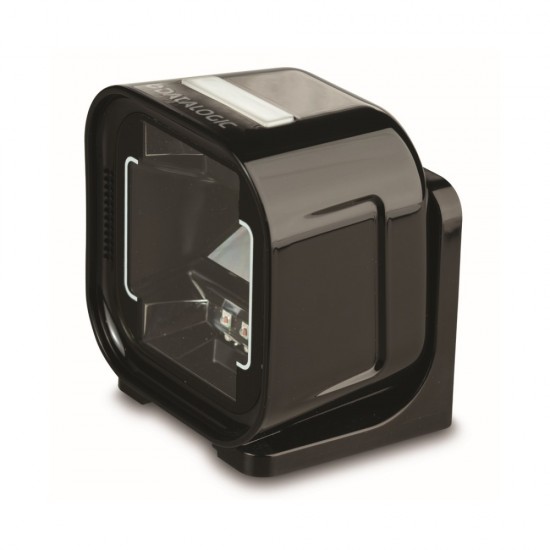

Magellan 1500i 2D Scanner

Name: Magellan 1500i 2D Scanner
Brand: DATALOGIC
Price: 1.00 EUR
Availability: InStock

Magellan 1500i 2D Scanner

Downloads

File	Size	Download
1500i.pdf	232.1KB	Download

Description
Video

Scanner Datalogic Magellan 1500i 2D

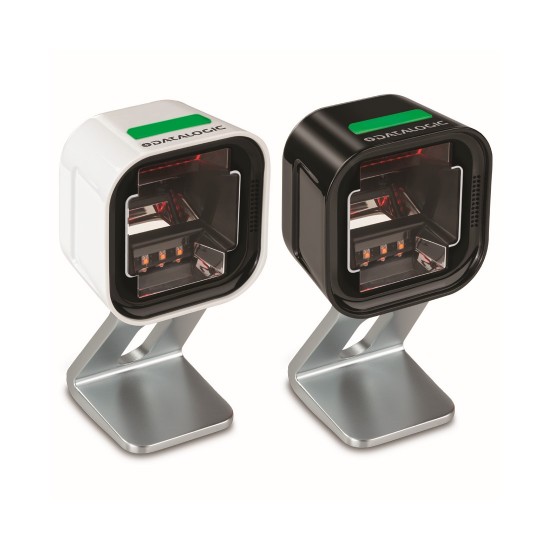

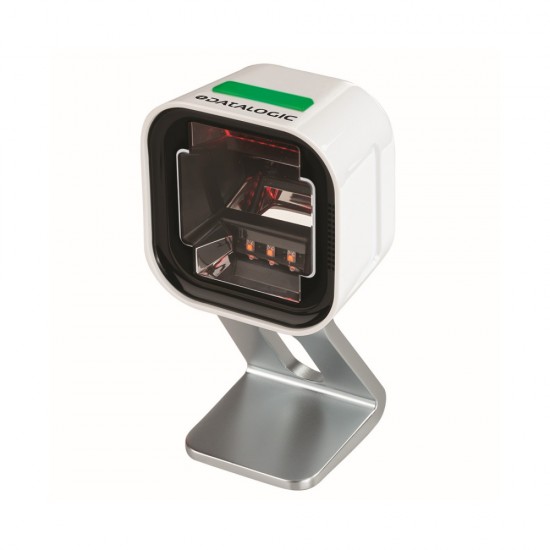

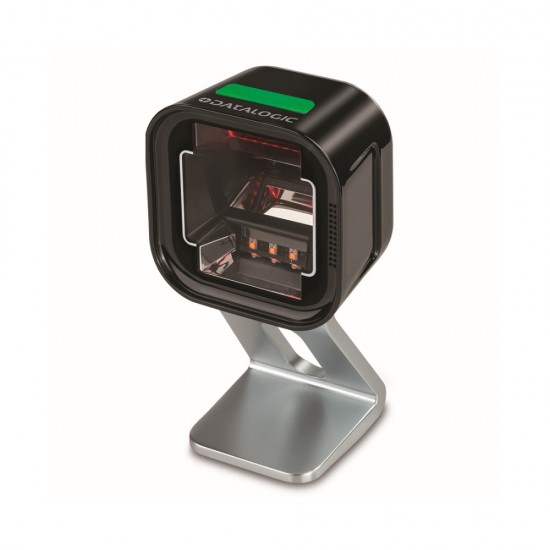

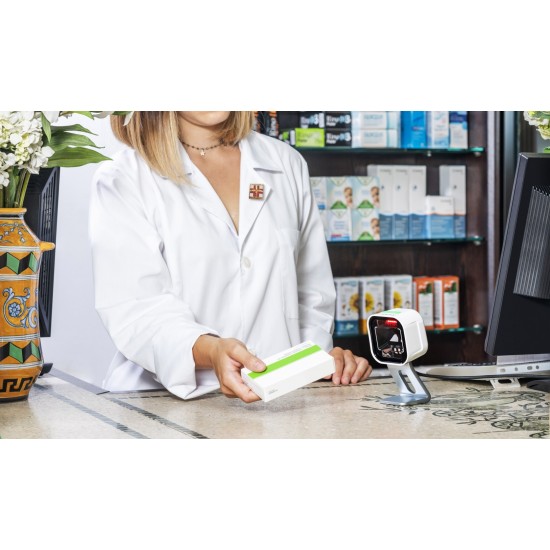

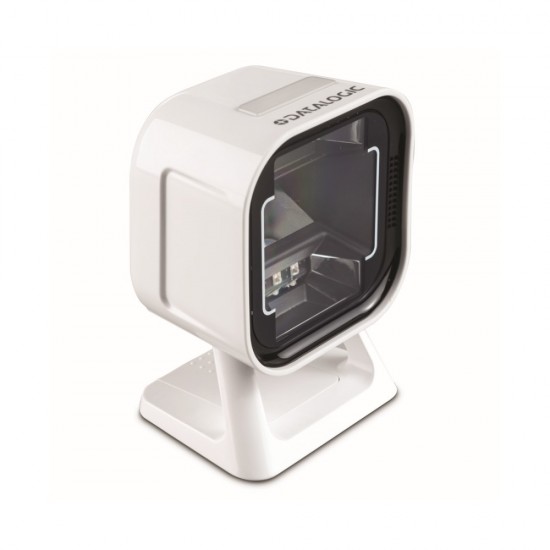

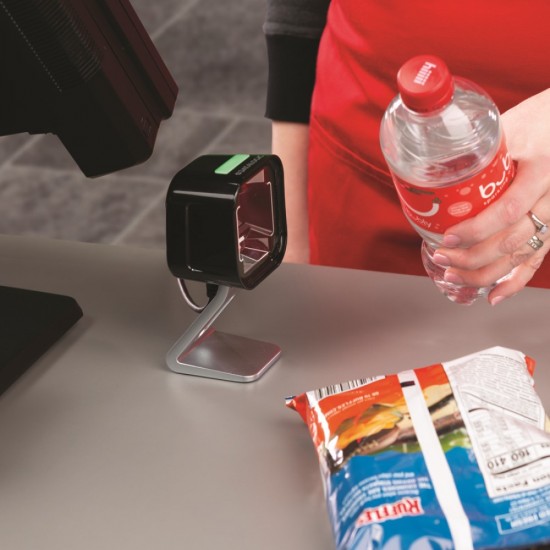

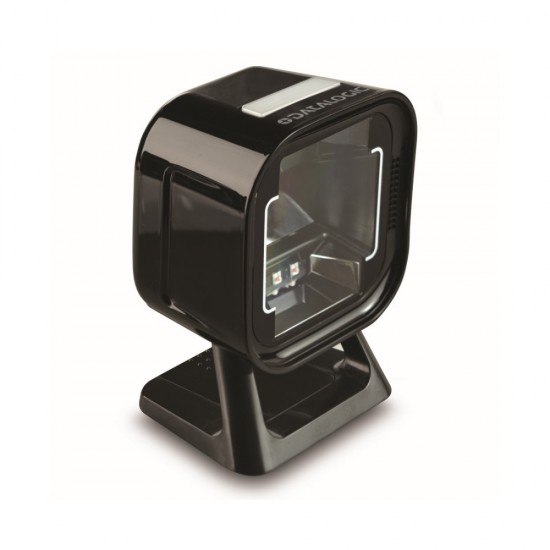

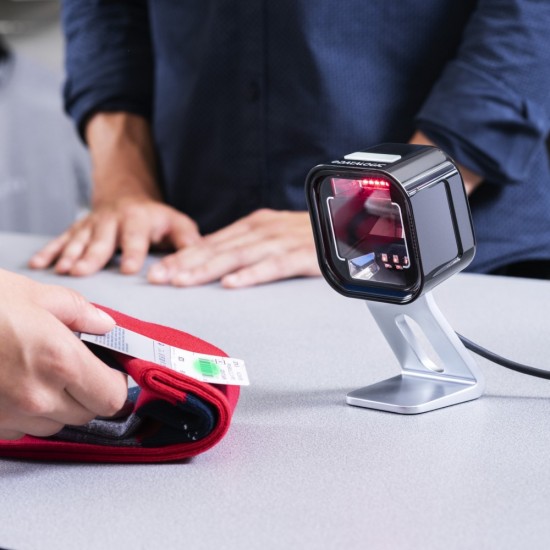

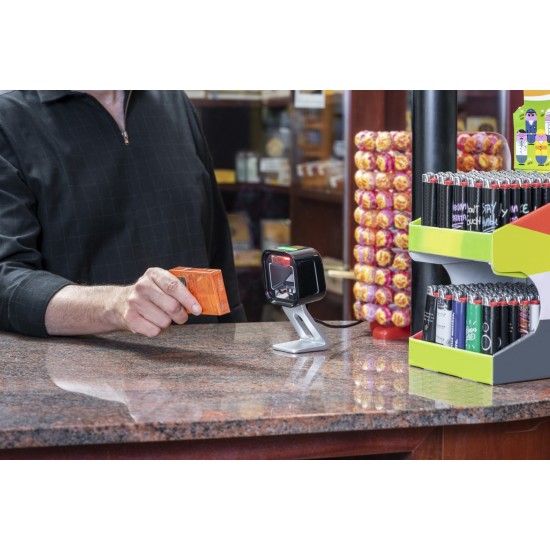

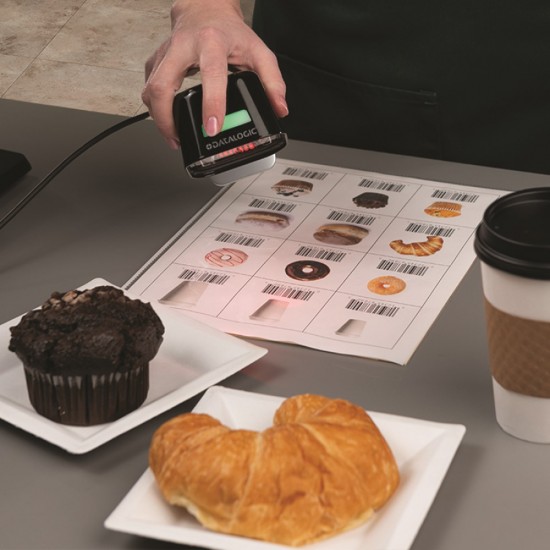

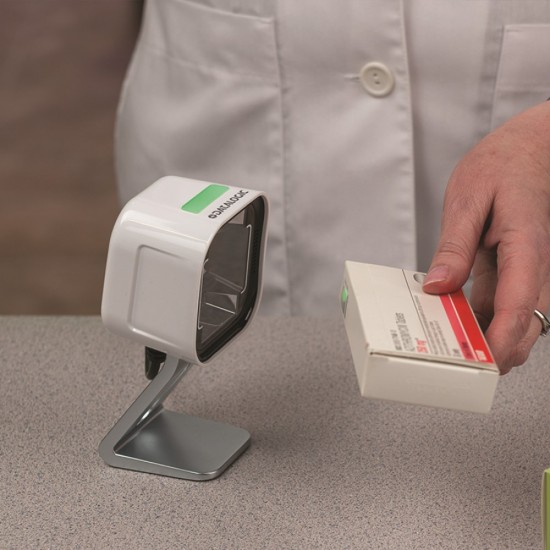

The Magellan 1500i is a high performance presentation scanner from Datalogic for a variety of applications including retail point of sale, pharmacy and customer service. The Magellan 1500i scanner provides outstanding performance on 1D and 2D bar codes from a variety of printed and mobile sources. The addition of Digimarc® Barcodes watermark decoding makes this a uniquely capable scanner in the presentation category.

Datalogic’s Magellan 1500i scanner is a high performance presentation scanner for a variety of applications including retail point of sale, pharmacy and customer service. The Magellan 1500i pairs imaging scanning expertise developed for our larger scanners with an innovative, compact design to create the most powerful presentation scanner on the market. The addition of Digimarc Barcode decoding makes the Magellan 1500i scanner uniquely capable of handling both current and future scanning needs.

DATALOGIC

Specifications

Scanners
Reading mode	1D / Linear Codes and 2D Codes
Scanning range/ Βάθος πεδίου	1D / Linear Codes: 5 mils: 2.5 to 9.0 cm / 0.9 to 3.5 in 7.5 mils: 0 to 17.0 cm / 0 to 6.6 in, 10 mils: 0 to 21 cm / 0 to 8.2 in, 13 mils UPC: 0 to 25.0 cm / 0 to 9.8 in, 20 mils: 1.0 to 30.0 cm / 0.4 to 11.8 in. Optional Codes: 6.5 mils. PDF: 2.5 to 11.0 cm / 0.9 to 4.3 in 13 mils. Data Matrix: 0 to 17.0 cm / 0 to 6.7 in 16 mils. PDF: 0 to 2.0 cm / 0 to 7.8 in. 24 mils Data Matrix: 0 to 25.0 cm / 0 to 9.8 in.
Scan Rate Ρυθμός σάρωσης	1.5 m/s
Resolution	0.130 mm / 5 mils
Interfaces	USB Keyboard; USB COM; OEM (IBM) USB; RS-232

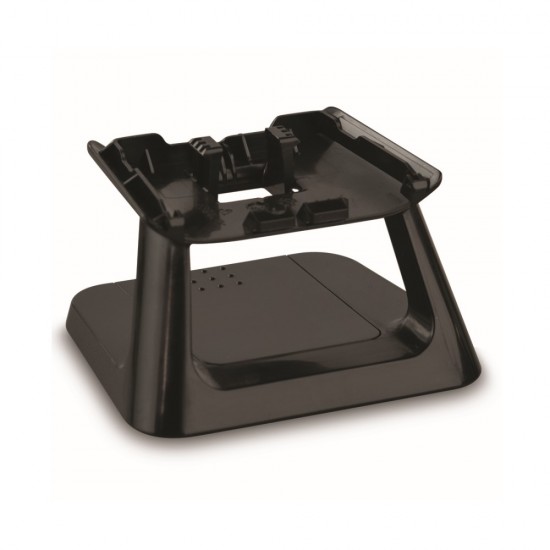

Dimensions	Tilting Riser: 6.0 x 7.5 x 15.0 cm / 2.4 x 3.0 x 5.9 in Stand: 6.0 x 7.5 x 10.6 cm / 2.4 x 3.0 x 4.2 in
Weight	240.0 g / 8.5 oz
Ambient light	0 to 86,100 lux
Sealing	IP52
Symbologies	1D / Linear Codes: Autodiscriminates all standard 1D codes including GS1. DataBar™ linear codes./ 2D: Codes Aztec Code, Data Matrix, MaxiCode, QR Code/ Postal Codes: Australian Post; British Post; Canadian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post/ Stacked Codes:GS1 DataBar Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1DataBar Stacked Omnidirectional; Micro DF417, PDF417/ Digital Watermarks: optional Digimarc® Barcodes/GS1 DW Code
Additional features	Withstands repeated drops from 1.2 m / 4.0 ft onto a concrete surface. ESD PROTECTION (AIR DISCHARGE) 25 kV. HUMIDITY (NON-CONDENSING) 5 - 95%. TEMPERATURE Operating: 0 to 40 °C / 32 to 104 °F. Storage/Transport: -40 to 70 °C / -40 to 158 °F
