Gryphon GFS 4470 2D Scanner

Gryphon GFS 4470 2D Scanner

Downloads

File	Size	Download
gryphon-gfs4400.pdf	358.82KB	Download

Description

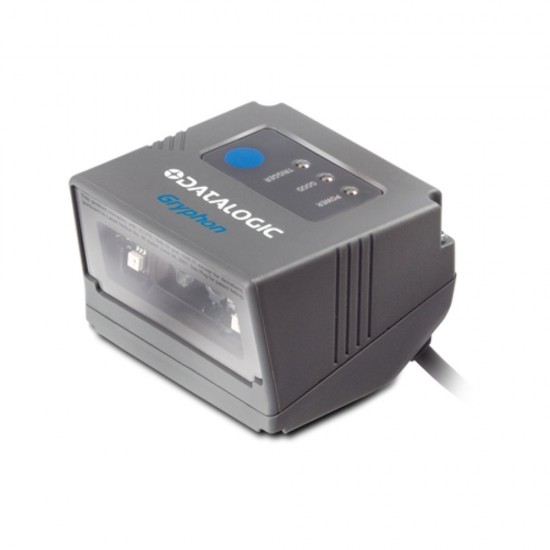

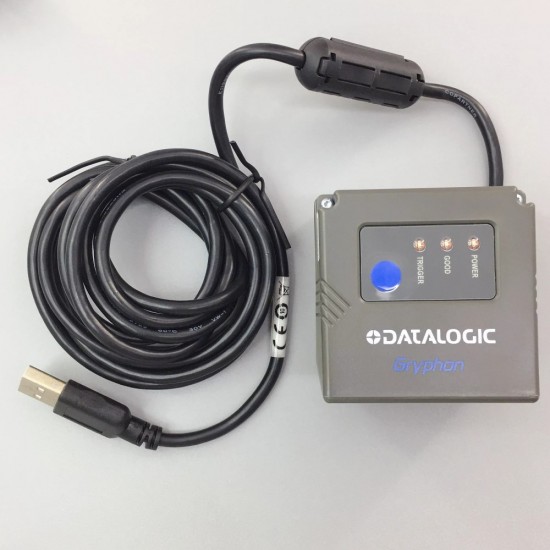

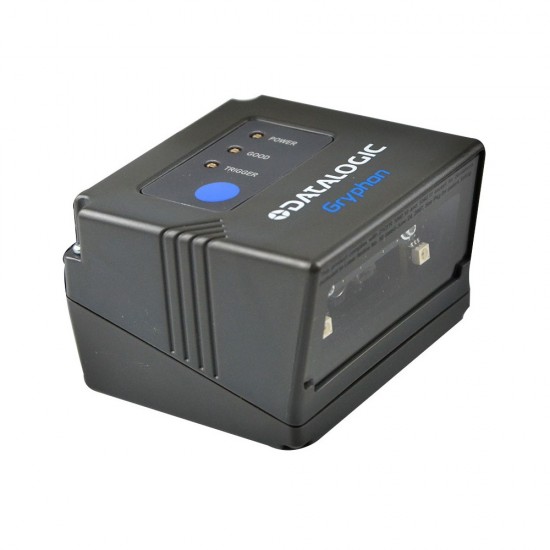

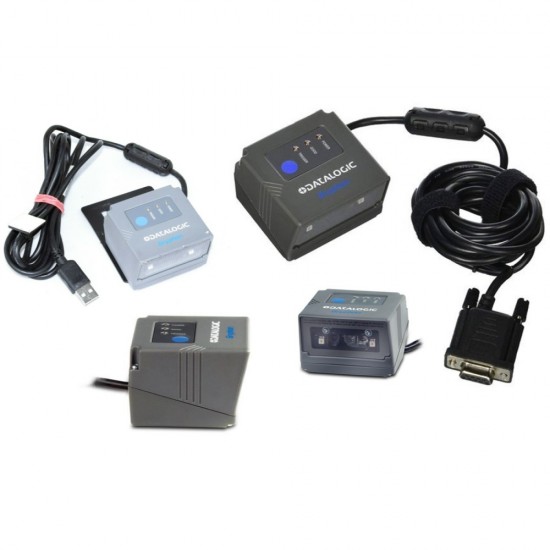

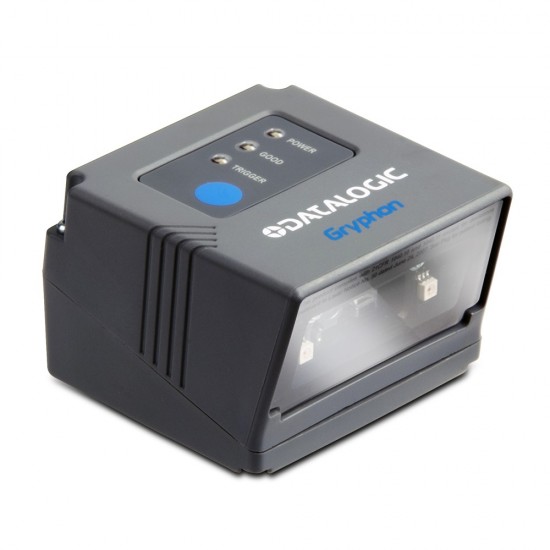

Scanner Datalogic Gryphon GFS 4470 2D

Powerful and compact, the new Gryphon GFS4400 scan module packs all the first class features of Gryphon premium 2D bar code readers in a small package, providing the ideal solution for hands-free reading and use in semi-automatic equipment. Designed with system integration in mind, its optimum motion tolerance allows fast processing in automated applications and its great depth of field makes reading easy and intuitive. Plus, the Gryphon GFS4400 scan module’s small size and outstanding near-field reading are ideal for incorporation in the confined spaces required by semi-automatic equipment.

DATALOGIC

Specifications

Scanners
Reading mode	1D / LINEAR CODES: Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes. 2D CODES: Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code
Scanning range/ Βάθος πεδίου	Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent. Code 39: 5 mil: 4.7 to 17.7 cm / 1.8 to 7.0 in. Code 39: 10 mil: 1.7 to 33.2 cm / 0.7 to 13.1 in. Data Matrix: 10 mil: 2.7 to 17.1 cm / 1.0 to 6.7 in. Data Matrix: 15 mil: 1.2 to 24.6 cm / 0.5 to 9.7 in. EAN: 13 mil: 2.5 to 41.9 cm / 1.0 to 16.5 in. PDF417: 10 mil: 2.2 to 23.9 cm / 0.9 to 9.4 in. QR Code: 10 mil: 3.5 to 16.0 cm / 1.4 to 6.3 in.
Scanning range/ Width of Field	Pitch: +/- 40°; Roll (Tilt): 180°; Skew (Yaw): +/- 40°
Resolution	1D / Linear Codes: 0.102 mm / 4 mils. Data Matrix: 0.178 mm / 7 mils/ PDF417: 0.102 mm / 4 mils
Interfaces	OEM (IBM) USB; USB: USB COM; USB HID Keyboard
Dimensions	3.9 x 5.7 x 5.8 cm / 1.5 x 2.2 x 2.3 in
Weight	USB: 170 g / 6.3 oz
Ambient light	0 to 100,000 lux
Sealing	IP54
Symbologies	POSTAL CODES Australian Post; British Post; Canadian Post; China. Post; IMB; Japanese Post; KIX Post; Korea Post; Planet Code; Portuguese Post; Postnet; Royal Mail. Code (RM4SCC); Swedish Post STACKED CODES EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar. Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
Additional features	DROP RESISTANCE Withstands repeated drops from 0.76m / 4.0 ft onto a concrete surface. Operating Temperature: -20 to 50 °C / -4 to 122 °F. Storage/ Transport: -20 to 70 °C / -4 to 158 °F.
