ICS MAC-32 Kiosk i3-6157U

Downloads

File	Size	Download
MAC-32.pdf	770.51KB	Download

Description
Video

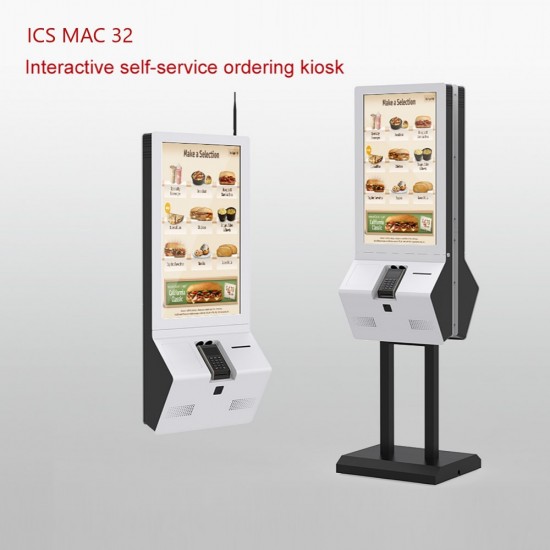

Self Ordering, Self Service POS Kiosk ICS MAC-32 Intel Celeron i3-6157U Windows 10

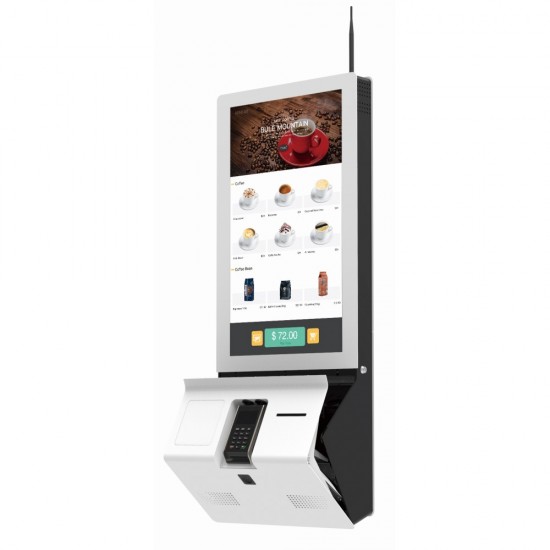

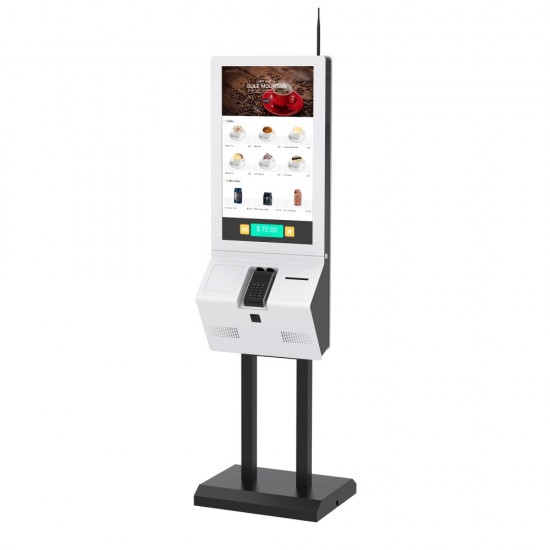

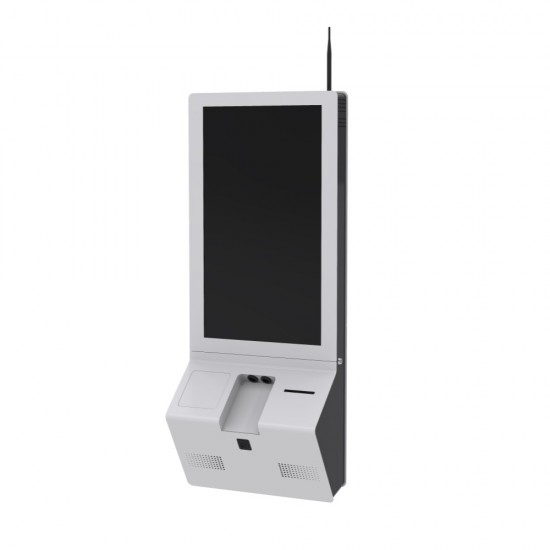

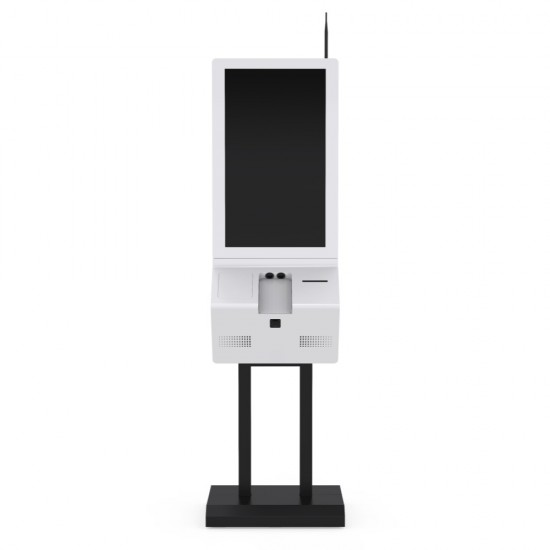

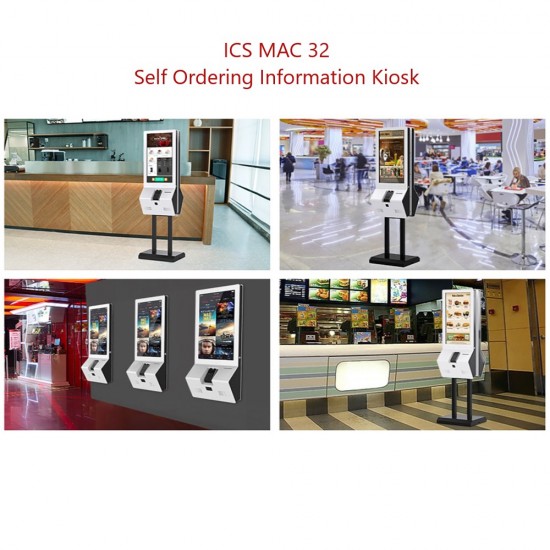

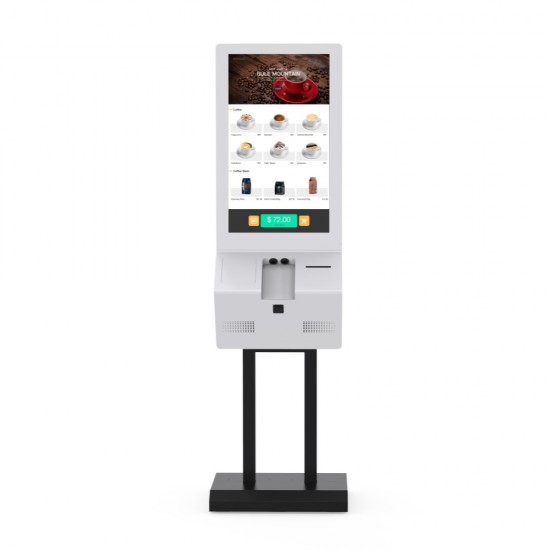

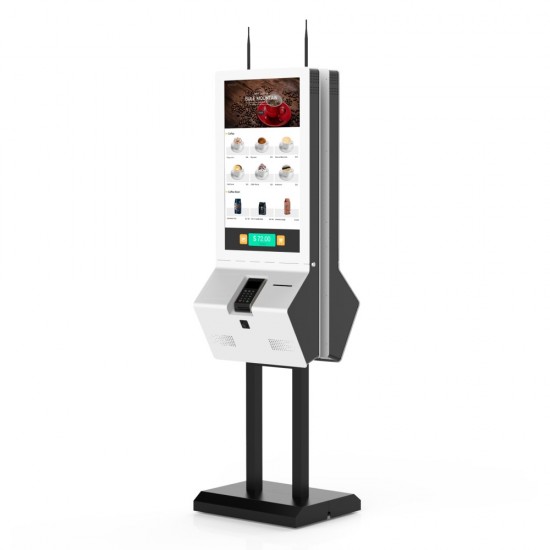

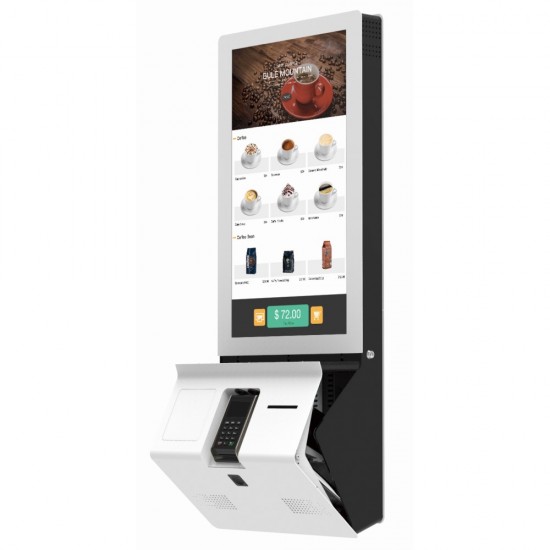

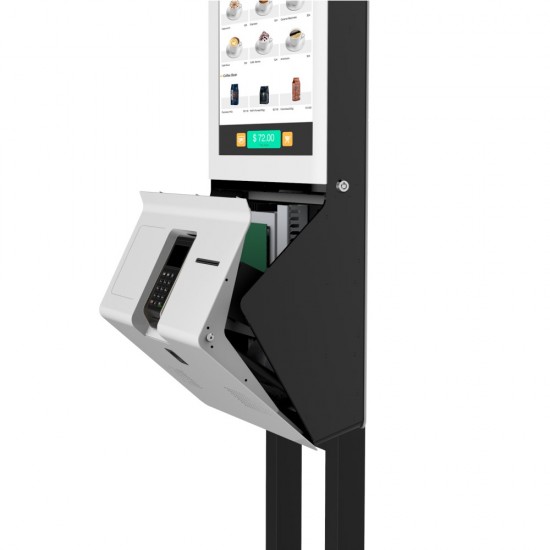

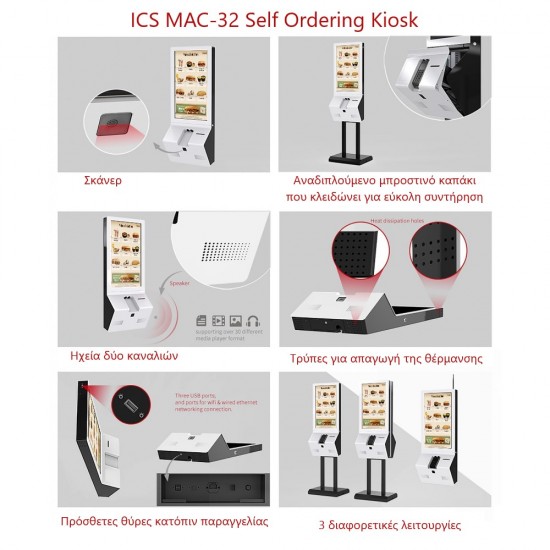

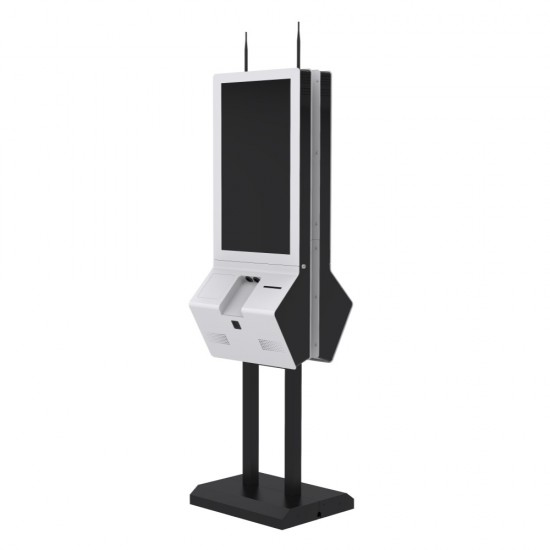

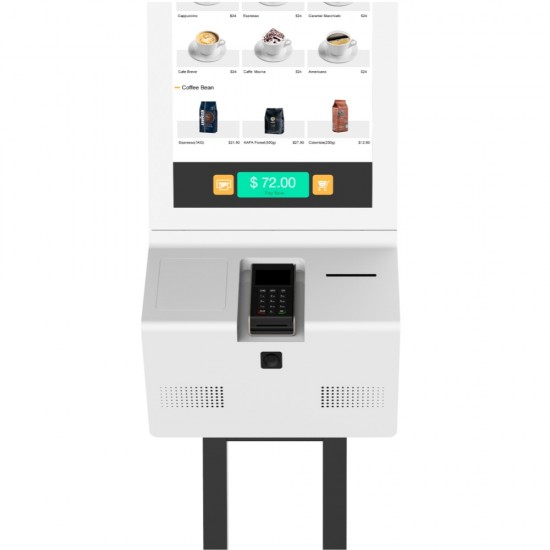

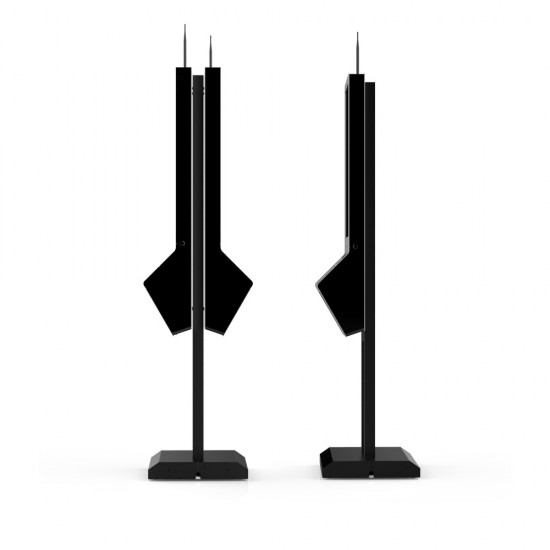

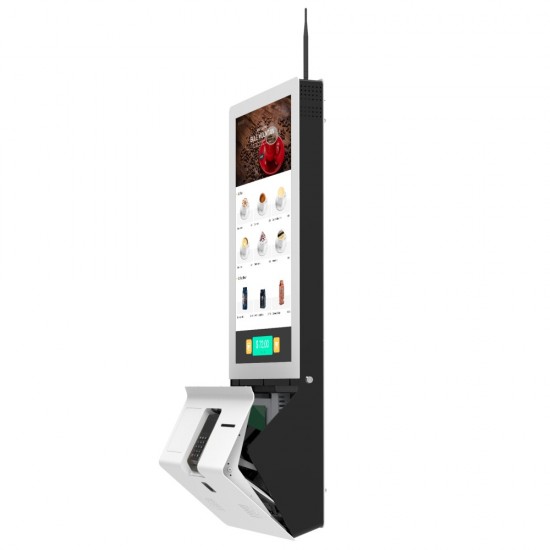

Interactive self-service ordering information kiosk Multi-touch capacitive screen 32’’ of high brightness and fast response time. Supports three kinds of different applications, can be mounted on a wall or a custom construction or it can stand on the floor with a standing base and frame, supporting single or double screens installation on both sides. Provides scanner, printer, speakers and space for card reader or other peripherals. Designed with two – channel speakers can support more that 30 different media player formats. Advanced network connections with here USB ports and ports for wi-fi and wired ethernet networking connections, can be also customized for additional ports. Designated holes for heating dissipation protect the device and the workflow. Flip design of lockable front cover for easy maintenance.

ICS

Specifications

Kiosk POS
Monitor	32" TFT-LCD, Aspect Ratio 16:9, Brightness 400cd/㎡, Contrast Ratio 3000:1, Response Time 10ms, Viewing Angle H178º V178º, Display Colors 16.7M, Refresh Rate 60Hz, Panel Life 30000 hours.
CPU	Intel i3 6157U
Memory	8G/ Storage:128G
Operating System-compliant	Windows 10
Interface	USB x 3, RJ45 x 1, Etherner, WIFI
Scanner	2D,area-imaging scanner QR/barcode scanner
Printer	80mm thermal printer with auto cutter
Additional features Kiosks	Speaker 5W x 2. Power Voltage 100-240VAC,50/60HZ. Power Consumption <120W. Working Temperature 0-40℃. Storage Temperature-20-60℃. Material SPCC. Card Reader Space: (not including card reader)
Panel Resolution	1920x1080

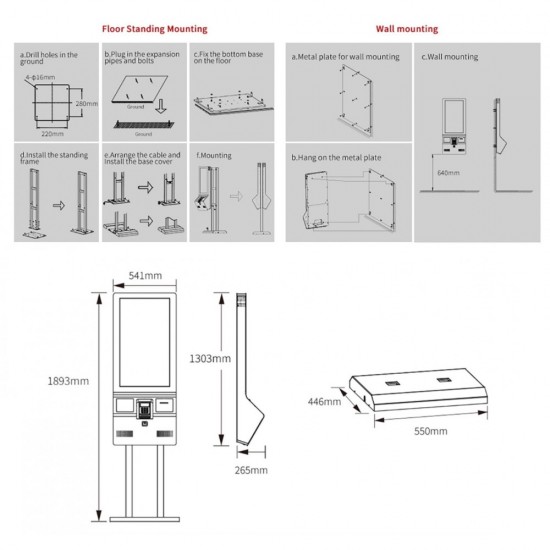

Dimensions	541×446×1893mm (single screen flooring) * 541×265×1303mm (wall mounting) / single screen flooring: 88kg * wall mounting: 45kg
Touch Screen	Projected Capacitive Touch 10 points Response Time10ms
