VFD-LD222 POS Customer Display

Downloads

File	Size	Download
LD222.pdf	730.39KB	Download

Description

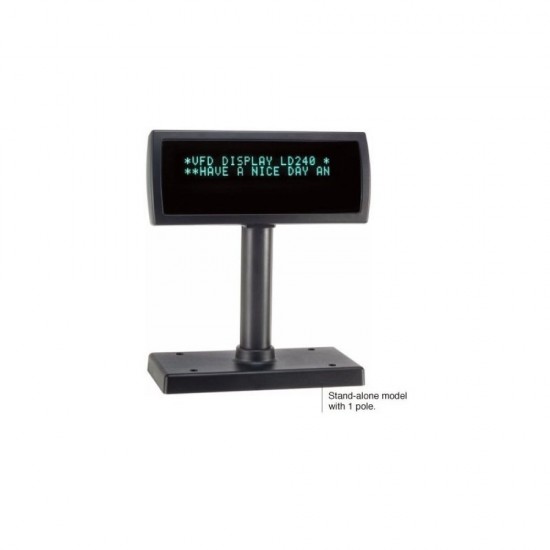

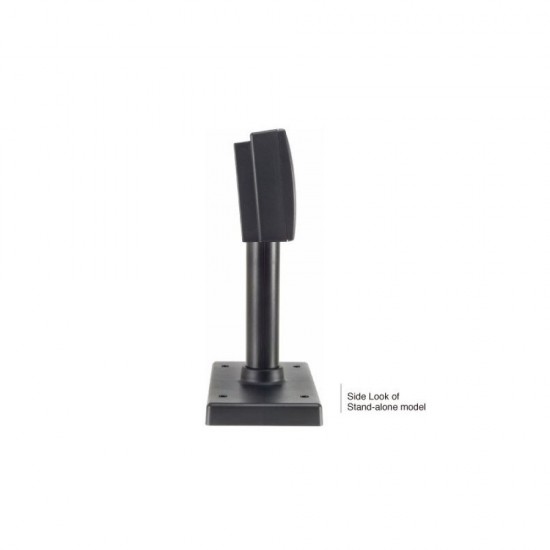

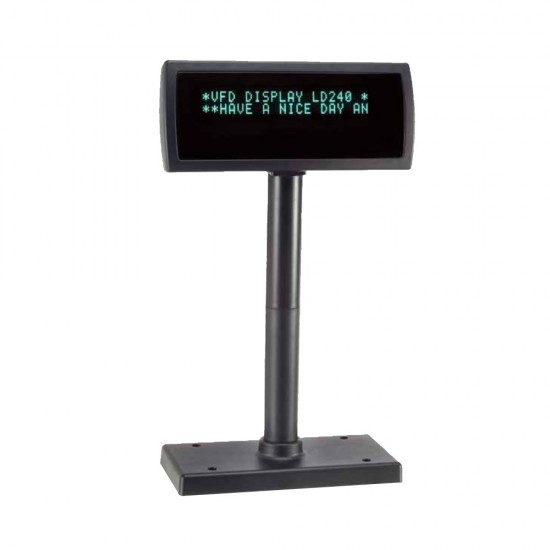

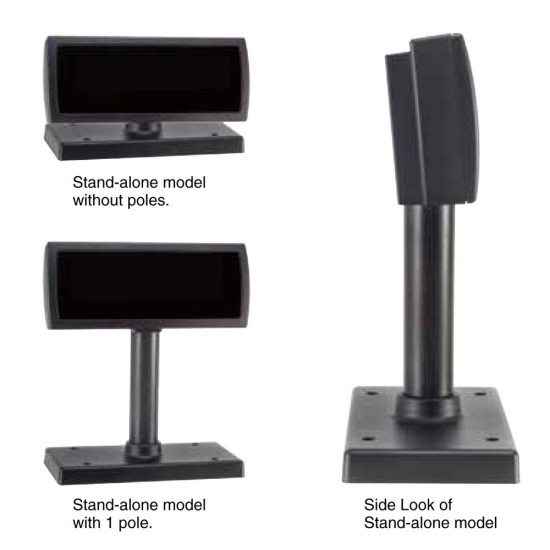

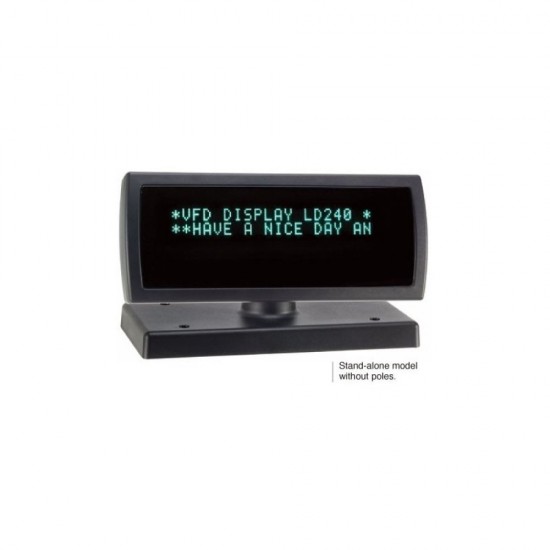

POS Customer Display VFD-LD222

Clear, easy-to-read VFD Customer Display, ESC/POS command 100% compatible, OPOS/JPOS driver, 2x20 Standard Durable Customer Display, Power supply from 5~12V, prevent any mindless use of improper power input. LD222 has 2 kinds of interface, USB and RS232(Serial). Both these 2 kinds of interface, could support 5~12V power supply. By this even there is a user who has no experience of POS operation, will not have a change to damage the VFD by improper power input. 20 columns x 2 lines of dot matrix support high brightness and wide viewing angle. By this your customer can see the product information under strong light or outdoor sunlight. Also with a amazing wide viewing angle.

ICS

Specifications

Monitors
Monitor specifications	VFD (Vacuum Fluorescent Display) Blue-green
Brightness	700 cd/m2
Resolution monitor	Dot Size 0.86 x 1.2 mm
Display area	220x50x87mm
Interface	RS-232/ USB
Vieweing Angle	Max. 90°/ Horizontal Rotation Max. 355°
Backlight MTBF	30,000 hours
Power monitor	5~12 VDC
Dimensions /weight	Module Dimensions 204(H) x 47.9(V) x 33(D) mm. Top Head Dimensions 220(H) x 87.5(V) x 52.5(D) mm. Pole Dimensions Ø33.5 mm L:130mm. Base Dimensions 217(W) x 106(D) x 35(H) mm. Approx. 980 grams.
Additional features - Monitor	EMC Safety standards FCC, CE. Number of characters: 40 (20 columns x 2 lines)/ Character font¨5(H) x 7(V) dot matrix/ Character type: 95 Alphanumeric, 37 International Characters/ Character size: 5.25 (H) x 9.03 (V) mm/ Horizontal Rotation: Max. 355°/ Vertical Rotation: 0°~90°/ Commands Mode: ITIMATE, LD220, Aedex, UTC/S, UTC/E, ADM788, DSP800, CD5220, EMAX, Logic Controls/ Language Support : US English, Int'l English, Bosnia, Croatian, Czech, Danish, Dutch, Estonian, Faroese, Finnish, Flemish, French, Fr Canadian, German, Greek, Hebrew, Hungarian, Icelandic, Indonesian, Irish, Italian, Katakana, Latvian, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, Slovene, Slovak, Spanish, Swedish.
