P2C-E200 Touch POS

Downloads

File	Size	Download
p2c-e200-touch-pos-datasheet.pdf	762.5KB	Download

Description

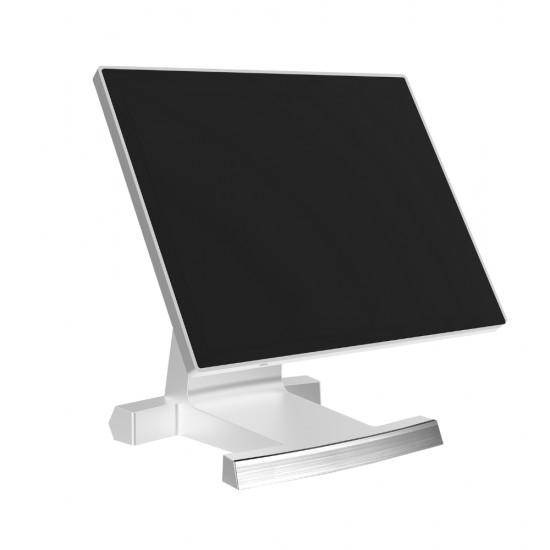

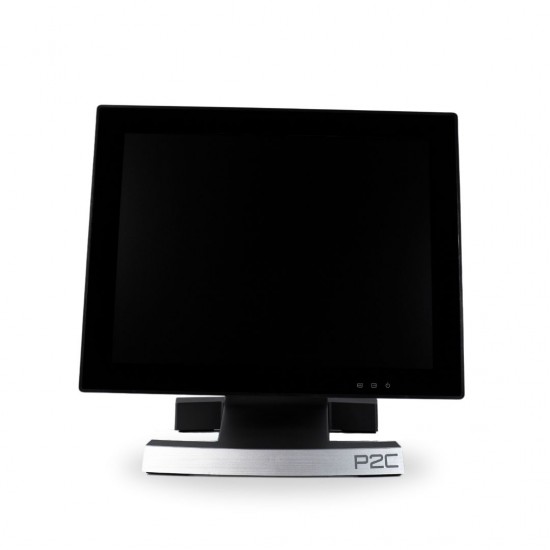

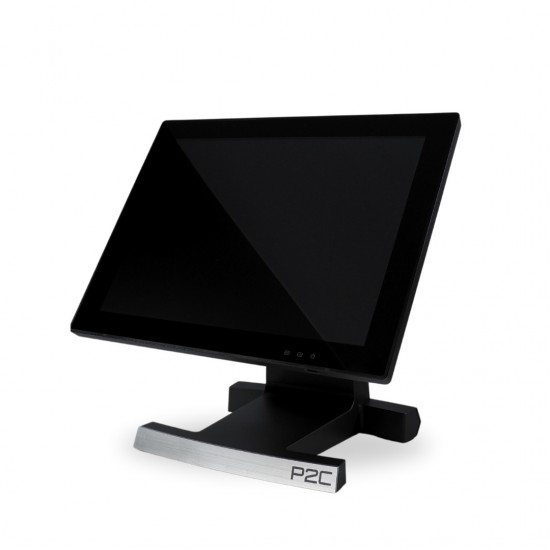

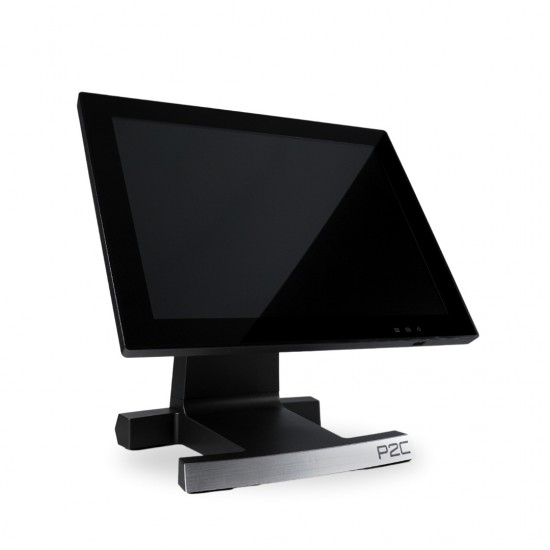

P2C-E200 Touch POS 15” Intel Celeron J6412 8GB RAM 128GB SSD Dark Grey Win.10 iOT

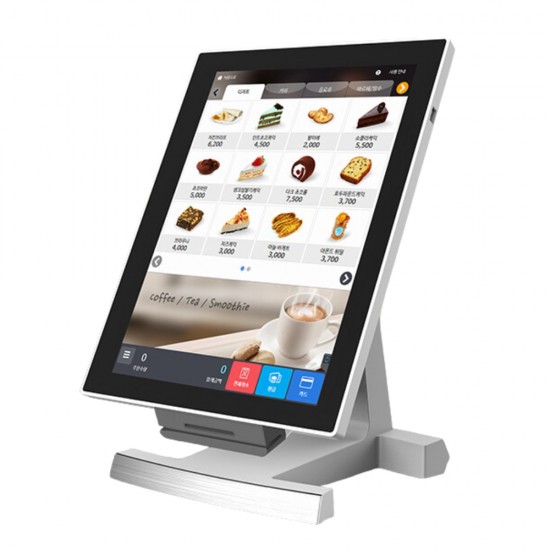

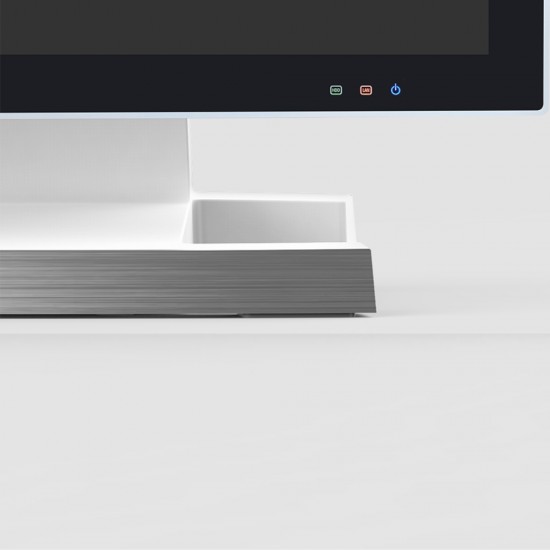

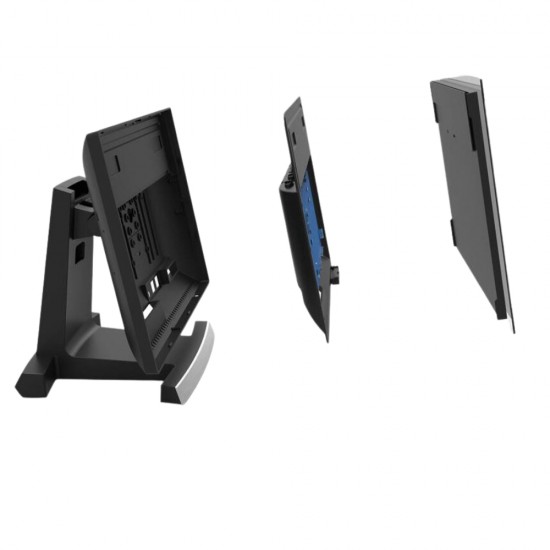

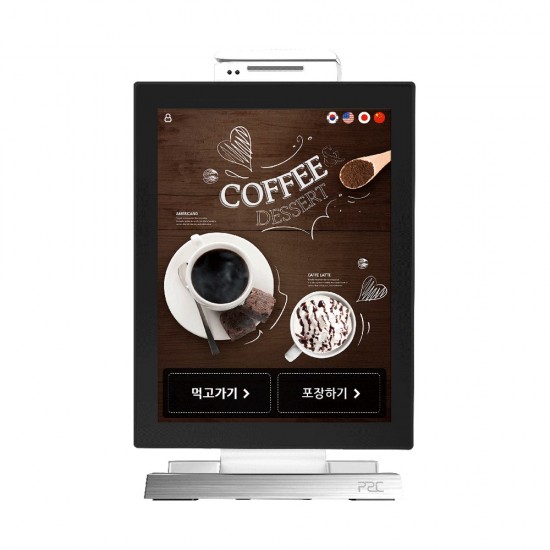

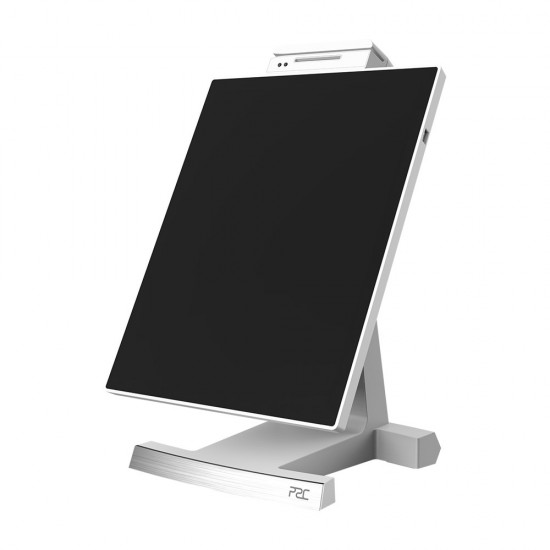

Reliable and stable POS system with excellent performance following today’s technology trend. The system can be used as a POS system by adjusting the screen horizontally or as a KIOSK by adjusting the screen vertically. The 15” WLED is designed to adjust the displays’ brightness in real time depending on the environment to reduce eye fatigue. Smooth and stable 10-point multi-touch display with accurate touch information processing due to excellent recognition. The LED indicator allows to check if the system is booting up correctly and troubleshoot according. Three stage structure for easy disassembly and assembly with convenient maintenance. Featuring Intel®'s high-performance processor Intel Celeron J6412 enables faster, more reliable, and powerful performance. The overall frame design provides excellent heat conduction and heat dissipation processing capabilities. The fanless system allows for stable store operation at the lowest temperatures compared to other designs. The power cable, video cable, and touch are all merged into one cable. When connecting to the main body of the POS system, there is an automatic locking mechanism and you can press the button on the cable to release/detach the connection.

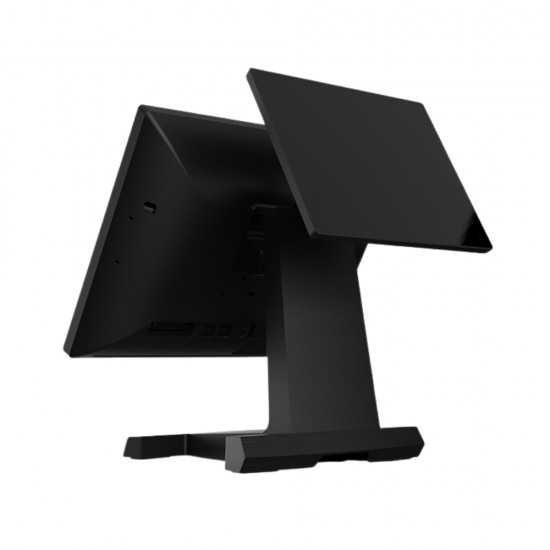

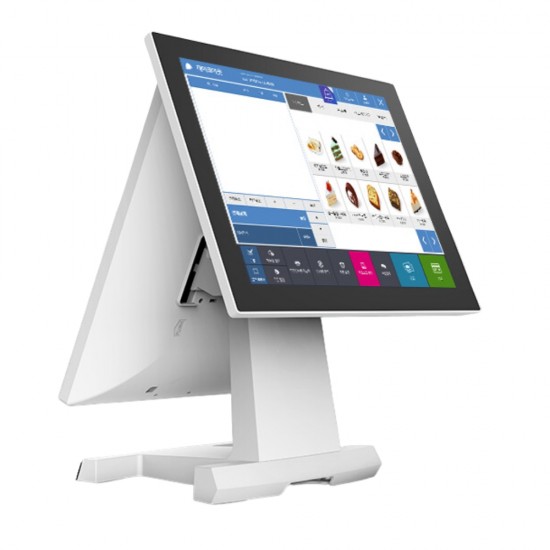

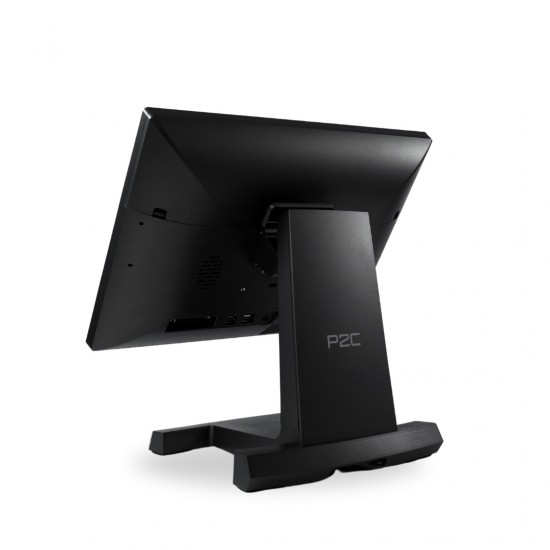

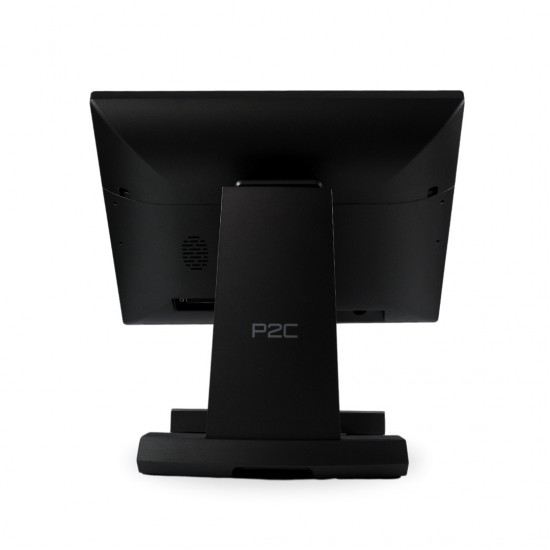

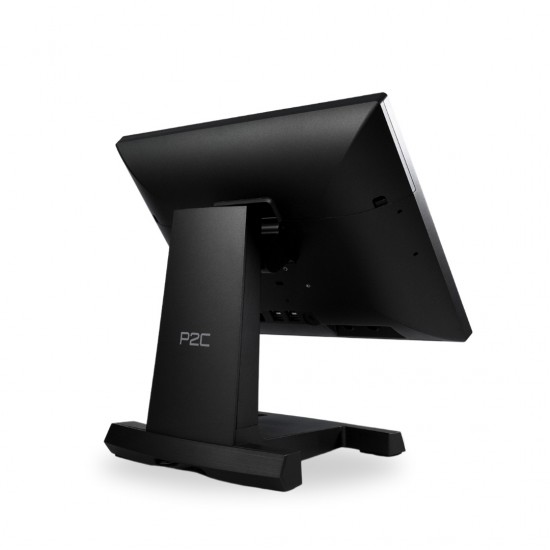

Strong hinges and double frames have been applied to minimize shaking when the POS system is being used. The dual monitor can be rotated up, down, left, and right. The all-in-one glass touch panel helps keep the screen stay clean for a long time, prevents scratches, and reduces eye strain. Secure power supply tightening structure.Three display options, MSR,VFD options.

P2C

Specifications

Touch Systems
Monitor	15" LED Backlight.PCAP 10 Point Multi-touch
CPU	Intel Celeron Quad-core J6412 2.0GHz
Memory	1 X SLOT 8GB DDR4 up to 32GB
Disk	128GB SSD 2,5” UP TO 512GB
Operating System	Windows 10 IoT Enterprise(64bit), Windows 11(64bit)
Resolution	1024 x 768

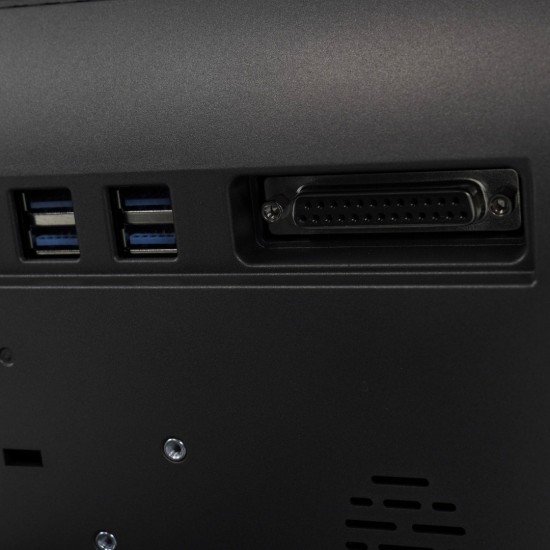

USB Ports	2 x USB 2.0 (Rear Top x 2), 4 x USB 3.0(Rear Bottom x 4)
Serial Ports	DB9 x 3, RJ50 x 2, RJ11 x 1
Ethernet Ports	1 x RJ45 (Base-T 10/100/1000 Ethernet)
Additional Ports	1 x Audio-out / 3.5mm , 1 x DisplayPort

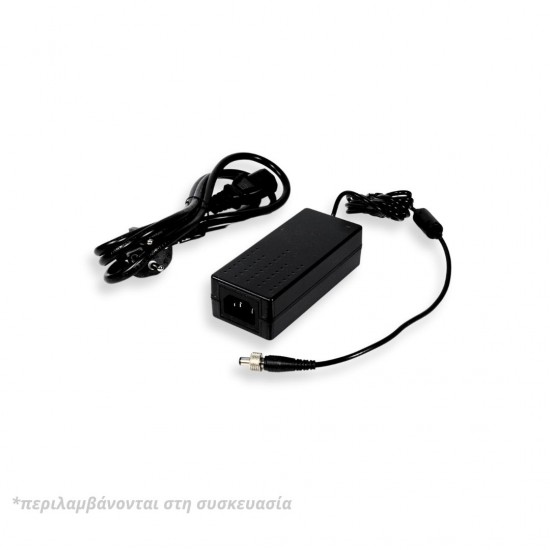

Power supply	DC 12V/7A (AC 100V~240V, 84W)
Temperature/ Humidity	Operating: 0 ~ 40℃ at 10% to 90% humidity. Storage Temp: -20~60℃
Dimensions/ Weight	362 x 237 x 352 mm/ 6.3Kg

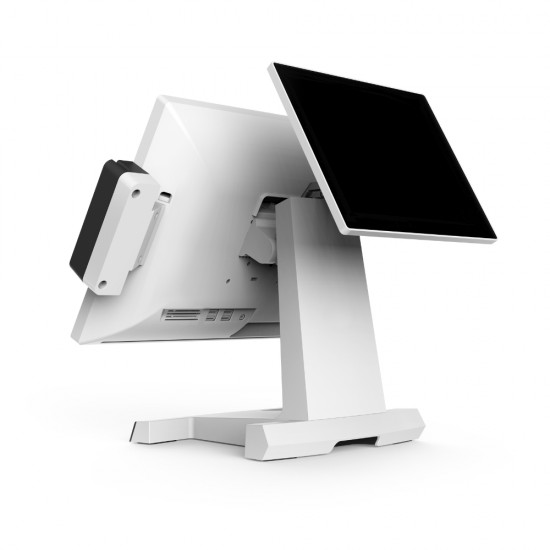

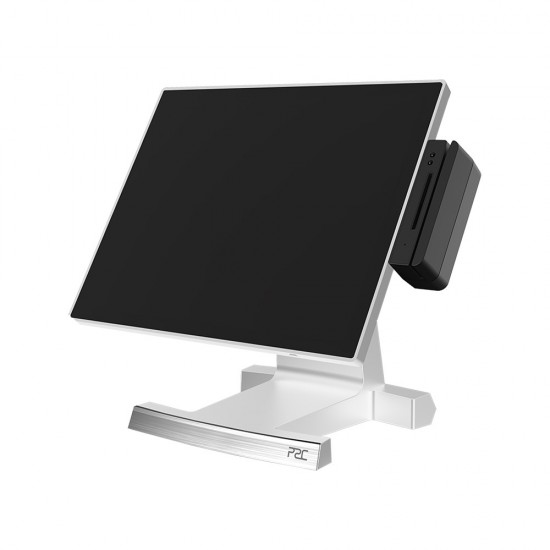

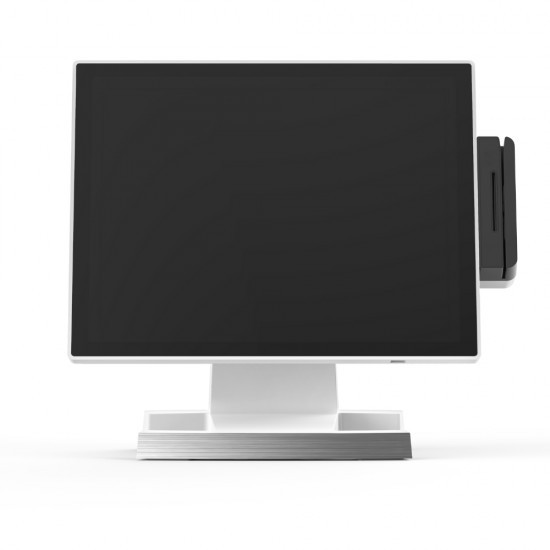

Additional features Touch Touch Systems	2nd Display Type: LCD Type: 9.7" or 15" LCD (USB Port x 1). Touch Monitor: 9.7" or 15" LCD with Capacitive Touch (USB Port x 1). Customer Display (CDP) FSTN LCD Type (20 columns x 2 lines).Card Reader (MSR / SCR).Dallas Reader. Speaker 3W x 1. Certifications CE, FCC, KC.
