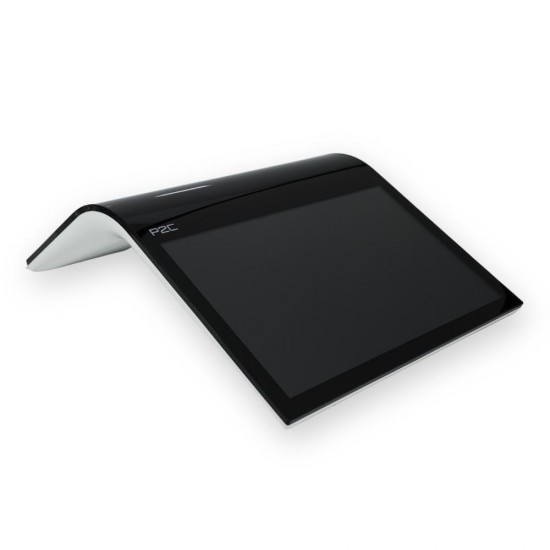

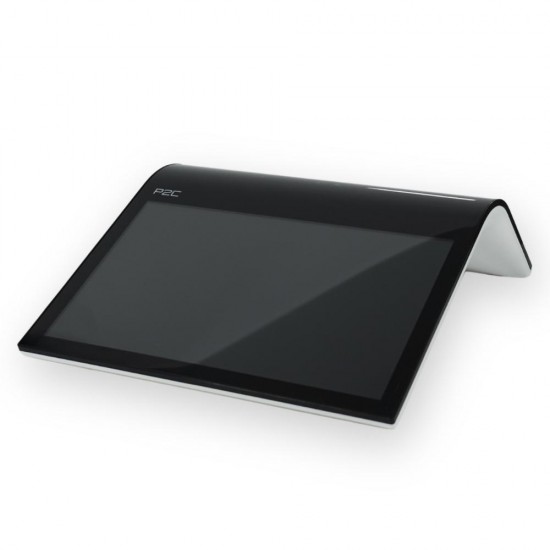

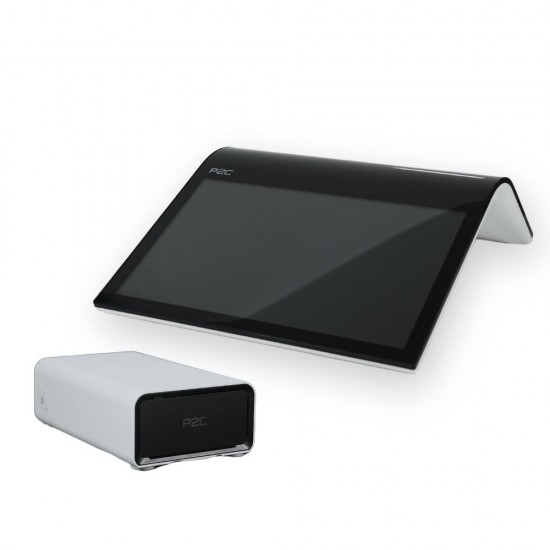

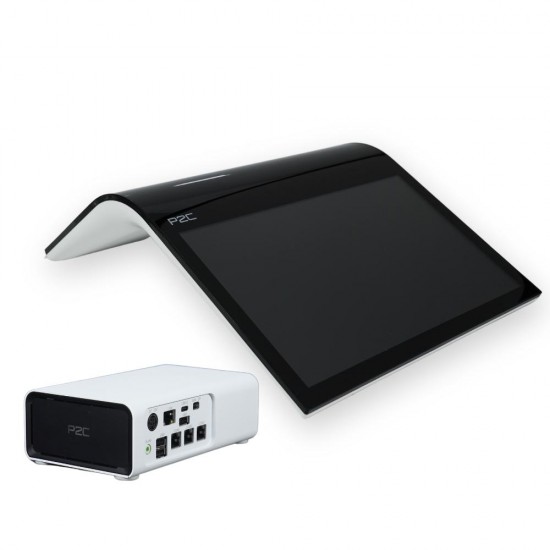

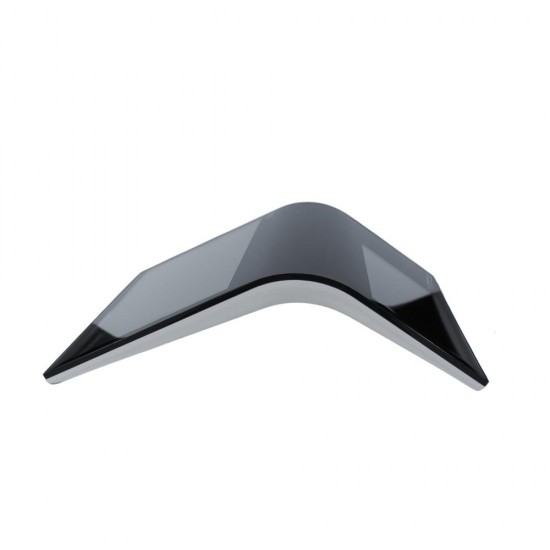

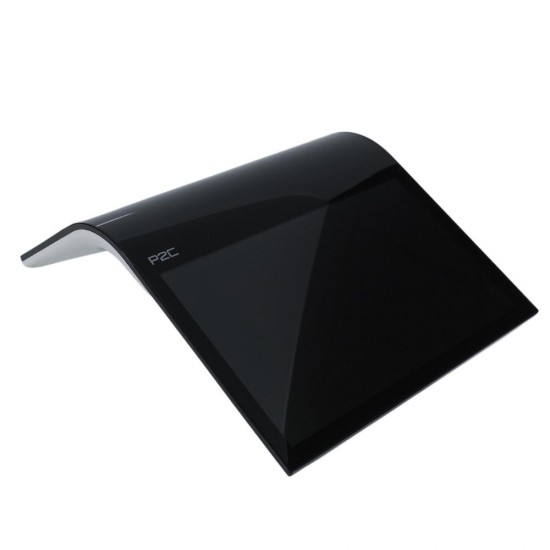

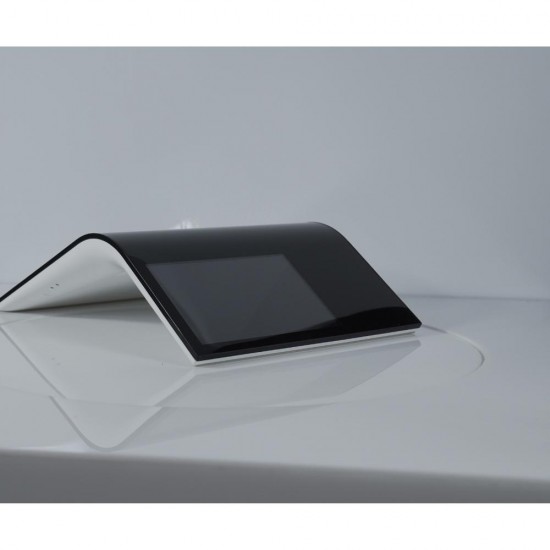

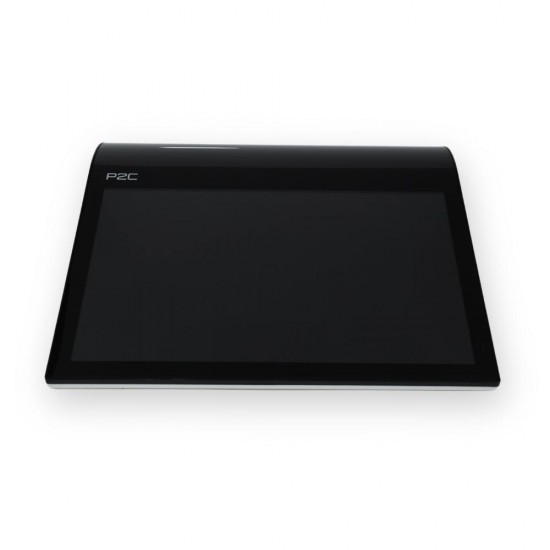

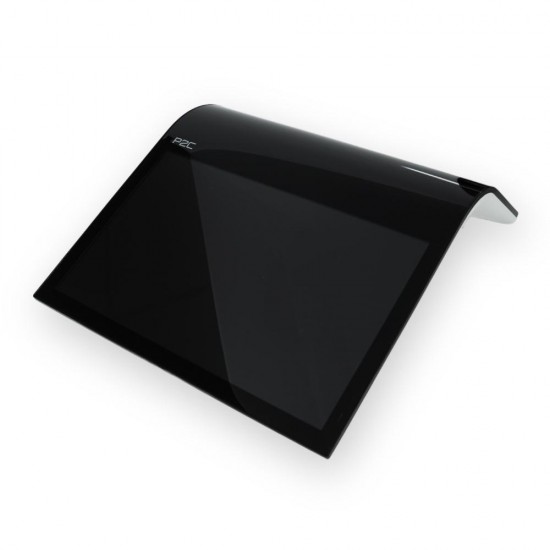

P2C ARC CUBE POS SMART TOUCH SYSTEM

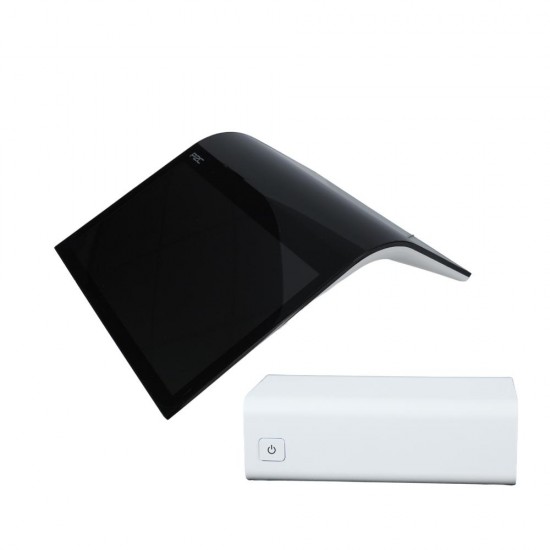

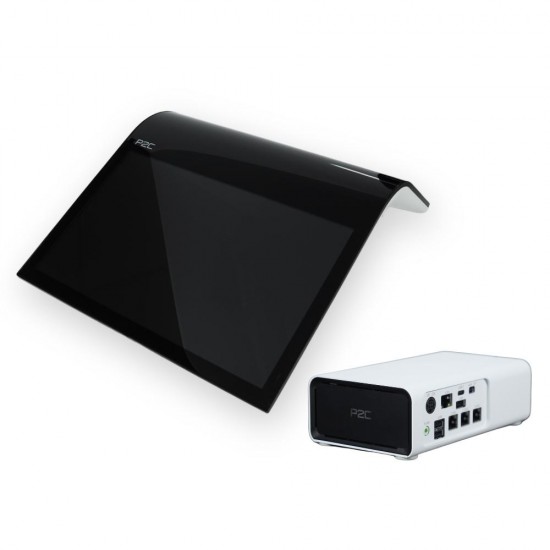

Compact size, powerful performance mini PC system ARC POS with mini cube PC brings a new concept of a smart POS system tha innovates the store. State of the art level of design, ergonomic approach and space saving solution. The cube PC can be easily installed to enable efficient space utilization. Landscape and Portrait view, Plug & Play operation, Windows and Android. Various I/O ports, Durable aluminum case, Fanless system.

P2C

Specifications

Touch Systems
Monitor	12.2" LED Backlight PCAP 10 Point Multi-touch
CPU	Intel® Celeron® Processor J6412 (Fanless)
Memory	4GB (1 x SODIMM DDR4 3200MHz up to 16GB)
Disk	Standard. 128GB (1 x M.2 2280 SATAIII) or Premium. 256GB (PCIe 3.0 NVMe option)
Operating System	Windows 10 IoT Enterprise(64bit) / Windows 11(64bit)
Resolution	(1920x1200 / 16:10 Ratio)

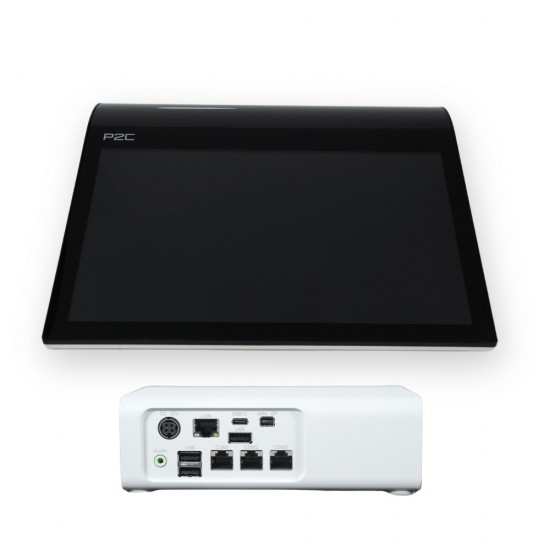

USB Ports	ARC : 2 X USB 2.0 / CUBE: 2 X USB 2.0 , 1 X USB 3.0
Serial Ports	ARC : 1 X RJ11 (ΣΥΡΤΑΡΙ) / CUBE : 3 X RJ45 (COM)
Ethernet Ports	1 x RJ45 1000Mbps

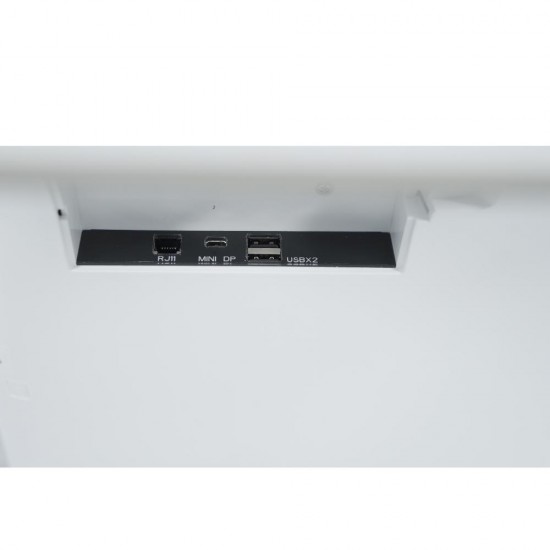

Additional Ports	CUBE: 1 X TYPE C USB, 1 X MINI DP , 1 X LINE IN AUDIO / ARC: 1 X MINI DP ,

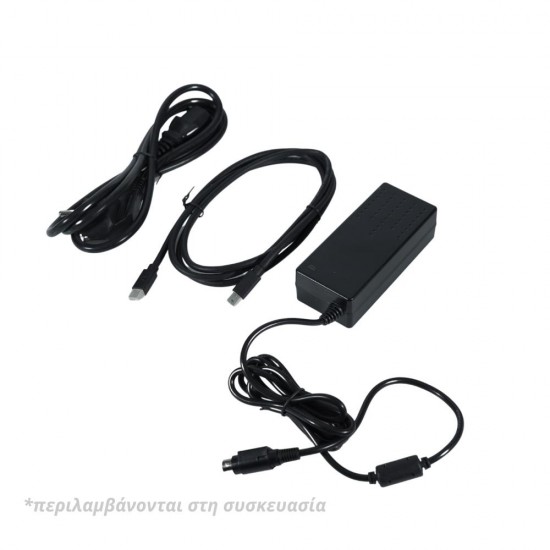

Power supply	60W / 12V DC input
Dimensions/ Weight	ARC :292mm x 383mm x106mm / 3,2kg CUBE: 172mm x 106mm x 57mm / 0,7kg

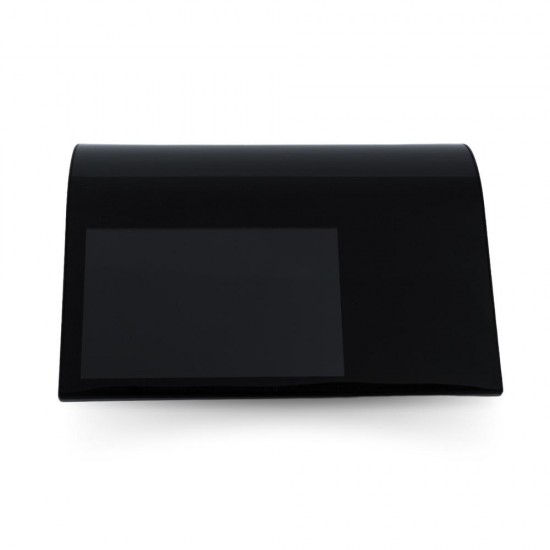

Additional features Touch Touch Systems	Secondary Display 8” Customer Display / LED Backlight (1280x800 / 16:10 Ratio) / PCAP 10 Point Multi-touch. WI-FI on board / BLUETOOTH 5.0 Audio: 3W Speaker. Certifications CE, FCC, KC
