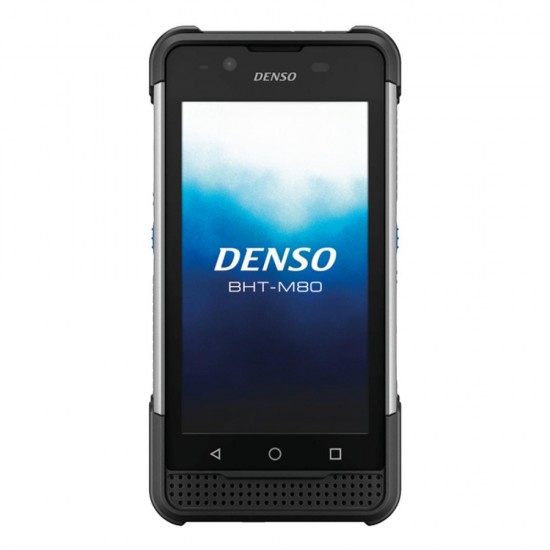

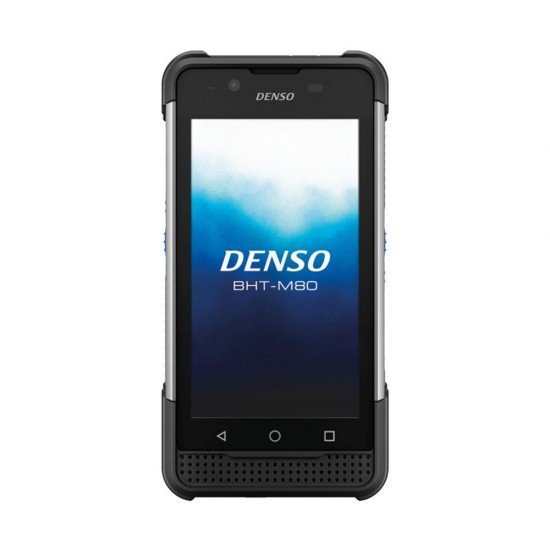

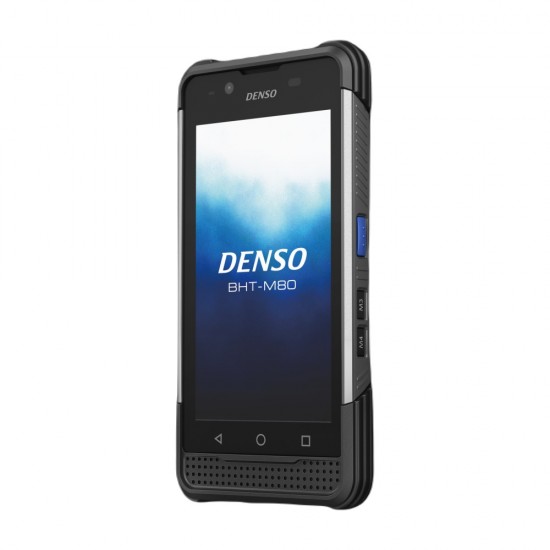

DENSO BHT-M80 Mobile Computer

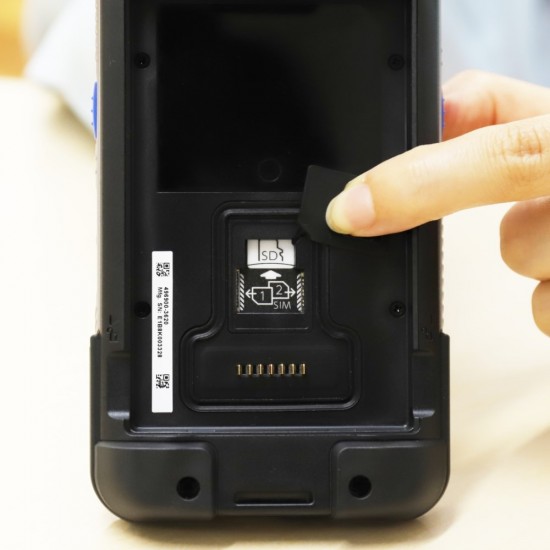

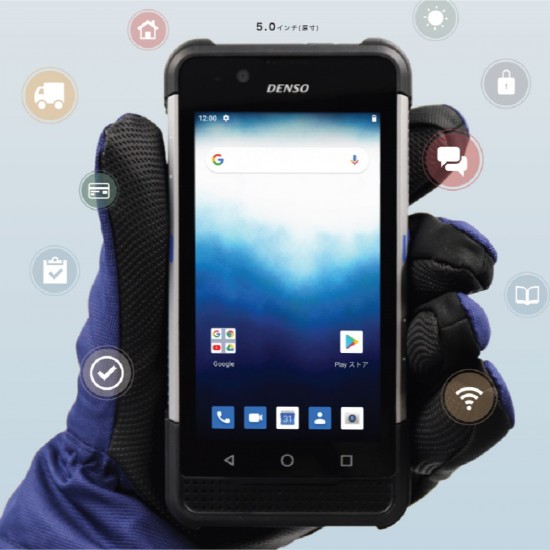

Uniquely designed to provide high resistance against drops on concrete floors with a light and rigid magnesium frame and an elastomer bumper to absorb shocks. Highest-level resistance against 3.0 meter drops, has passed the drop durability test of 1meter x 2,000 times making it robust enough for daily use. Display AGC’s Dragontrail® Pro for resistance against scratching and to provide high visibility on a long-term basis. With IP68 and IP67compliant resistance against water and dust, the terminal can be used outdoors in rainy weather and in dust filled factories alike with peace of mind. Operable with gloves on, the sensitivity is automatically adjusted according to the thickness of the gloves. Reducing eye stress imposed on the user due to the performance of screen-based tasks, thereby increasing productivity. Direct charging and wireless charging supported. Easy-to-replace battery.


Specifications

Mobile Terminals
Monitor pda 5.0-inch high-definition (720×1,280 dots). Dragontrail® Pro※3 Capacitive multi-touch screen with glove touch support and water droplet false touch prevention.
Operation System Android™ 10
CPU pda Qualcomm® SDM660 64 bit 2.20 GHz (Octa-Core)
Memory pda 4 GB RAM/ 64 GB Flash memory
Communication USB Ver.2.0 (USB Type-C), Bluetooth®, NFC, Wireless LAN
Interface-Ports USB, Wireless WAN, Bluetooth, NFC
Barcode scanner Area sensor, 2D code, Barcode, OCR
Battery pda Lithium-ion battery, Wireless charging, USB charging
Keyboard 5 keys (including the power key) and 2 trigger keys
Sealing IP65 & IP67
Resistance 3.0m drop on concrete floor, 60 times or more from 1.5m / Operating temperature -20~50℃

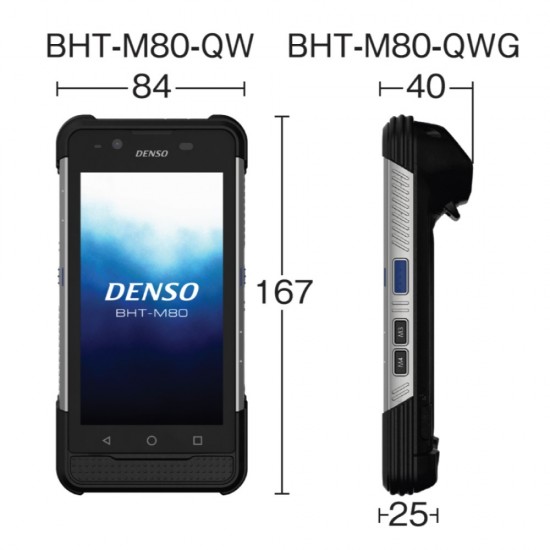

Dimensions/ Weight pda 167×84×25mm/ 345gr-395gr
Accessories Wireless charger CH-M80W/ 4-slot main unit charger CH-M80-4/ 4-slot battery charger CH-BT1-4/ ???? USB power adaptor (Quick Charge™ 3.0 supported) AD8/ Communication units/ Batteries/ Waist case WHBHT-M80/ Hand belt HBBHT-M80/ Stylus pen PNBHT-1700
Additional features mobile terminals Camera 13-megapixel auto-focusing with a LED lightRear / 5-megapixel auto-focusing Front/ Memory microSD (SDHC and SDXC (up to128 GB)) SDHC Speed class 4 support
