EDA5s Handheld Computer

Name: EDA5s Handheld Computer
Brand: HONEYWELL
Price: 1.00 EUR
Availability: InStock

EDA5s Handheld Computer

Downloads

File	Size	Download
scanpal-eda5s-data-sheet-en.pdf	100.34KB	Download

Description
Video

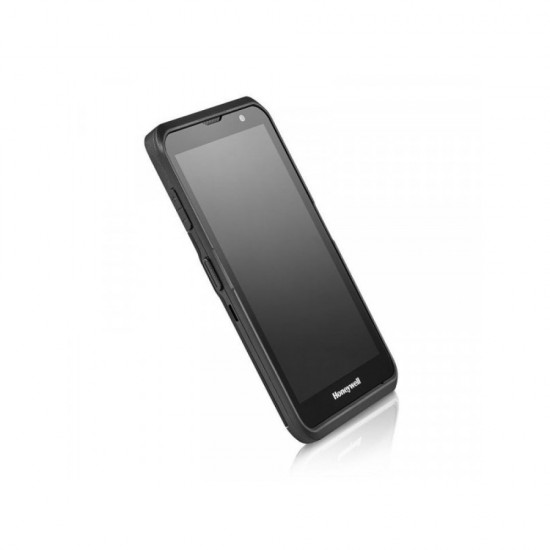

Honeywell ScanPal EDA5s 1D/2D barcode,WLAN, USB, Android 11,IP67

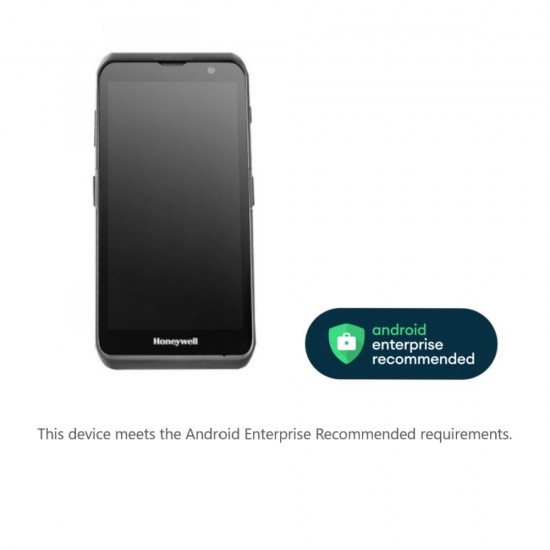

The ScanPal EDA5S Honeywell mobile computer is equipped with Qualcomm Snapdragon octa-core 2.0GHz processor and robust wireless connectivity through NFC, Wi-Fi 5, Bluetooth 5.1 and 4G LTE communication. Gorilla Glass 5.5-inch touch screen interface and ergonomic industrial design help to greatly improve user comfort and experience. Lightweight and slim design means that users can easily operate the device with one hand, carry it in pockets, and stay comfortable all day. The 13-megapixel rear camera allows users to capture high-resolution images for quality image documentation while the 5-megapixel front camera allows users to engage in video communication. The EDA5S incorporates the all-new and powerful Honeywell S0703 scan engine which enables accurate and fast reading even of damaged or incomplete barcodes. Outfitted with a rugged housing and IP67 rated sealing and MIL-STD-810G, the EDA5S can operate under rough usage and demanding environmental conditions. A 3060mAh battery provides 8 hours of power without interruption. The EDA5S is built on Android 11 and upgradable to Android 13. This device meets the Android Enterprise Recommended requirements.

HONEYWELL

Specifications

Mobile Terminals
Monitor pda	5.5-inch Touchscreen: Multi-touch capacitive (CTP), GFF. LED Backlight, Gorilla Glass. Resolution: 1440 x 720 High Definition
Operation System	Android 11, upgradable to Android 13
CPU pda	Qualcomm Snapdragon SM6115, Quad high-performance Kryo cores 2.0 GHz +Quad low-power Kryo cores 1.8 GHz
Memory pda	3 GB RAM/32 GB Flash/ 4 GB RAM/64 GB Flash
Communication	WLAN Wi-Fi IEEE 802.11 a/b/g/n/ac. Bluetooth Class 5.1. GSM/EDGE. UMTS/HSPA. FDD-LTE. TDD-LTE. NFC. GPS.
Interface-Ports	2 pin bottom connection, PC Interface USB 2.0 with Type-C
Barcode scanner	Honeywell S0703 Slim Imager (1D/2D barcode symbologies
Battery pda	Li-Ion, 3.8 V, 3,060 mAh removable. Charging Time less than 3.5 hours. Battery Runtime more than 8 hours.
Keyboard	5 side keys for volume up/down, right and left scan keys and power on/off
Sealing	IP67
Resistance	Drop: 1.2 m (4 ft) to concrete. MIL-STD-810G under room temperature. 300 tumbles at 0.5m (1.64ft). Operating Temperature:-10°C to +50°C (+14°F to +122°F). Storage Temperature: -20°C to +70°C (-4°F to 158°F). Humidity: 5% to 90% (non-condensing)
Dimensions/ Weight pda	159 x 75 x 11.2 mm(6.26 in x 2.95 in x 0.44 in) Weight: 218gr (7.69 oz)
Accessories	Single Charging Dock: Charges one terminal Single Charging Home Base: Charges one terminal and one replaceable battery simultaneously. Quad Bay Charging Base: Charge four terminals simultaneously. Quad Bay Battery Charger. Standard Battery Pack. Wrist Strap. Screen Film. USB Wall Adaptor
Additional features mobile terminals	Rear Camera 13-megapixel color camera. Front Camera 5-megapixel color camera. Storage Expansion: MicroSD (up to 128 GB). Real-Time Clock (RTC): 10 min back up vie super-cap. Sensors: acceleration sensor, light sensor, and proximity sensor. LED Battery Status Indicator. LED Scan Indication.
