MK-1495BT Scanner 2D

Downloads

File	Size	Download
KSG MK-1495BT DATASHEET.pdf	579.16KB	Download

Description

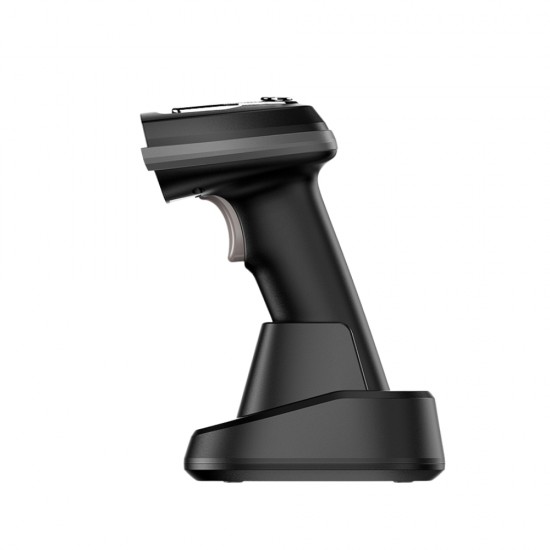

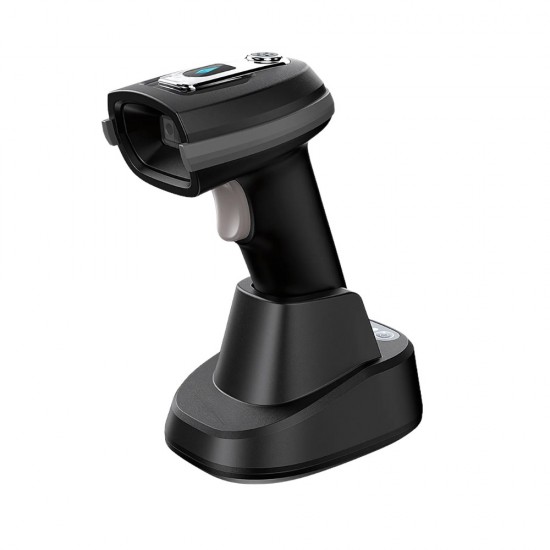

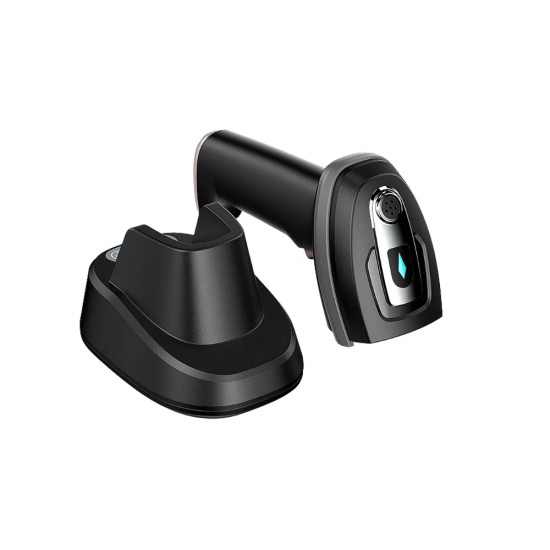

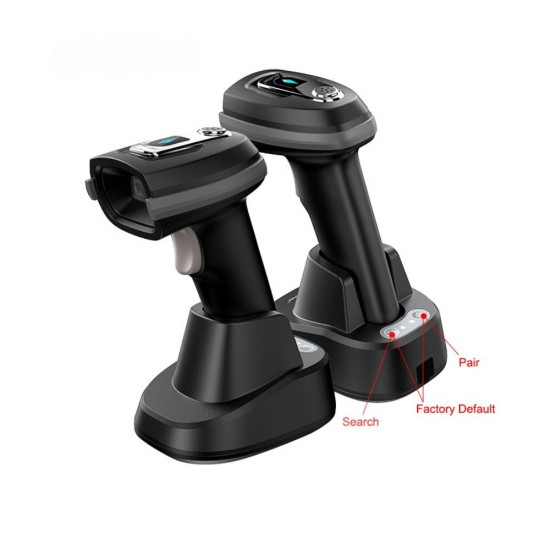

KSG MK-1495BT Barcode Scanner 2D, BT with Stand

Powerful handheld scanner that meets various scanning needs and intensive use. Made of ABS+TPU material and resistant to shocks and drops. It continues to operate even after a drop. Comfortable and easy scanning with ergonomic buttons. It is compatible with many operating systems and comes with a stand. Ideal for retail businesses, chain stores, warehouses and distribution, crafts and pharmacies, public organizations and municipal enterprises, for clock measurements and consumption monitoring, etc.

KSG

Specifications

Scanners
Reading mode	1D/2D
Scanning range/ Βάθος πεδίου	Precision Barcode Depth of Field: 3.34mil CODE128 60mm-160mm/ 5mil CODE128 65mm-230mm/ 3.34mil EAN-13 60mm-150mm/ 5mil EAN-13 70mm-230mm/ 13.34mil EAN-13 40mm-450mm/ 5mil PDF417 65mm-210mm/ 10mil DM 30mm-260mm/ 20mil DM 20mm-480mm
Scanning range/ Width of Field	Reading Angle: Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60°.
Resolution	4mil
Interfaces	RS-232; USB HID; USB COM; HID POS available upon customer’s needs
Ambient light	Indoor: 0 to 6,000 lux; Outdoor: 0 to 100,000 lux
Symbologies	1D: All standard 1D codes including GS1 DataBar™ linear code can be automatically distinguished and decoded. 2D: Aztec Code; Data Matrix; Maxi Code; QR Code; HAN XIN; Micro QR Code. Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417.
Additional features	LED White light, Green Dot Aiming Light, Image Sensor 1280x800 pixels. CPU 1.2G Dual-core. Operating Temp.-10°C to 50°C. Storage Temp. -20°C to 70°C. Drop Specification Withstands multiple 4 ft./1.2 m drops to concrete. Wireless 2.4G and Bluetooth interface. Battery Capacity 2000mAh. Continuous working over 12 hours. Charging time 4~5 hours.
Reading Speed	60fps
