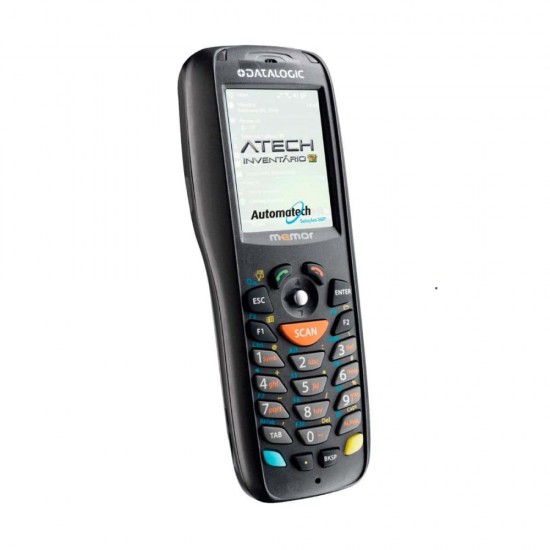

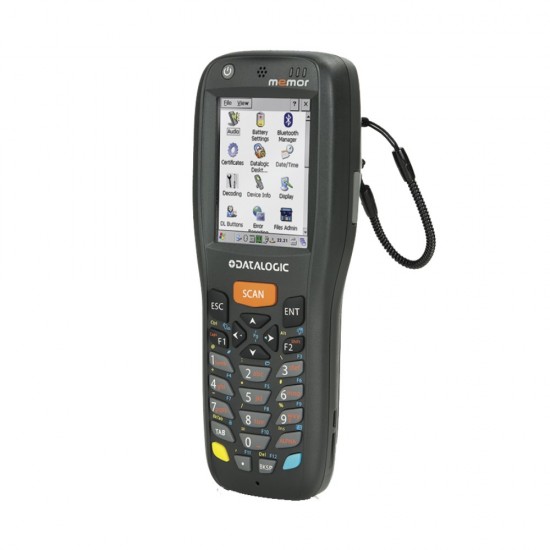

Mobile Computer DataLogic MEMORX3

Small, slim and light, the Memor™ X3 mobile computer provides excellent ergonomics for single-handed use, and its rugged, sealed construction survives unintentional drops and exposure to water and dust. Laser models feature a Corning® Gorilla® Glass 2 scan window guaranteeing optimum scanning performance. Pocketable, ergonomic and robust 1.2m/4.0 ft drop resistance to concrete; Gorilla Glass II scan window on laser models. Microsoft Windows CE 6.0 Core or CE 6.0 Pro. Standard and High-capacity battery options. 802.11 a/b/g/n with CCX V4 and Bluetooth® Wireless Technology 2.1+EDR . Reading options: Laser; 2D Multi-Purpose Area Imager; Linear Imager (all with ‘Green Spot’ technology).

DATALOGIC

Specifications

Mobile Terminals
Monitor pda	Reflective TFT daylight readable color display QVGA, 240 x 320 pixels, 2.4 in diagonal, 64 K colors, backlight, touch screen
Operation System	Microsoft Windows CE 6.0 Pro with Microsoft WordPad and Internet Explorer 6.0; Microsoft Windows CE 6.0 Core
CPU pda	Microprocessor XScale™ PXA310 @ 806 MHz on Windows CE 6.0. Pro models; 624 MHz on Windows CE 6.0 Core models
Memory pda	System Flash:512 MB (including backup directory for user data and programs permanent storage) System RAM: 256 MB on all the Windows CE 6.0 Pro models; 128 MB on Windows CE Core models/ EXPANSION SLOTS Micro SD card slot compatible with SDHC cards, user-accessible
Communication	LOCAL AREA NETWORK (LAN) Summit IEEE 802.11 a/b/g/n Frequency range: Country dependent, typically 2.4 and 5.2 GHz; CCX v4 Security. PERSONAL AREA NETWORK (PAN) Bluetooth Wireless Technology 2.1 with EDR, Class 2
Interface-Ports	Electrical: Integrated RS-232 up to 115.2 Kbps; USB: Integrated Micro USB A connector, Host 1.1 and Client 2.0
Barcode scanner	1D / linear codes, 2D codes, postal codes, stacked codes
Battery pda	Removable battery pack with rechargeable Lithium-ion batteries; 3.7 V 1430/2300 mAh (5.29/8.51 Watt hours)
Keyboard	25 keys, backlit keyboard, 2 programmable lateral keys
Sealing	IP54
Resistance	Withstands drops from 1.2 m / 4.0 ft onto concrete. TUMBLE 1,000 random falls from 0.5 m / 1.6 ft
Dimensions/ Weight pda	15.6 x 5.7 x 4.0 cm / 6.1 x 2.2 x 1.6 in/ 233.0 g / 8.2 oz including standard battery

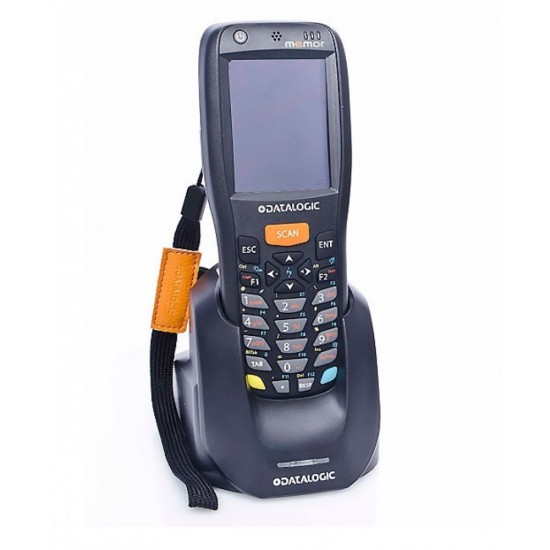

Accessories	Docks/Battery Chargers: Single Slot Cradle with Spare Battery Charging, Single Slot Cradle Ethernet/USB with RS-232 and Spare Battery Charging, Four-Slot Dock, Charge only Multi-Battery Charger, Four-Slot Dock, Ethernet.
Additional features mobile terminals	SCAN WINDOW Corning® Gorilla® Glass 2 (Laser scanner only)/ REAL-TIME CLOCK Time and date stamping under software control
