YS1270 Scanner 1D/2D

Downloads

File	Size	Download
YS-1270-KSG.pdf	807.77KB	Download

Description

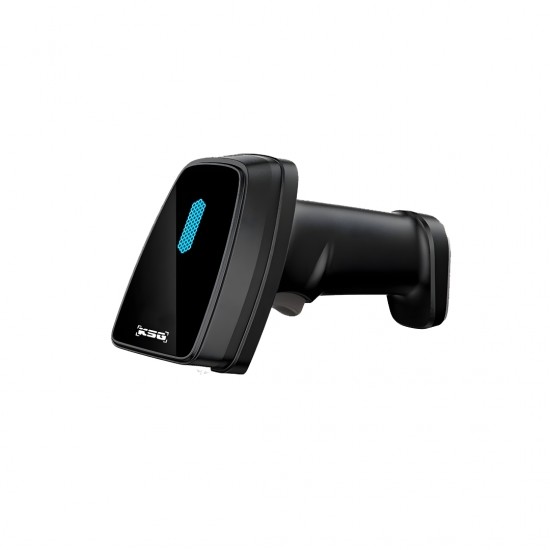

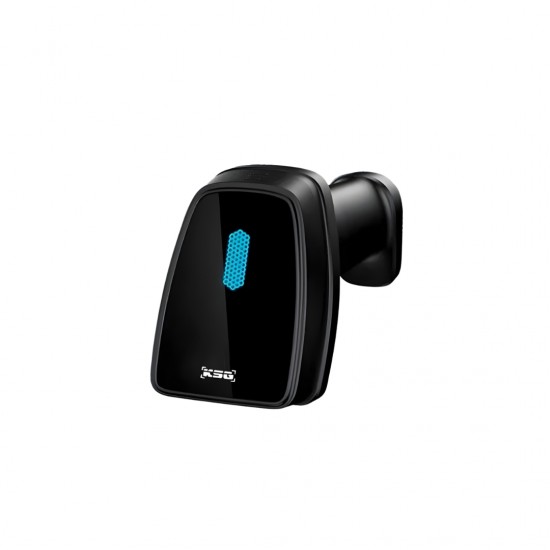

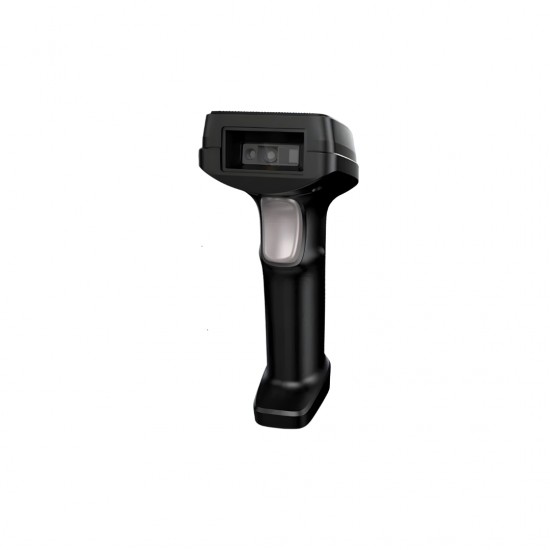

KSG YS1270 Corded Barcode Scanner 1D/2D, Pistol, USB, with Stand

Flexible and powerful handheld corded scanner for 1D or 2D barcodes. Equipped with advanced decoding algorithm that reads easily both 1d and 2d codes. Support many keyboard languages and it doesn't need driver to operate. It is compatible with major operating systems. Comes with a stand. Ideal for retail stores, warehouses and distribution, for production and pharmacies, for public organizations and municipal enterprises, for counter counting and consumption monitoring, etc.

KSG

Specifications

Scanners
Reading mode	1D/2D
Scanning range/ Βάθος πεδίου	Precision Barcode Depth of Field 3.34mil CODE 128 10mm—60mm. 5mil CODE128 5mm—90mm. 3.34mil EAN-13 10mm—55mm. 5mil EAN-13 5mm—85mm. 13.34mil EAN-13 20mm—190mm. 5mil PDF417 5mm—75mm. 10mil PDF417 5mm—190mm. 15mil PDF417 10mm—200mm. 10mil DM 5mm—100mm. 20mil DM 5mm—210mm.
Scanning range/ Width of Field	Reading Angle: Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60°.
Resolution	0.102mm / 4mils
Interfaces	RS-232; USB HID; USB COM; HID POS available upon customer’s needs
Ambient light	Indoor: 0 to 6,000 lux; Outdoor: 0 to 86,000 lux
Symbologies	1D: All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded. * 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code. * Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417.
Additional features	Operating Temp.0° C to 40° C/ Storage Temp. -40°C to 70°C/ Drop Specification Withstands multiple 4 ft./1.2 m drops to concrete. Support multi-language transmission, compatible with major operating systems, support the editing of barcode data.
Reading Speed	30fps
