MK 7020 2D Scanner

Downloads

File	Size	Download
MK-7020.pdf	748.22KB	Download

Description

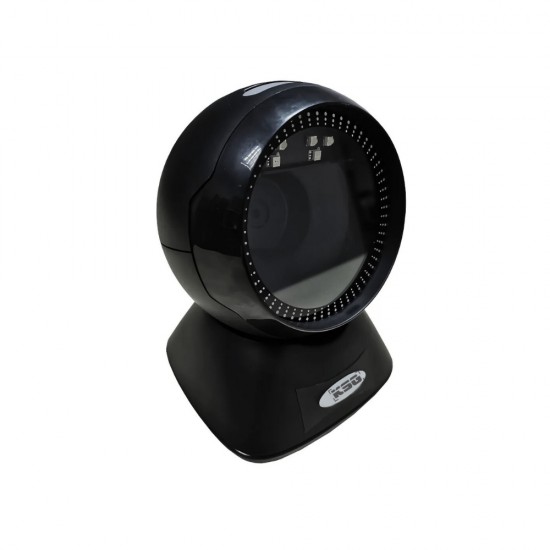

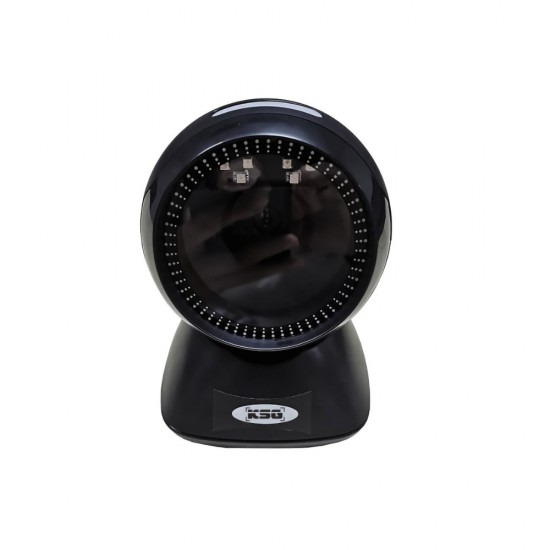

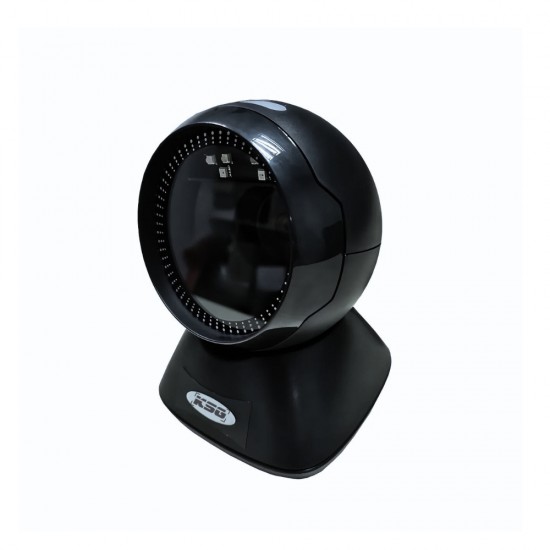

KSG MK 7020 2D Barcode Scanner

Platform Barcode Reader with excellent capability of reading mobile payment bar codes and provides computer information systems with accurate, simple, and quick data input solutions; the desktop QRcode barcode reader adapts to a huge range of pos machines and is widely used in business applications just like a retail, supermarket, healthcare, inventory, medicine, hospitality, transport, logistics, utility, manufacturing industry, etc. The platform barcode scanner hands-free has high performance and high efficiency for payment scanning or commodity code reading is easy to use, simply installed with a USB port for retailers. A platform QR code reader is easy to be connected with your pos terminals or pos system software by USB Cable, and you could download the product catalog first to pick the ideal one from multiple barcode readers for retail business.

KSG

Specifications

Scanners
Reading mode	2D CMOS
Scanning range/ Βάθος πεδίου	Code39(5mil) 0-7cmCode39(13mil) 0-17cm QR(20mil) 0-11cm*
Scanning range/ Width of Field	Field of View: 39°(H) X29°(V), Roll / Pitch / Yaw: 360°(Roll), ±65°(Skew) , ±65°(Pitch)
Scan Rate Ρυθμός σάρωσης	Motion Tolerances:>40cm/s
Resolution	840 pixels (H) x 640 pixels (V)
Interfaces	USB
Dimensions	137.40mm x 99.80mm x 96.50mm
Weight	262.5gr
Ambient light	0-100,000 Lux.
Symbologies	1-D:Codabar、Code 39、Code 32 Pharmaceutical (PARAF)、Interleaved 2 of 5、NEC 2 of 5、Code 93、Straight 2 of 5 Industial、Straight 2 of 5 IATA，Matrix 2 of 5，Code 11、Code 128、GS1-128、UPC-A、UPC-E、EAN/JAN-8、EAN/JAN-13、MSI、GS1 DataBar Omnidirectional、GS1 DataBar Limited、GS1 DataBar Expanded、China Post(Hong Kong 2 of 5)、Korea Post*** 2-D: PDF417, QR code, MicroPDF417, Australian Post, Canada Post, Japan Post, MaxiCode, Codablock, Aztec, Dutch Post, DataMatrix, etc.
Additional features	Voltage: 5±5%V. Current: 235mA. Work Curren 315mA, Starting Current 320mA. Light Source: (Aimer) Blue color LED; (Illumination) Red color LED. Operating Temperature: -20°C to 60°C. Storage Temperature: -30°C to 70°C. Designed to withstand 1.2m(5’) drops.
