FG8975 Scanner 1D/2D

Downloads

File	Size	Download
FG-8975-KSG.pdf	802.38KB	Download

Description

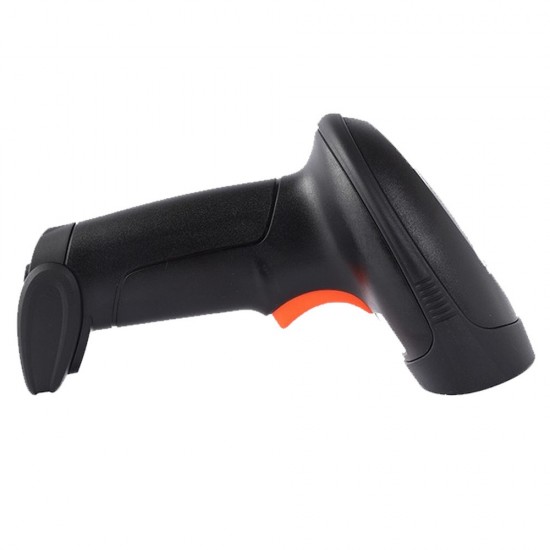

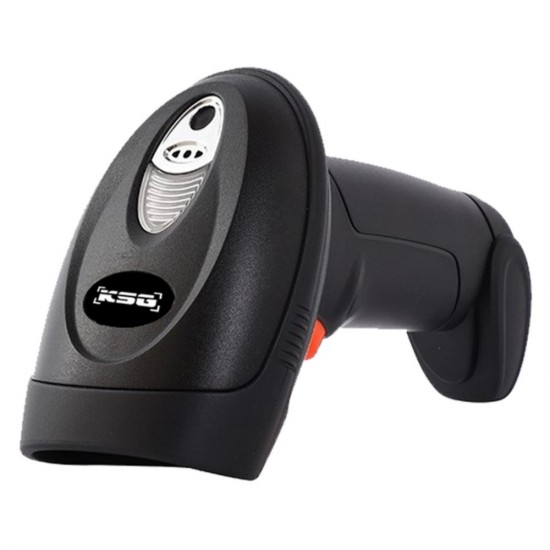

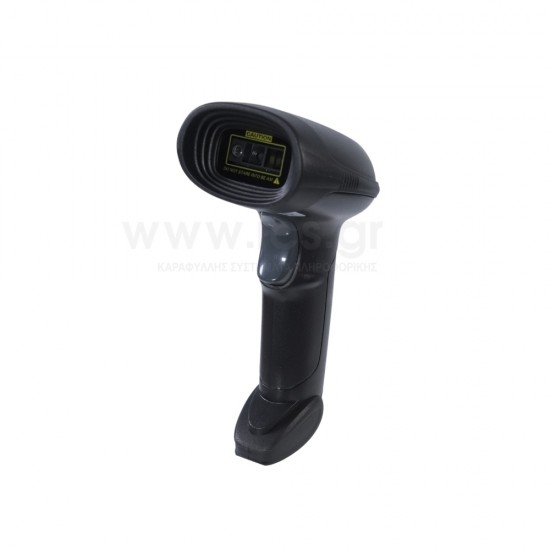

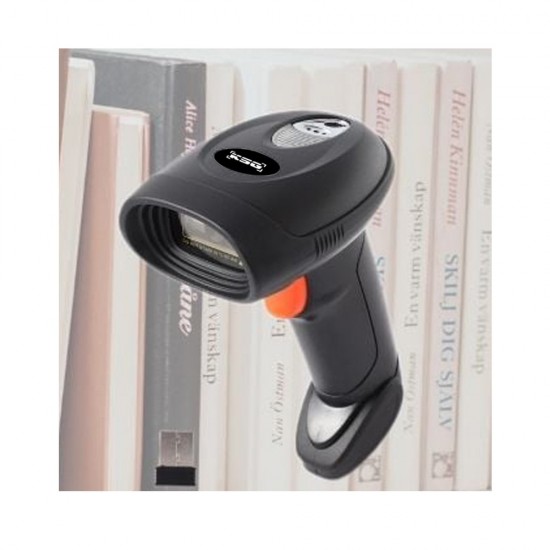

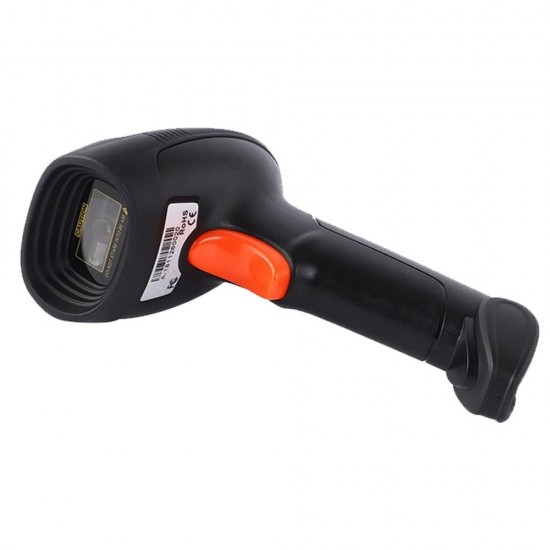

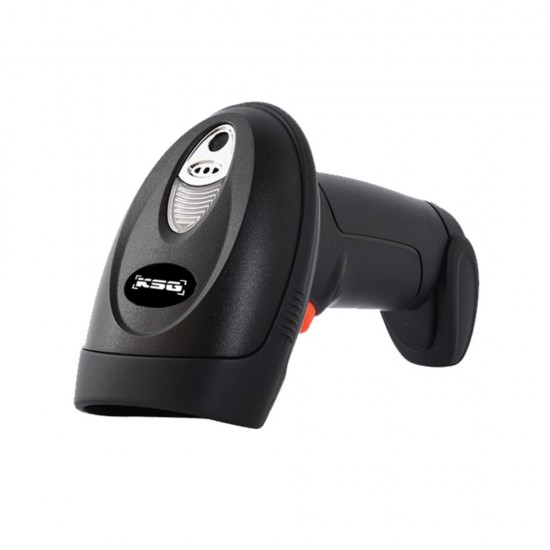

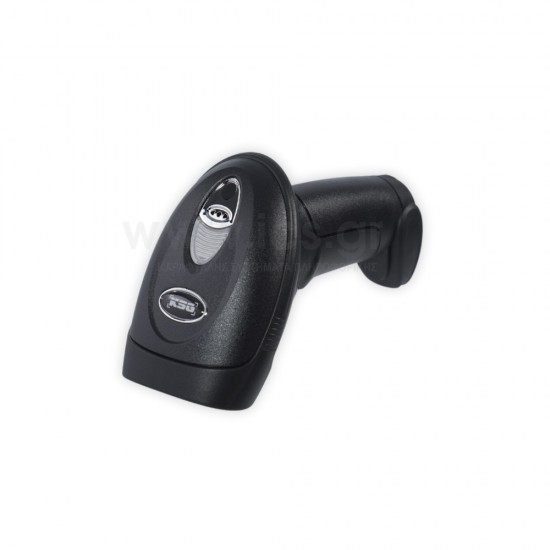

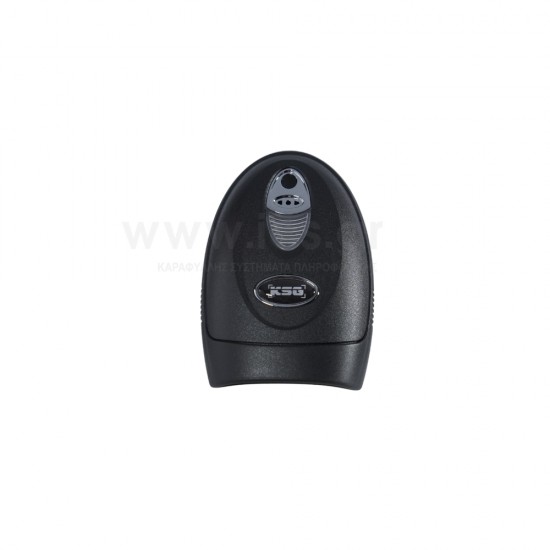

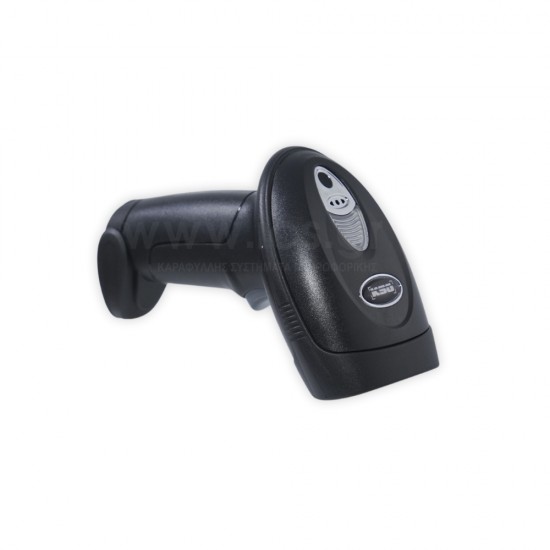

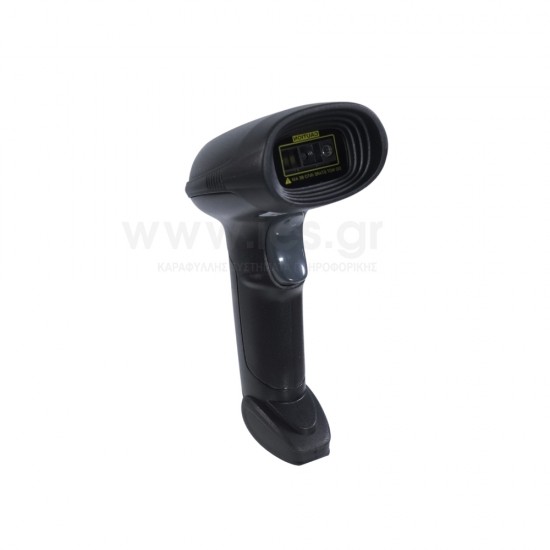

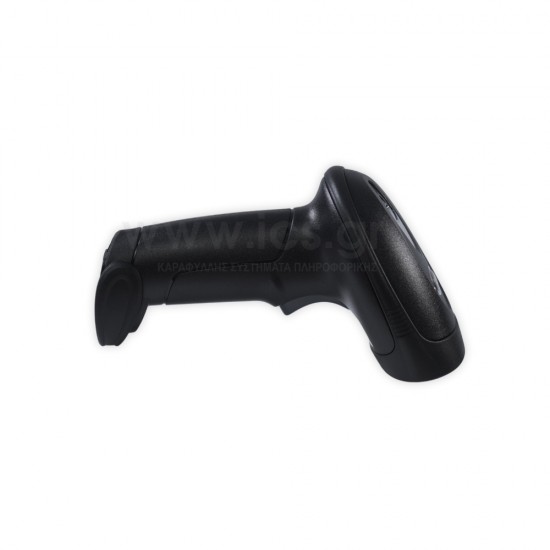

KSG FG8975 Corded Barcode Scanner 1D/2D, Pistol, Wi-fi, 100 meters, USB stick, cable charge.

Rugged IP52 dust and water-resistant, vry fast and accurate scanning. Can be cherged quickly with cable and operates 8-10 hours continuously. Scans 1D and 2D barcodes and can read easily paper, plastic, mobile phones, LEDs, screens etc. Even high-precision, wrinkled, damaged, or poorly printed barcodes. Ideal for retail stores, warehouses and distribution, for production and pharmacies, for public organizations and municipal enterprises, for counter counting and consumption monitoring, etc.

KSG

Specifications

Scanners
Reading mode	1D/2D
Scanning range/ Βάθος πεδίου	Precision Barcode Depth of Field 3.34mil CODE 128 10mm—60mm. 5mil CODE128 5mm—90mm. .34mil EAN-13 10mm—55mm. 5mil EAN-13 5mm—85mm. 13.34mil EAN-13 20mm—190mm. 5mil PDF417 5mm—75mm. 10mil PDF417 5mm—190mm. 15mil PDF417 10mm—200mm. 10mil DM 5mm—100mm. 20mil DM 5mm—210mm.
Scanning range/ Width of Field	Reading Angle: Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60°.
Resolution	0.102mm / 4mils
Interfaces	USB HID
Dimensions	71x107x158mm
Weight	205g
Ambient light	Indoor: 0 to 6,000 lux; Outdoor: 0 to 86,000 lux
Sealing	IP52
Symbologies	1D: All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded.2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR CodeStack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417.
Additional features	Image sensor 640x480 pixels. Operating Temp.-20° C to 40° C/ Storage Temp. -40°C to 70°C/ Drop Specification Withstands multiple 4 ft./1.2 m drops to concrete. Input Voltage 5 VDC (+/- 10%)/500mA. 2.4G Transmission distance 80 meters (basic on open space). Communication mode wireless real-time transmission/wired transmission/ storage mode. Battery capacity 2000mAh. Warranty 2 years.
Reading Speed	30fps
