IW LCD Platform Scale for pallets

IW LCD Platform Scale for pallets
IW LCD Platform Scale for pallets
IW LCD Platform Scale for pallets
IW LCD Platform Scale for pallets
IW LCD Platform Scale for pallets
IW LCD Platform Scale for pallets
IW LCD Platform Scale for pallets

Downloads

File Size Download
iw-lcd-platform-scale-by-ics-food-machinery.pdf 497.84KB Download

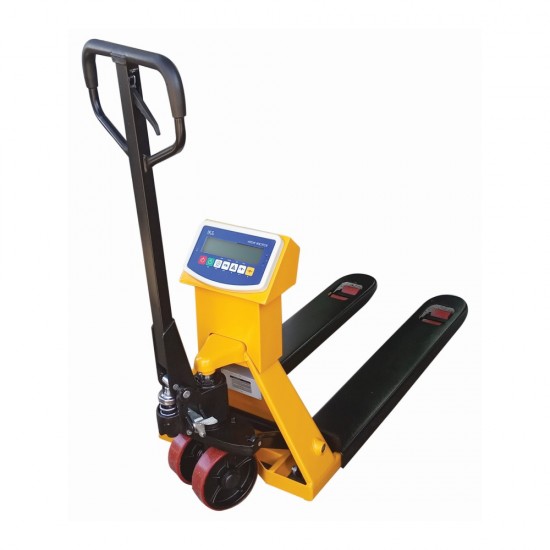

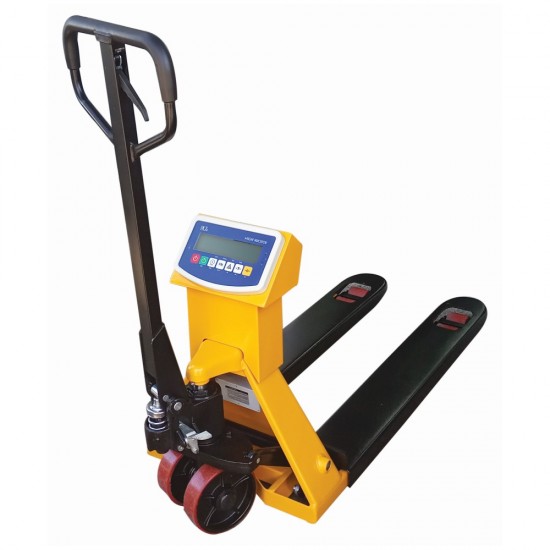

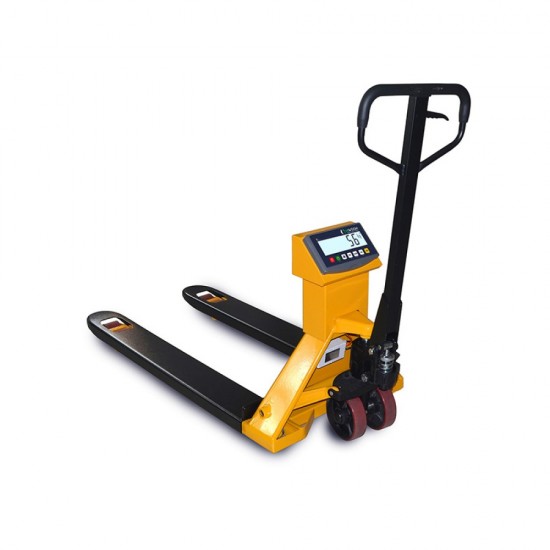

Electronic Pallet Scale IW LCD

Heavy-duty designed PHA transpallet scale | pallet jack scale with 1150mm or 1220mm length for selection. 540mm or 680mm width for selection. PU castors and wheels  Big capacity up to 3000kg. Heavy structure design. M28 H8C Load Cell. Default with M28 load cells IP67 protection, Alloy steel material. Optional OIML/NTEP approved H8C load cells. K7A Indicator. Big backlit FSTN LCD display – the weight can be read clearly even in the sun. With rechargeable 6V4Ah battery. 100-240v power source directly. kg/lb, g/oz units exchange. Real-time clock, time/date display. Check weigh with three LED lights. Animal weighing function, accumulating, hold x10 accuracy, counting, zero, tare, printing, etc. Default with 2 RS232 interface. Option of Bluetooth or WiFi output. Optional printer.






Specifications

Scales
Display FSTN LCD–37mm
Capacity 2000kg/ 3000kg optional
Power supply Scale 100-240V 50/60Hz. Battery: 6V5Ah
Interface- Scale Output RS232 x 2
Dimensions /weight Plaform Sizes: 1150 x 540mm/ 1220 x 680mm. Width: 540mm or 680mm
Additional features-Scales Display Resolution 0.5kg,1.0kg/ Load Cell M28,M28c/ Load Cell Protection IP67/ Operating Temperature -10 – 40°C/ Option of Bluetooth or WiFi output /Optional printer.
