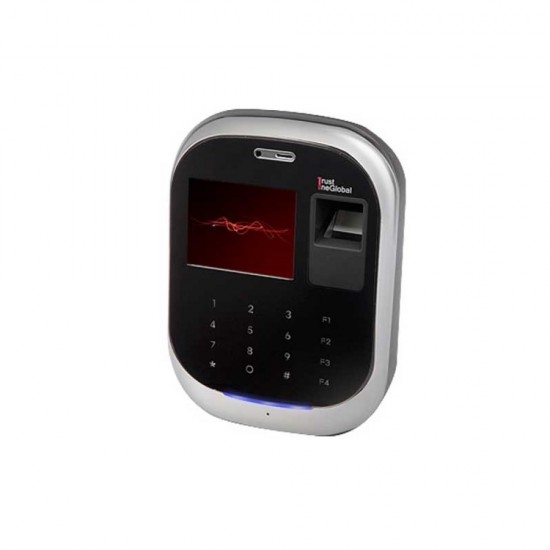

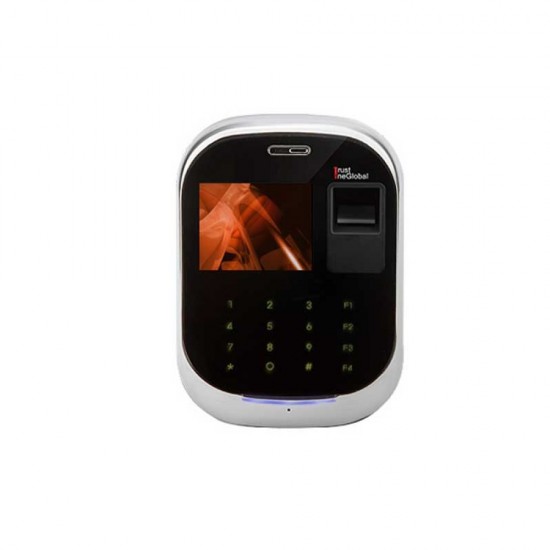

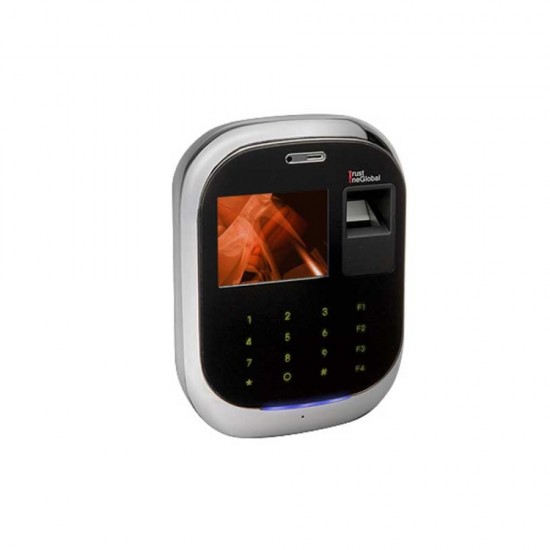

Time Attendance-Access System ICS TSG-550

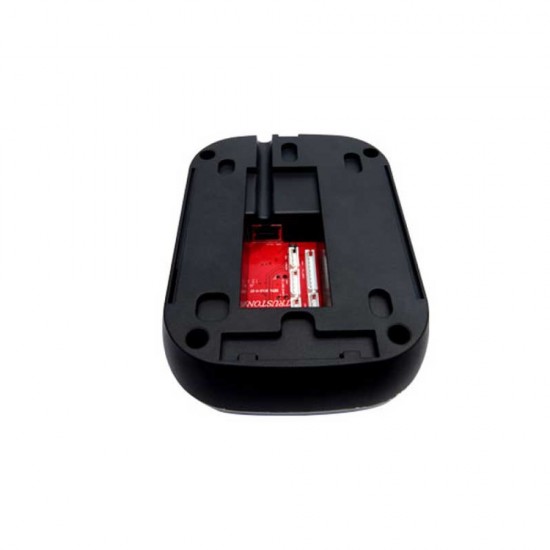

The TSG-550 Time & Attendance and Access Control device performs where others fail, even in bright sunlight, dusty, dirty and dry conditions. User authentication is fast and accurate with the highest level of spoofing detection great for Time and Attendance or Access Control. It includes the professional and high performance LE fingerprint sensor which can read the most difficult fingerprints in all demanding environments as well as spoof fake fingerprints. The LE pro sensor out performs all the other optical sensors, we cannot praise this reader enough, it has performed perfectly where all the other finger readers have failed. This system mounts on wall and requires a nearby mains power socket for a 12 volt power adapter or alternatively can be powered over the network cable using PoE (power over ethernet) making for a professional and neat install.The TSG-550 is compatible with ClockReports software.

Specifications

Access Control- Time Attendance Controllers
Monitor Controller 4.3 TFT Color LCD
CPU Controller 32bit ARM/ Memory: 64M Flash, 64M RAM/ SD memory card
Sensor Optical Sensor: 500dpi/ Resolution (dpi): 288 x 288 / Semiconductor Sensor: AES1711/ LE Sensor link Resolution (dpi): 288 x 352/ F/P touch sensor
Communication Type TCP/IP, RS-485
External Interface PoE (Power over Ethernet)
Fingerprints F/P Storage: 2K, 10K, 30K, 50K/ Event Log: 500K Events
Interface controller USB SD Memory card/ WIFI
Inputs Wiegand Input: 26/34/37bit/ TTL Input: 4Port
Outputs Wiegand Output: 26/34/37bit/ Voice Output
Temperature/ Humidity Controller Temperature: -10 - 60°C/ Humidity: 20% - 80%
Dimensions /weight Controller 118 x 163 x 40 (mm)
Additional features – controller RF Card: EM/HID/MIFARE/iCLASS/ 10KEY: Touch Keypad/ Extemal Reader Connection: Max4/ LED: Blue, Red/ Tamper Switch/ Power: 12V/ Camera: Option
