Description

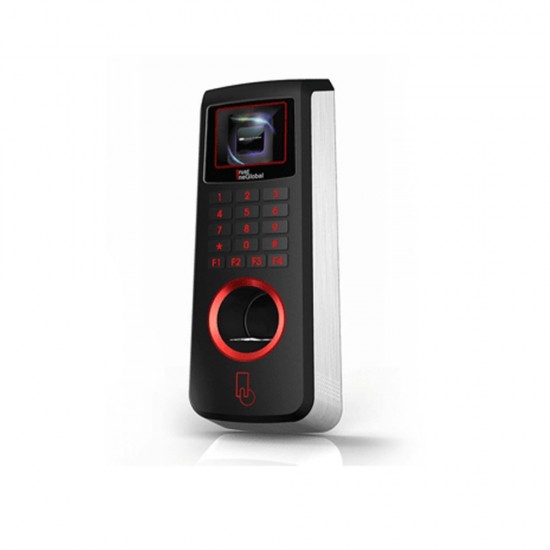

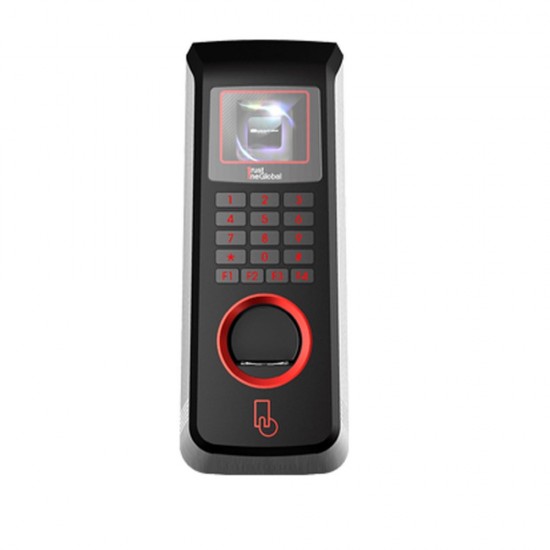

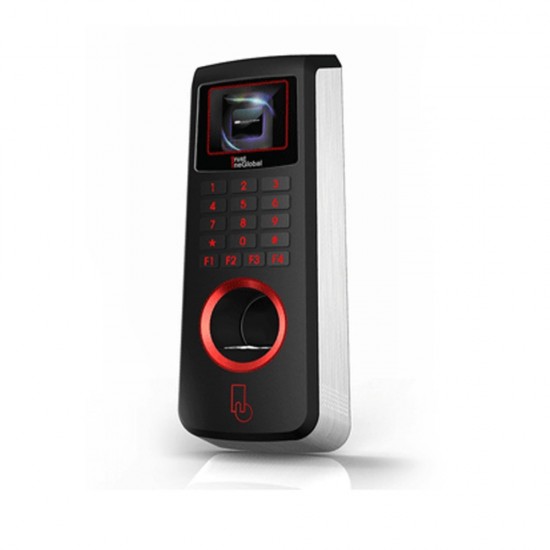

Time Attendance-Access System TSG-250

The sleek, elegant design encompasses our market leading one of a kind solution, enterprise level features and an intuitive user interface that simplifies set up and installation. TSG 250 is designed for demanding environments where users are exposed to dusty, dirty and dry conditions. Revolutionary Light Emitting Sensor selection (LES). Superior Spoof Detection. Fast and accurate user authentication. Perform well in bright sunlight and harsh environmental conditions such as dusty, dirty and dry. Scratch resistance. Fast and accurate fingerprint recognition by ultra high speed algorithm, any direction fingerprint recognition, less than 1 second to verify 10,000 fingerprints. High-Definition Color Display 1.8 inch TFT Color LCD. USB slot, upload and save user’s fingerprint/card/password, save access events, firmware update, fingerprint Sensor Guide Display. Provides LED guide display around the fingerprint sensor during the night.

ICS

Specifications

Access Control- Time Attendance Controllers
Monitor Controller	1.8” Color LCD
CPU Controller	32bit RISC
Sensor	Oprical Sensor, Resolution (dpi): 500 dpi, Pixel: 288 x 288
Communication Type	TCP/IP, RS-485
Fingerprints	User Registration: 1,000 users/ Access Events: 100,000 events
Interface controller	USB
Inputs	Input EXIT, Door Contact/ External Reader
Outputs	Output 2 Relays (Door/ Alarm)/ Voice Output Voice message
Dimensions /weight Controller	60 x 165 x 40 mm
Additional features – controller	RF Card: EM/MIFARE/HID/ICLASS / LED: Red/ Green/Blue/ Button: 4 function buttons + 12 numeric buttons (Include *, #).
