Engage One Pro Touch POS

Downloads

File	Size	Download
HP- Engage One Pro.pdf	1.07MB	Download

Description

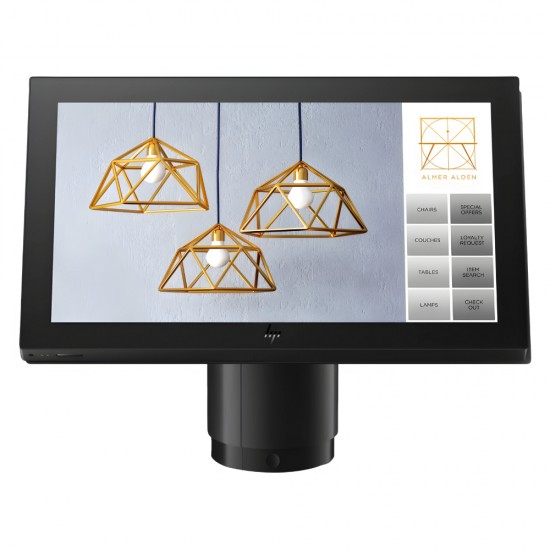

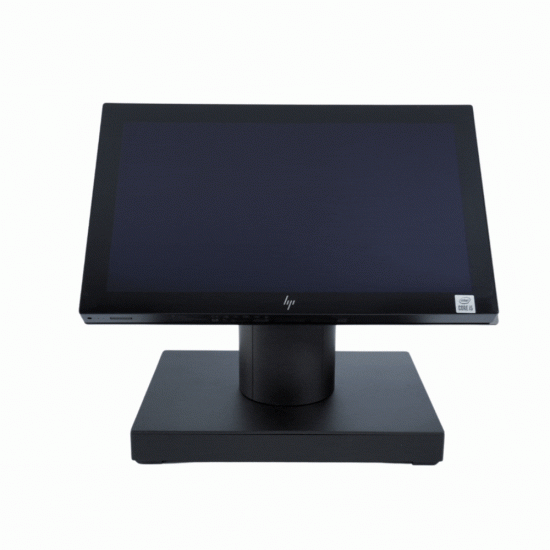

HP Engage One Pro All-in-One System

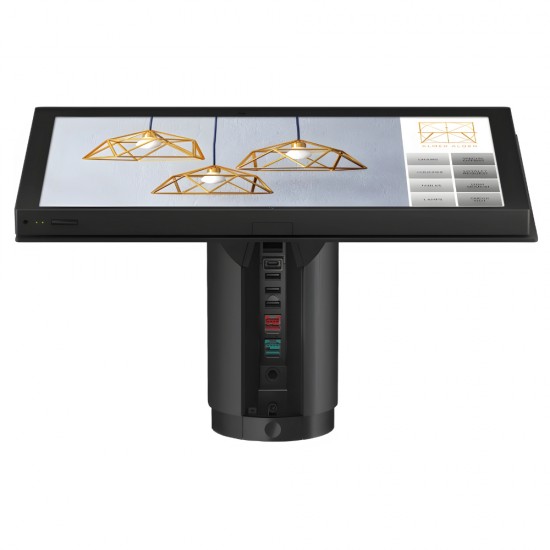

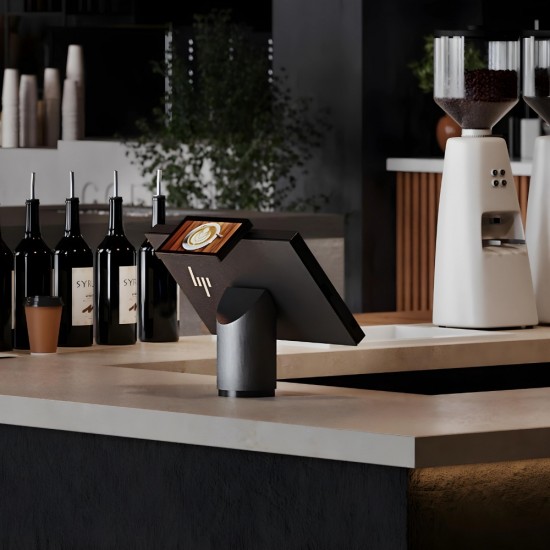

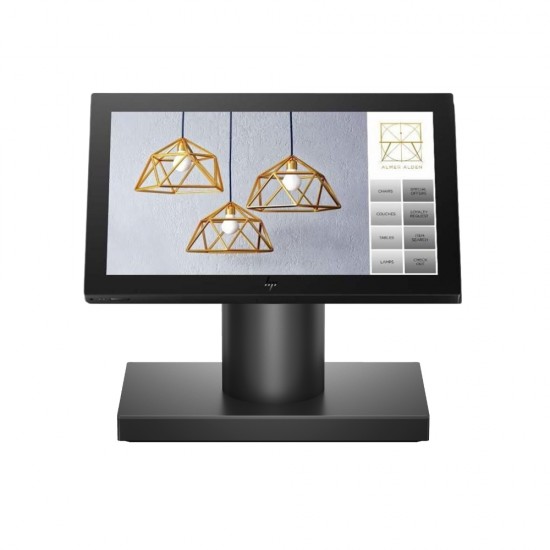

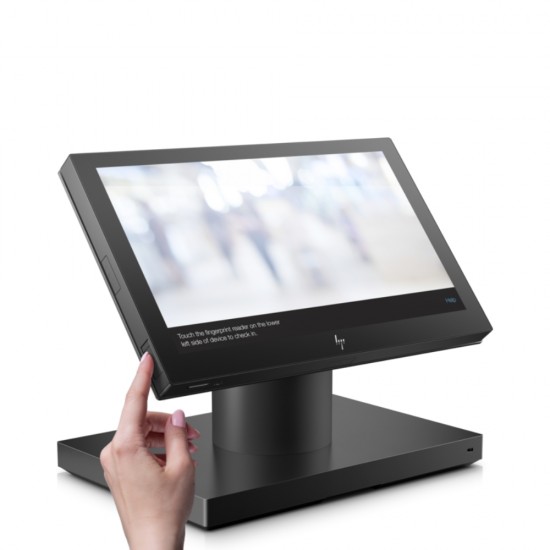

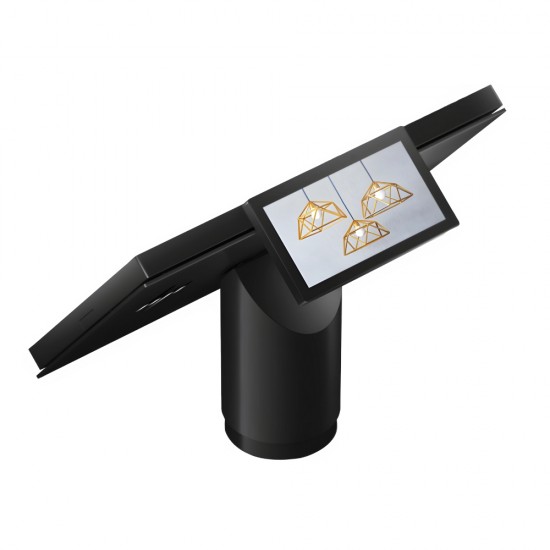

Designed to have maximum versatility and reliability, HP Engage One Pro blends superb performance and sleek design in a flexible and durable point-of-sale system with up to 10th Gen Intel Core™M 19 processors. Made of aluminum Chassis, steel frames, plates and stand. Black and white available. Landscape or portrait, with i/o connectivity hubs, or combined for even more i/o connections. Supports Performance stand, Pro stand, Vertical stand. The mount options include Clean counter, counter mount, pole mount, or wall mount. High performance and durability, tested to Mil-STD 810G , IP44 and 120K hours HP Total Test Process. Product Life Cycle 5 years and 10 years service life. Designed and tested to withstand frequent sanitization with germicidal towelette IEC 60601-1-2 (EMC standard for medical electrical equipment and medical electrical systems) Compliance.

Specifications

Touch Systems
Monitor	15,6” diagonal, TOUCH , IPS, UWVA, anti-glare, 400nits, 45% NTSC
CPU	Intel Core i5-10500E 10th Gen 3.10 GHz FANLESS
Memory	8GB DDR4 SO DIMM up to 64GB
Disk	256GB M2 NVMe SSD
Operating System	Windows 10 IoT
Resolution	1920 X 1080

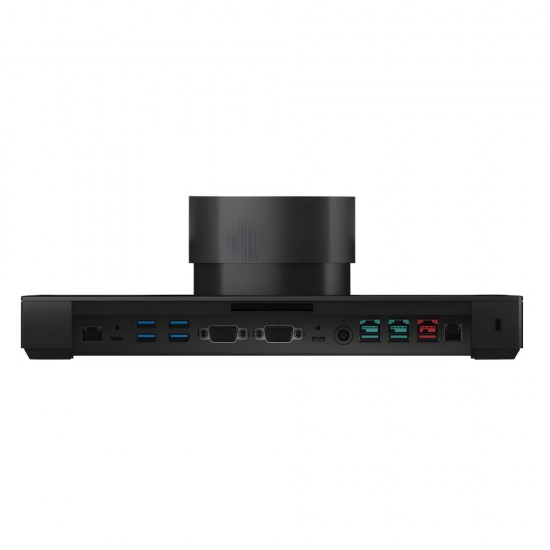

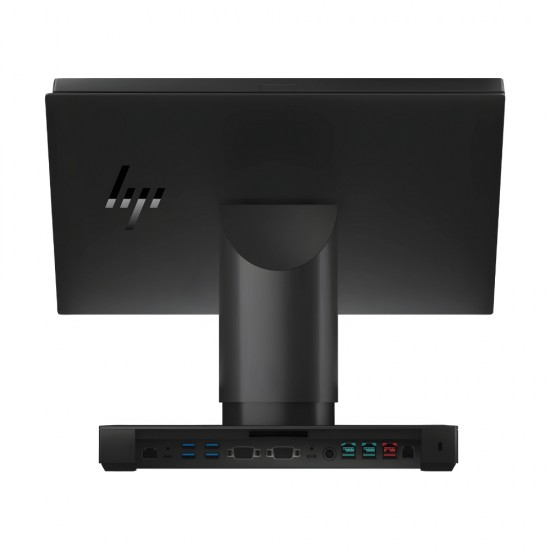

USB Ports	4 X USB 2.0 , 1 X USB TYPE C, 2 X POWERED USB 12V , 1 X POWERED USB 24V,
Serial Ports	1 x RJ11 (CASH DRAWER) , 2 X POWER SERIAL RS232
Ethernet Ports	1 X RJ45 (10/100/1000 Mbps)
Additional Ports	1 X 140W DATA PORT
Power supply	INPUT: AC100~240V/1.7A, OUTPUT: DC24V/2.5A
Temperature/ Humidity	Work temp: 10°C~40°C
Dimensions/ Weight	Minimum dimensions (W x D x H) 39.76 x 2.64 x 24.1 cm (horizontal head orientation); 39.76 x 2.64 x 24.1 cm (vertical head orientation); 49.48 x 2.94 x 29.26 cm (horizontal head orientation); 49.48 x 2.94 x 29.26 cm (vertical head orientation); 60.50 x 2.94 x 33.99 cm (horizontal head orientation); 60.50 x 2.94 x 33.99 cm (vertical head orientation); 15.2 x 1.0 x 15.2 cm (performance and pro stand) (Stand only.)
Additional features Touch Touch Systems	Built-in power cord with power adapter. Built-in HD audio with Realtek ALC3247 codec with standard internal speakers and stereo headphone jack, 2 Watt. Optional BCS (Barcode Reader) built into HP Engage One Pro. Optional built-in magnetic tape reader. Single-ended, two-way, with encryption capability.
