EDA57 Handheld Computer

Name: EDA57 Handheld Computer
Brand: HONEYWELL
Price: 1.00 EUR
Availability: InStock

EDA57 Handheld Computer

Downloads

File	Size	Download
honeywell-scanpal-eda57-mobile-computer-2pin-datasheet.pdf	1.1MB	Download
honeywell-scanpal-eda57-mobile-computer-6pin-datasheet.pdf	1.1MB	Download

Description
Video

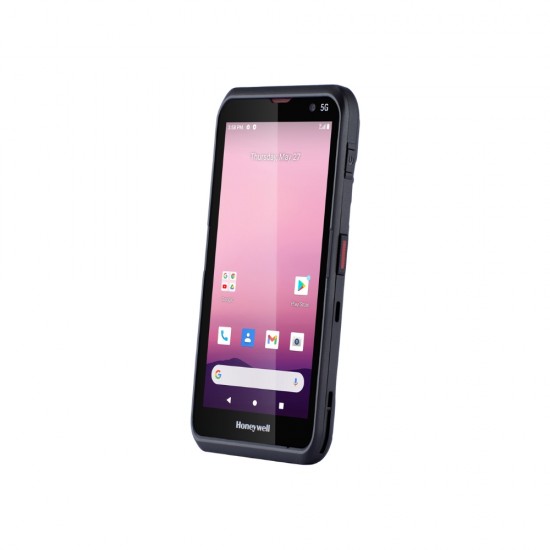

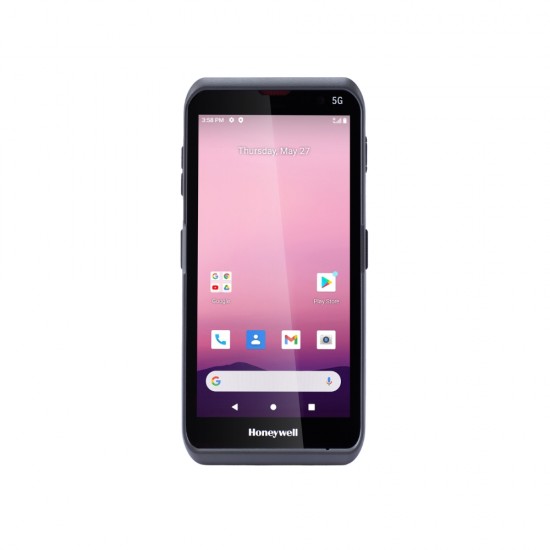

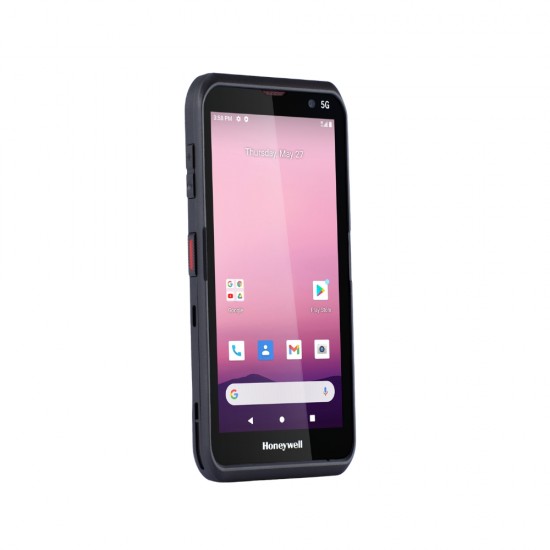

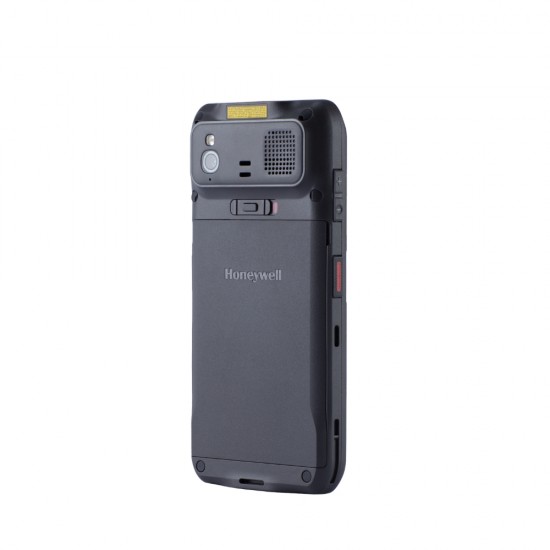

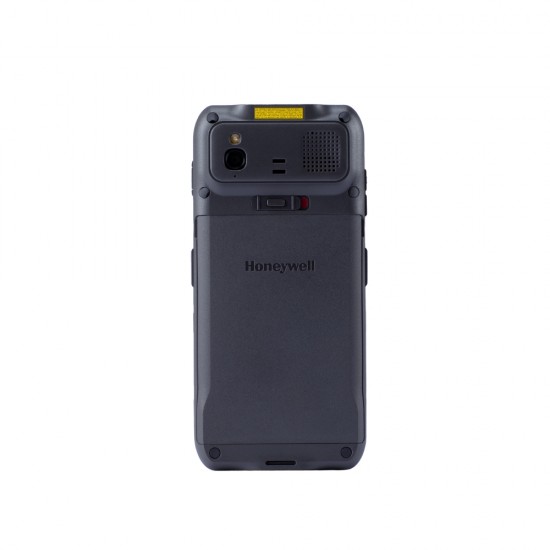

Honeywell ScanPal EDA57 Wi-Fi6 5G Mobile Computer 2pin or 6pin

The Honeywell ScanPal™ EDA56 WLAN is a Wi-Fi 6 mobile computer that provides higher data rates and lower latency even in a densely connected environment. The EDA56’s design is ideal for retail, manufacturing, logistics, and public service applications. The EDA56 incorporates the all-new and powerful Honeywell S0703 scan engine, which enables fast reading of damaged or incomplete barcodes. Outfitted with a rugged housing and IP67 rated sealing, the EDA56 can operate under rough usage and demanding environmental conditions. A 4500mAh battery allows for prolonged and uninterrupted use between each charge. The battery is also easily removable and supports quick charge 3.0. The EDA56 is built on Android 11 and can be upgraded to Android 13 minimizing maintenance issues and ensuring long-term feature support. It is validated under AER (Android Enterprise Recommended) , a Google-led initiative that helps businesses confidently select, deploy, and manage Android devices and services best suited to their needs.

HONEYWELL

Specifications

Mobile Terminals
Monitor pda	5.5-inch, Gorilla Glass 5. High Definition Resolution 1440 x 720. Multi-touch capacitive (CTP), GFF. LED Backlight.
Operation System	Android 12, upgradable to Android 14
CPU pda	Qualcomm Snapdragon SM4350 Pro Kryo 460, 2xGold (A76 based) + 6xSilver (A55 based)
Memory pda	4 GB RAM/64 GB Flash; 6 GB RAM/128 GB Flash; 8 GB RAM/128 GB Flash
Communication	Bluetooth Class 5.1, WLAN, GSM, UMTS, LTE, 5G NR, NFC, GPS

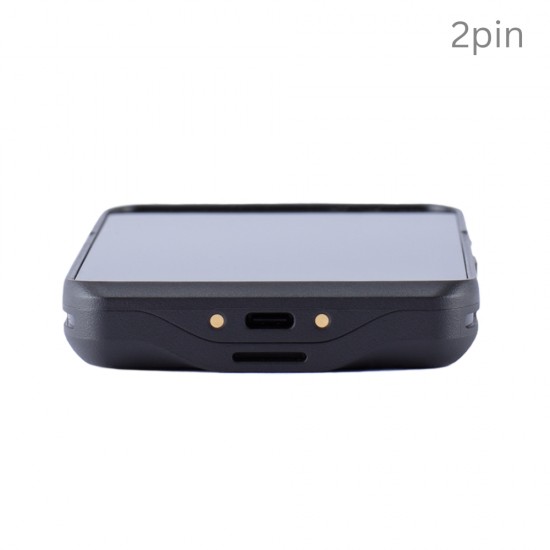

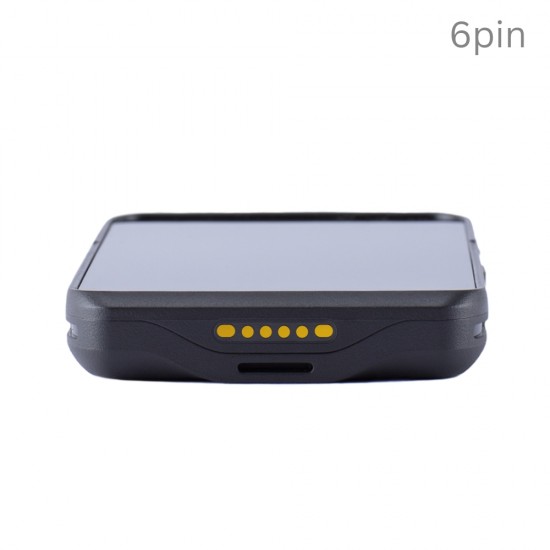

Interface-Ports	2 pin bottom connection or 6 pin bottom connection

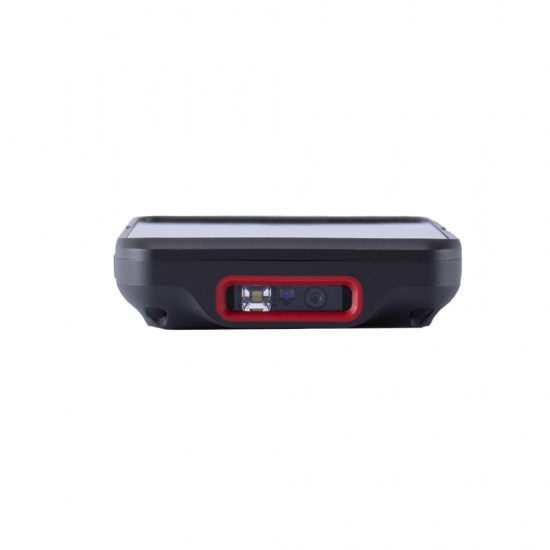

Barcode scanner	Honeywell S0703 Slim Imager (1D/2D barcode symbologies)
Battery pda	Li-Ion, 3.8 V, 4,500 mAh removable. Charging Time: less than 3.5 hours. Battery Runtime: more than 12 hours
Keyboard	5 side keys for volume up/down, right and left scan keys and power on/off

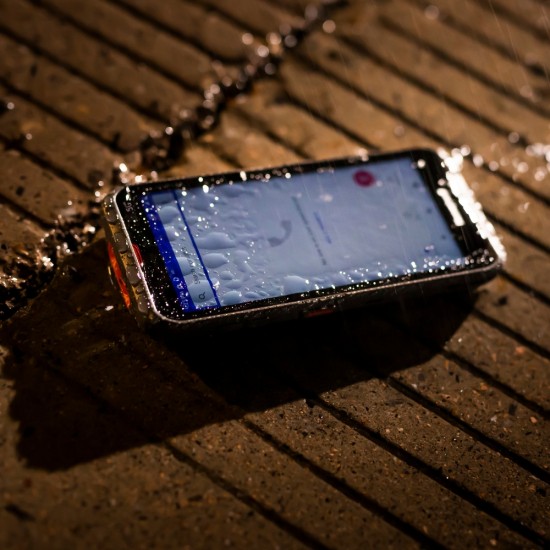

Sealing	IP67
Resistance	Drop: 1.5m (5 ft) to concrete. MIL-STD-810G under room temperature. 1000 tumbles at 0.5m (1.64ft). Operating Temperature:-20°C to +50°C (-4°F to +122°F). Storage Temperature: -30°C to +70°C (-22°F to 158°F). Humidity: 5% to 90% (non-condensing)
Dimensions/ Weight pda	159 x 75 x 14.4 mm(6.26 in x 2.95 in x 0.57 in) Weight: 260gr
Accessories	Single Charging Home Base: Charges one terminal and one replaceable battery simultaneously. Single Charging Dock: Charges one terminal (needs to work with adaptor cup). Backwards Adapter Cup: Be compatible with EDA50/51 single charging dock. Quad Bay Charging Base: Charges four terminals simultaneously. Quad Bay Battery Charger. Standard Battery Pack. RFID Bracket. Scan Handle. Rubber Boot. Wrist Strap. Hand Strap. Screen Film. USBC Headset. Power Adapters.
Additional features mobile terminals	Rear Camera 16-megapixel color camera. Front Camera 8-megapixel color camera. Storage Expansion: MicroSD (up to 128 GB). Real-Time Clock (RTC): 5 min back up vie super-cap. Sensors: acceleration sensor, light sensor, and proximity sensor. LED Battery Status Indicator. LED Scan Indication.
