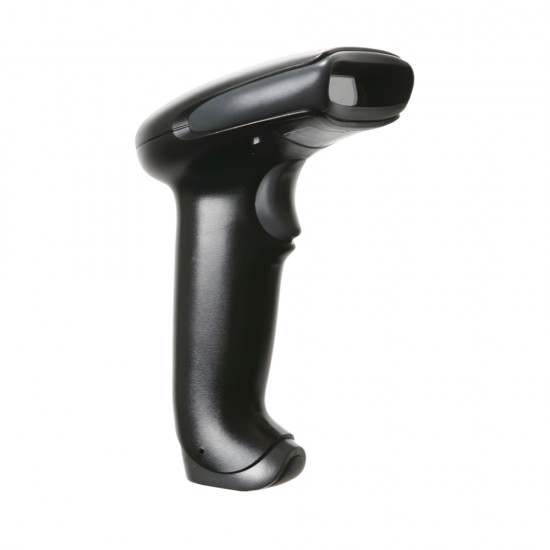

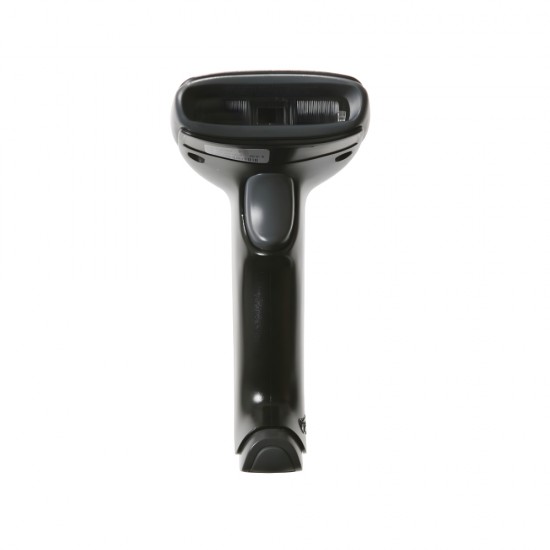

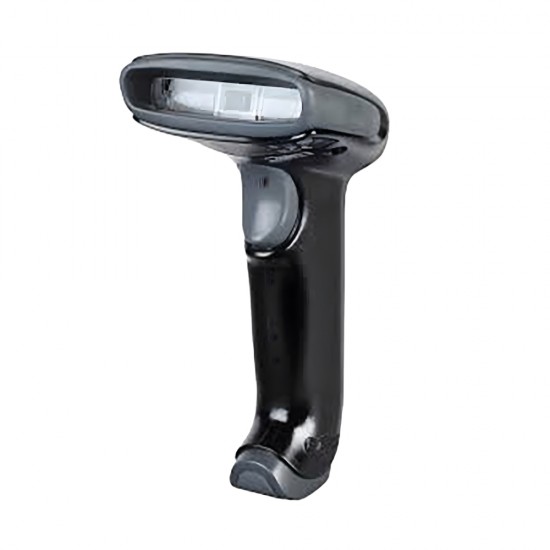

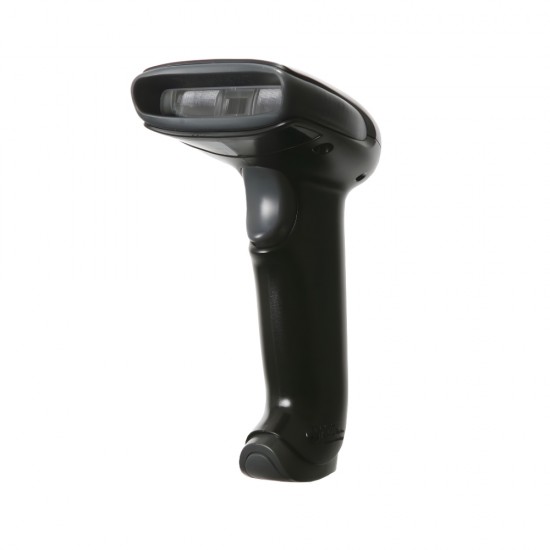

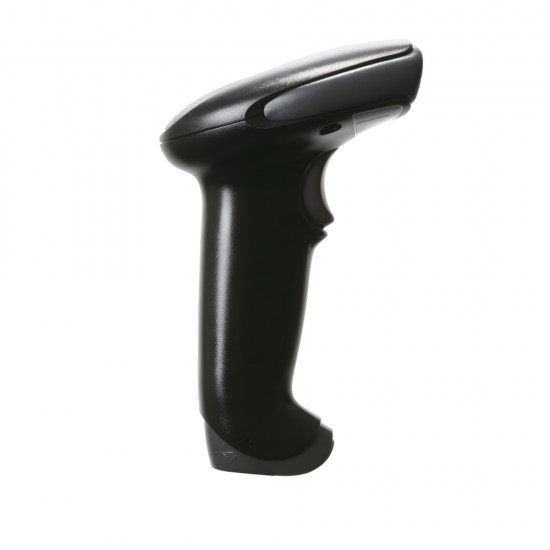

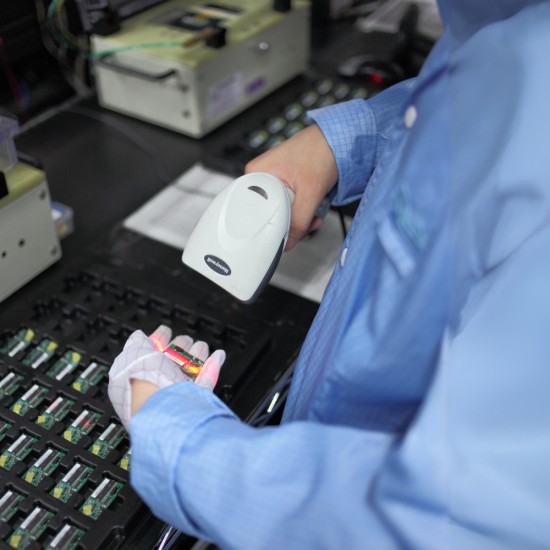

Honeywell Hyperion 1300g, 1D, USB, Light Industrial Scanner

The Hyperion™ 1300g linear-imaging barcode scanner is ideal for scan-intensive and light industrial applications. It features an ideal balance of performance, ergonomics and best-in-class durability. Highly versatile, can read out to 18 inches (457mm) on 13 mil bar codes, as well as high density bar code reading in a single device. Superior Hand-Held Scanning, increases throughput by offering intuitive and aggressive hand-held scanning performance. Remote MasterMind® with Scanner Management Software that provides a quick and convenient solution for IT administrators seeking to manage all scanners within their network from a single remote location. Automatic Interface Detection. Supports all popular interfaces in one device, replacing the time consuming process of scanning programming bar codes with automatic interface detection and configuration. Comfortable, Ergonomic Design that ensures operator comfort and productivity with a gun-shaped form factor optimized for intensive hand-held scanning. Class-Leading Durability, increases up time and reduces service costs with a reliable design that utilizes no moving parts and full impact resistant bumpers.

Specifications

Scanners
Reading mode 1D Imager
Scanning range/ Βάθος πεδίου Narrow Width Depth of Field 5.0 mil 50 mm - 200 mm (2.0˝ - 8˝) 7.5 mil 40 mm - 300 mm (1.5˝ - 12˝) 10 mil 30 mm - 380 mm (1.0˝ - 15˝) 13 mil 10 mm - 460 mm (.5˝ - 18˝) 20 mil 30 mm - 660 mm (1.0˝ - 26˝)
Scanning range/ Width of Field Pitch, Skew 65°, 65°
Scan Rate Ρυθμός σάρωσης 270 reads/sec
Resolution 3.0 mil
Interfaces Multi-Interface/includes RS232 (TTL +5V, 4 Signals)/ KBW/ USB (HID keyboard, serial, IBM OEM); RS-232C (±12V) and IBM RS485 supported via adapter cable
Dimensions 150 x 112 x 79mm
Weight 160g
Ambient light 0 - 70,000 lux
Sealing IP41
Symbologies Reads standard 1D and GS1 DataBar™ symbologies
Additional features Designed to withstand 50 drops on concrete from 1.5m. Operating Temperature 0°C to 50°C (32°F to 122°F). Storage Temperature -40°C to 60°C (-40°F to 140°F). Humidity 0 to 95% non-condensing. Input Voltage 5V ± 5%. Operating Power 1000mW; 200 mA (typical) @ 5V. Standby Power 625mw; 125 mA (typical) @ 5V.
