CT30 XP Mobile Computer

Downloads

File	Size	Download
honeywell-ct30-xp-mobile-computer-datasheet.pdf	157.43KB	Download

Description
Video

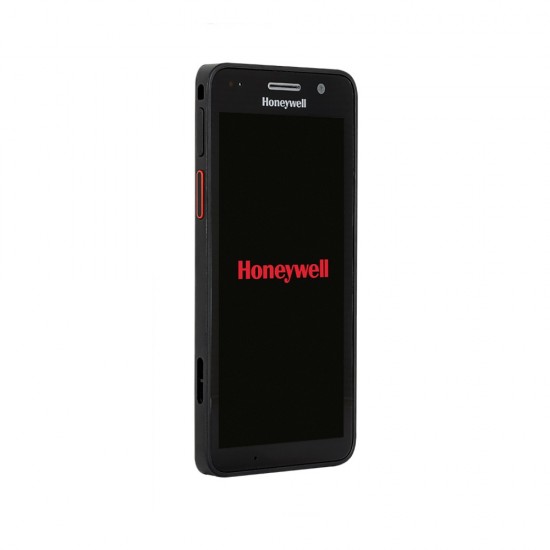

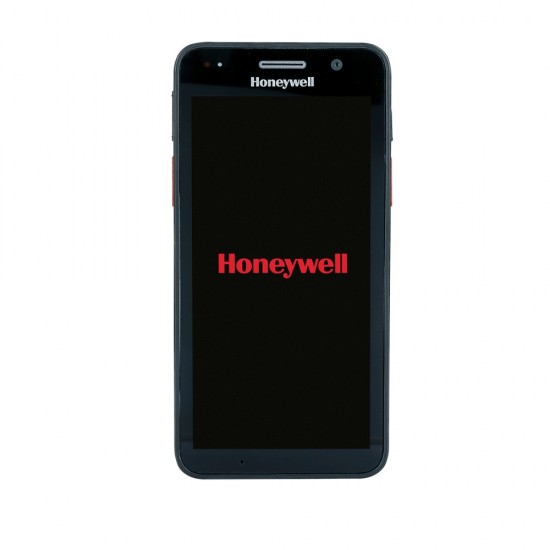

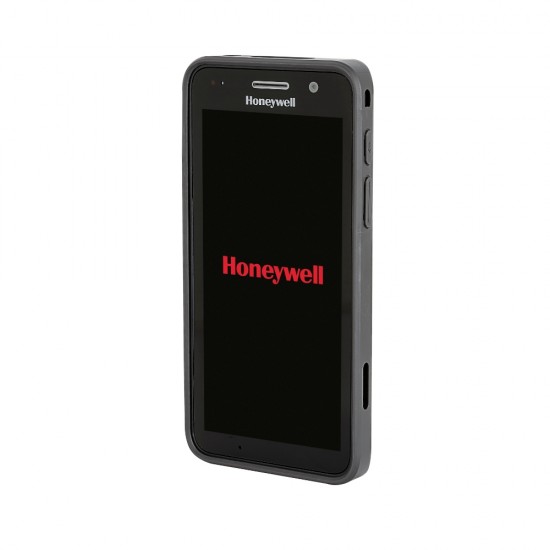

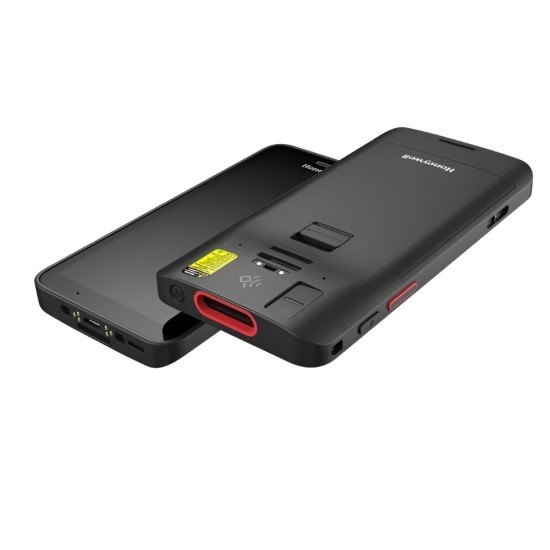

Honeywell CT30 XP Mobile Computer

Durable, stable and secure foundation for effective, long-lasting solutions. With Octa-core processor Qualcomm® 3rd-generation artificial intelligence (AI) engine and higher-powered graphics processing unit. Can be empowered further with Honeywell Smart Pay, Operational Intelligence, and Smart Talk Unified Communication software. The FlexRange™ scan engine empowers the workforce to scan barcodes with pinpoint accuracy and speed. From 10 cm to 20 m, the FlexRange engine can scan items near and far, high and low, and can precisely capture data from damaged or low visibility barcodes. Powered by an easy-to-replace, warm-swap, 3,400-mAh battery for uninterrupted use. Design based on user feedback, including a vivid, 5.5-inch (14 cm), full-high-definition (FHD) screen into a slim, lightweight, yet durable package. Support for Wi-Fi 6 in selected SKUs increases connection reliability, range and throughput in crowded conditions and provides a better experience on voice or video communications. Bluetooth® version 5.1 availability includes a variety of power saving features as well as angle-of-arrival-based direction-finding capabilities. Guaranteed support from Android 11 to at least Android 13 and committed support for Android 14 and 15, subject to feasibility.

HONEYWELL

Specifications

Mobile Terminals
Monitor pda	Display Size 13.97 cm (5.5 in). Full High-Definition (2160 x 1080). Touch Panel: Rugged multi-touch capacitive touch panel, Glove, stylus and rain modes supported. Water droplet rejection with screen protector mode. Covered with Gorilla Glass™ 5 for increased resistance to drops. Backlight: LED
Operation System	Each Android version guaranteed from Android 11 to at least 13, committed support for Android 14 and Android 15, pending feasibility
CPU pda	Qualcomm QCS4290/QCM4290 octa-core, 2.0GHz
Memory pda	6GB DDR4x RAM, 64GB UFS Flash; 4GB DDR4x RAM, 64GB UFS Flash
Communication	WWAN, TMO/NA/EU), AT&T FirstNet Compliant, LTE Advanced Support, Up to 390 Mbps CAT13 LTE downlink Up to 75 Mbps CAT5 LTE uplink. LTE, UMTS/ HSPA+ (3G), GSM, WLAN: Wi-Fi certified, CT30P-X0N, CT30P-L0N, All SKUs, WLAN Security, Supported EAP, V5.1 Bluetooth and BLE, 2nd BLE, NFC, VPN, Push to Talk (PTT), GPS Supported Protocols.

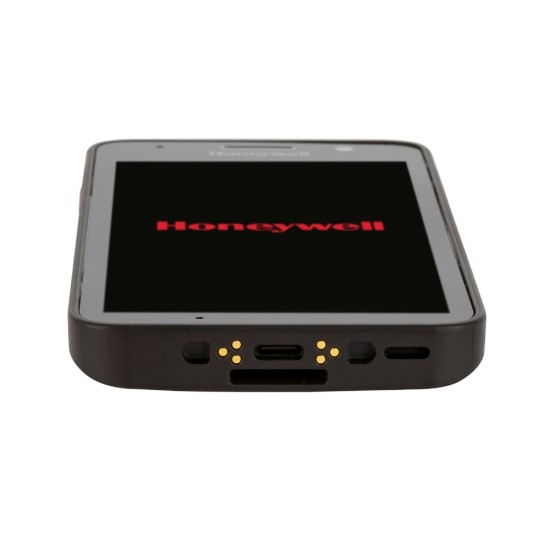

Interface-Ports	Durable, flat IO connector, USB Type C connector (except healthcare SKUs). USB 3.0 is supported via USB Type C

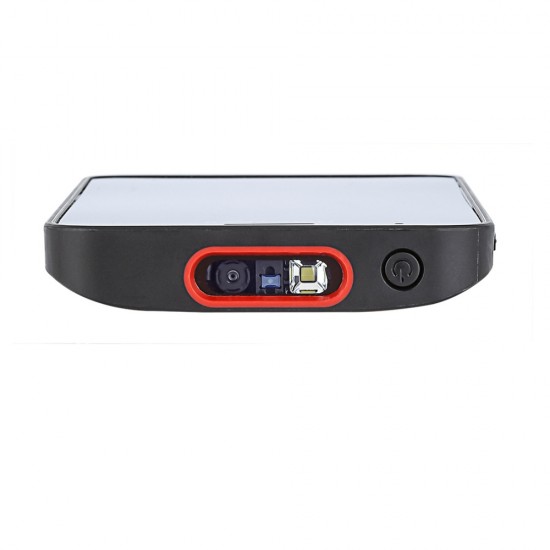

Barcode scanner	Honeywell FlexRange FR or Honeywell S0703 (1D/2D barcode symbologies), Honeywell SDKs for Android
Battery pda	Li-Ion, 3.6 V, 3400 mAh; smart battery with integrated diagnostics tools. Battery Warm Swap supported. Quick Charge 3.0 compliant; Less than 3 hours to be fully charged. Hours of Operation: 10+ hours (varies based on use case).
Keyboard	Hard keys: Volume up/down key, left/right scan, power button, Push-to-Talk button
Sealing	IP67
Resistance	Drop (Multiple): 1.2 m (4 ft) to concrete at -10°C to 50°C (14°F to 122°F) per MIL-STD 810H; 1.5m (5ft) to concrete at room temperature per MIL-STD 810H. Operating Temperature: -10°C to 50°C (14°F to 122°F). Storage Temperature: -30°C to 70°C (-22°F to 158°F).
Dimensions/ Weight pda	Dimensions: 154 mm x 76 mm x 12.6 mm (6.06 in x 2.99 in x 0.50 in). Weight: 215 grams (7.6 oz) with battery pack
Additional features mobile terminals	Camera: 13-megapixel rear camera, 8-megapixel front-facing camera. Sensors: Ambient light sensor, proximity sensor, accelerometer, gyroscope, magnetometer (SKU dependent), barometer (SKU dependent), eCompass, hall sensor. Audio: PTT, VoIP ready, speaker, HACcompliant, three microphones with noise cancellation. One-year factory warranty.
