CR100M Magnetic Card device

CR100M Magnetic Card device

Downloads

File	Size	Download
gov-reader-swipe-CR100100M-MRZ-MSR.pdf	768.99KB	Download

Description
Video

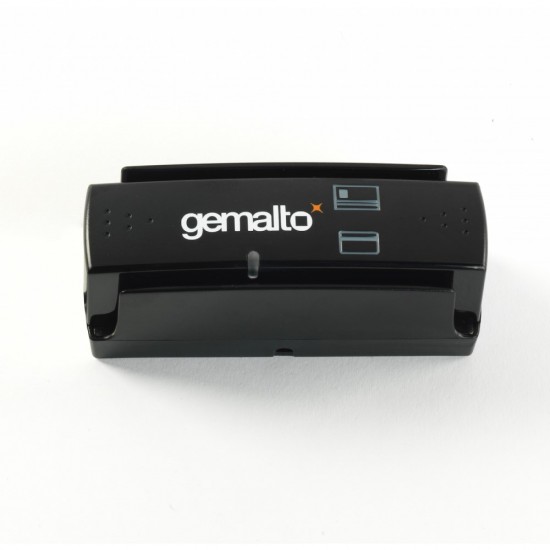

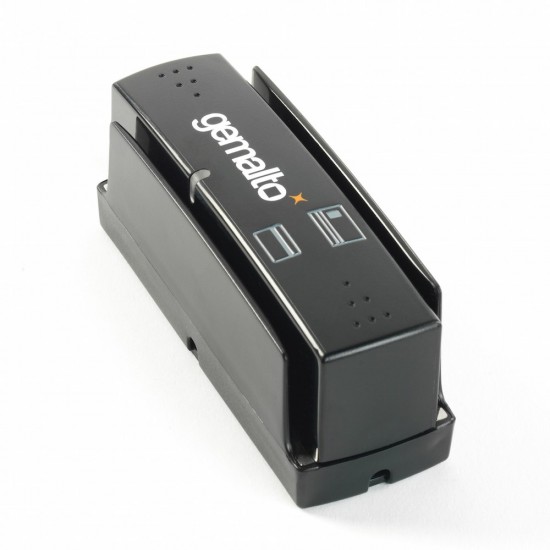

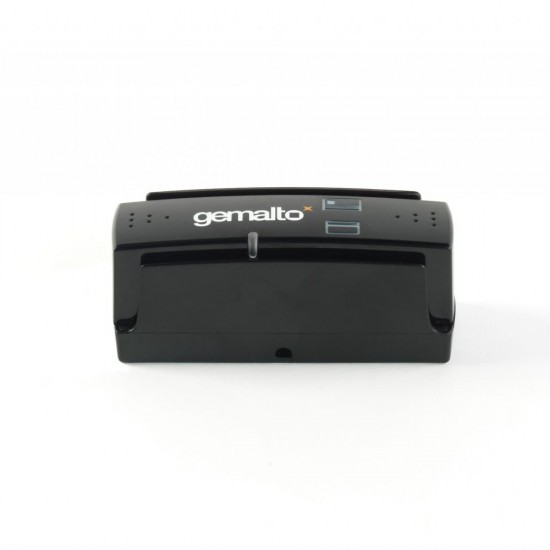

Gemalto CR100M Magnetic Card Swipe reader

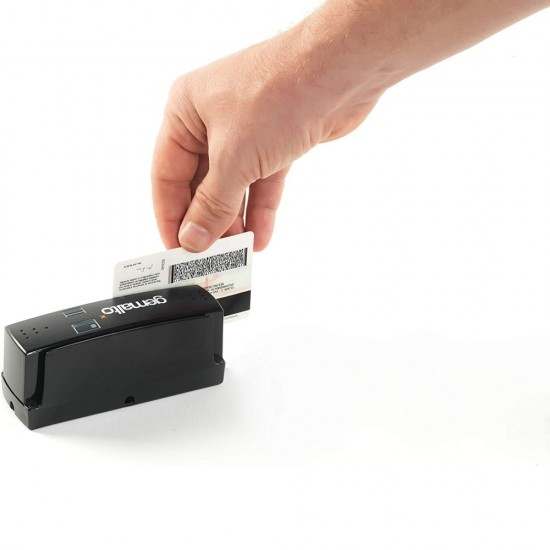

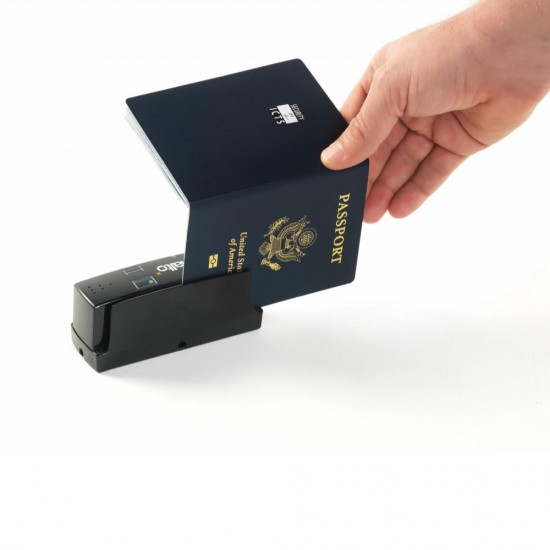

Gemalto MRZ and MSR Swipe Reader CR100M acquires the codeline data from Machine Readable Travel Documents (MRTDs) and other identity documents and reads the magnetic stripe from ISO standard cards such as frequent flyer cards, driver’s licences and banking cards. Performs fast and accurate data capture while it is easy to use for either left or right handed. Desk mount or Keyboard/LCD/ laptop attachment using double sided fasteners. Bespoke bracket mount options for shelves and mobile devices. With 200cm cable. Ideal for banking, border control, law enforcement, transportation, hotel, car hire and retail markets. Perfect for registration, enrolment and duty-free applications.

Gemalto

Specifications

Card Readers
Card Standard	2 and 3 line ICAO compliant documents in near infrared (IR) 875nm per ICAO 9303 specification Parts 1-4 Near. ICAO compliant travel documents such as French ID cards. 1 line driving licenses to ISO 18013 as well as many other non-ICAO 1 line ID cards 3 track magnetic swipe card conforming to ISO 7811/2-5 including AAMVA.
Reader Interface	USB 2.0 output. USB powered (no power supply), single interface cable (2m or 15cm options at time of purchase)
Magnetic Track	Feedback via a user LED including power / self test indication. Status indicators can be under host control depending on control program loaded.
Reader Power supply	USB powered, <400mA peak
Reader Operation	Operation: 5°C to 35°C. Storage, -10 to 60°C
Reader Dimensions	Basic module 117 x 40 x 48mm. With Desk Mount 133 x 56 x 52mm
Reader Weight	120 gr/ 160 gr
Reader Additional features	Regulatory: UL and UL-C, CB report, FCC and CE (EMC), EU WEEE/REACH/RoHS. Software must be installed on a customer-supplied PC, some aspects of read speed may be affected by PC specification. The following minimum configuration is recommended: 2 GHz Pentium® 4 CPU (Intel Core 2 Duo recommended), 1 GB DRAM, USB 2.0, Android (limited SDK functionality), Windows® XP SP3, Windows Vista® or Windows® 7 operating systems, 32 or 64 bit, 60 MB of Hard Drive space for software. Builds for Ubuntu 16.04 and CentOS 6, 32 & 64 bit.
