FALCON x 4 Mobile Computer

FALCON x 4 Mobile Computer

Downloads

File	Size	Download
product_bulletin_falcon_x4_introduction_english_ltr.pdf	528.62KB	Download

Description
Video

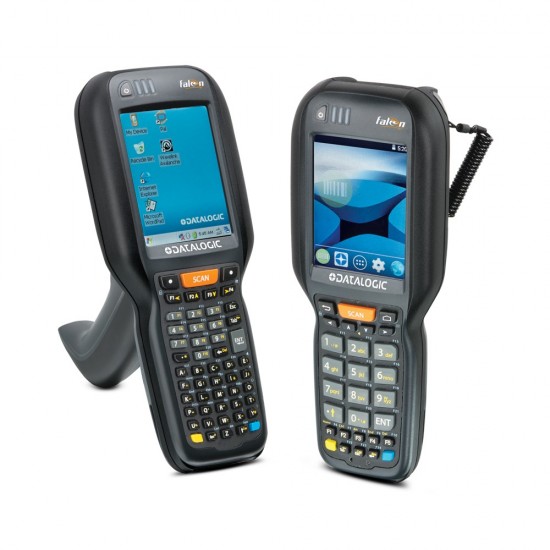

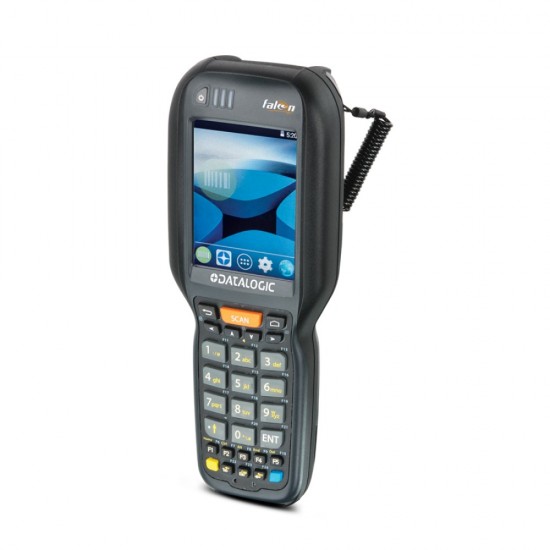

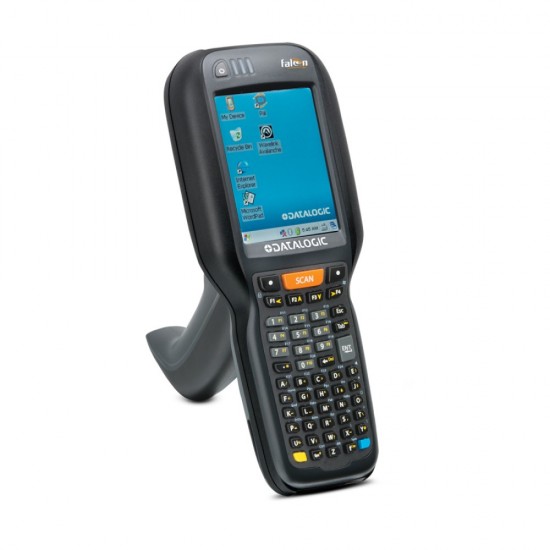

Mobile Computer DataLogic FALCONX4

This legendary mobile computer reaches a new milestone in its track record of worldwide success!
A plurality of markets, including verticals like Retail, Manufacturing, Transport & Logistics and Healthcare, will benefit from the performance of this upgraded Falcon mobile computer for applications such as back office receiving or warehousing picking and put-away. The Falcon X4 mobile computer is the optimal choice for any application requiring reliable data collection in mobility, from store floor to back office inventory; from warehouse management to distribution center; from 3PL to traceability in intralogistics. Intensive users of the Falcon will appreciate the ergonomic hand held and pistol grip form factors, together with a 3.5 inch crystal clear display, an exceptional tactile feeling of the various backlit keyboards, and a hot swappable one-piece 5,200 mAh battery. With a choice of Windows® Embedded Compact or Android™ operating systems, the Falcon X4 mobile computer delivers the ultimate in ergonomics, intuitive user interface, computing and data capture technologies, combined with best-in-class ruggedness.

DATALOGIC

Specifications

Mobile Terminals
Monitor pda	Reflective TFT daylight readable color display, 240 x 320 pixels, 8.9 cm / 3.5 in diagonal, 65K colors, backlight, touchscreen.
Operation System	Microsoft Windows Embedded Compact 7 (WEC7) or Android v4.4*
CPU pda	Microprocessor TI OMAP4 @ 1 GHz
Memory pda	RAM Memory: 1 GB Flash Memory: 8 GB (partially used for firmware and reserved data)/ Expansion Slots Micro Secure Digital slot (SDHC) up to 32 GB, user-accessible
Communication	Local Area Network (WLAN): TI Wi-Link 8, IEEE 802.11a/b/g/n; Frequency Range: Country dependent, typically 2.4 and 5 GHz; Cisco CCX v4 compliant/ Personal Area Network (WPAN): Bluetooth wireless technology v4 with BLE (Android models) Bluetooth® v2.1 + EDR (WEC7 models)
Interface-Ports	Main connector with USB 2.0 High Speed Host (480 Mbps) and Client, RS-232 up to 115.2 Kbps; Ethernet or Modem: via single-slot dock (external module)
Barcode scanner	2D Imager (Standard Range)/ 2D Imager (DL Focus)/ Auto Range 2D/ 1D Imager/ Scan Window All scan engines feature Corning® Gorilla® Glass 3 scan window.
Battery pda	Removable battery pack with rechargeable Li-ion batteries; 3.7 V 5200 mAh (19.2 Watt hours)
Keyboard	Polycarbonate hard cap keyboards with backlight; 29-key numeric, 29-key functional numeric or 52-key alphanumeric with discrete navigation
Sealing	IP65
Resistance	Drop Resistance: Withstands drops from 1.8 m / 6.0 ft onto concrete follow IEC68-2-32 (Method 1) and 1500 random drops from 1.0 m / 3.3 ft follow EC68-2-32 (Method 2)/ Temperature Operating: -20 to 50 ºC /-4 to 122 ºF/ Storage: -30 to 70 ºC / -22 to 158 ºF.
Dimensions/ Weight pda	Dimensions: Handheld: 22.5 x 8.8 x 5.5 cm / 8.9 x 3.5 x 2.2 in; 6.4 x 4.0 cm / 2.5 x 1.6 in at keyboard. Pistol grip: 22.5 x 8.8 x 16.8 cm / 8.9 x 3.5 x 6.6 in/ Weight Hand held: 602.0 g / 21.2 oz. Pistol grip: 668.0 g / 23.6 oz
Accessories	Docks: 94A150057 Single Slot Dock w/Spare Battery Charging Slot, 94A150056 Multi-Ethernet Dock Charges 4 terminals and 4 Batteries, 94A151131 Vehicle Dock/ Battery Chargers: 94A151137 Multi Battery Charger, 94A151135 Multi Charge Only Dock Charges 4 terminals and 4 Batteries/ Cases/Holsters: 94ACC0104 Rubber Boot, 94ACC0047 Standard Softcase with Quick Release Belt Clip.
Reading Performance	1D / Linear Codes, 2D Codes, Postal Codes, Stacked Codes
Additional features mobile terminals	Reak-Time Clock Time and date stamping under software control
