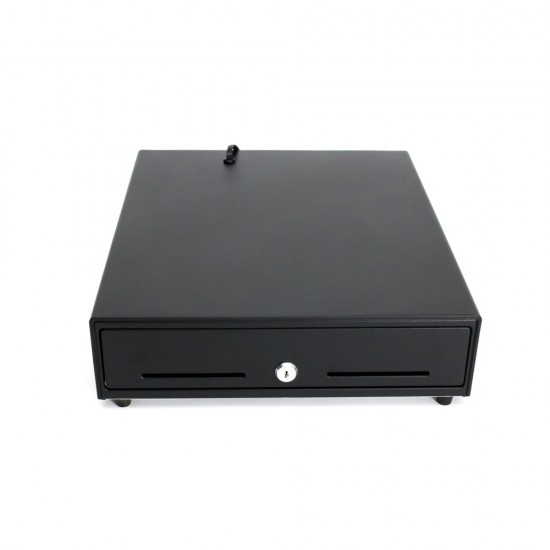

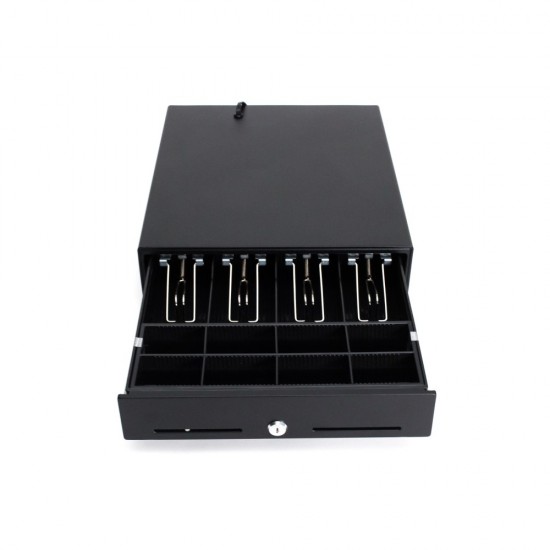

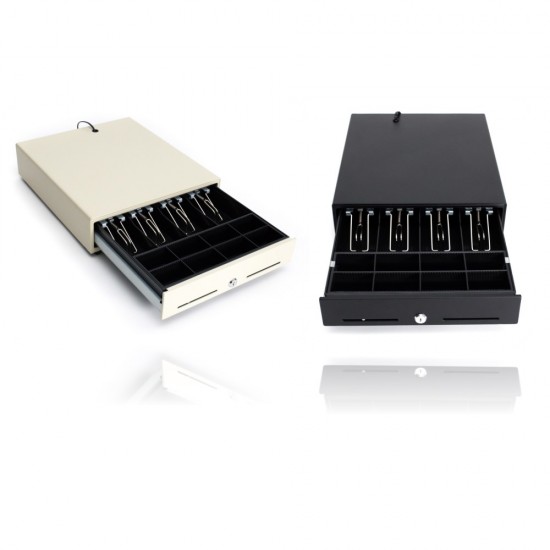

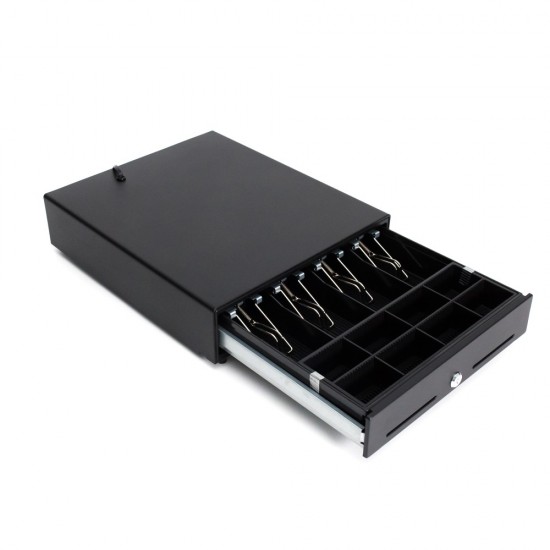

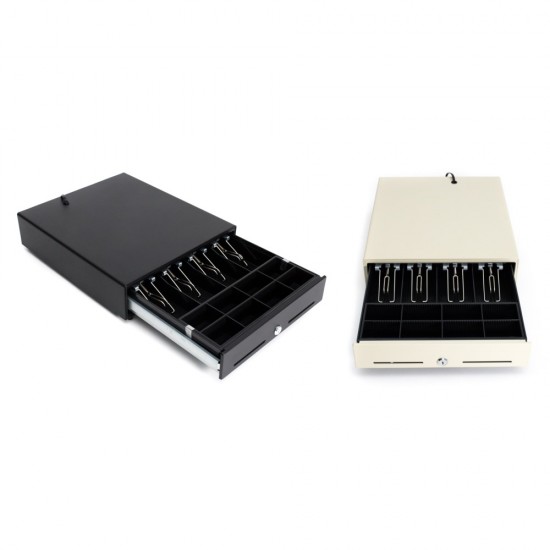

Drawer for Cash Registers EC-350

Description
Code

Cash drawer EC-350 4B8C

Precision mechanism to assure wobble-free drawer moment, three -positions lock for maximum cash security, counter space saving, durability for 1 million operations. Smart small cash drawer with two media slots. Panel made of steel, casing thickness 0.8 mm made of thick gauge cold rolled steel & SECC. Scratch resistant textured hybrid powder coat finish. Wear-resistant plastic rollers. 4 Bills, 8 Coins case, adjustable dividers, removable coin tray. 2 media slots, three -position lock: Locked Open/ Closed, Electronically Driven with 10 Key combinations. I/O Interface: 6V,12V, 24V for RJ11, RJ12 Receipt Printer Interface 9-Pin RS232 interface (option), USB Interface (option). Emergent release lever on the chassis of drawer. Dimensions 350(W) x 405(D) x 1000(H)mm.

002-008-0014 ICS EC-350 RJ 24V 4B8C

002-008-0015 ICS EC-350 JACK 6V 4B8C

002-008-0016 ICS EC-350 RJ 6V 4B8C

002-008-0029 ICS EC-350 χωρίς ηλεκ/τη 4B8C

002-008-0022 DF-350 RJ 12-24V 4B8C

002-008-0023 ICS DF-350 RJ/JACK 6V 350X400X100mm

ICS

Specifications

Drawers for Cash Registers
Material	Metal drawer with plastic coin separator detachable
Banknote Cases	4 cases
Coin cases	8 coin cases
Connections	12V, 24V for RJ11, RJ12 Receipt Printer Interface 9-Pin RS232 interface (option), USB Interface (option)
Dimensions	350x405x100mm
Lock	three -positions lock
