DP-986 Banknote Counter

Downloads

File	Size	Download
dp-986.pdf	1.57MB	Download

Description

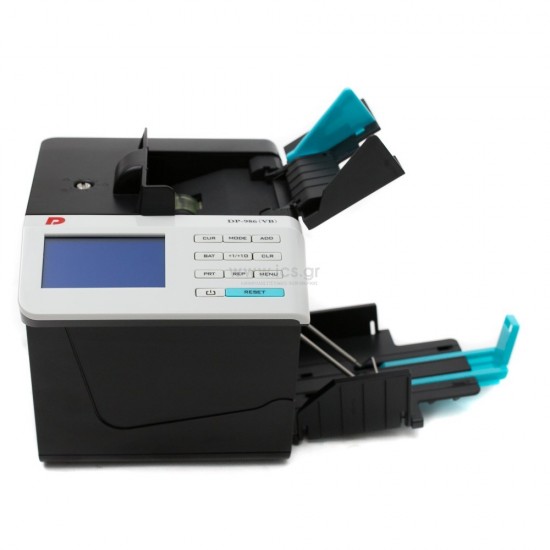

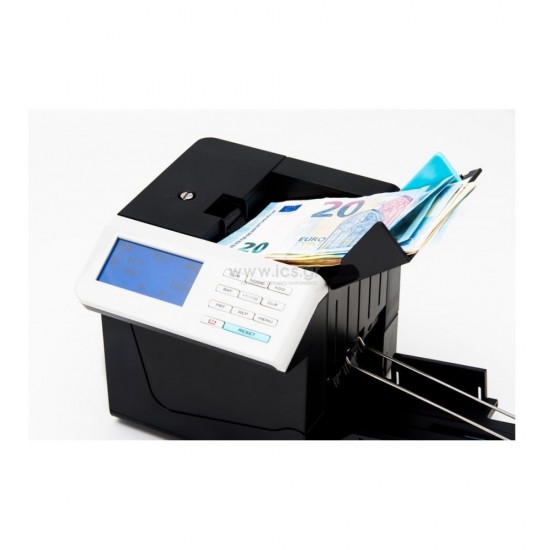

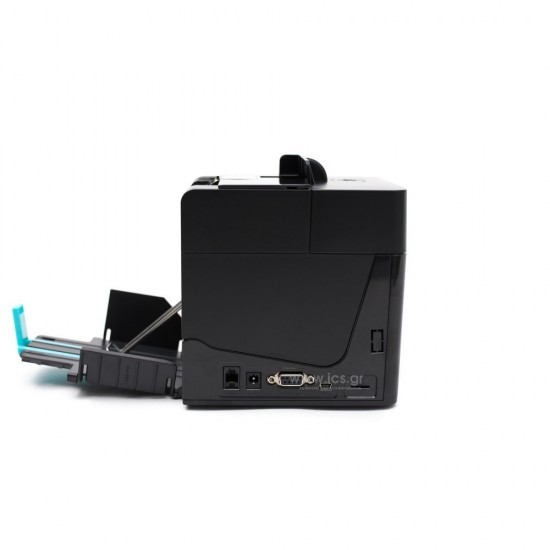

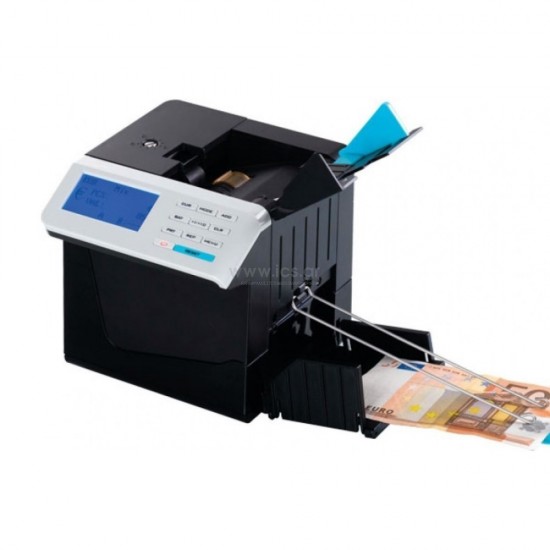

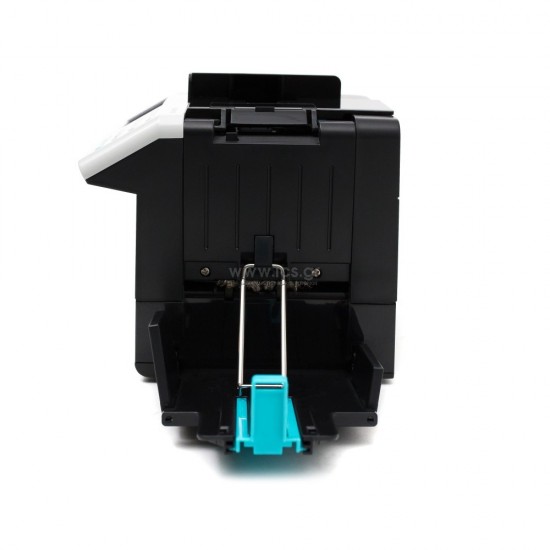

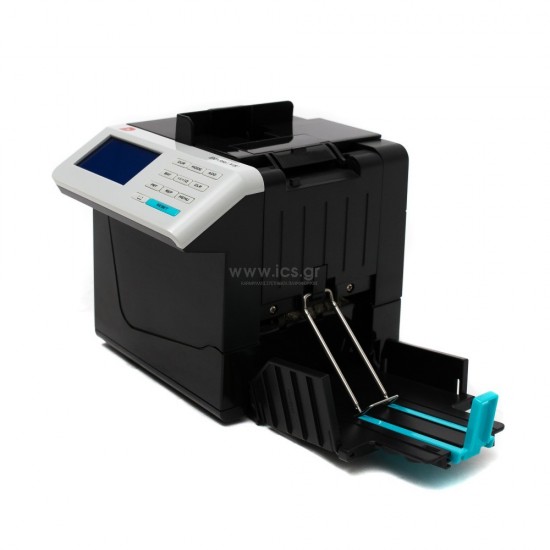

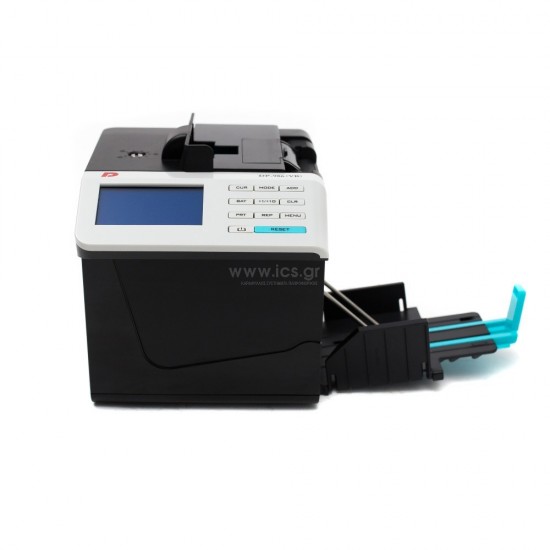

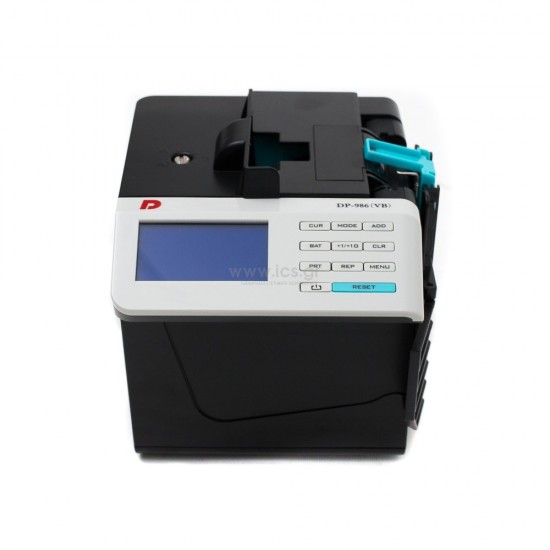

Banknote Counter DP-986

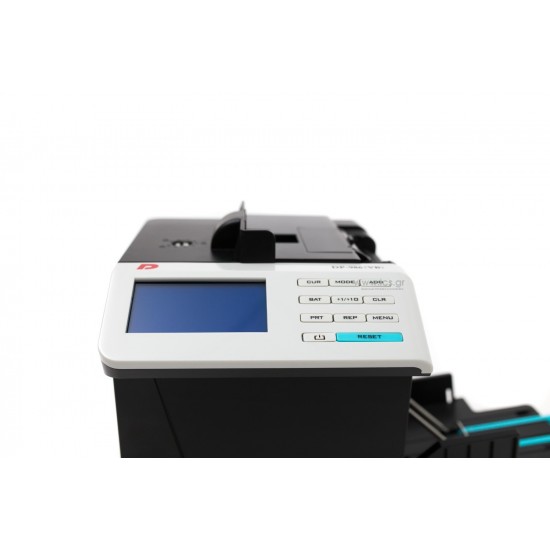

Compact value mix currency bill counter. Automatic feeding detector, without orientation limits,with compact size. Can discriminate value and detect very good quality counterfeits. Easy access note transport path, for better maintenance and jam removing. LCD display, user-friendly interface. Easy upgrade, PC upgrade for new issues or software upgrade. Counterfeit Detection: magnetism, infrared, image, spectrum, length, thickness etc. With SD card slot, Easy to upgrade the software via SD card. Can connect with thermal printer. Can connect LED/LCD external display. Available Currencies: EUR, GBP, CHF,JPY, KRW,RMB,TWD etc.(Optional).

ICS

Specifications

Banknote Counters-Detectors
Detection technology	Counterfeit Detection: magnetism, infrared, image, spectrum, length, thickness etc.
Banknotes	Available Currencies: EUR, GBP, CHF,JPY, RW,RMB,TWD etc.(Optional).
Hopper capacity	Hopper Capacity:100 notes/ Stacker Capacity:100 notes.
Speed counter	200-250 notes per minute
Power	AC100V~240V 50/60Hz or DC12V/2.0A
Power Consumption	<20W
Battery	rechargeable lithium battery 0.8V/2000mAH(optional)

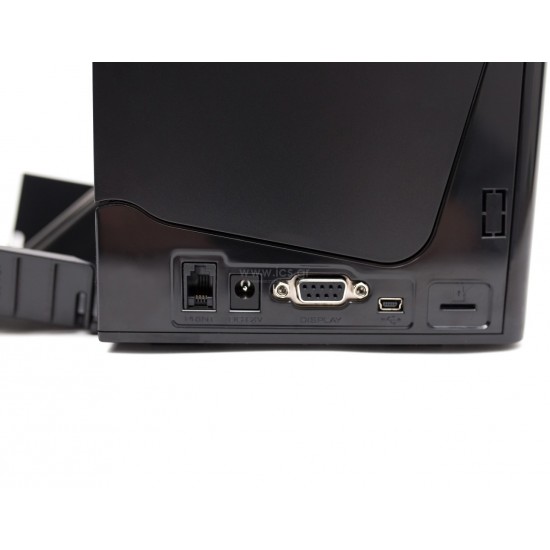

Interface/ Upgrade	PC upgrade for new issues or software upgrade. With SD card slot, Easy to upgrade the software via SD card. Can connect with thermal printer. Can connect LED/LCD external display.
Dimensions banknote counter detector	170(L)×157(W)×152(H)mm
Weight	1.6KG (Without battery)
Additional features of detector-counter	Automatic feeding detector, without orientation limits, with compact size. Can discriminate value and detect very good quality counterfeits. Easy access note transport path, for better maintenance and jam removing.
