DENSO UR20 RFID Tablet Scanner

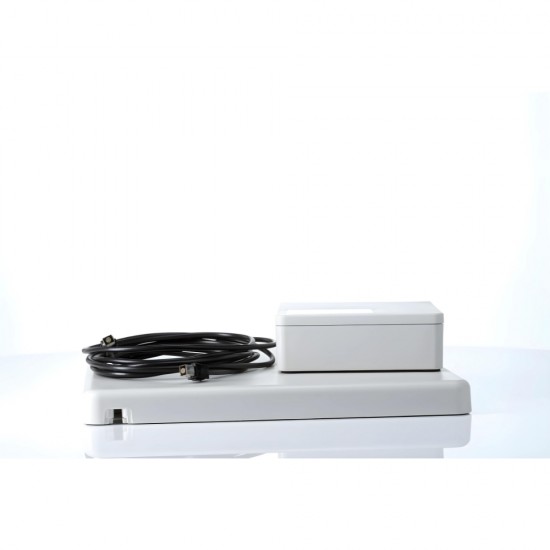

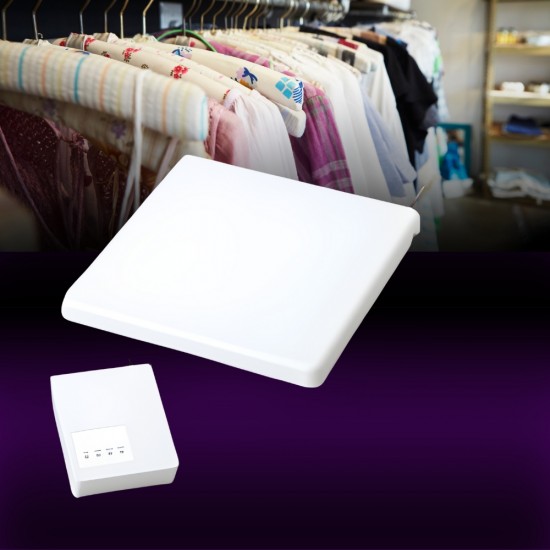

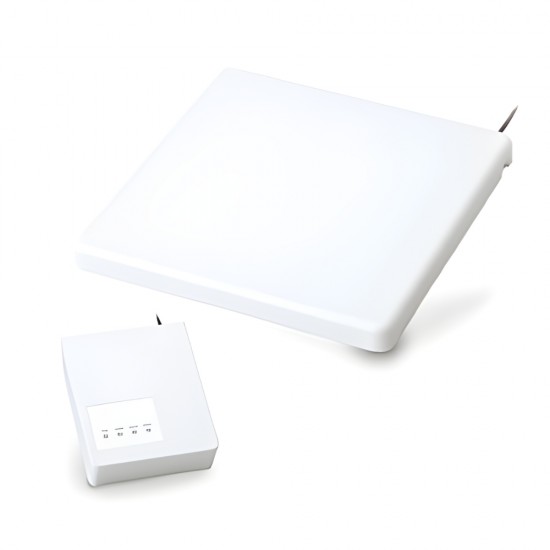

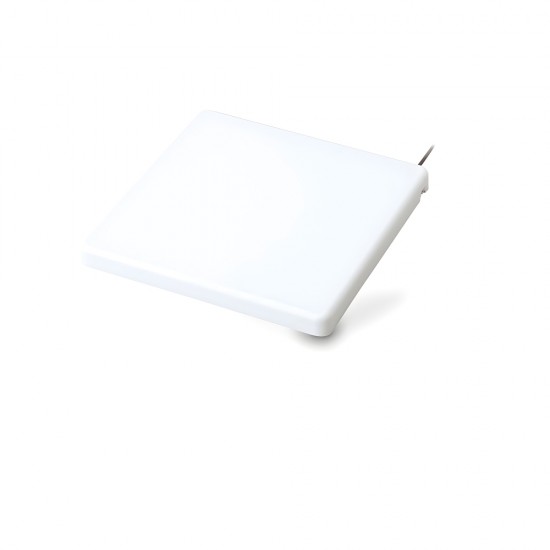

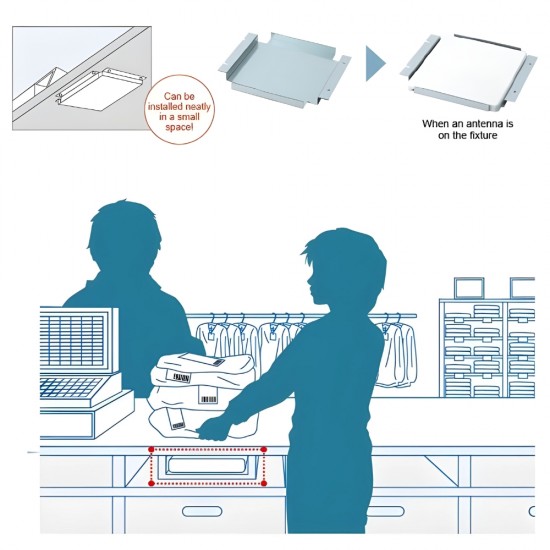

UR20 RFID scanner series for eliminating queues at checkouts offers efficient solutions for the checkout process and enables smooth integration into existing checkout systems. The system consists of a small controller and a thin antenna, making it easy to install on an existing POS system. We also offer a special antenna mounting that supports the installation of the antenna.The communication range is approximately 80 cm, which is ideal for use at POS tills. To avoid reading RFID tags at neighbouring tills, the communication range can be freely adjusted according to the environment. The system allows two antennas to be connected to one controller, extending the reading range and increasing the application possibilities for customers.With a communication range of approximately 2.5 metres, our UR20 system is ideal for installation at warehouse access gates. It can even smoothly read RFID tags placed close to the bottom of the load. A circularly polarised antenna enables 360-degree reading of RFID tags, so users don't have to worry about tag orientation. By using an Ethernet interface, multiple devices can be controlled from a single PC, even if they are remote from each other. system can be easily installed in different locations. The combination of a small controller and a thin antenna makes it easy to find a suitable installation location. Can also be attached to a VESA-compliant stand using VESA-compliant screw holes and supplied screws.

Specifications

Scanners
Reading mode RFID
Scanning range/ Βάθος πεδίου Channel width / number of channels : 600 kHz / 4 ch
Scanning range/ Width of Field Reading range: 0 - 800 mm (Avery Dennison AD-826) - UR21-MR-01. 0 - 2500 mm (Avery Dennison AD-229r6) - UR22-MR-01
Dimensions Control: 90 x 108.5 x 31mm. Antenna: 200 x 200 x 17.5mm. Weight (g) :Control unit: approx. 130g. Antenna: approx. 360g
Symbologies Readable and recordable RF tag : ISO/IEC 18000-63 TypeC (EPC Global Class1 Gen2) - supported tag
Additional features Power supply : Special AC adapter (100 V). Power consumption: 1300 mA MAX (excl. inrush current). Operating temperature : 0°C to +40°C (UR21-MR-01). -5°C to +50°C (UR22-MR-01)
