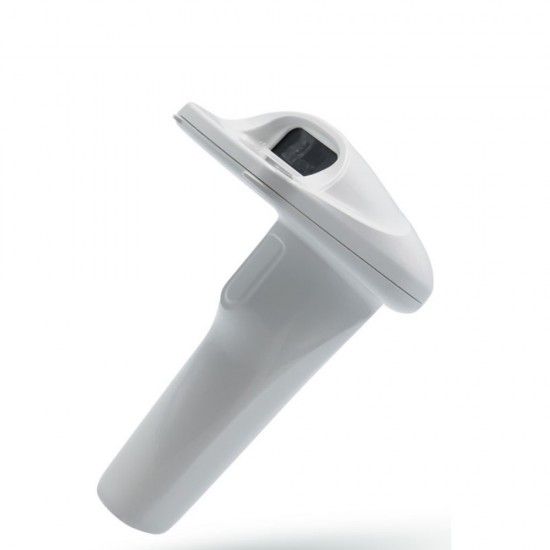

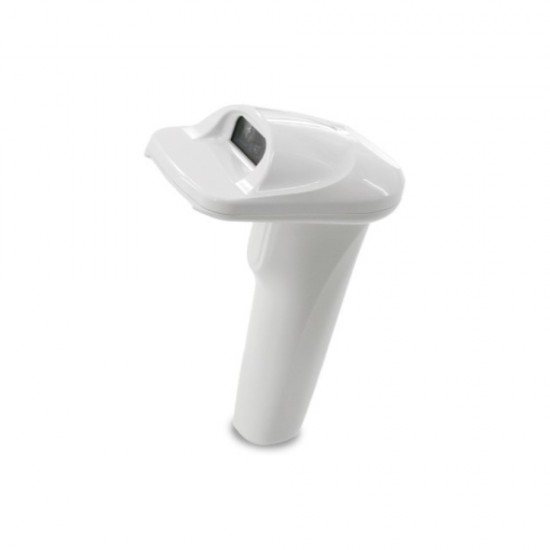

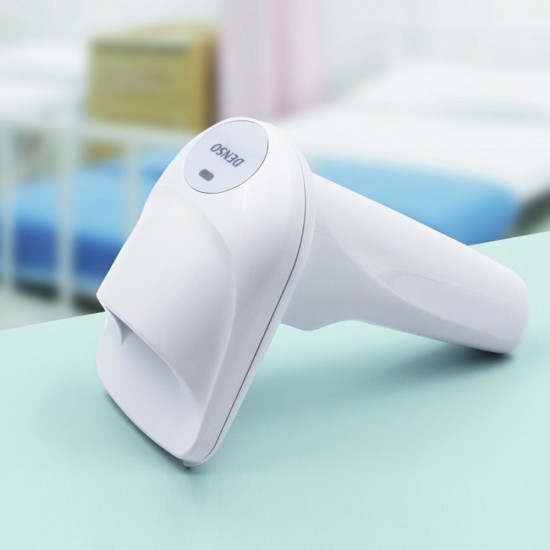

Denso SC1-QB 1D/2D antimicrobial Scanner, light, small, Bluetooth, IP65

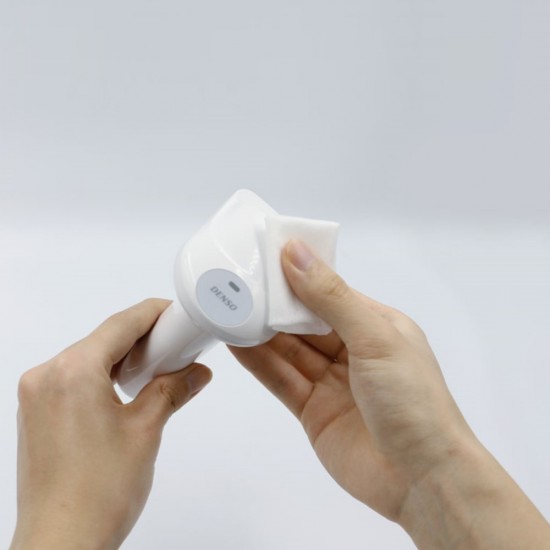

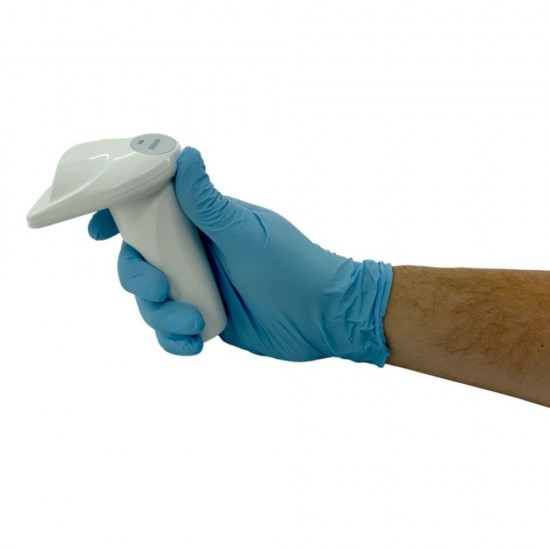

Hand scanner without rough edges. With smooth, seamless and hygienic surface, the SC1-QB hand-held scanner can be used wherever cleanliness is essential - healthcare, laboratories, food industry or catering. Cordless and recharged in less than 3 minutes, it can be used with no stop. Designef to be always clean and disinfection-friendly the SC1-QB is ideal for use in healthcare facilities and any area where frequent disinfection is required. The unit stays clean even during continuous operation and the surface is coated with a resin containing an antimicrobial agent, which meets the JIS Z 2801 standard. It has been tested with 18 chemicals, including alcohol, hydrogen peroxide, sodium hypochlorite and more. Very easy to operate with uniquely smooth trigger switch and no moving parts or charging ports so it can be easily wiped during disinfection in order to keep bacteria and viruses away. Wireless connectivity via Bluetooth and no cables. The contactless charging function with magnets allows to simply place the device on the charger. The scanner can be fully charged in less than 3 minutes, so there are no interruptions to work due to flat batteries. Lightweight, space-saving and compact design. Equipped with a capacitive trigger switch that can be operated comfortably even when wearing gloves. The scanning range of 40 to 330 mm enables intuitive scanning of e.g. patient wristbands. No need to change battery.

Specifications

Scanners
Reading mode 1D/2D
Scanning range/ Width of Field Angle ±50°- Skew Angle 360°
Resolution 2D Codes 0,127 mm. Barcodes 0,076 mm
Interfaces Bluetooth Ver. 5.0 Low Energy
Dimensions 90x129x63mm
Weight 130 g
Sealing IP65
Symbologies 2D Codes: QR Code, SQRC, Micro QR Code, DataMatrix (ECC200), PDF417, MicroPDF417, MaxiCode, Aztec, GS1 Composite. Barcodes: EAN-13/8 (JAN-13/8), UPC-A/E, UPC/EAN (with addon), Interleaved 2 of 5, Standard 2 of 5, Codabar (NW-7), CODE39, CODE93, CODE128, GS1-128 (EAN-128), GS1 DataBar (RSS)
Additional features Operating Temperature -20° to 50°C. Humidity Operating: 0% to 90% relative humidity, non-condensing. Drop Specifications Scanner withstands repeated drops from 2 m 0.5m×2,000 times. PCS Value more than 0,3. LED Marker. Scanning Confirmation LED Light (blue, gren and red), Sound and Vibration. Power Supply: Capacitor Battery (Wireless charging on base (sold separatly). Charging time approx. 3 minutes. Operating time approx. 30 minutes (1 scan per 5 sec.).
