BHT-M70 Mobile Computer

Name: BHT-M70 Mobile Computer
Brand: DENSO
Price: 1.00 EUR
Availability: InStock

BHT-M70 Mobile Computer

Downloads

File	Size	Download
BHT-M70_Brochure_EN_V3.0.pdf	2.67MB	Download

Description
Video

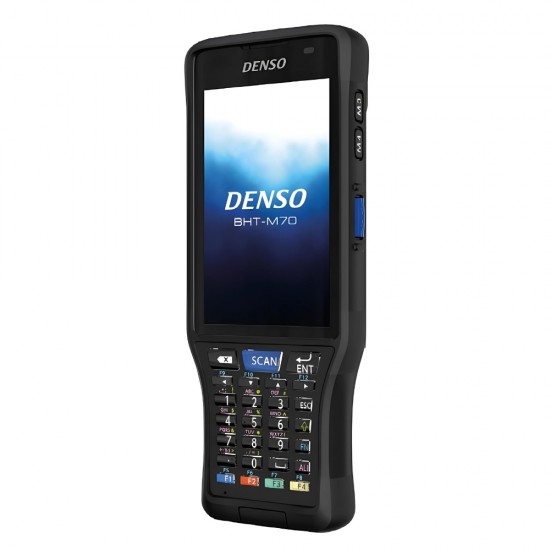

DENSO BHT-M70 Mobile Computer IP65 / IP67

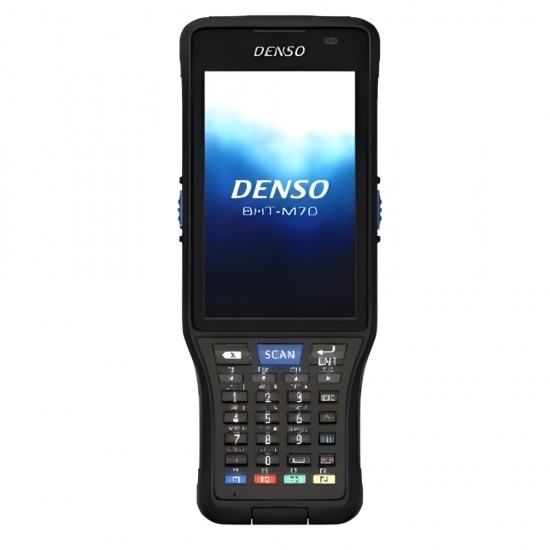

The BHT-M70 handheld computer expands DENSO's BHT-M series with a handy device featuring a large 4-inch touch display and physical keyboard. This makes the mobile data capture device ideal for use in warehouses and logistics. Equipped with the most powerful scan engine since DENSO was founded, the device is capable of recognizing characters as well as a wide range of codes such as QR codes, speeding up your processes. With the 4" touch display, employees can view tasks, maps or manuals. Depending on preference, entries can be made via the display or the keyboard. Thanks to the ergonomic handle, the terminal can be easily held with one hand and operated with a single thumb, which contributes to work efficiency.Android operating system. Character Recognition (OCR) automates manual entry of expiration dates and receipt numbers, reducing heavy visual labor and ensuring accurate verification. Equipped with 4G, Wi-Fi and GPS, the BHT-M70 promotes digital transformations through communication apps such as chat and phone.

DENSO

Specifications

Mobile Terminals
Monitor pda	4.0-inch WVGA (480x800 dots). Dot Matrix Liquid Crystal Display. Backlight. Touch panel Dragontrail® Pro - Capacitive multi-touch screen with glove touch support and water droplet false touch prevention.
Operation System	Android 10 or Android 13
CPU pda	Qualcomm® SDM660 64bit Octa-core 2.2 GHz
Memory pda	4GB RAM/64 GB ROM
Communication	WLAN, WWAN, GPS, Bluetooth, NFC
Interface-Ports	USB 2.0 (Type-C)

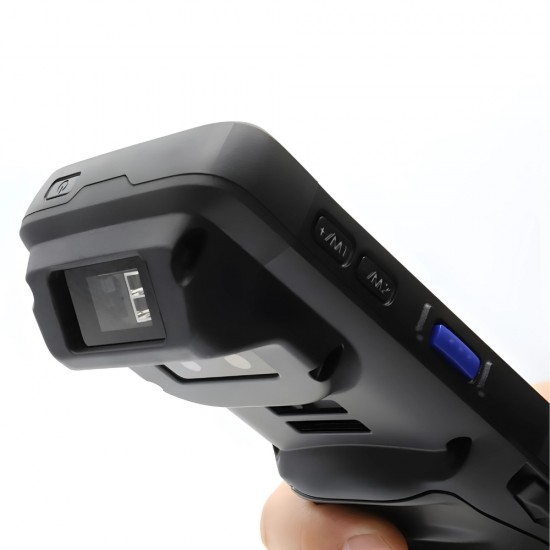

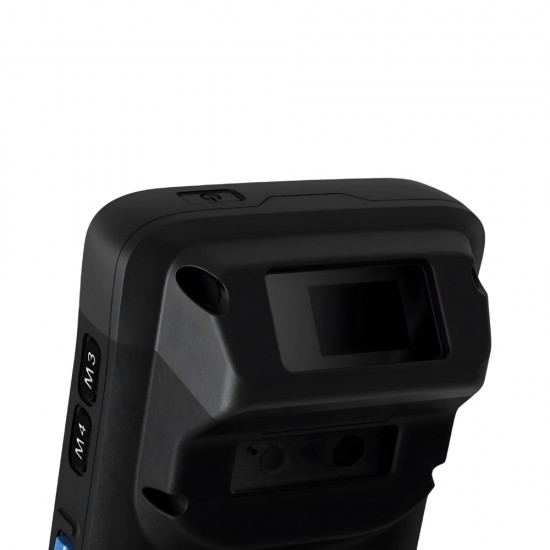

Barcode scanner	Area sensor. Supported codes : 2D Code : QR Code, Micro QR Code, SQRC, PDF417, Micro PDF417, Maxi Code, Data Matrix (ECC200), and GS1 Composite Barcode : EAN-13/8 (JAN-13/8), UPC-A/E, UPC/EAN (with Add-On), Interleaved 2 of 5, Codabar (NW-7), CODE39, CODE93, CODE128, GS1-128 (EAN-128), Standard 2 of 5 (STF) and GS1 DataBar(RSS) OCR : Supported Minimum resolution : 2D Code : 0.127 mm Barcode : 0.076 mm Marker : Cross Guide Marker Read confirmation : Blue LED, sound and vibration Keys : 27 keys (including power key), direction keys, and 3 scan keys Camera : Rear 13MP autofocus with LED light

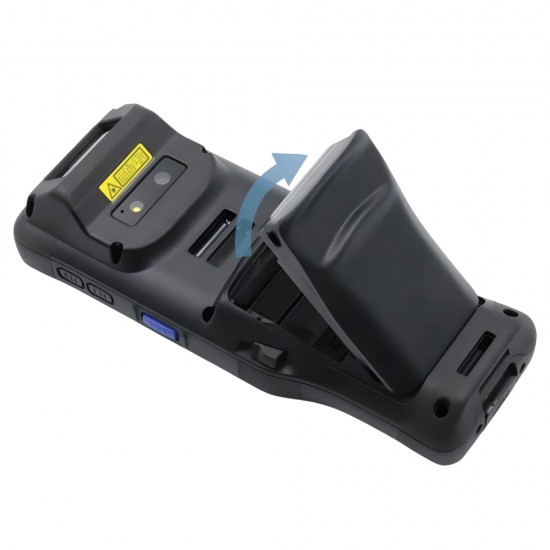

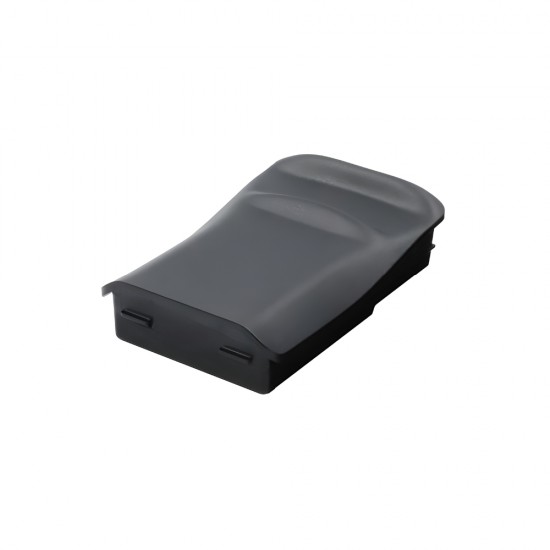

Battery pda	Main battery Lithium-ion battery. Quick Charging Supported (Quick Charge 3.0). Battery life approx. 20 hrs.
Keyboard	27 keys (incl. power key), direction keys, and 3 scan keys
Sealing	IP65 / IP67
Resistance	Drop resistance 2.5 m, 1.5m x 60 drops

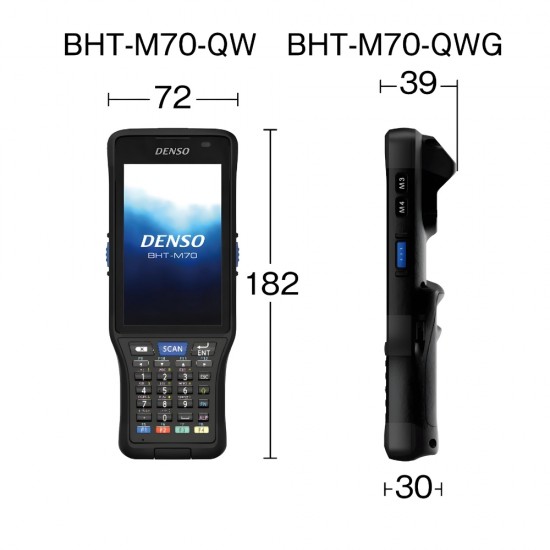

Dimensions/ Weight pda	182×72×39/30mm. Weight 330g

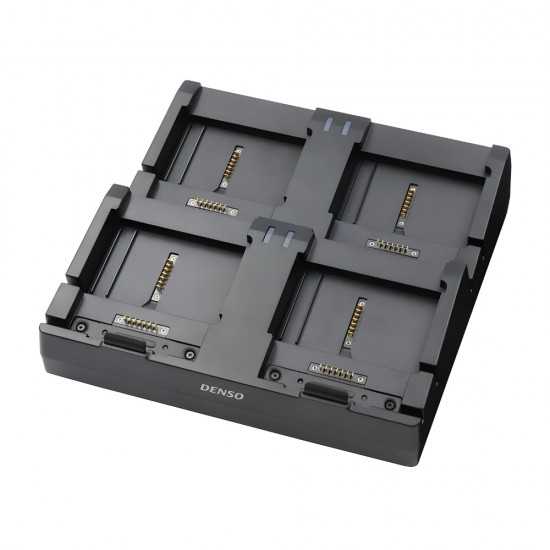

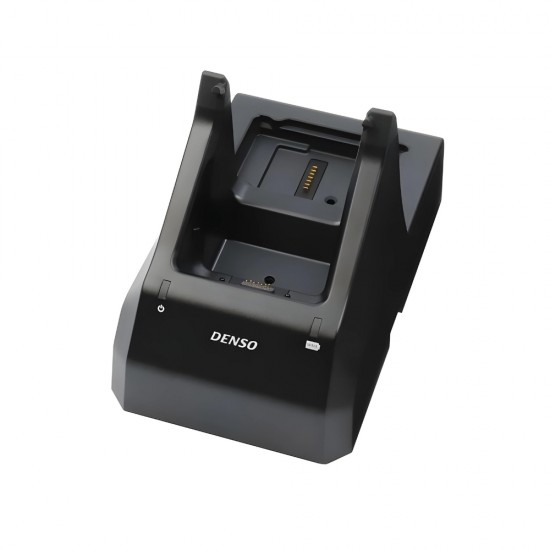

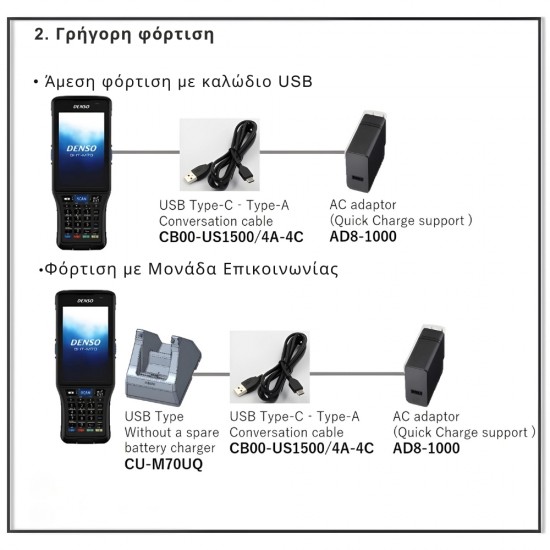

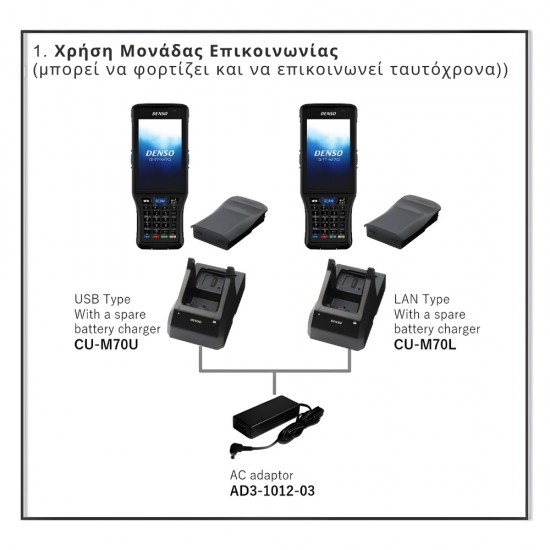

Accessories	USB charger: Adapter sold separately (AD3) / CU-M60U*USB charger(QC3.0): Adapter sold separately (AD8) / CU-M60UQ* LAN charger : Adapter sold separately (AD3) / CU-M60L* 4-slot unit charger: For charging four terminals simultaneously. Adapter sold separately (AD3) / CH-M60-4* 4-Slot Battery Charger: For charging four batteries simultaneously. Adapter sold separately (AD3) / CH-BT2-4* AC Adapter: AD3* AC Adapter (QC3.0): Quick Charge 3.0 (requires USB-C conversion cable to charge the BHT, sold separately) / AD8*Lithium-ion battery: 3200 mAh / BT2* Hand strap: HBBHT-M80* Stylus: STBHT-1700* Cable: USB Type-C conversion cable (1.5 m) / CB00- S1500/ 4A-4C
Additional features mobile terminals	Camera : Rear 13MP autofocus with LED light. Operating temperature: -20 °C to 50 °C
