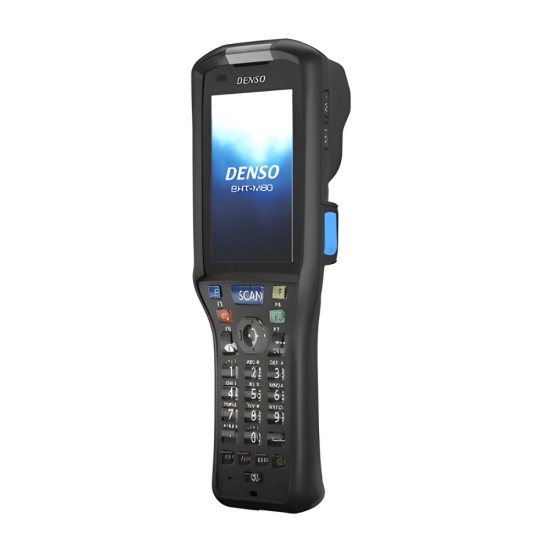

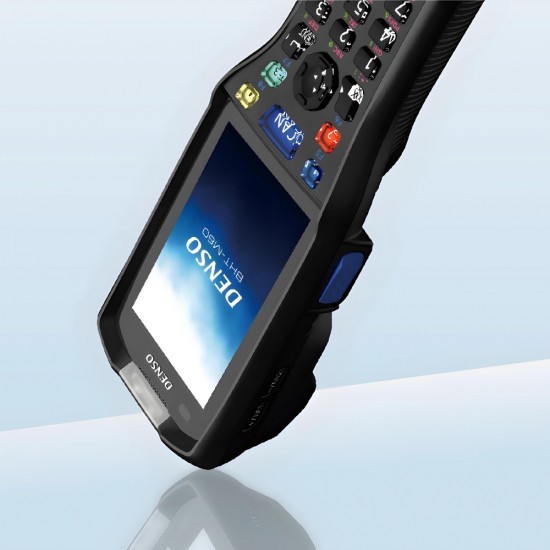

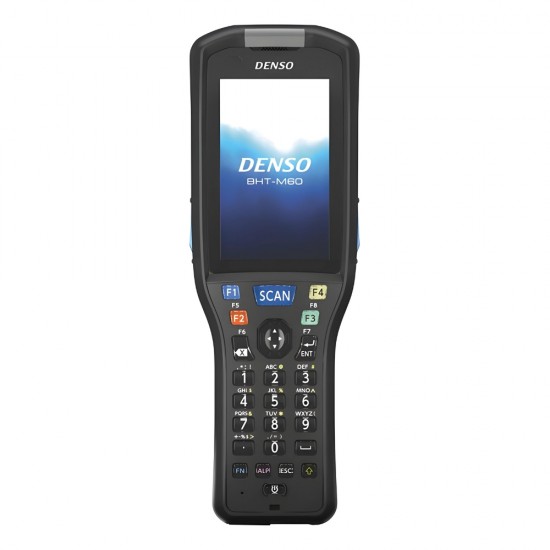

BHT-M60 Mobile Computer

Name: BHT-M60 Mobile Computer
Brand: DENSO
Price: 1.00 EUR
Availability: InStock

BHT-M60 Mobile Computer

Downloads

File	Size	Download
BHT-M60_Brochure_EN_V4.0.pdf	2.99MB	Download

Description
Video

DENSO BHT-M60 Mobile Computer IP65 / IP67

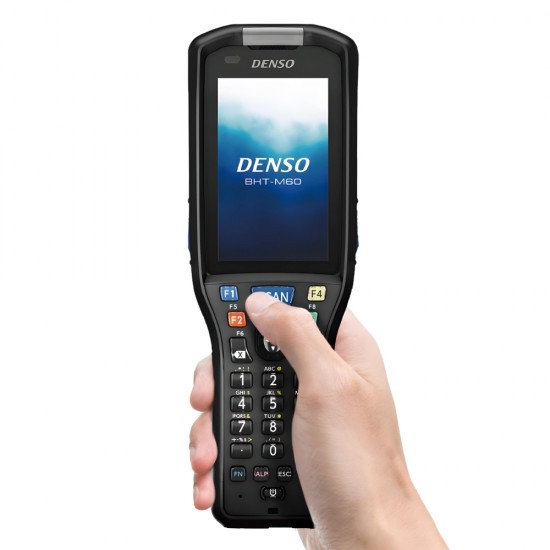

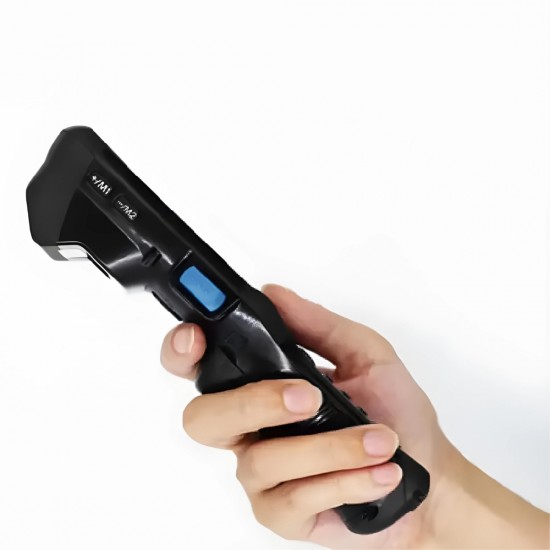

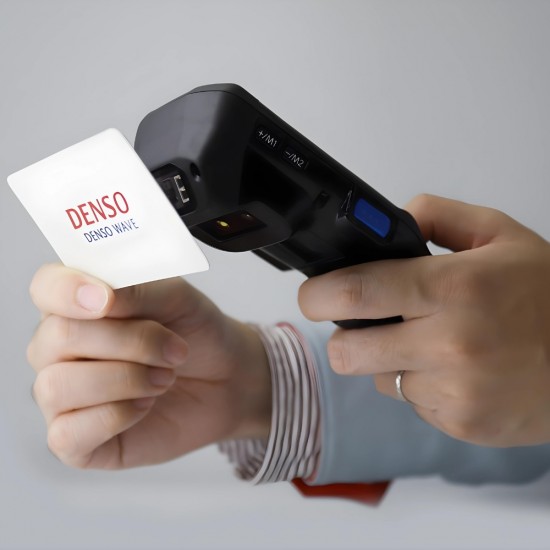

The BHT-M60 handheld computer combines outstanding scanning performance with comfortable handling thanks to its ergonomically shaped handle that fits perfectly in the hand. Equipped with the most powerful DENSO scan engine currently available on the market, it excels in mobile data capture.The handle of the BHT-M60 handheld scanner is therefore shaped to fit perfectly into the hand and feel like its natural extension.Powerful scanning performance, during the scanning process, the user can adopt a natural hand posture while the display is always in full view. Equipped with Android 10 as standard and Qualcomm® SDM660 octa-core processor. Extremely Robust IP65 / IP67.

DENSO

Specifications

Mobile Terminals

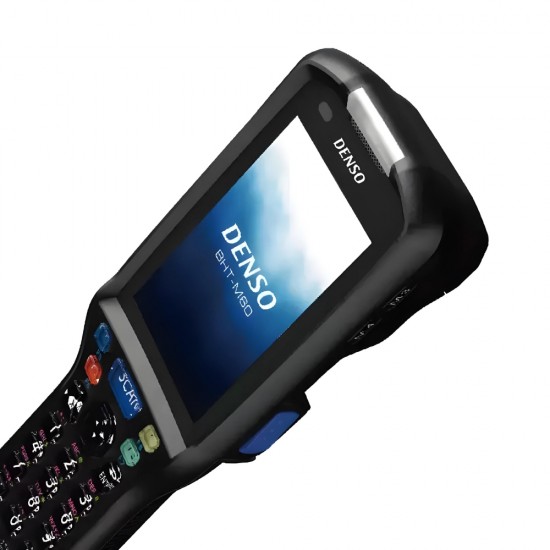

Monitor pda	3.2" HD (480x800). Display SystemDot Matrix Liquid Crystal Display. Backlight. Touch Panel Asahi DragontrailTM Pro- Wet Touch / Gloved Fingertip/ Stylus
Operation System	Android 10 or Android 13
CPU pda	Qualcomm® SDM660 octa-core processor
Memory pda	4GB RAM/64 GB ROM
Communication	WLAN, WWAN, GPS, Bluetooth, NFC
Interface-Ports	USB 2.0 (Type-C)
Barcode scanner	Scanning method : Area sensor. Supported codes : 2D Code : QR Code, Micro QR Code, SQRC, PDF417, Micro PDF417, Maxi Code, Data Matrix (ECC200), and GS1 Composite Barcode : EAN-13/8 (JAN-13/8), UPC- /E, UPC/EAN (with Add-On), Interleaved 2 of 5, Codabar (NW-7), CODE39, CODE93, CODE128, GS1- 28 (EAN-128), Standard 2 of 5 (STF) and GS1 DataBar(RSS). OCR : Supported. Minimum resolution : 2D Code : 0.127 mm. Barcode : 0.076 mm. Marker : Cross Guide Marker. Read confirmation : Blue LED, sound and vibration.
Battery pda	Main battery Lithium-ion battery: 3,200 mAh. Wireless Charging Supported (without battery and charger). Quick Charging Supported (Quick Charge 3.0). Battery life approx. 24 hrs.

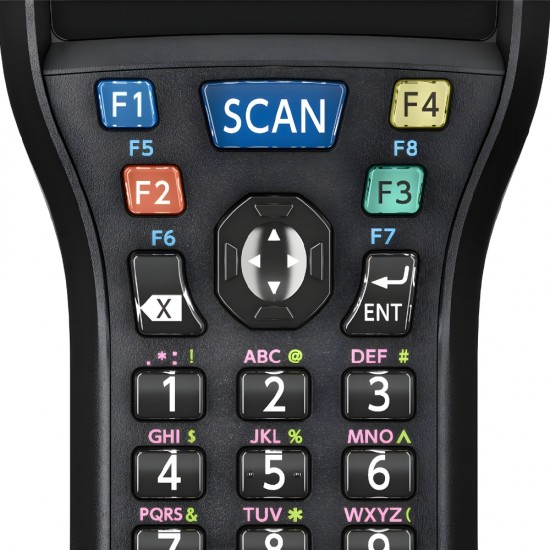

Keyboard	27 keys (incl. power key), direction keys, and 3 scan keys
Sealing	IP65 / IP67
Resistance	Drop resistance 3.0 m, 1.5m x 60 drops

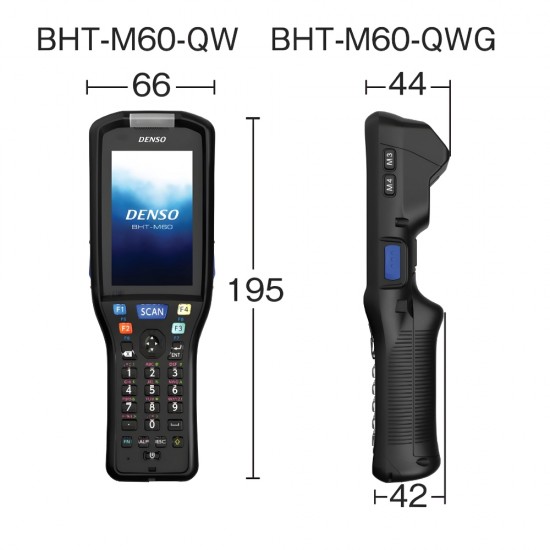

Dimensions/ Weight pda	195×66×42/44mm. Weight 320g 195×66×42/44mm. Weight 320g
Accessories	USB charger: Adapter sold separately (AD3) / CU-M60U*USB charger(QC3.0): Adapter sold separately (AD8) / CU-M60UQ* LAN charger : Adapter sold separately (AD3) / CU-M60L* 4-slot unit charger: For charging four terminals simultaneously. Adapter sold separately (AD3) / CH-M60-4* 4-Slot Battery Charger: For charging four batteries simultaneously. Adapter sold separately (AD3) / CH-BT2-4* AC Adapter: AD3* AC Adapter (QC3.0): Quick Charge 3.0 (requires USB-C conversion cable to charge the BHT, sold separately) / AD8*Lithium-ion battery: 3200 mAh / BT2* Hand strap: HBBHT-M80* Stylus: STBHT-1700* Cable: USB Type-C conversion cable (1.5 m) / CB00- S1500/ 4A-4C
Additional features mobile terminals	Camera : Front 5MP auto focus, back 13MP auto focus
