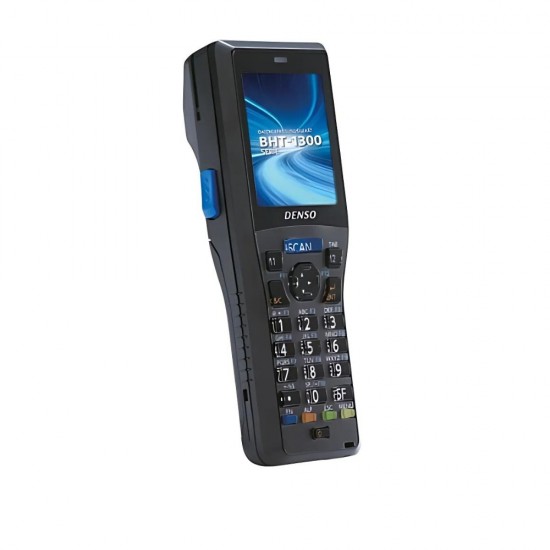

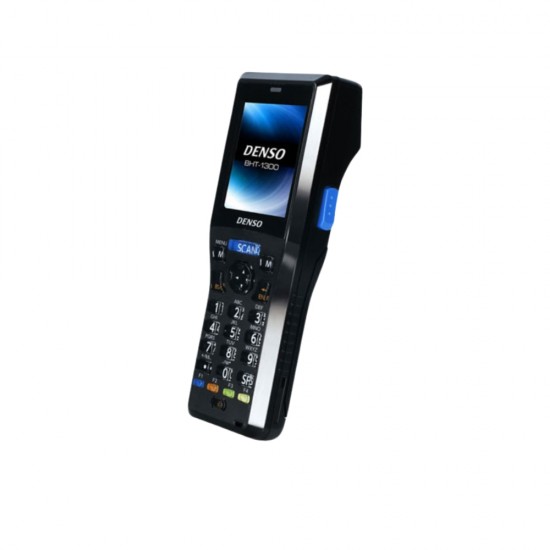

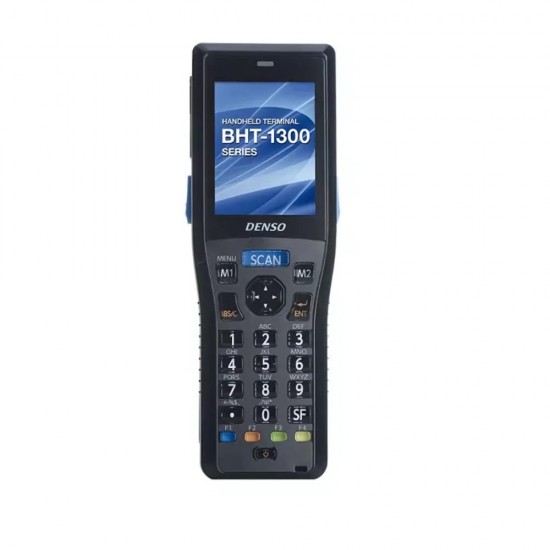

DENSO BHT-1336 QWB Mobile Computer

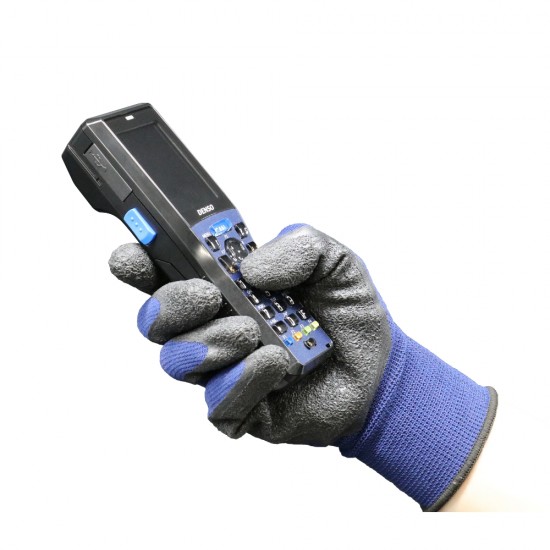

Compact, but easy to use thinner, lighter and smaller. Dome-shaped keys are used, which can be operated easily by workers wearing work gloves. Distinctive displays even in bright sunlight. A high-visibility LCD, High-Bright Display, is used. A wide viewing angle, and therefore, enhanced visibility from oblique angles is realized. Operation time is longer than Windows-OS model. Unique power-saving design enables best-in-class long-time operation of 40 hours, even when continuously connected by wireless. Capability to read codes from any angle of 360° makes for quick reading. Solid and robust to protect both hardware and data. Built-in toughness that endures droppings from 2 m height and operates in minus 20° to 50°C temperature range. For BHT-OS model, its transaction function automatically restores the immediately previous conditions in the case where the battery is disconnected and a file error occurs. Easy cloning with IrDA. Copies of another terminal can be made easily. BHT-OS model is as user-friendly as previous models, yet enables cloning with IrDA.


Specifications

Mobile Terminals
Monitor pda 2.4 inch QVGA (240×320 dots). Liquid crystal dot matrix color display. Backlight LED (white)
Operation System Windows Embedded CE
CPU pda 32-bit RISC Microprocessor
Memory pda 64 MB (User area: approx. 37MB)
Communication Bluetooth® Version 5.0+EDR/LE (Supported profile: GAP, SPP, HID, DUN)
Interface-Ports USB2.0 (Typ-C)
Barcode scanner Area sensor. QR Code®, Micro QR Code, SQRC®, rMQR Code®, PDF417, Micro PDF417, Maxi Code, Data Matrix (ECC200), GS1 Composite. EAN-13/8 (JAN-13/8), UPC-A/E, UPC/EAN (with Add-On), Interleaved 2 of 5 (ITF), Standard 2 of 5 (STF), Codabar (NW-7), CODE39, CODE93, CODE128, GS1-128 (EAN-128), GS1 DataBar(RSS)
Battery pda Main battery Lithium-ion battery. Operating time 55 hours/21 hours. Thin battery 32 hours/12 hours.
Keyboard 21 keys (including power key) + cross cursor key + 3 trigger keys
Sealing IP54
Resistance Operating temperature −20~50 °C
Dimensions/ Weight pda 200 gr approx.

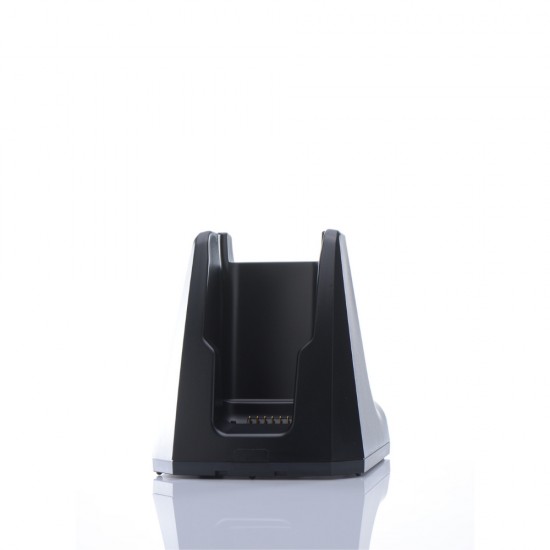

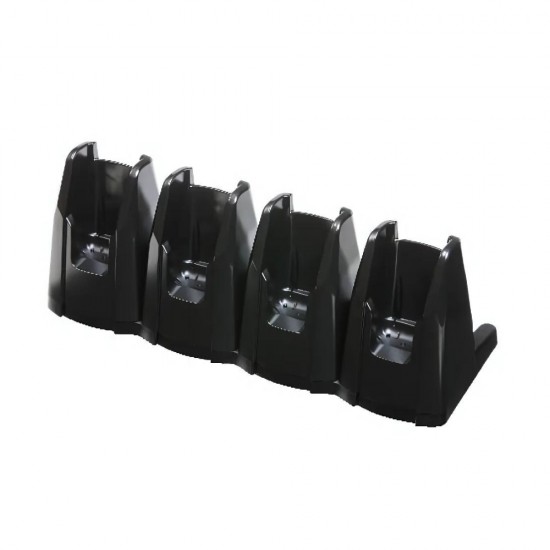

Accessories Communication / Charger: USB Typ: CU-1321. LAN-Typ: CU-1311A. RS232C-Typ: CU-1301A. 4-slot Terminal. Charger: CH-1354. Battery Charger: CH-201B. 4-slot Battery Charger: CH-1104. Neckstrap NSBHT-1300. Waist case WHBHT-1300. Soft case SCBHT-1300. USB Cable Type A-Type C (1.5m). CB00-US1500/4A-4C.
Additional features mobile terminals Drop resistance 2.0 m drop on a concrete floor. Clock, speaker, vibration, battery voltage indicator, key backlight, remote wake-up
