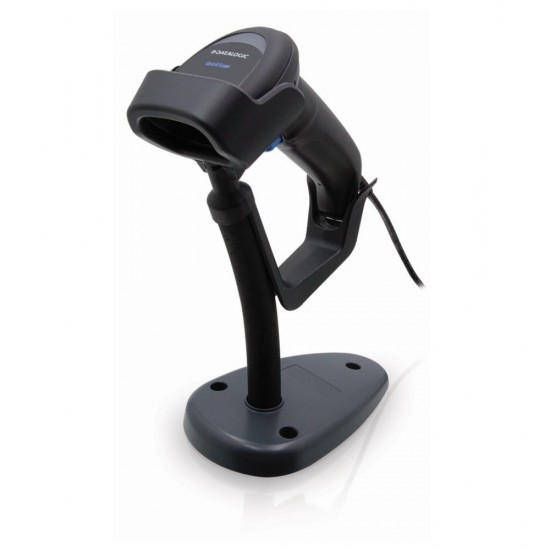

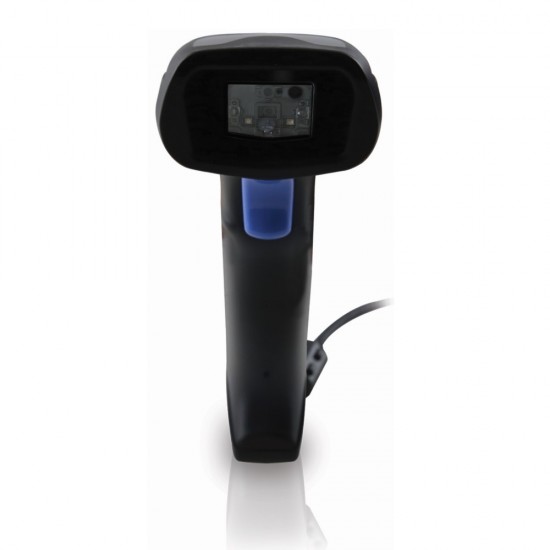

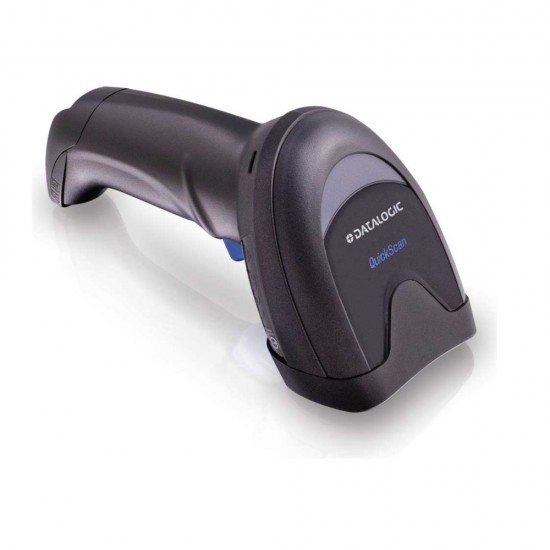

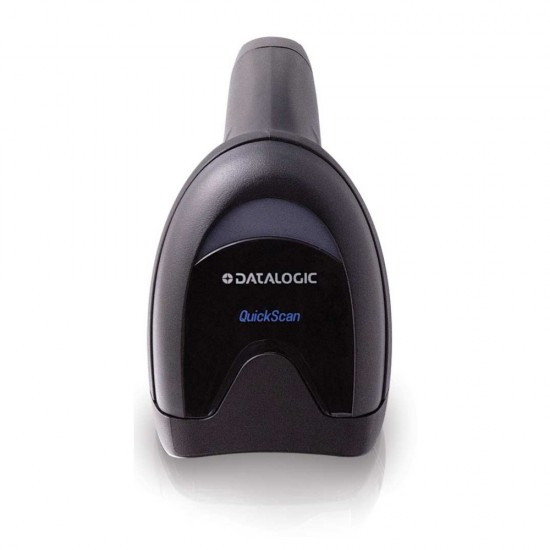

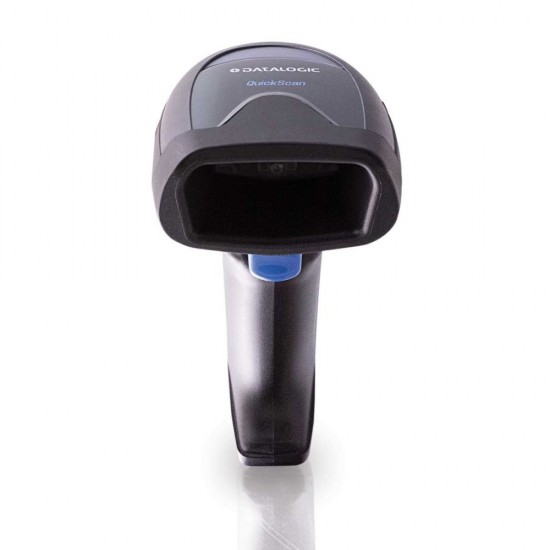

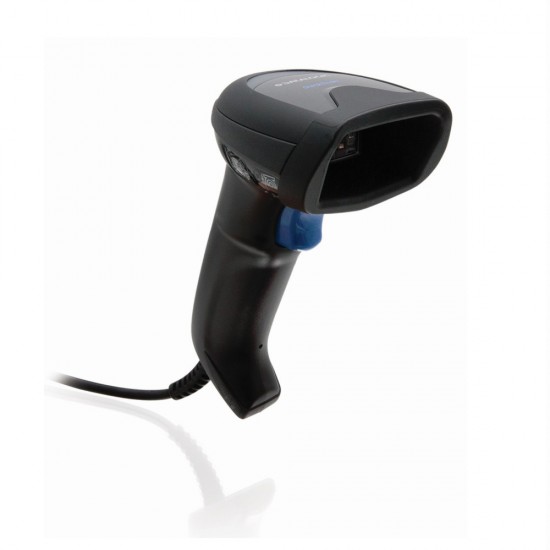

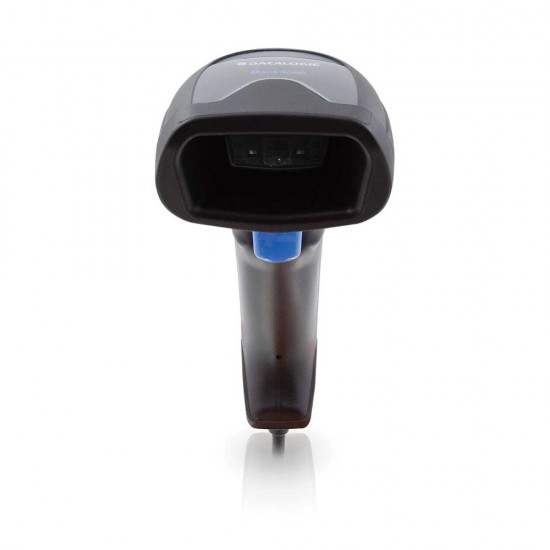

Datalogic QuickScan QD2590 2D Scanner USB with cable

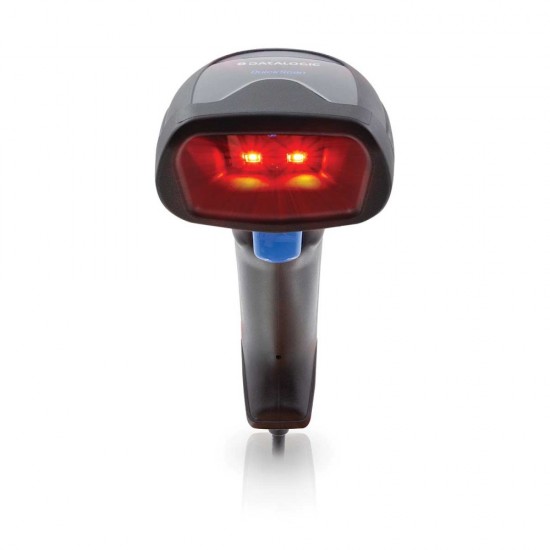

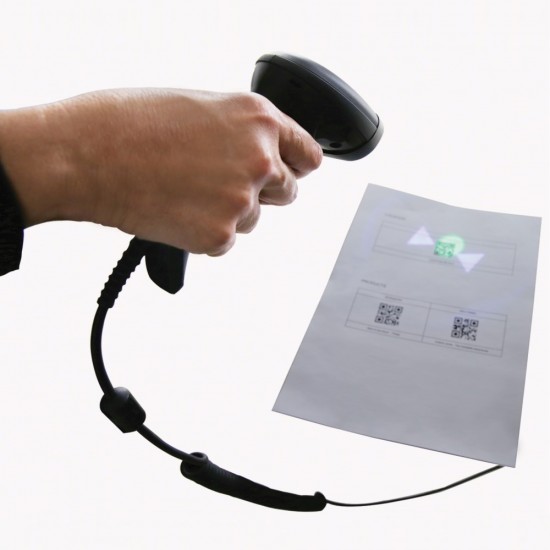

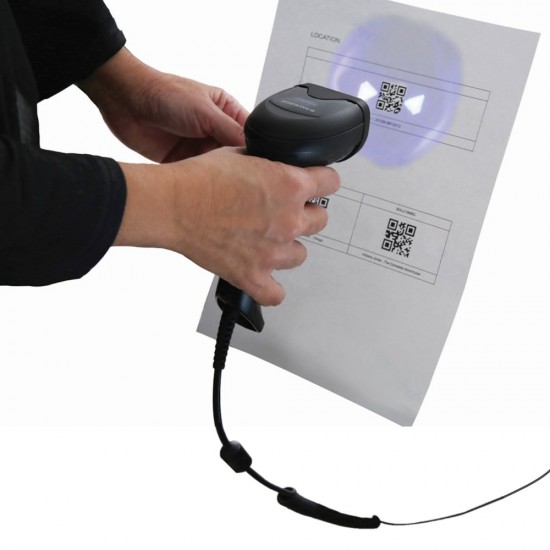

Superior performance for POS check-out activities that need advanced 2D scanning while reading mobile phone displays and loyalty cards at the same time. QD2590 is necessary for the retail field that needs prompt readings, whatever the barcode, regardless of whether it’s hard-to-read, poorly printed or damaged, easily scans mobile devices and through plexiglass barriers. Features Datalogic’s ‘Green Spot’ technology then confirms the good read, perfectly centered on the barcode and between the two triangles, backed up by a powerful beeper that can be adjusted to your preferred level of sound. Also features Datalogic LED-based technology with extreme precision aiming system. Ideal for Retail - Point of Sale: Check-out, Loyalty card and Electronic coupons.  Commercial Services: Postal, Banks, Public. Administration, Utilities. Hospitality: Ticketing (sporting events, concerts, transportation). Government: Lottery and gaming. Healthcare: Laboratories, Pharmacies and in-room patient care. Light Manufacturing: Work-in-progress (WIP).

Specifications

Scanners
Reading mode 2D
Scanning range/ Βάθος πεδίου Code 39: 5 mils: 0.5 to 25.0 cm / 0.2 to 9.8 in Code 39: 10 mils: 0.5 to 38.0 cm / 0.2 to 14.9 in Data Matrix: 10 mils: 0.5 to 21.5 cm / 0.2 to 8.5 in EAN/UPCA: 13 mils: 0.5 to 51.0 cm / 0.2 to 20.1in PDF417: 6.7 mils: 0.5 to 21.0 cm / 0.2 to 8.3 in QR Code: 20 mils: 0 to 37.0 cm / 0 to 14.6 in
Scanning range/ Width of Field Pitch: +/- 65°; Roll (Tilt): 360°; Skew (Yaw): +/- 65°
Resolution QD2500: 1D Linear: 0.077 mm / 3 mils; PDF417: 0.077mm / 3 mils; Data Matrix: 0.127 mm / 5 mils; QR Code: 0.17 mm / 6.7 mils
Interfaces USB Type C / USB / RS-232 Multi-Interface
Dimensions 148 mm x 68 mm x 126 mm
Weight 145 g
Ambient light 0-110,000 Lux
Sealing IP52
Additional features Operating Temperature 0° to 50° C (32° to 122° F) Storage Temperature -40° to 70 °C (-40° to 158° F) Humidity Operating: 0% to 95% relative humidity, non-condensing. Drop Specifications Scanner withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.
