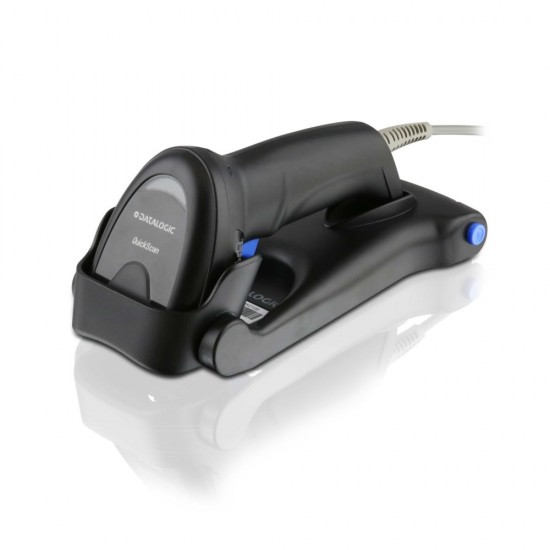

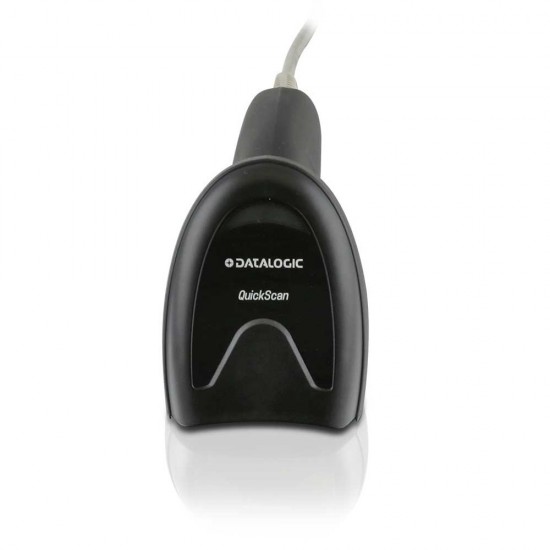

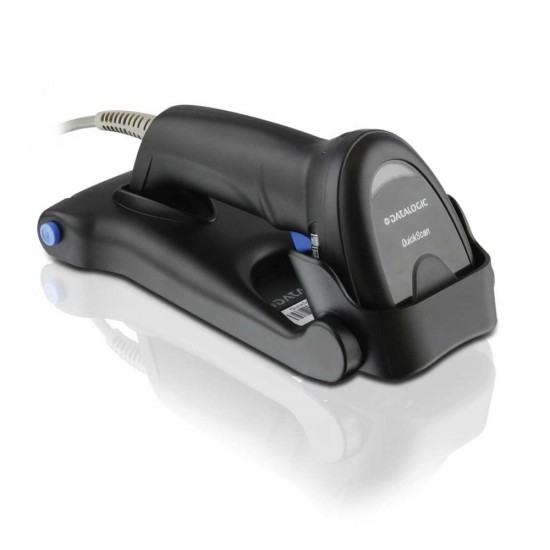

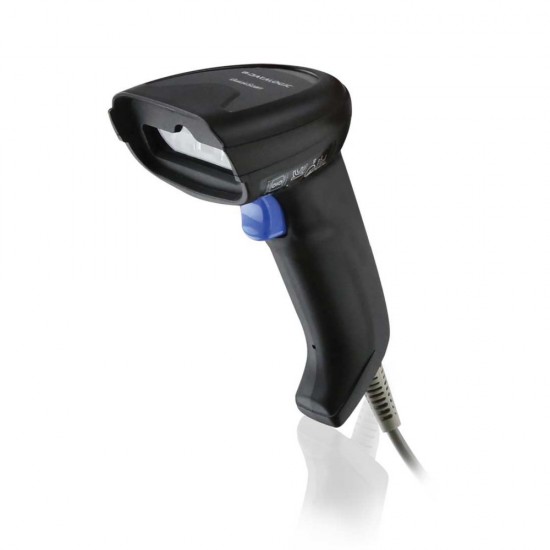

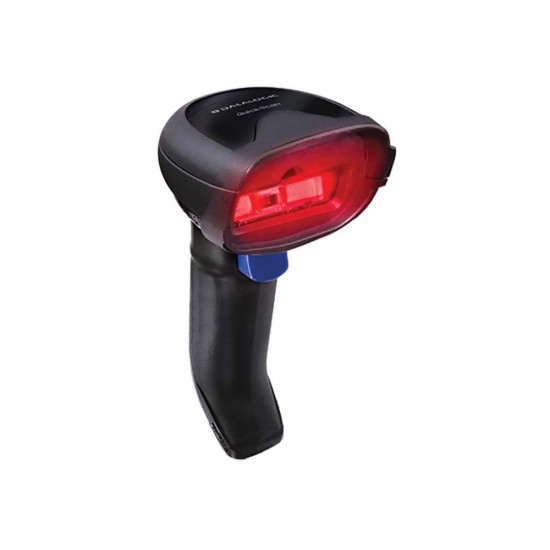

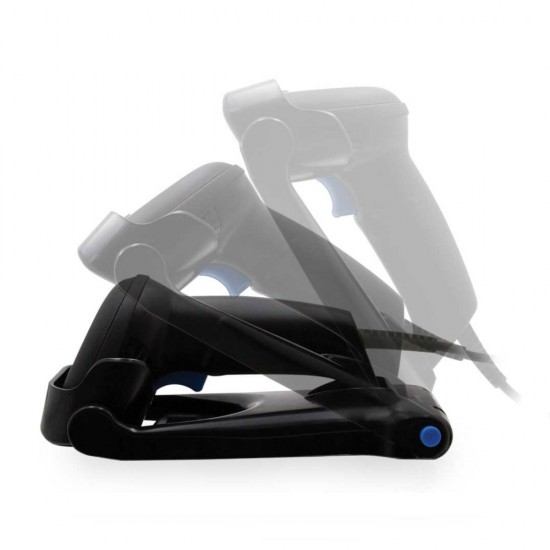

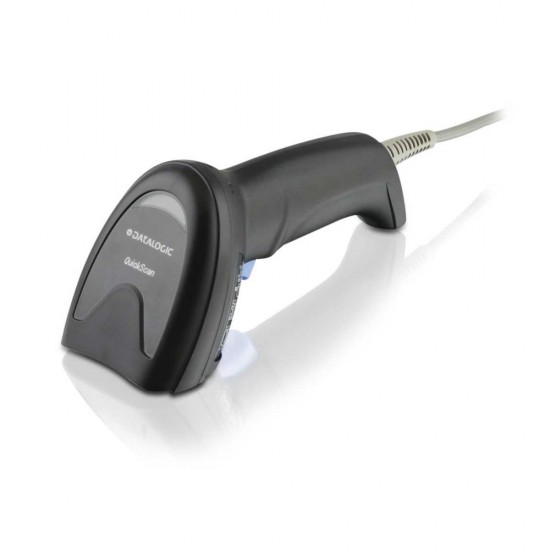

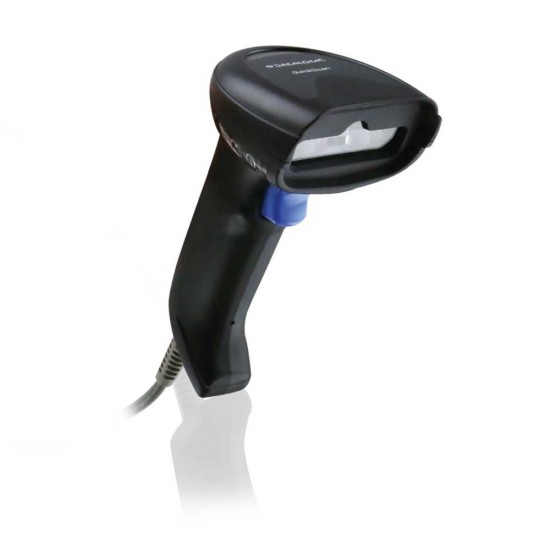

Datalogic QuickScan QD2220 1D, USB KIT, STAND, BLK

The QuickScan QD2200 imager is the 1D entry-level corded imager from Datalogic with a superior scanning performance in its category. It reliably reads any type of 1D barcode from up close to a distance with ease in capturing long bar codes. Unlike other devices on the market, this imager provides full control to the operator, from the linear aiming to the most prompt visual and audible good-read feedback. It seamlessly reads through plexiglass barriers and can scan electronic coupons from smartphone screens. Ideal for Retail - Point of Sale: Checkout, loyalty cards and electronic coupons. Commercial Services: Postal, Banks, Public Administration, Utilities, Laboratories.  Hospitality: Ticketing (sporting events, concerts, transportation). Government: Lottery and gaming.


Specifications

Scanners
Reading mode 1D
Scanning range/ Βάθος πεδίου Code 39: 4 mils: 2.5 to 22.0 cm / 1.0 to 8.7 in Code 39: 5 mils: 2.0 to 30.0 cm / 0.8 to 12.0 in Code 39: 7.5 mils: 1.0 to 45.0 cm / 0.4 to 17.7 in Code 39: 10 mils: 1.0 to 60.0 cm / 0.4 to 23.6 in Code 39: 20 mils: 3.0 to 103.0 cm / 1.2 to 40.6 in EAN/UPCA: 13 mils: 1.0 to 68.0 cm / 0.4 to 26.8 in
Scanning range/ Width of Field 56° +/- 2°
Scan Rate Ρυθμός σάρωσης 1.000.000 pixels/sec (400 reads/sec.)
Resolution 0.077 mm / 3 mils
Dimensions 15.6 x 6.7 x 10.7 cm
Weight 123 gr
Ambient light 120,000 lux
Sealing IP42
Symbologies Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
Additional features Imager Sensor CCD Solid-State. Motion Tolerance 40 IPS. Interface USB. Cable to USB-C connector is available. Input Voltage 5 VDC +/- 5%. Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface. Operating Temperature: 0 to 50 °C / 32 to 122 °F. Storage/ Transport: -40 to 70 °C / -40 to 158 °F. Complies to EU RoHS. 5-Year Factory Warranty.
