MEMOR 30 Mobile Computer

Downloads

File	Size	Download
Datalogic_Memor_30-35_DataSheet_EN.pdf	312.53KB	Download

Description
Video

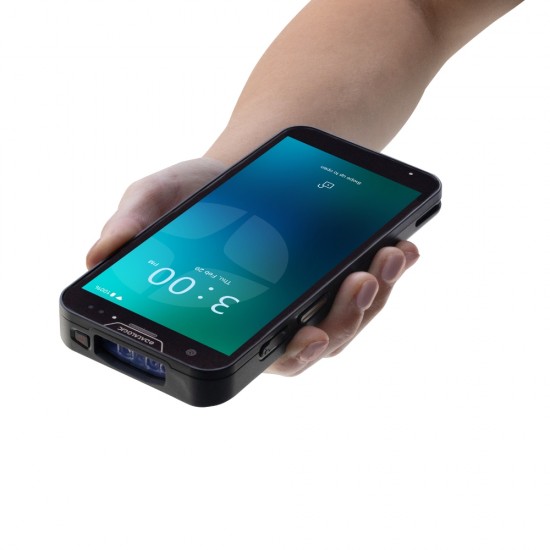

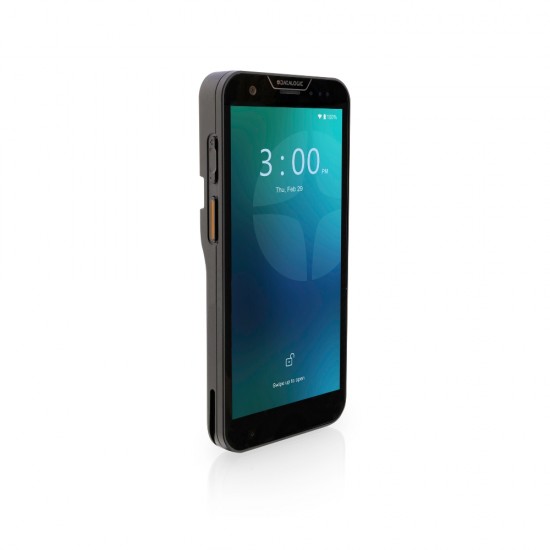

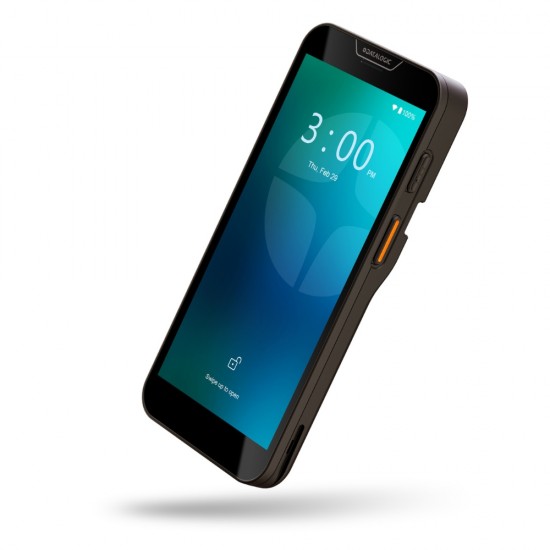

DataLogic MEMOR 30 Mobile Computer 2D, USB, Wi-Fi, BLE, AER, GMS, NFC.

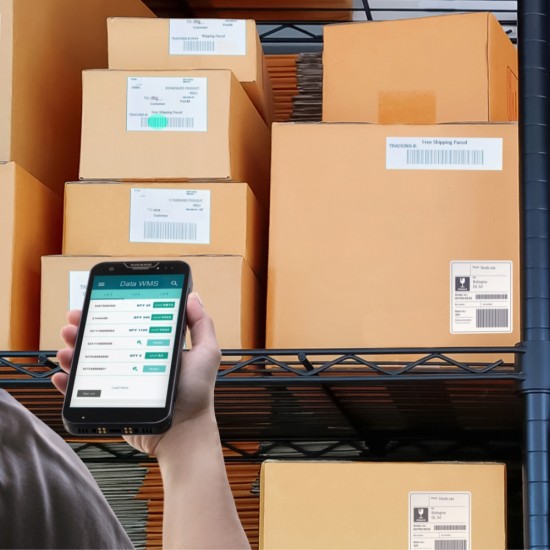

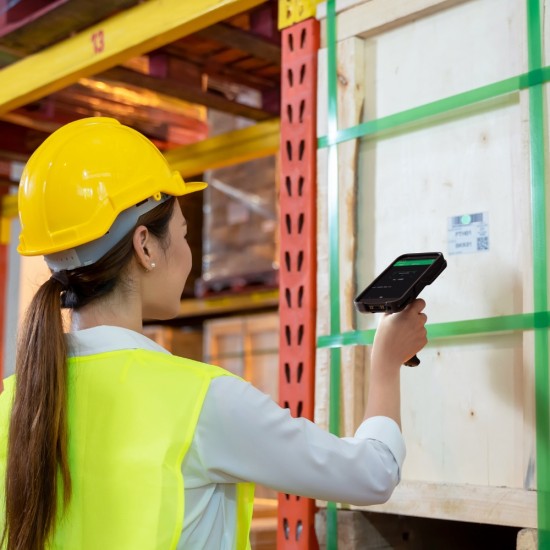

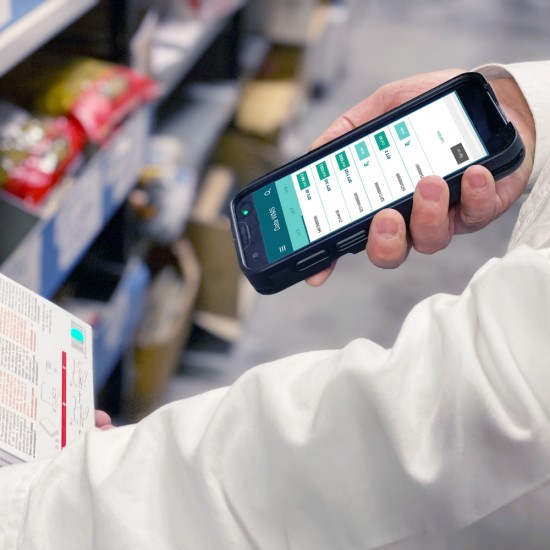

The new Memor 30-35 Family is designed to improve operations in Retail, Transportation & Logistics, and Manufacturing. With large 6-inch screen, brighter display and improved viewing experience that gives workers an easy-to-use tool. A powerful 2.4 GHz octa-core Qualcomm processor is fast enough to run applications at unprecedented speeds, combined Wi-Fi 6/6E and 5G connectivity. Scan Engines and DeepSight™ technology for impressive long-range scanning capability, extending readability from 1.5 m / 4.9 ft to an astounding 10 m / 32.8 ft. Reading capability is further enhanced by the inclusion of a 360° Near Field Communication (NFC) reader. This enables short-range data exchange between devices, making it easy and fast for workers to accept contactless payments without worrying about where they tap their card. Strong focus on security and Android™ enterprise, with Android 13 pre-installed on every model. The devices will receive monthly security updates and patches for supported Android up to Android 18.

MEMOR 30 SR ( Standars Range)

MEMOR 30X LR ( Long Range)

DATALOGIC

Specifications

Mobile Terminals

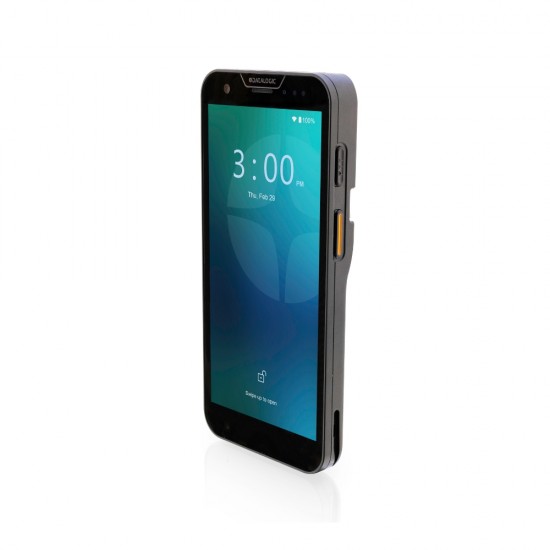

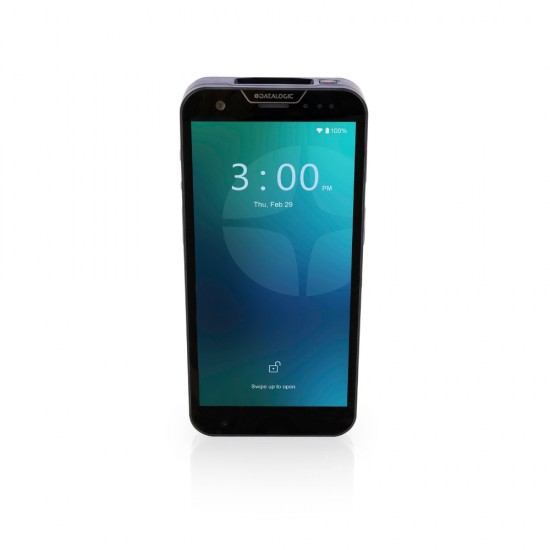

Monitor pda	6 in LTPS in 18:9 format – FHD+ resolution 2160 x 1080; LED backlight; 500 NITS typical. Touch Screen: 5 points multi-touch capacitive panel with hardened Gorilla Glass 5 and optical bonding; Support for gloves and stylus; water drops rejection and anti-fingerprint surface finishing.
Operation System	Android v13 GMS (platform upgradeable to Android 18)
CPU pda	Qualcomm QCx4490 Octa-core 2.4 GHz
Memory pda	System RAM: 6 GB; UFS Flash: 128 GB
Communication	Wi-Fi 6/6E IEEE 802.11 a/b/g/n/ac/ax and 802.11 d/h/i/k/r/v/w/mc;Bluetooth wireless technology v5.2. NFC.
Interface-Ports	High Speed USB 3.2 gen1 Host and Client (Type-C); Super Speed USB 2.0 (Type-C, Bottom I/O)

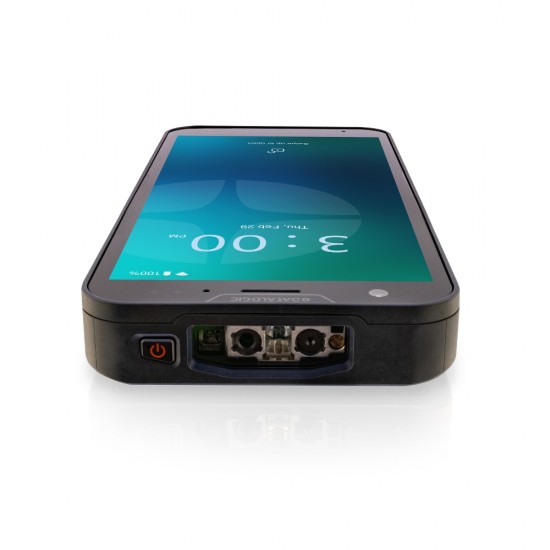

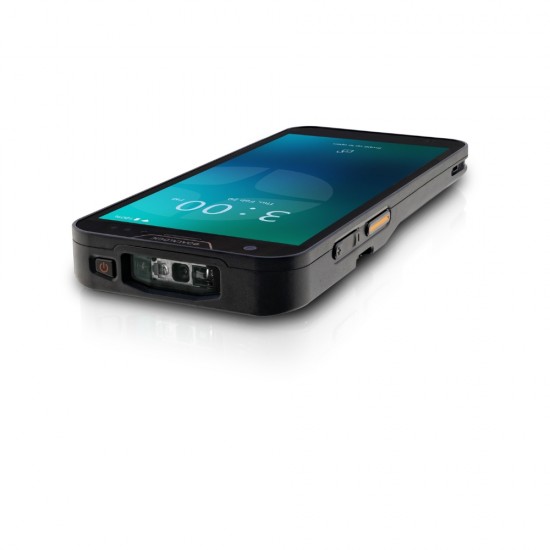

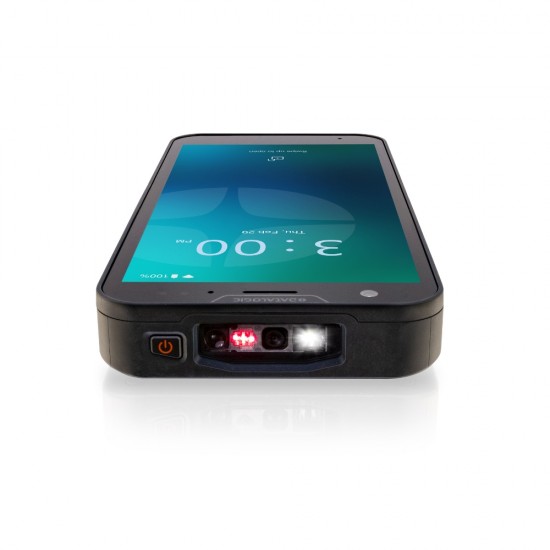

Barcode scanner	Halogen™ DE2121-DL 1D/2D scan engine; Halogen™ DE2121-ER Extended Range 1D/2D scan engine; Datalogic’s ‘Green Spot’ for good-read feedback;
Battery pda	1-piece swappable battery pack with rechargeable Li-Ion batteries; 3.86 V; 4,680 mAh typical (18.0 Watt-hours); ‘Safe Swap’ for application data protection
Keyboard	Physical Keys: 2 side scan keys; PTT key; Power On/Off; Volume Up/ Down; 3 Android soft keys
Resistance	Multiple 1.2/4ft m drops to concrete over operating temp (-20°C to 50°C/-4°F to 122°F) per MIL STD 810 H. With rubber boot Multiple 1.8m/6ft drops. Operating: -20 to 50 ºC. Storage/Transport: -30 to 70 ºC
Dimensions/ Weight pda	167.6 x 78.6 x 17.7mm/ Weight with battery: 314.0gr

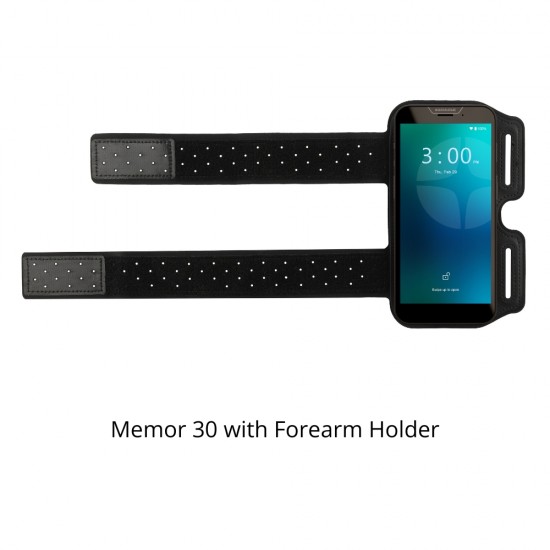

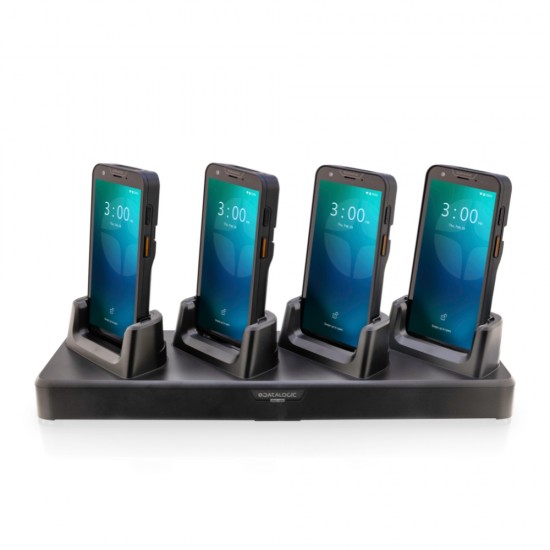

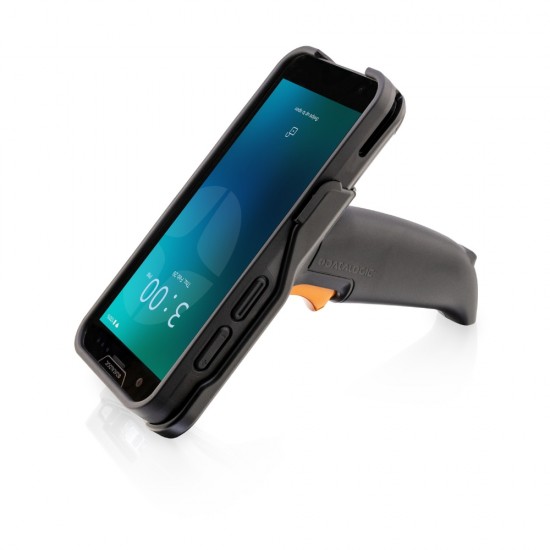

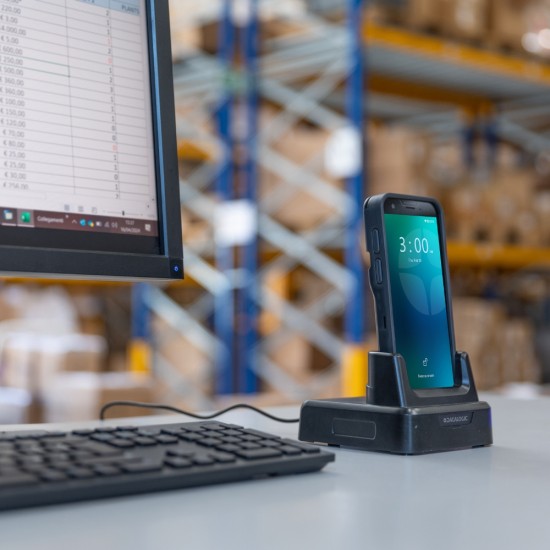

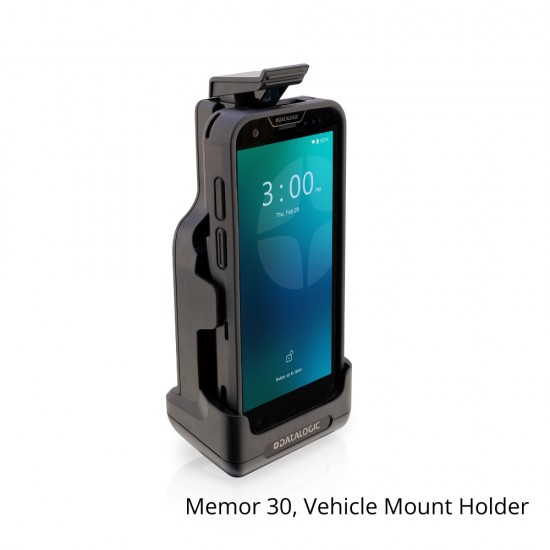

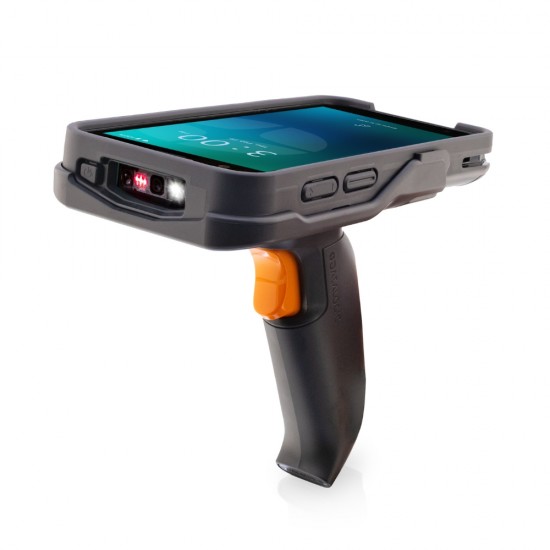

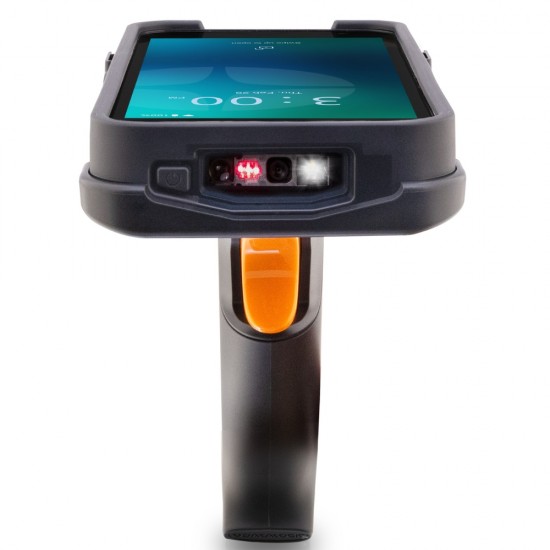

Accessories	Charging Dock (wired or wireless available), 4-Slot Charging Dock (wired or wireless available). Multi Battery Charger. Vehicle Charger. Belt Holster. Hand Strap. Trigger Handle. Wearable Holder
Additional features mobile terminals	Provisioning: Android Zero-Touch, Android Enterprise QR Code, NFC Bump,EMM Token, DPC Identifier enrollment. UEM/EMM: SOTI MobiControl, VMWare Workspace One, Microsoft Intune, 42Gears SureMDM, Ivanti Neurons, Ivanti Avalanche, and any OEM Config compliant UEM/EMM. Terminal Emulator and PTT Compatibility Highligh: Ivanti Velocity, StayLinked Smart TE, Zello PTT.
