Downloads

File Size Download
DSN-80 Nebula Speed Gate (High Glass) Datasheet-ICS.pdf 1.99MB Download

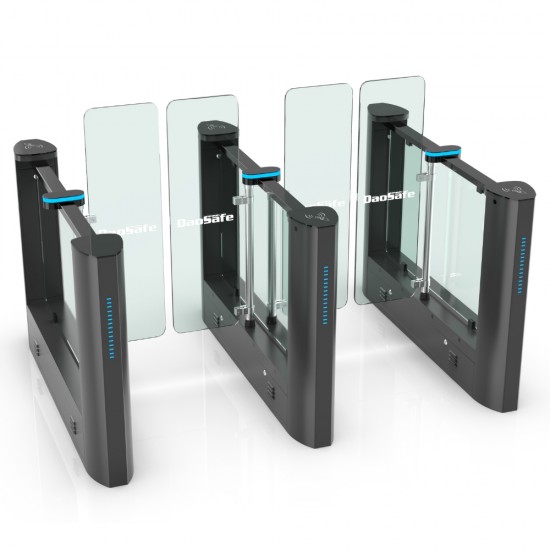

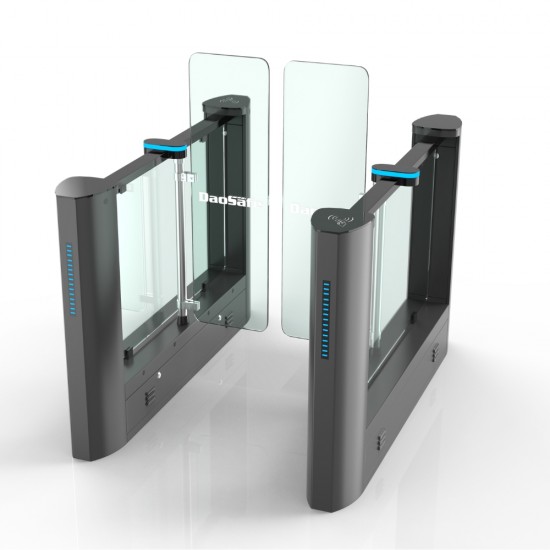

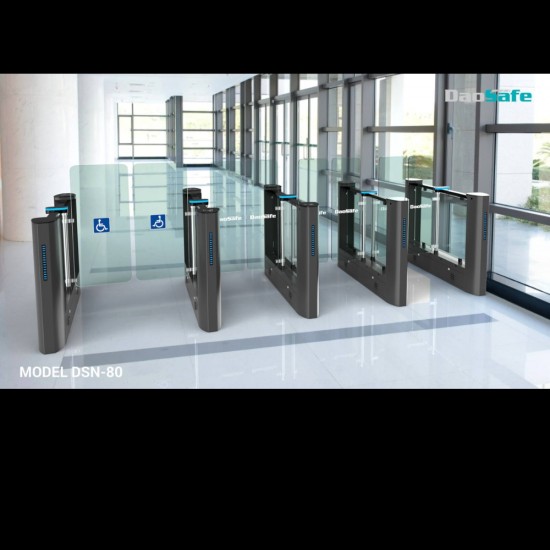

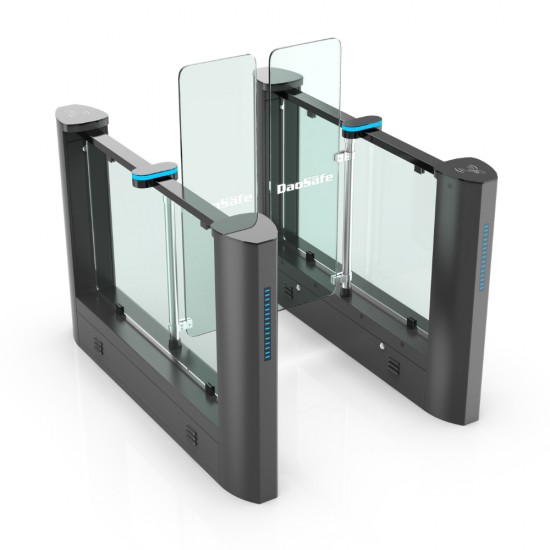

DaoSafe DSN-80 Nebula Speed Gate (High Glass) Waterproof IP65

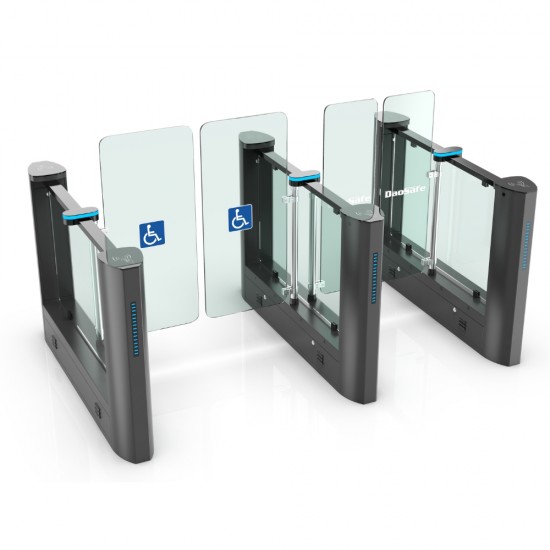

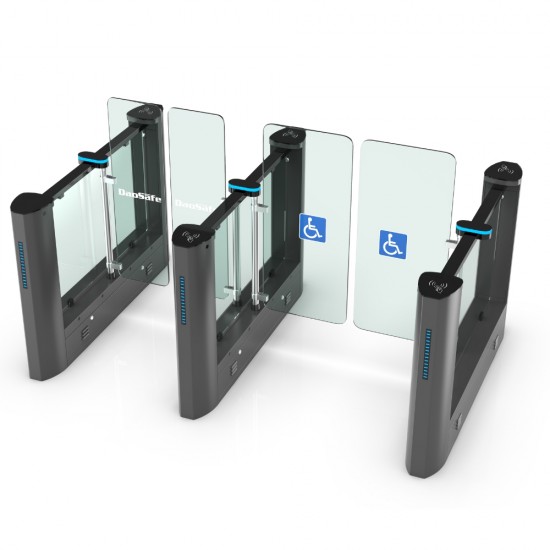

Nebula high glass speed gate outstanding features: fast open and close speed, exceeding slim housing, different height glass arms. The glass arm can be heightened to 1800mm for high security control to prevent unauthorized person from climbing. The passing width can reach to 600mm for normal passage, and can support 900mm arm for wide passageway, wheelchair, and pedestrian with large luggage can also pass. It is ideal for both indoor or outdoor with waterproof design. Nebula speed gate high glass with unique design, stylish of modern and urbanization cabinet, tempered glass swipe card panel, attractive blue LED strip, solid body crate, high-end black painting process. Superior production: Integrated mold production to ensure the high quality guaranteed. Standard relay signal, which can be integrated with any kind of third-party access control system. In case of emergency, the arms will open automatically to allow free passage when power off. Application: suitable for any high-end sites, such as government building, chamber, bank, airport, stadium and so on.



Specifications

Device
Arm Height 1200mm (standard), 900mm-1800mm (optional)
Arm material Plexiglas-transparency (standard). Tempered glass (optional).
Communication Dry contact, Relay signal, RS485
Flow Rate 50-55 people per minute
Food Machine power Power Supply AC220V/110V, 50/60Hz. Operation Voltage 24V DC. Power Consumption 40-70W
Framework Material Steel+ stoving varnish.
MCBF 12 million
Passage Width 600mm (standard), 900mm (handicap)
Food Machine dimensions 1400 x 185 x 990mm
Food Machine Weight 85kg/pcs (single core), 105kg/pcs (double core)
Additional Features of Food Machine Type: Nebula Speed Gate (high glass). Integrate with any access control.LED Indicator. Passing Direction: Single directional / Bi-directional. Emergency: Automatic arm open when power off. Infrared Sensor 6 pairs (standard). Waterproof IP65. Certifications Compliance CE, ROHS.
Operating Temperature Operation Temperature -15°C - 70°C. Operation Humidity 0 ~ 95% (No freeze). Working Environment Indoor / Outdoor (shelter).
