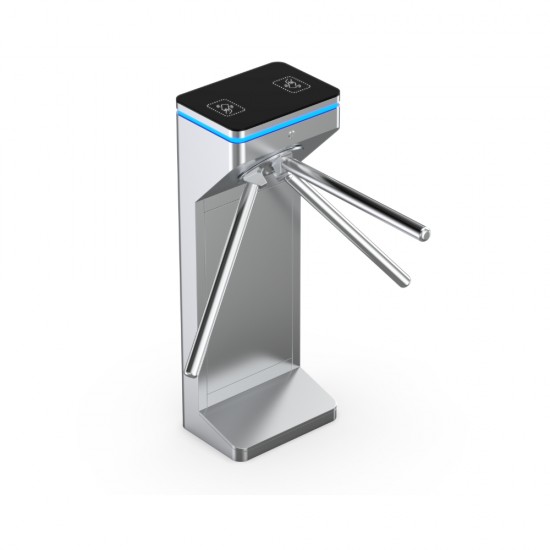

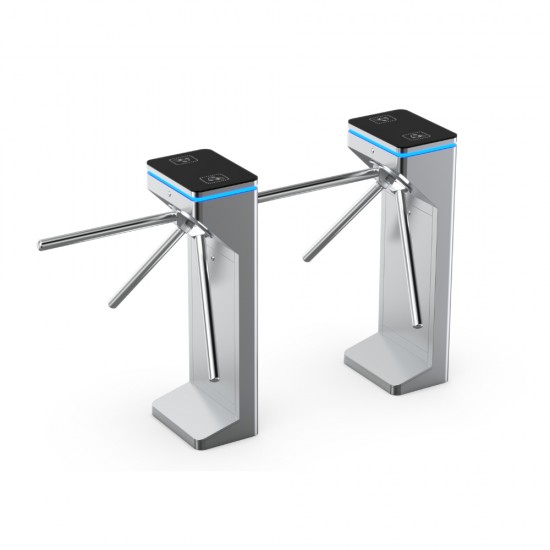

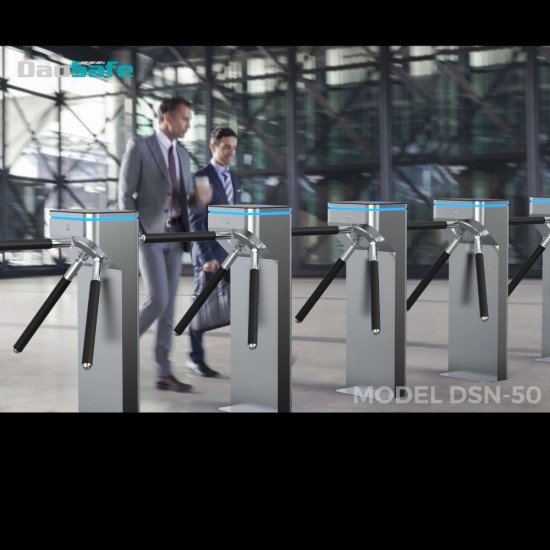

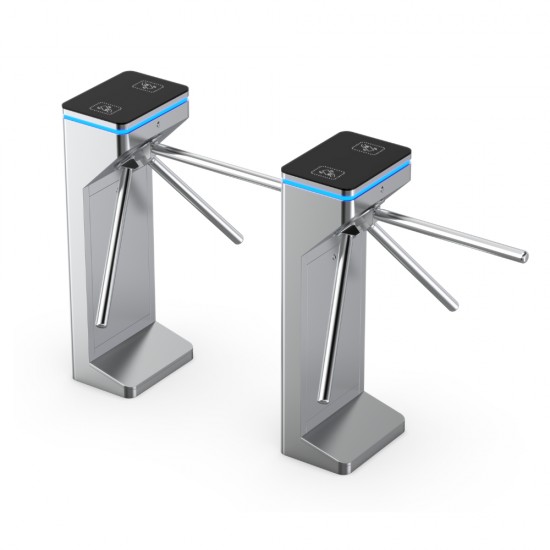

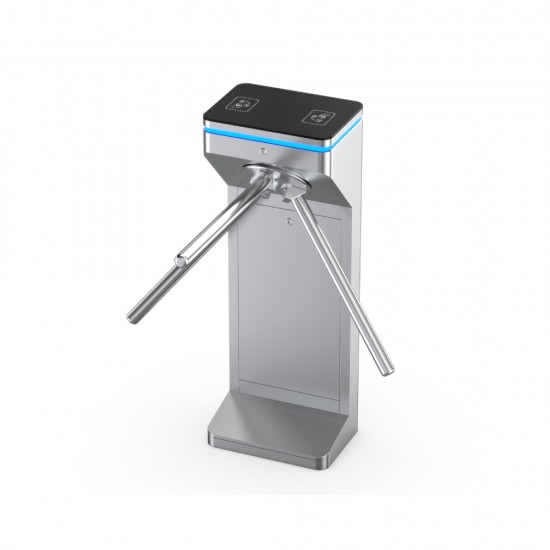

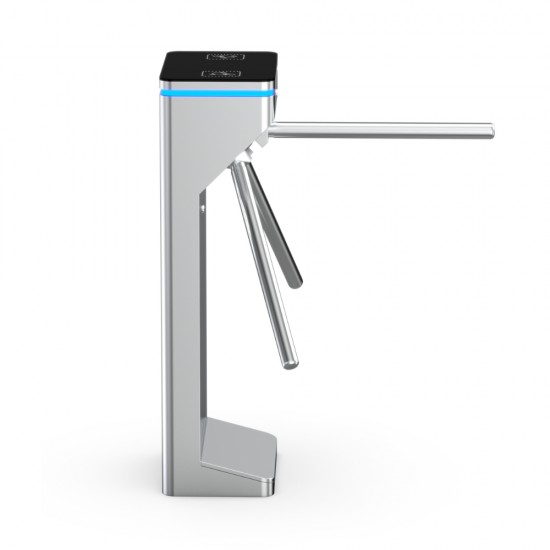

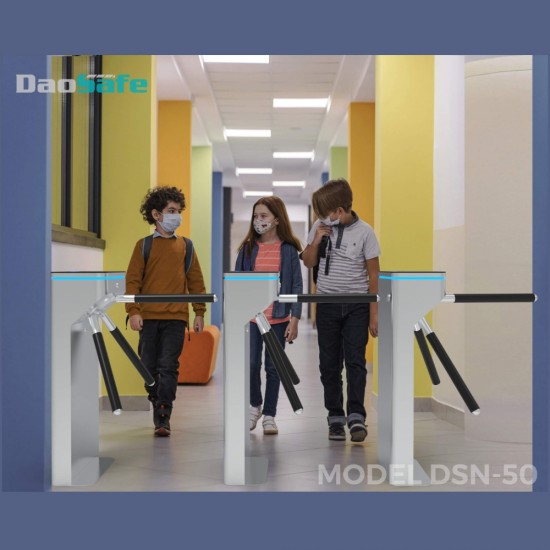

DaoSafe DSN-50 Nebula Tripod Turnstile

DSN-50 Nebula tripod turnstile is the slimmest tripod turnstile, it is cost-effective, exquisite and beauty, only one person can pass at one time, highest security to prevent the illegal trailing. At the top, it’s covered by a high black tempered glass, show up an attractive and impressive character. The full stainless-steel body is surrounded with dazzling decorative LED light bar which bring out an aesthetic and distinctive sense. Two way or one way working. Support integrated with any type of access control systems. Three colors LED Indicator interface: blue for power on, green for valid card access, red for invalid card access. Counter output interface: both entrance and exit can count accurately. The counter support only counts when the person passes through the turnstile, and does not count when the card is swiped but not passed through. Temporary constant opening function: The security guard can press the button once, and multiple people can pass through the turnstile freely. Fire alarm interface: connect to the fire alarm, and the door will automatically open. RS485 communication interface. Easy to install and maintain. 3 years warranty support.



Specifications

Device
Arm material 304 Stainless Steel (Black rubber protector is optional)
Communication Dry contact, Relay signal, RS485
Flow Rate 35 people per minute
Food Machine power Power Supply AC220V/110V, 50/60Hz. Operation Voltage 24V DC. Power Consumption 40W
Framework Material Main Framework Material 304 brushed stainless steelHigh end black tempered film glass
MCBF 10 million
Passage Width 550mm
Food Machine dimensions 360 x 260 x 980mm
Food Machine Weight 35kg/pcs
Additional Features of Food Machine Type: Nebula Tripod Turnstile. Integrate with any access control.Three LED indicators on top: blue→default, green → valid, red → invalid. Passing Direction: Single directional / Bi-directional. Emergency: Automatic arm open when power off. Certifications Compliance CE, ROHS, FCC.
Operating Temperature Operation Temperature -20°C - 75°C. Operation Humidity 0 ~ 95% (No freeze). Working Environment Indoor / Outdoor (shelter).
