DSN-20 Nebula Optical Turnstile

DSN-20 Nebula Optical Turnstile
DSN-20 Nebula Optical Turnstile
DSN-20 Nebula Optical Turnstile
DSN-20 Nebula Optical Turnstile
DSN-20 Nebula Optical Turnstile
DSN-20 Nebula Optical Turnstile
DSN-20 Nebula Optical Turnstile
DSN-20 Nebula Optical Turnstile
DSN-20 Nebula Optical Turnstile
DSN-20 Nebula Optical Turnstile
DSN-20 Nebula Optical Turnstile
DSN-20 Nebula Optical Turnstile
DSN-20 Nebula Optical Turnstile
DSN-20 Nebula Optical Turnstile
DSN-20 Nebula Optical Turnstile
DSN-20 Nebula Optical Turnstile
DSN-20 Nebula Optical Turnstile
DSN-20 Nebula Optical Turnstile
DSN-20 Nebula Optical Turnstile

Downloads

File Size Download
DSN-20 Nebula Optical Swing Turnstile Datasheet ICS.pdf 1.17MB Download

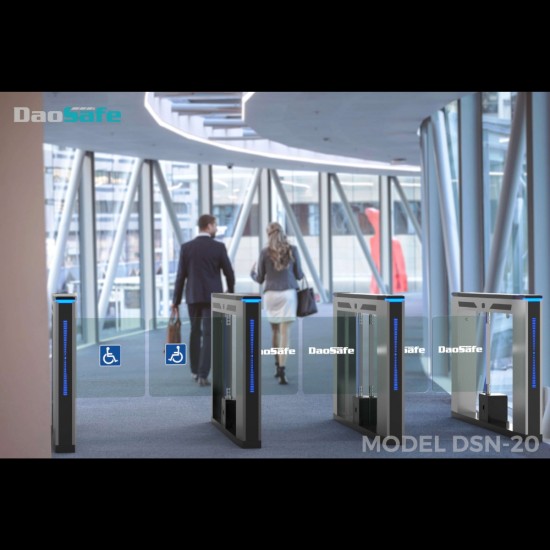

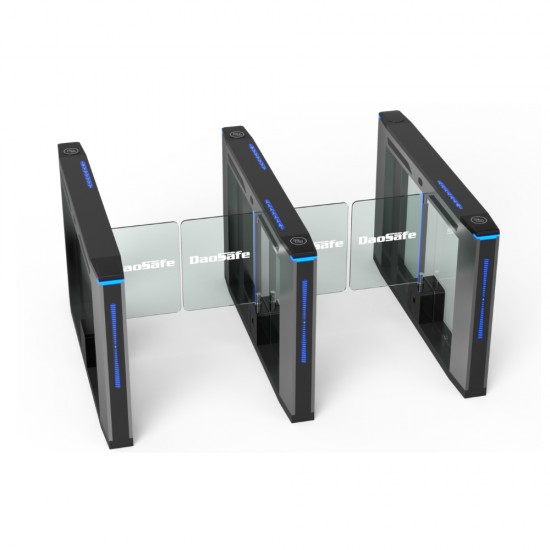

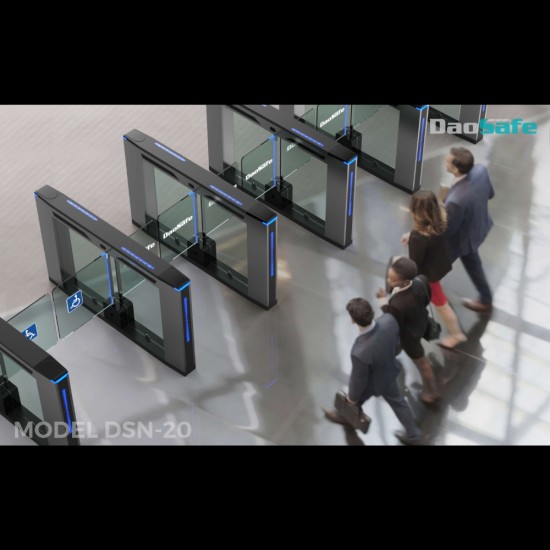

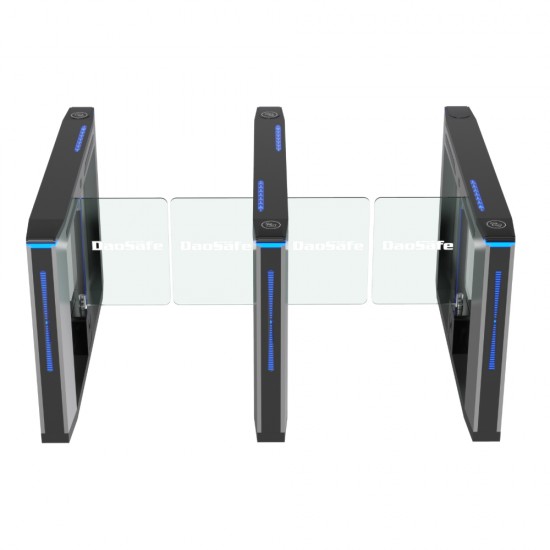

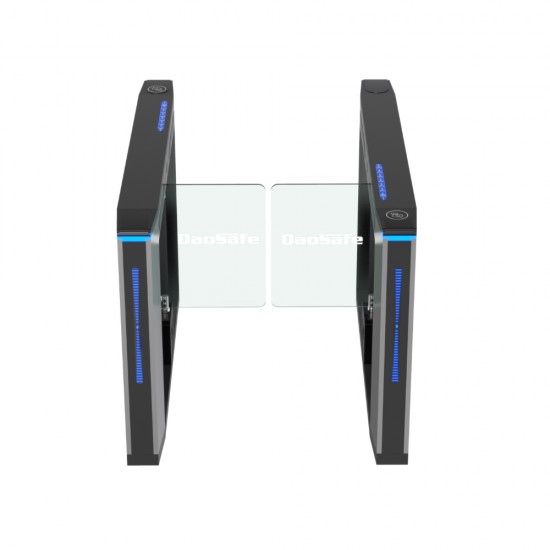

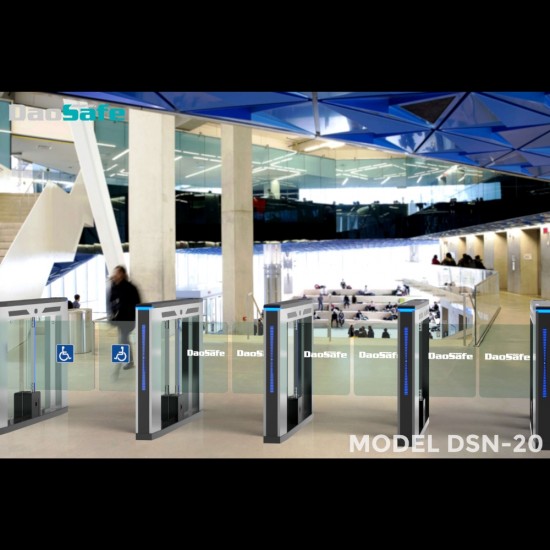

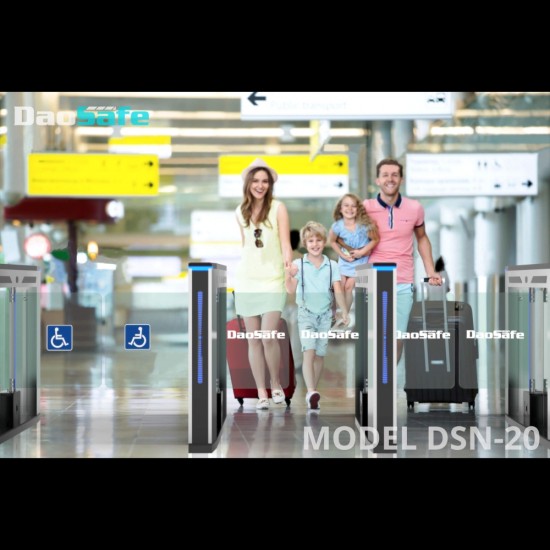

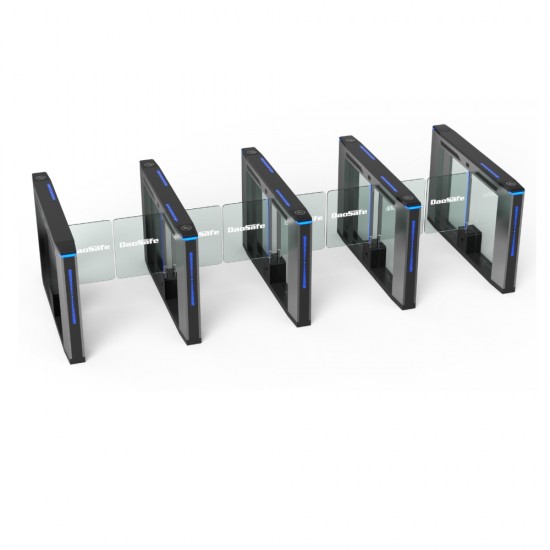

DaoSafe DSN-20 Nebula Optical Swing Turnstile

Nebula optical swing turnstile supports wide passage with width that can reach up to 650mm-1100mm, which is ideal for handicapped person with wheelchair or pedestrians with luggage. With unique design, stylish of modern and urbanization cabinet, typical swipe card panel, attractive blue LED strip, solid body crate, brushed stainless steel and high-end black painting process. Superior and Integrated mold production to ensure the high quality and fined welding with robotic systems in order to improve the high technological level. Ideal for both indoor and outdoor settings. Controls pedestrian entry or exit in restricted areas, usually used in high pedestrian traffic flow in both directions. Features standard relay signal, which can be integrated with any kind of third-party access control system (e.g.: RFID, Fingerprint and Biometric reader device). In case of emergency, the arms will open automatically to allow free passage when power off. It is suitable for areas with general pedestrian traffic (e.g.: Hotel, Gym, Building, Shopping mall, Reception Area and so on).


Specifications

Device
Arm material Plexiglas-transparency
Communication Dry contact, Relay signal, RS485
Flow Rate 40 people per minute
Food Machine power Power Supply AC220V/110V, 50/60Hz. Operation Voltage 24V DC. Power Consumption 90-100W
Framework Material Main Framework Material 304 brushed stainless steel+ High end black painting. Side Framework Material Tempered Glass.
MCBF 10 million
Passage Width 650mm (standard), 1100mm (handicap)
Food Machine dimensions 1600 x 150 x 980mm
Food Machine Weight 75kg/pcs (single core), 95kg/pcs (double core)
Additional Features of Food Machine Type: Nebula Optical Swing Turnstile. Integrate with any access control. Unique blue LED strip (front+ top+ arm) . With 4 pairs (standard) Infrared Sensors. Passing Direction: Single directional / Bi-directional. Emergency: Automatic arm open when power off.
Operating Temperature Operation Temperature -20°C - 75°C. Operation Humidity 0 ~ 95% (No freeze). Working Environment Indoor / Outdoor (shelter).
