DaoSafe DS8000 Cylinder Speed Gate

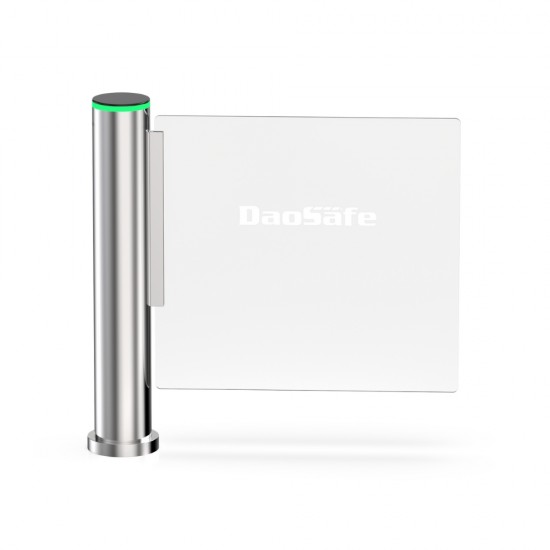

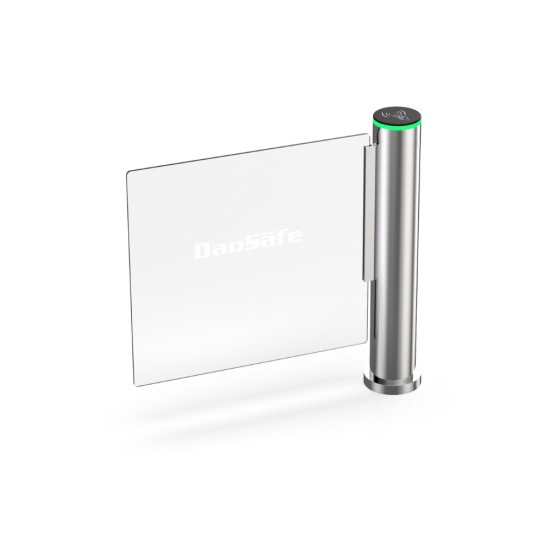

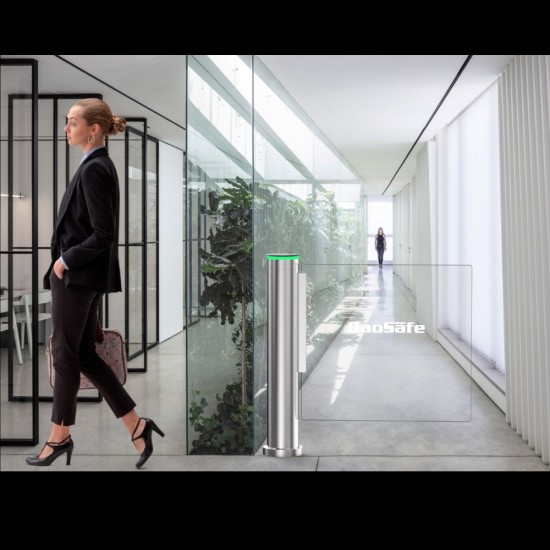

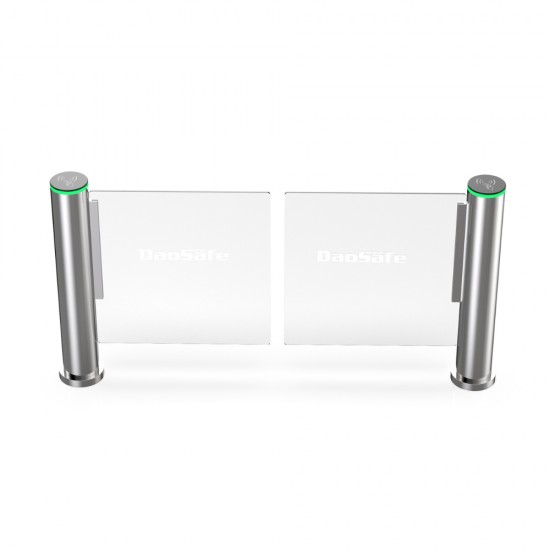

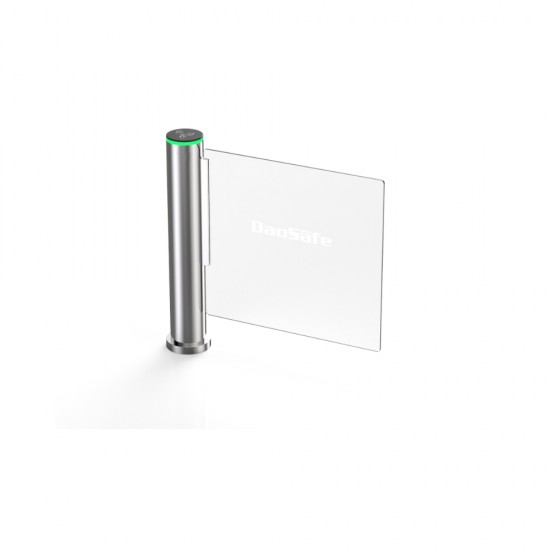

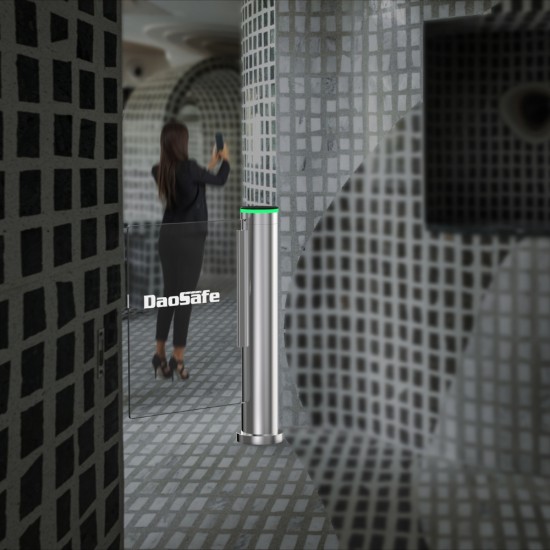

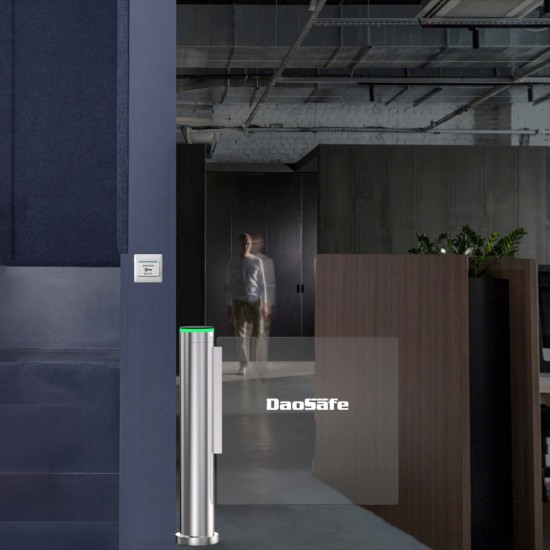

DS8000 Cylinder Speed Gate is very popular and classic type of swing gate, an elegant solution for entrance point like bank, administrative buildings. The cylindrical shape has a diameter of only 168mm, which does not require much space and can be installed in any narrow area. The door is made of a single piece of glass from top to bottom, which makes it very safe and difficult for anyone to jump over or crawl under. The single door can be made up to 900mm width for wide passageway, wheelchair, and pedestrian with large luggage can also pass. The two doors work together can support largest 1800mm width, which allows a large group of people to pass through together without waiting and queueing.


Specifications

Device
Arm Height 900mm(standard)
Arm material Plexiglas transparency
Communication Dry contact, Relay signal, RS485
Flow Rate 35 people per minute
Food Machine power Power Supply AC220V/110V, 50/60Hz. Operation Voltage 24V DC. Power Consumption 40W
Framework Material Cabinet: 304 stainless steel
MCBF 10 million
Passage Width 600-900mm(one unit). 900-1800mm(two units)
Food Machine dimensions 168 x 1000mm
Food Machine Weight 70kg/pcs
Additional Features of Food Machine Type: Cylinder Speed Gate. Flexibility:Integrate with any access control. LED Indicator. Passing Direction: Single directional / Bi-directional. Emergency: Automatic arm open when power off.
Operating Temperature Operation Temperature -15°C - 60°C. Operation Humidity 0 ~ 95% (No freeze). Working Environment Indoor / Outdoor (shelter).
