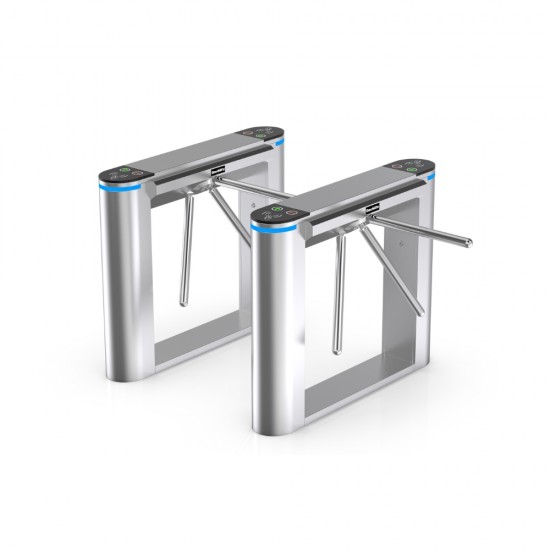

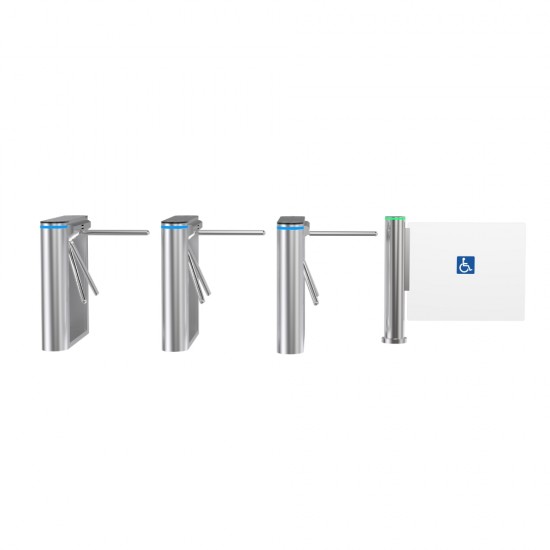

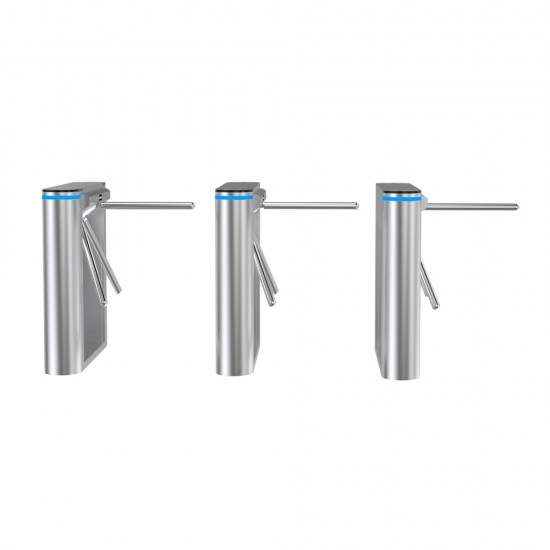

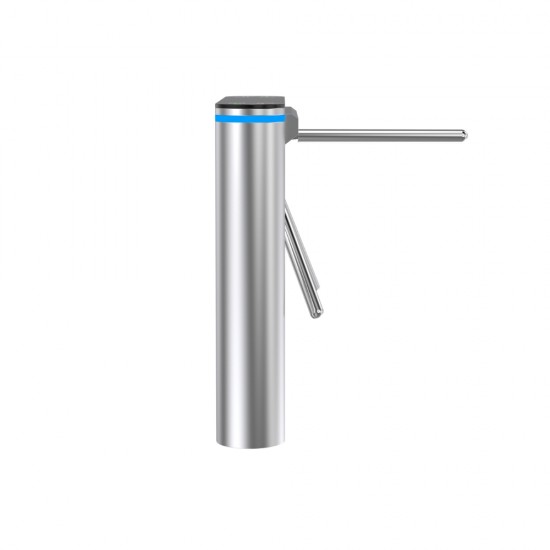

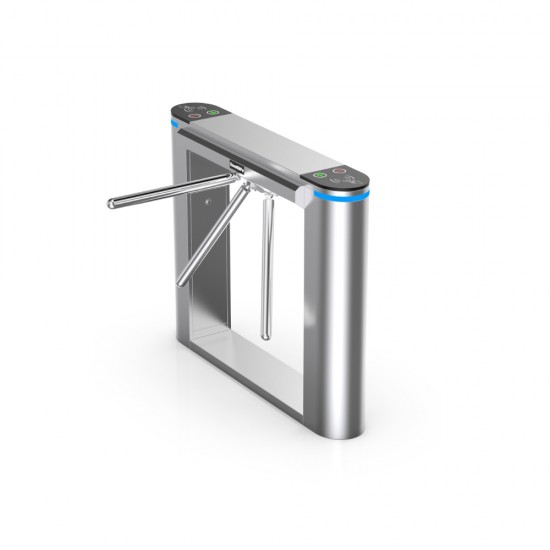

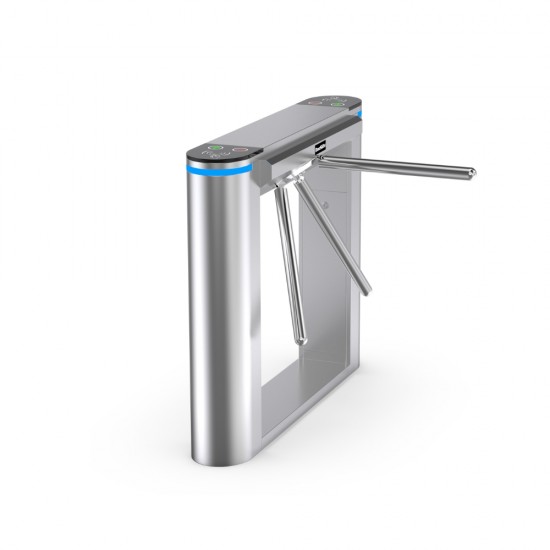

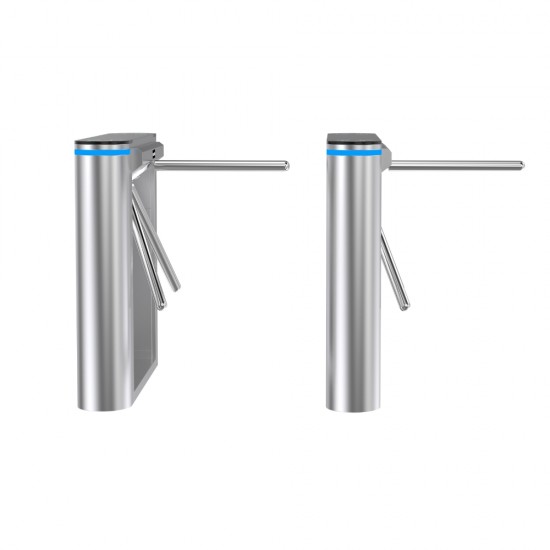

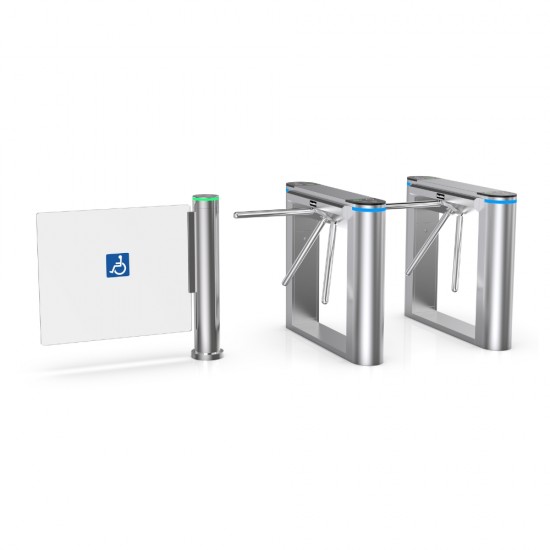

DaoSafe DS112 Tripod Tunstile Gate

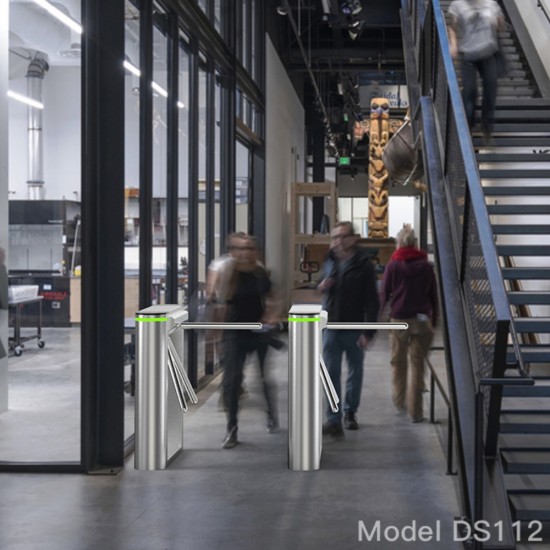

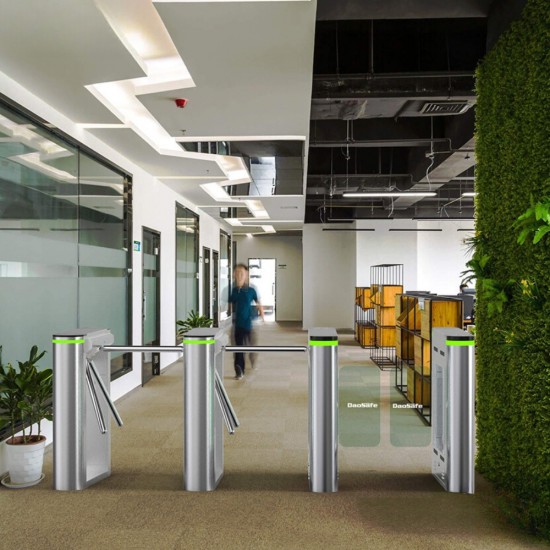

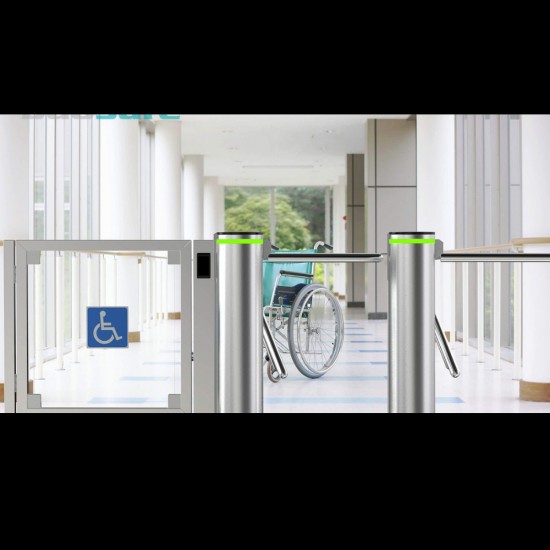

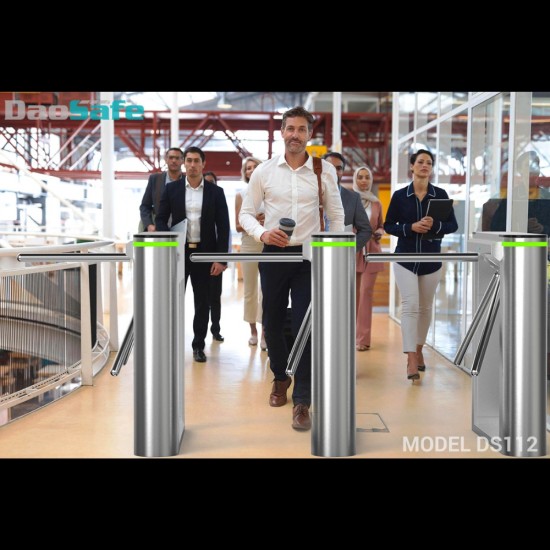

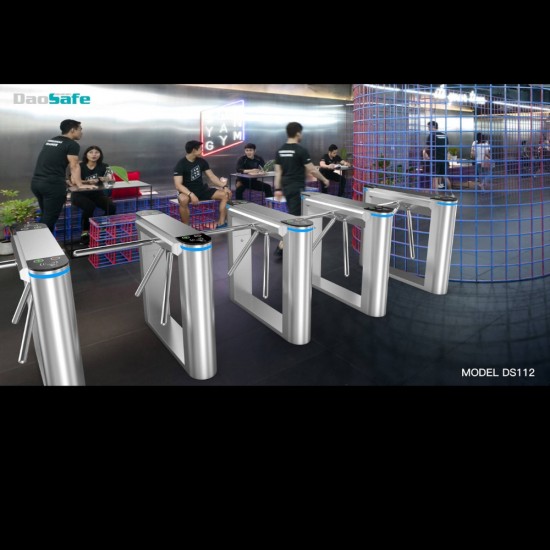

Tripod turnstiles are compact and cost-effective entrance/exit security solutions. The body is made of brushed stainless steel which is robust, rigid, anti-rust, waterproof and durable. It is ideal for both indoor and outdoor settings. It has standard relay signal, which can be integrated with any kind of third-party access control system (e.g.: RFID, Fingerprint and Biometric reader device). It supports any type of external device solution. (e.g.: Display, Counter, Reader, Face recognition, Push button, Card collector, RFID Wristband Collector, Coin insert, Barcode/QR reader, Wheel). In case of emergency, tripod turnstile horizontal arms will drop down automatically to allow free passage when power off. Anti-tailing function: only one person passes at one time. It is suitable for areas with general pedestrian traffic. (e.g.: Park, School, Factory, Library, Cinema, and Gym).


Specifications

Device
Arm material Stainless Steel
Communication Dry contact, Relay signal, RS485
Flow Rate 35 - 40 people per minute
Food Machine power Power Supply AC220V/110V, 50/60Hz. Operation Voltage 24V DC. Power Consumption 20W
Framework Material Cabinet: 304 stainless steel
MCBF 5 million
Passage Width 550mm (Arm length: 500mm)
Food Machine dimensions 1200 x 230 x 980mm
Food Machine Weight 50kg/pcs
Additional Features of Food Machine Type: CyTripod Turnstile. Flexibility:Integrate with any access control. LED Indicator. Passing Direction: Single directional / Bi-directional. Emergency: Automatic arm open when power off.
Operating Temperature Operation Temperature -20°C - 75°C. Operation Humidity 0 ~ 95% (No freeze). Working Environment Indoor / Outdoor (shelter).
