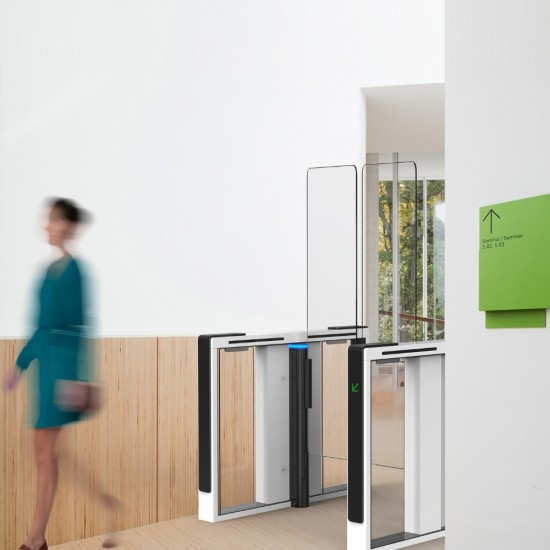

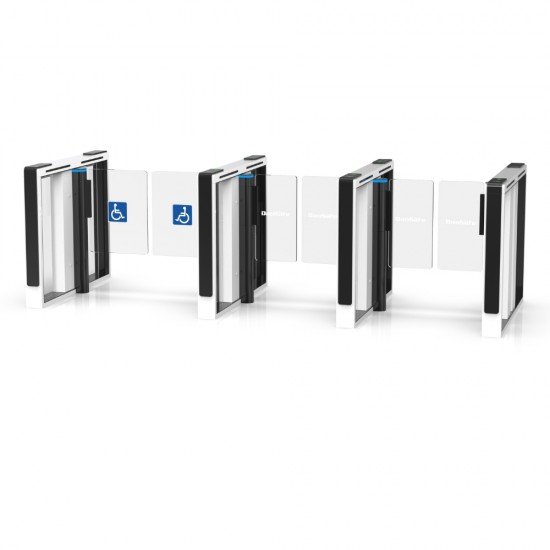

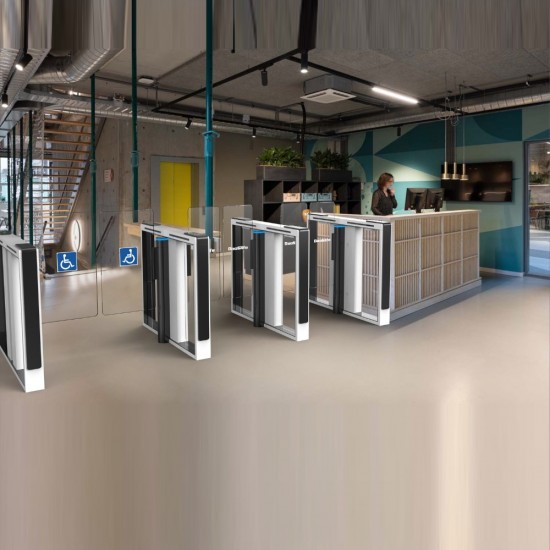

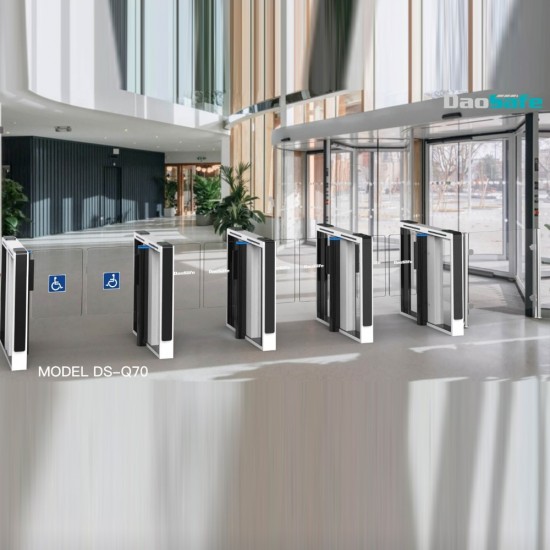

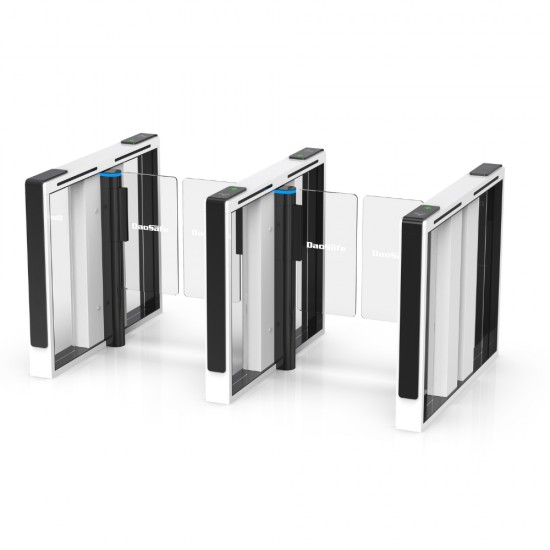

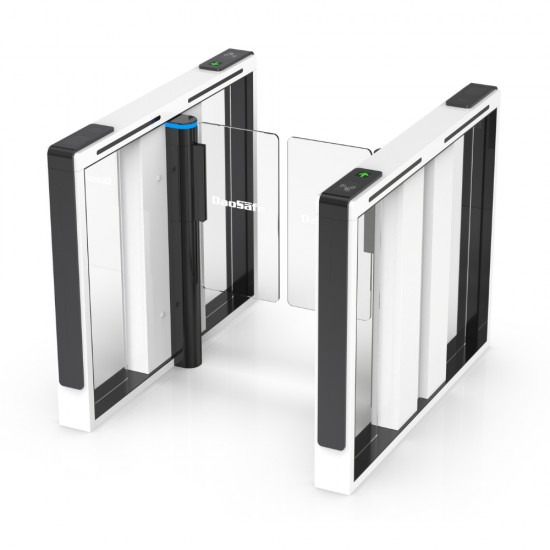

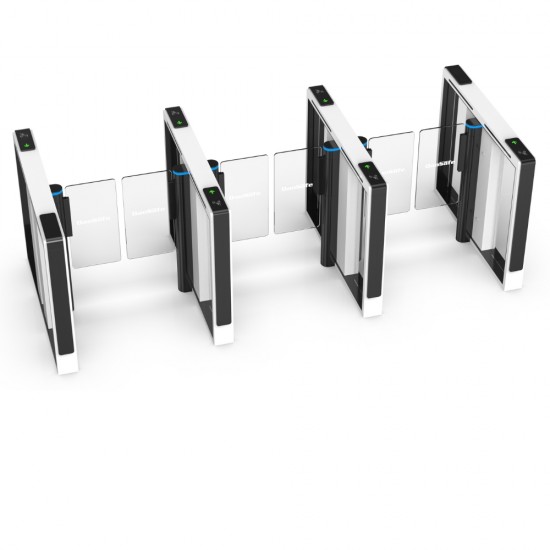

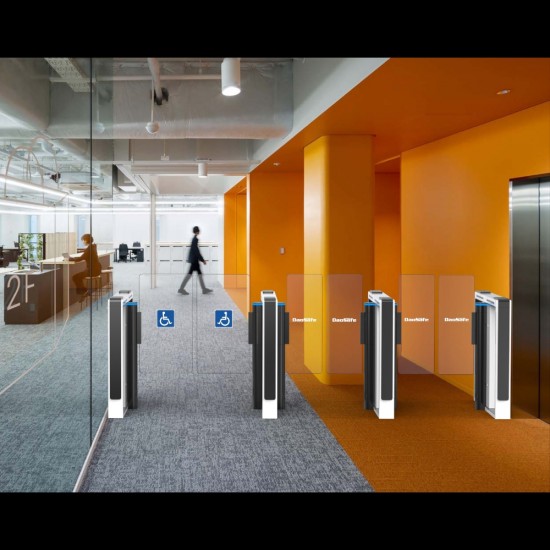

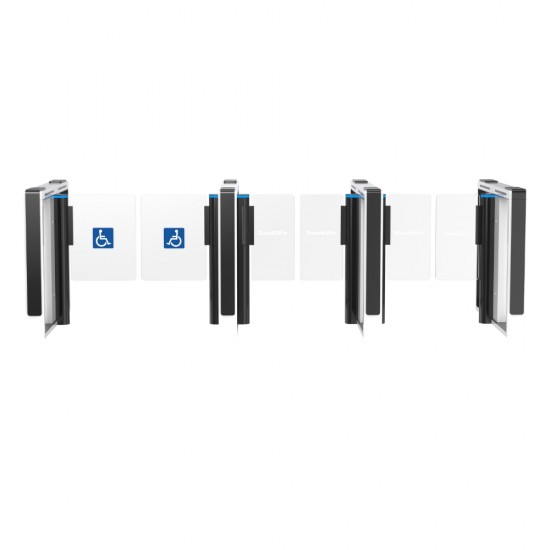

DaoSafe DS-Q70 Quantum Speed Gate

DS-Q70 Quantum speed gate is the fastest open and close speed gate on the market. With 45 persons passing per minute which is perfect for the sites with big visitor’s flow rate. Supporting 600mm-1100mm for wide passageway, wheelchair, and pedestrian with large luggage can also pass. Design with classic black, white color appearance, elegant and timeless pairing, perfect for using at high end applications. Green and red LED indicator display passing status. Fire safety requirements, arms open automatically. Support integrated with any type of access control systems. Logo, appearance color, dimensions can be customized based on installation environment.


DAOSAFE DAOSAFE

Specifications

Device
Arm Height 900mm (standard), 1800mm max. (optional)
Arm material Plexiglas-transparency
Communication Dry contact, Relay signal, RS485
Flow Rate 55 people per minute
Food Machine power Power Supply AC220V/110V, 50/60Hz. Operation Voltage 24V DC. Power Consumption 40W
Framework Material Steel White and black stoving varnish Tempered glass
MCBF 15 million
Passage Width 600mm (standard), 1100mm (handicap)
Food Machine dimensions 1400 x 120 x 978mm
Food Machine Weight 75kg/pcs (single core), 95kg/pcs (double core)
Additional Features of Food Machine Type: QQuantum Speed Gate. Integrate with any access control.Two LED indicators on top: green → entry, red × no entry. Passing Direction: Single directional / Bi-directional. Emergency: Automatic arm open when power off. Infrared Sensor 4 pairs (standard).
Operating Temperature Operation Temperature -20°C - 75°C. Operation Humidity 0 ~ 95% (No freeze). Working Environment Indoor / Outdoor (shelter).
