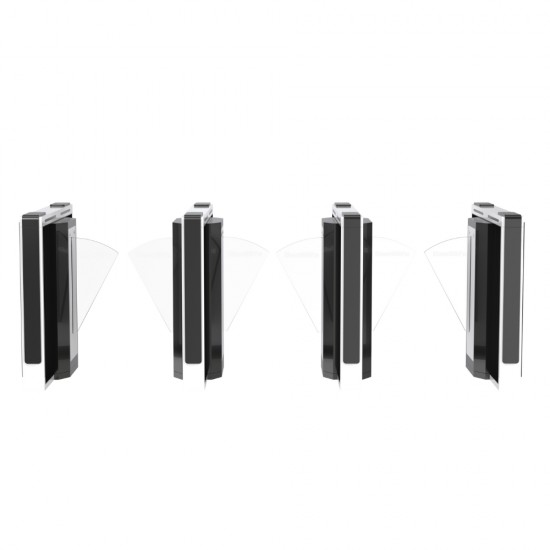

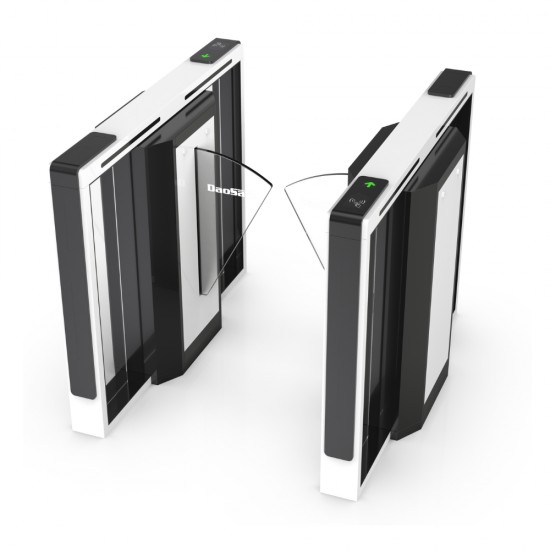

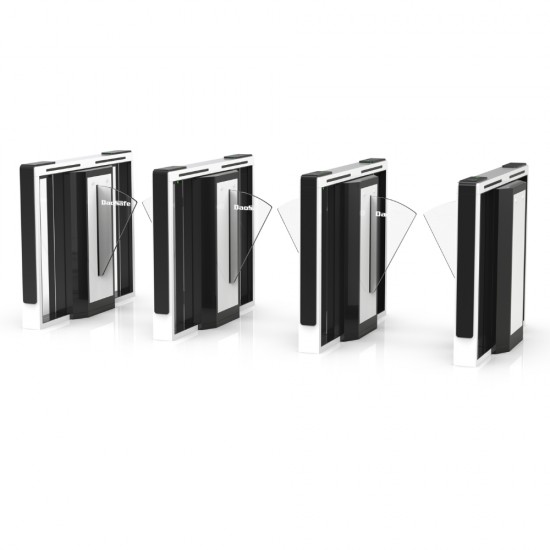

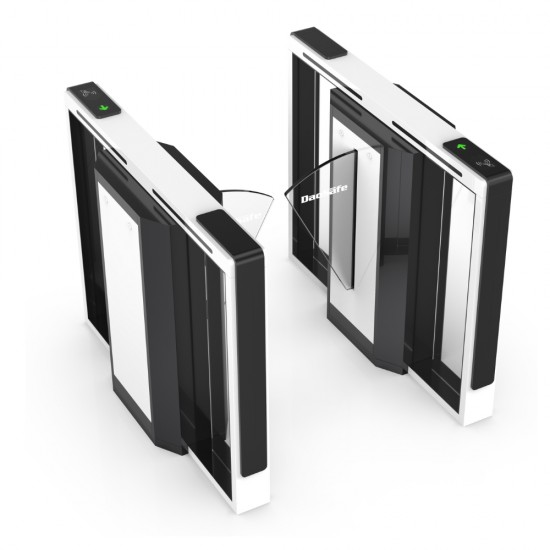

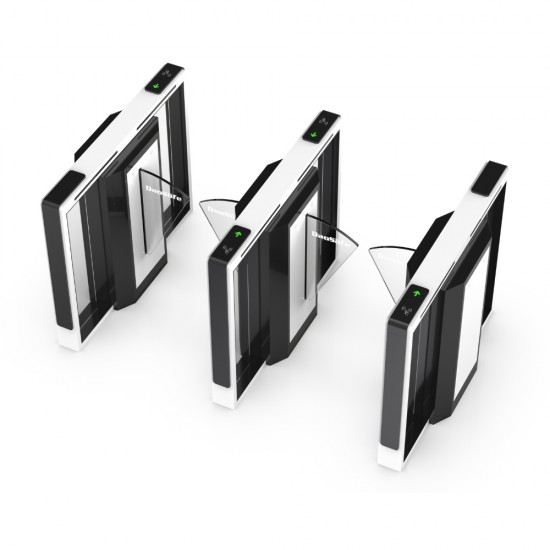

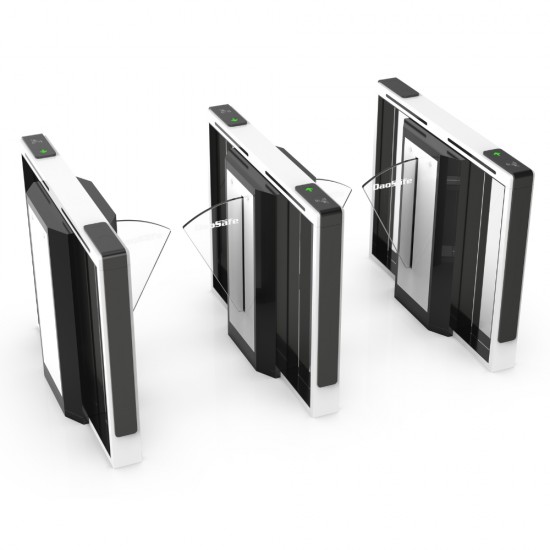

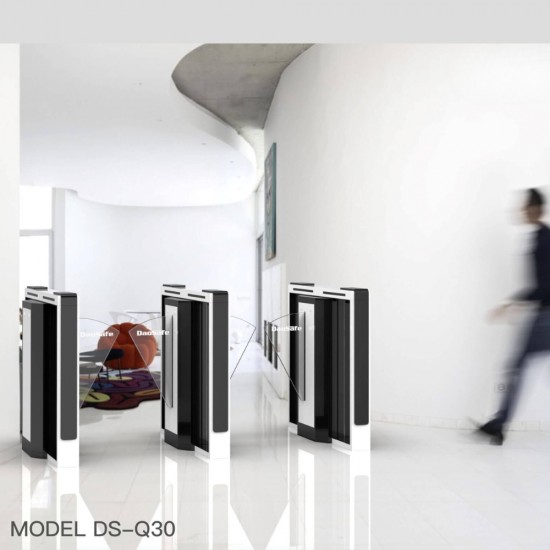

DaoSafe DS-Q30 Quantum Optical Flap Turnstile

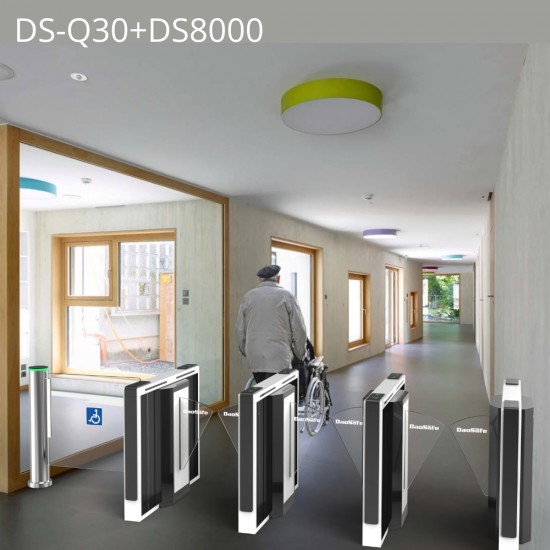

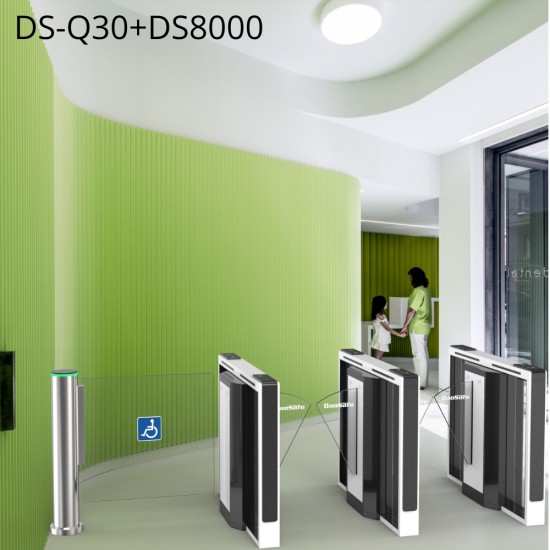

DS-Q30 Quantum optical flap turnstile is the most sturdy and reliable model, with speeds up to 45 persons per minute. Which can be ideal installed at metro, station, office building and other places where vast visitors passing through. Design with classic black, white color appearance, elegant and timeless pairing, perfect for using at high end applications. Green and red LED indicator display passing status. Fire safety requirements, arms retract automatically. Support integrated with any type of access control systems. Logo, appearance color, dimensions can be customized based on installation environment.


DAOSAFE DAOSAFE

Specifications

Device
Arm material Plexiglas-transparency
Communication Dry contact, Relay signal, RS485
Flow Rate 55 people per minute
Food Machine power Power Supply AC220V/110V, 50/60Hz. Operation Voltage 24V DC. Power Consumption 40W
Framework Material Steel White and black stoving varnish Tempered glass
MCBF 12 million
Passage Width 550mm
Food Machine dimensions 1400 x 280 x 978mm
Food Machine Weight 65kg/pcs (single core), 75kg/pcs (double core)
Additional Features of Food Machine Type: Quantum Optical Flap Turnstile. Integrate with any access control.Two LED indicators on top: green → entry, red × no entry. Passing Direction: Single directional / Bi-directional. Emergency: Automatic arm open when power off. Infrared Sensor 4 pairs (standard).
Operating Temperature Operation Temperature -20°C - 75°C. Operation Humidity 0 ~ 95% (No freeze). Working Environment Indoor / Outdoor (shelter).
