CW31 Mobile Computer

CW31 Mobile Computer

Downloads

File	Size	Download
CW31 (1).pdf	582.48KB	Download

Description

Mobile Computer Catchwell CW31

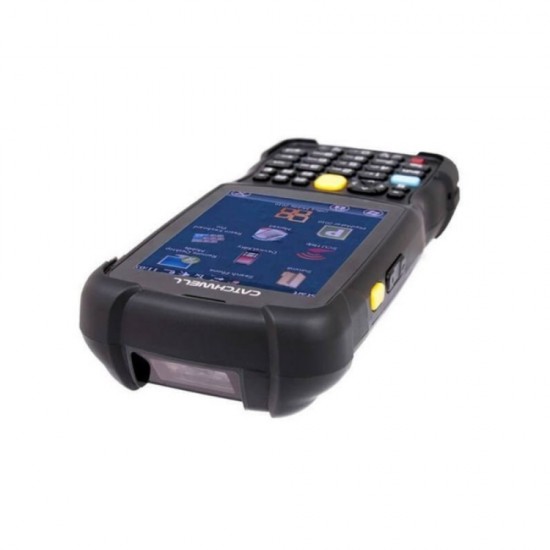

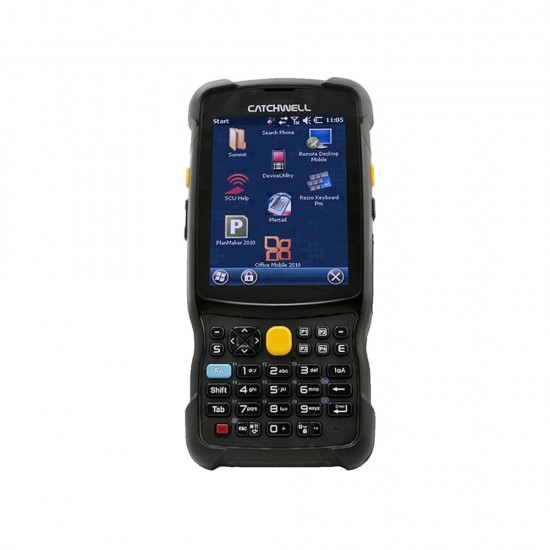

Catchwell CW31 is an elegant, rugged and amazingly compact traditional Windows CE/Windwows Mobile handheld computer that provides a useful technology standards in combination with computing, GPS, communications and data capture technologies in one single rugged device that's still small and light enough to fit into most pockets. With processor Marvell PXA320/806 MHz , scanning capabilities 1D laser or1D/2D CMOS imager. The numeric keypad allows for very rapid data entry. The unit's powerful 17 watt-hour battery provides full-day operation. IP65 sealing, makes the device totally dustproof and can also handle low-pressure water jets from all directions.

CATCHWELL

Specifications

Mobile Terminals
Monitor pda	3.5" Touch, Color TFT, 262k colors /240 x 320 pixels (480 x 640 pixel VGA optional).
Operation System	Windows CE 5.0 or Windows Mobile 6.5
CPU pda	Marvell PXA320/806 MHz
Memory pda	256MB/512MB NAND Flash
Communication	802.11a/b/g/n WiFi, Class 2 Bluetooth v2.1 + EDR, GSM/GPRS/EDGE, UMTS/HSPA+, embedded GPS
Interface-Ports	USB 2.0 client, serial RS232, LAN via cradle, 3.5mm audio jack
Barcode scanner	1D laser or 1D/2D CMOS scanner
Battery pda	Rechargeable Li-Ion 3.7V 4,000 mAH Li-Ion
Keyboard	38-key numeric or 53-key QWERTY
Sealing	IP 65
Resistance	1,8 m-6 foot-drop to concrete (6 sides x 2 = 12 total drops)/ Operating Temp:-4° to +122°F (-20° to 50°C)
Dimensions/ Weight pda	3.1 x 6.4 x 1.4 inches (78 x 163 x 36 mm)/ 12.8 oz. (363g) with standard battery
Accessories	Pick-type Stylus, String, Hand Strap
Additional features mobile terminals	Camera 3-megapixel AF with LED illuminator/ ESD 12KV Air, 8KV Touch/ Card slots:1 micro-SDHC, USIM and SAM slots
