Coin Counter CS-910

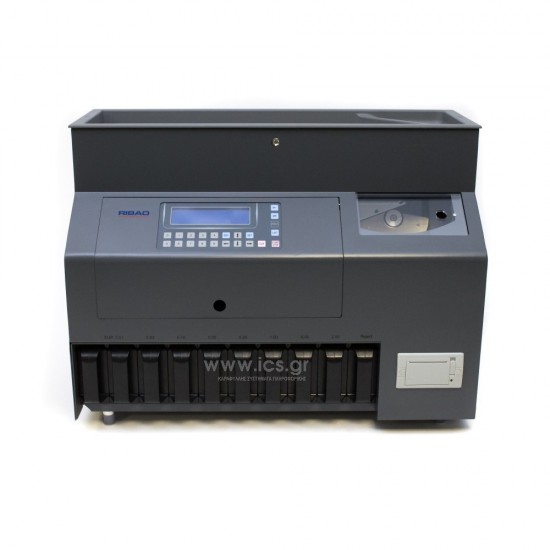

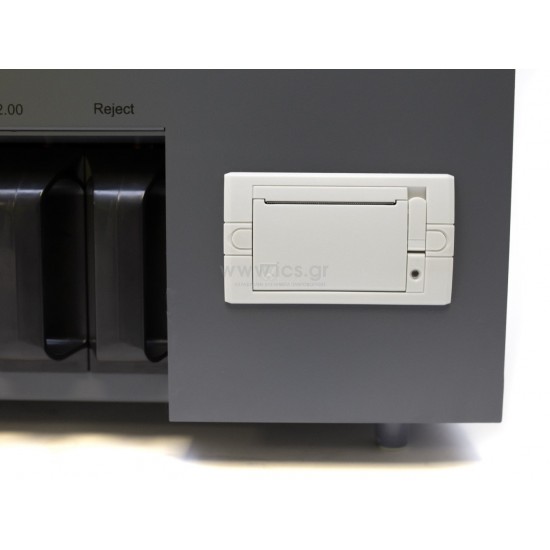

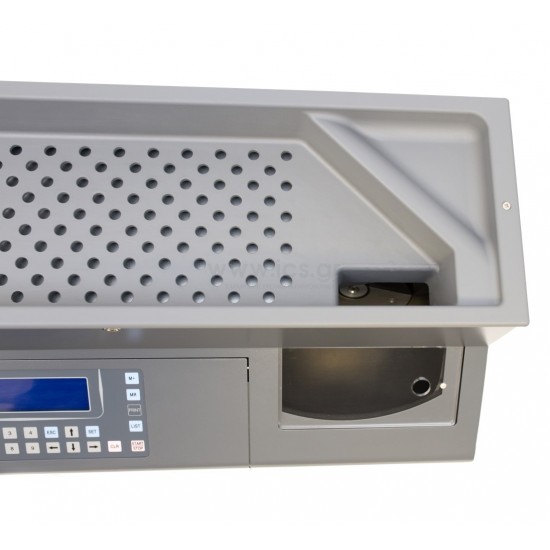

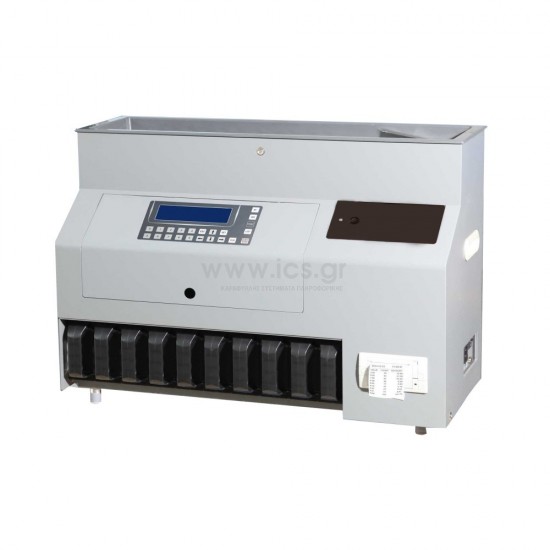

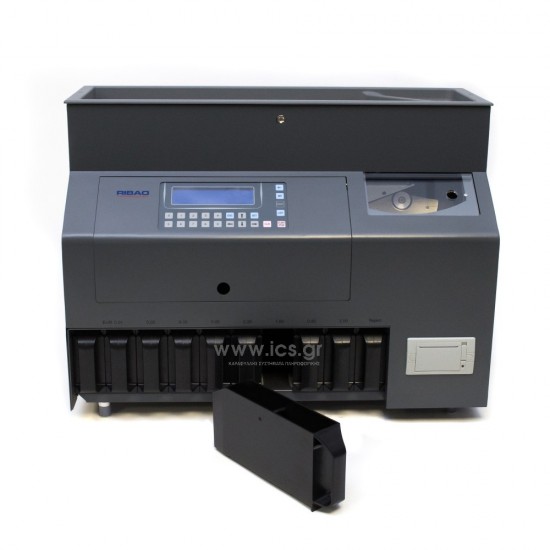

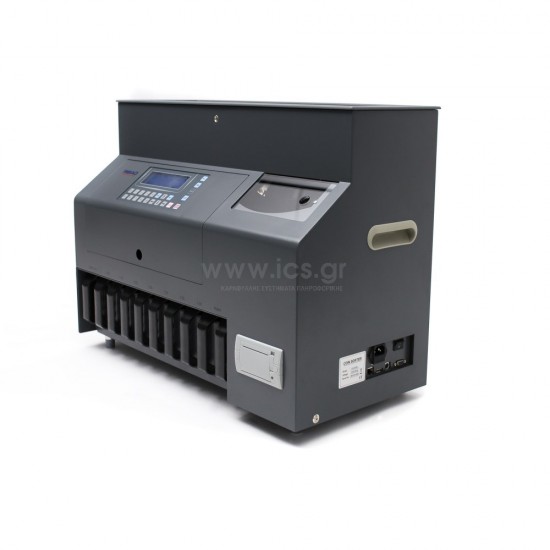

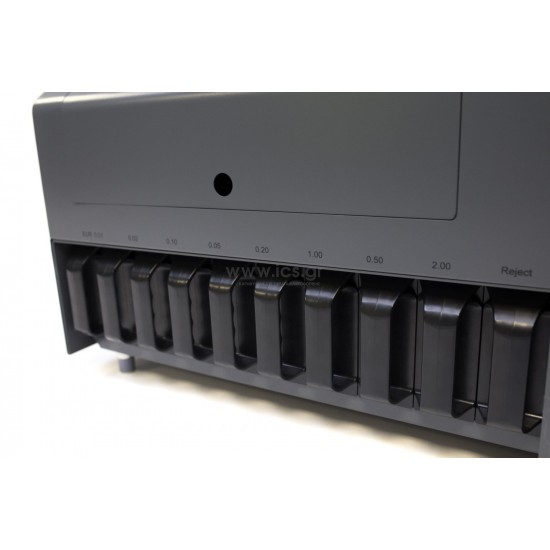

CS-910S+ is a coin counting and sorting machine for sorting of up to 9 denominations and rejecting of foreign coins, counterfeit coins, tokens etc. Customized software for 33 currencies,ideal for counting and sorting large volume coins fast and accurate, approved by ECB. With the standard presorting tray, the hoppper capacity is up to be 3600 coins; and sort out foreign items like clips, screws. The latest alloy sensor technology ensures highest counting accuracy and rejects foreign coins, counterfeit coins, tokens etc. Special noise reduction technology to provide a more comfortable operation environment. Tilt sorting rail is easy for cleaning and maintenance. The software upgrading can be easily done through USB port. If there are new coins issued, the customer only need to “read” the coins with our machine and send us parameters, with the parameters we can modify the software, the users can upgrade the software for machine through USB port very fast. The machine can be connected with PC, external display, external printer and coin tubing sets.






Specifications

Coin Counters
Hopper capacity approx. 3.600coins
Speed coin counter approx .600coins/min
Coins diameter:14~31mm/ thickness: <=3.5mm

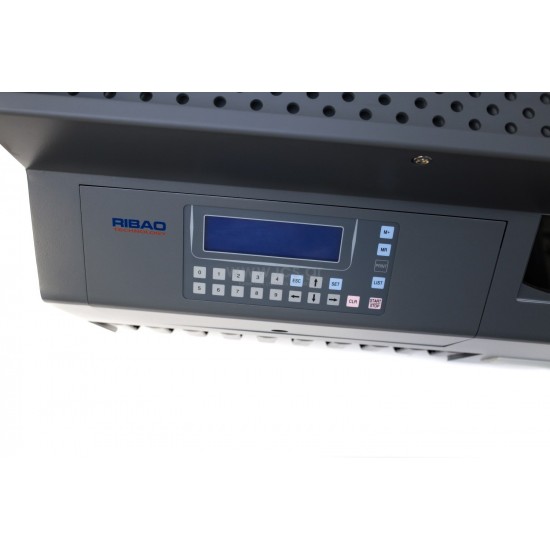

Counter display LCD Display (24064)
Power AC 120V ± 10%, 60Hz or AC 220V ± 10%, 50Hz

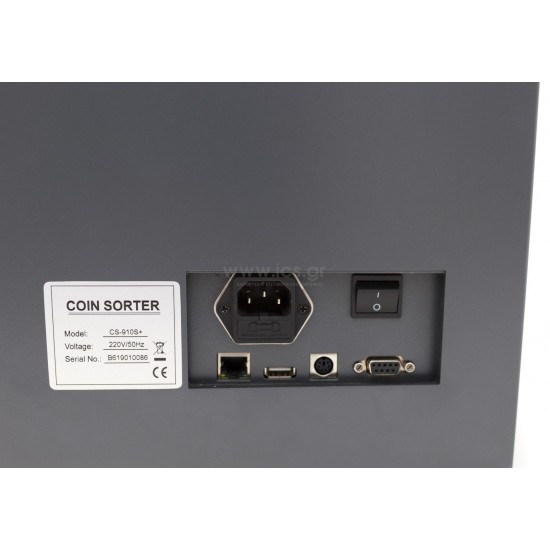

Coin counter Interface PC port: RS232. LAN port: RJ45. External display port: PS2. Software upgrading: USB
Dimensions coin counter 672 × 312 × 511 mm
Weight coin counter 32 KG
Additional features of coin counter 33 kinds of software available/Alloy sensor/ Counting modes: Mixed counting mode, single denomination counting mode, batch counting/ Power consumption: 60W
